PlowMaxx
PlowMaxx comes in 21 sizes, with moldboards from 4.5' to 12'. Built for wheel loaders, skid steers and backhoes.

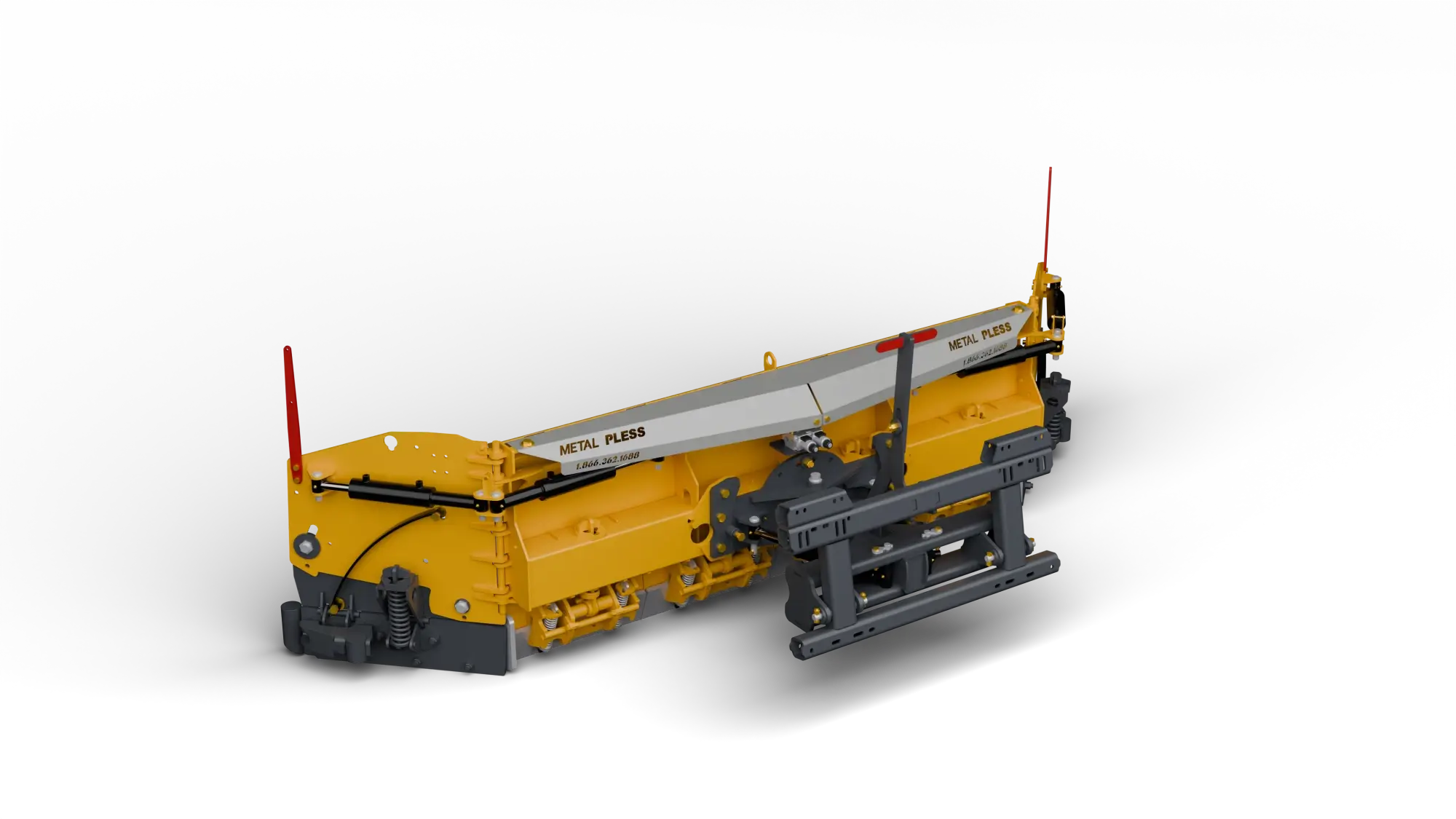

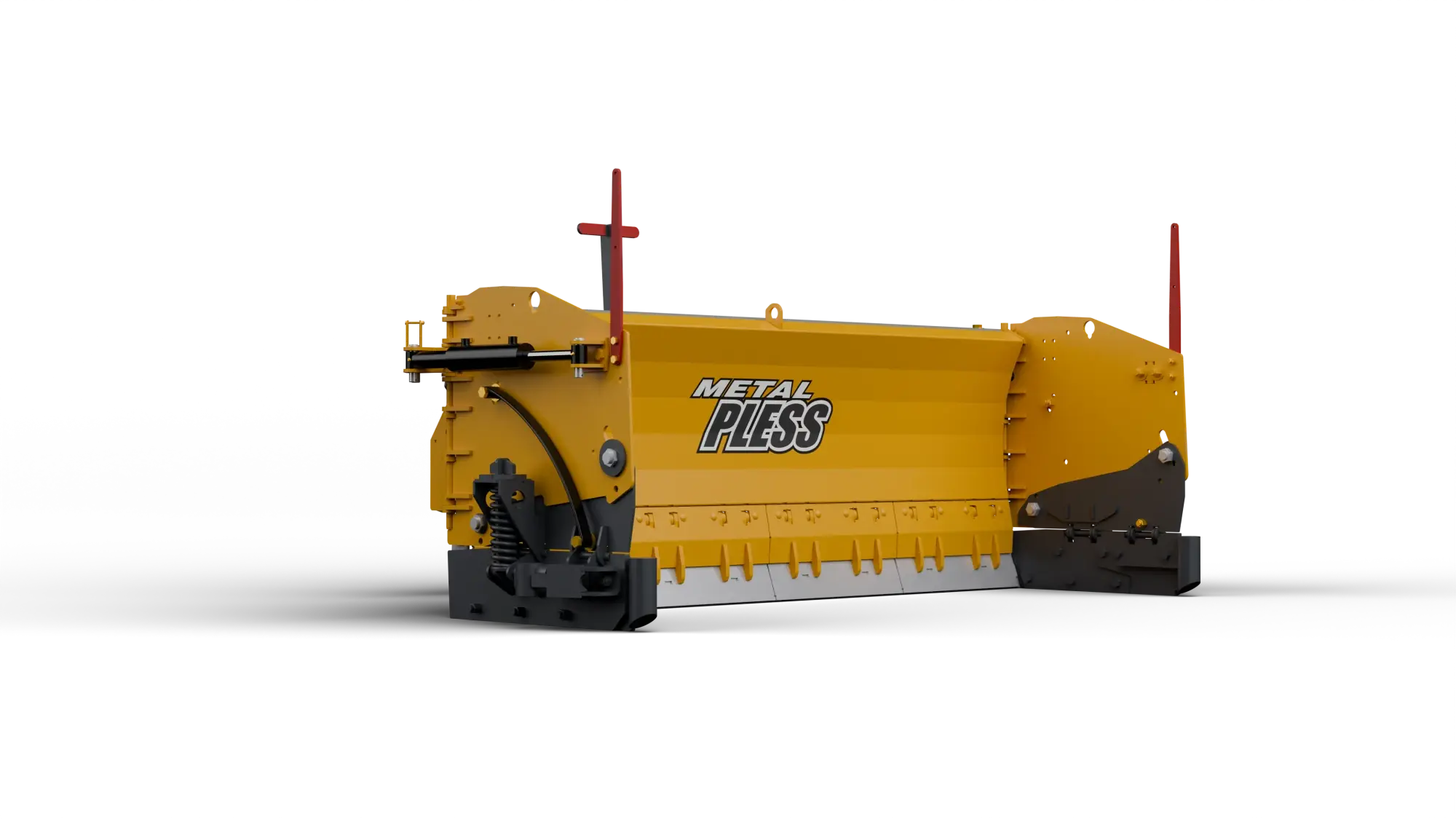

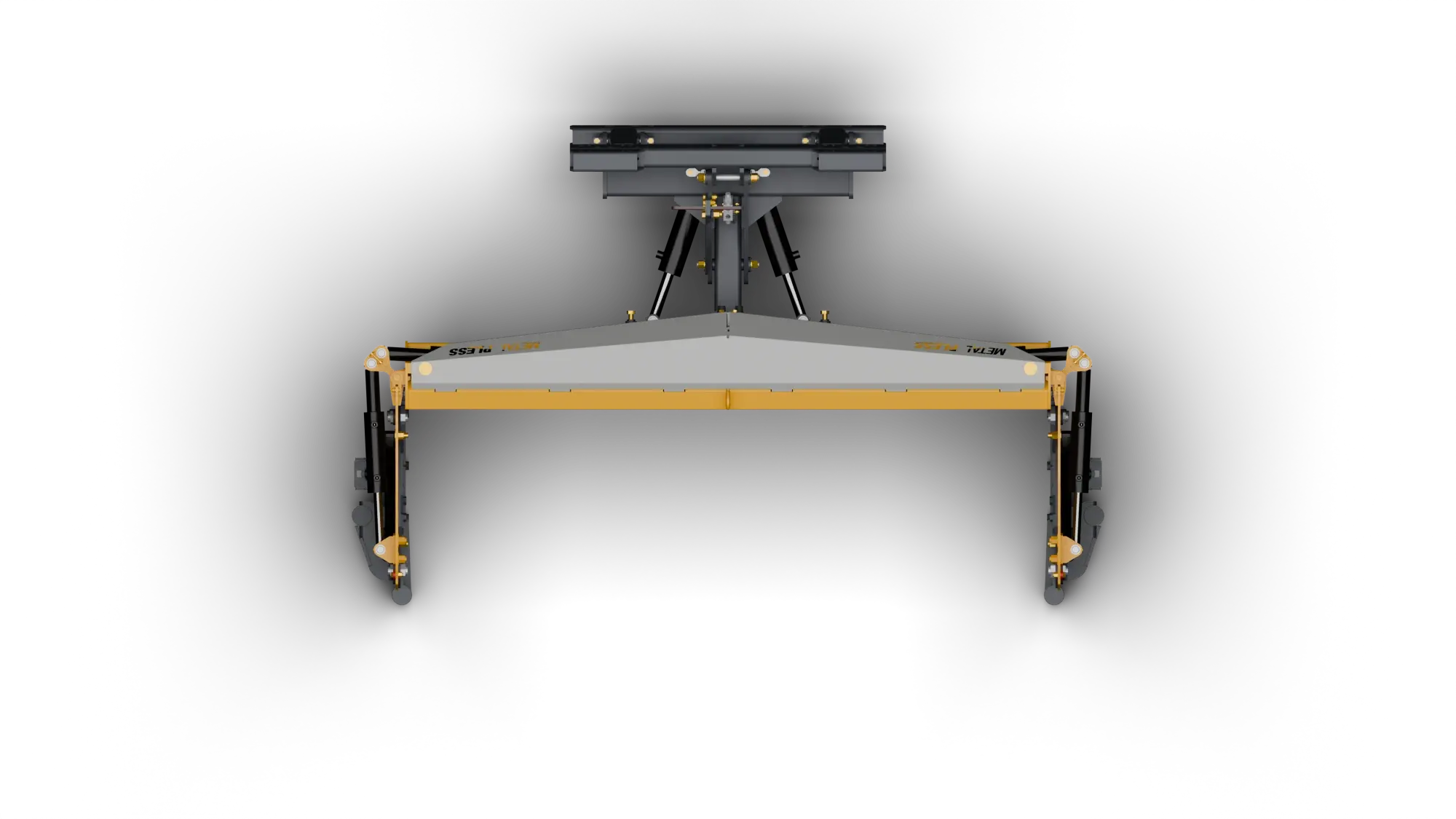

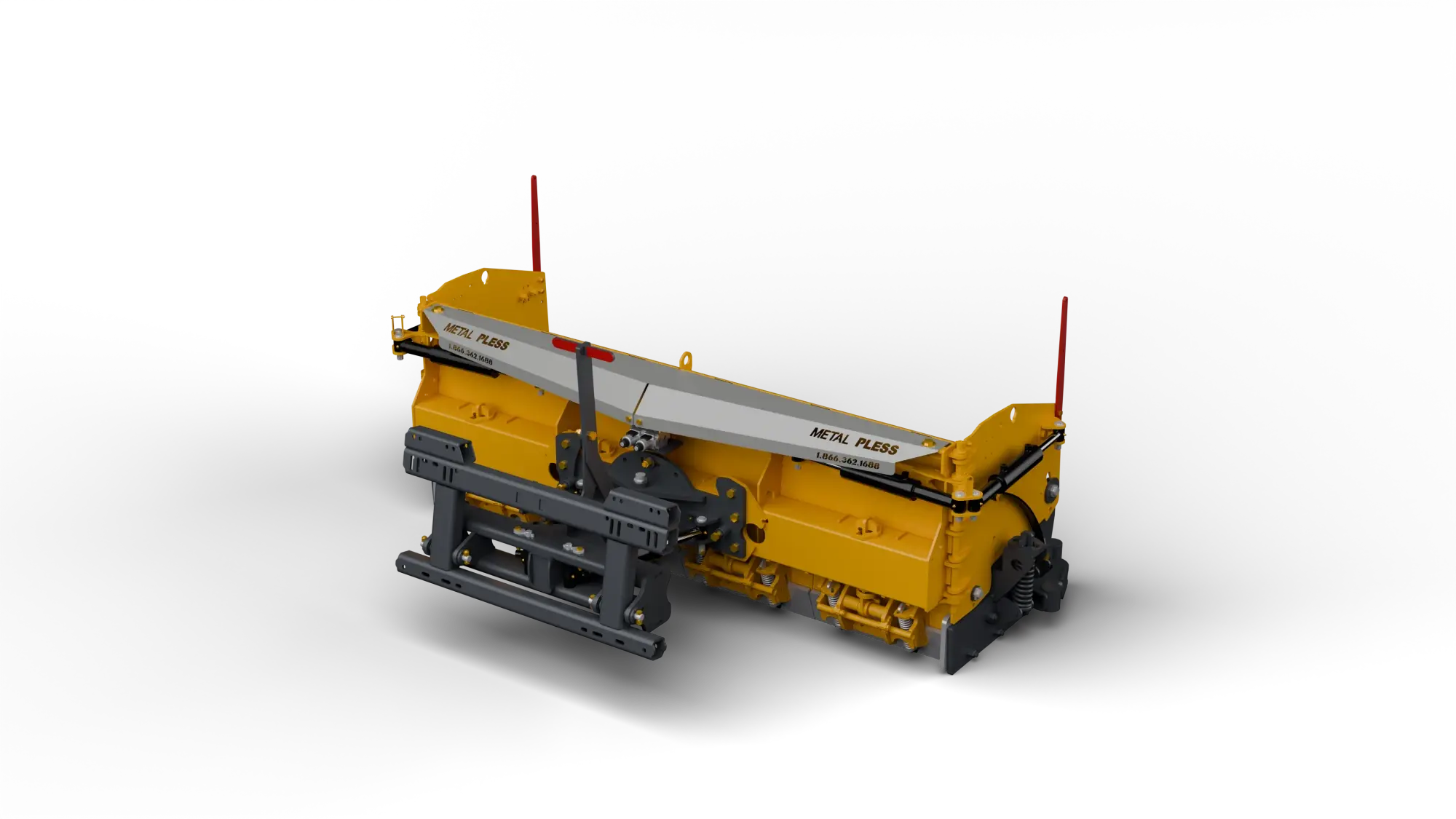

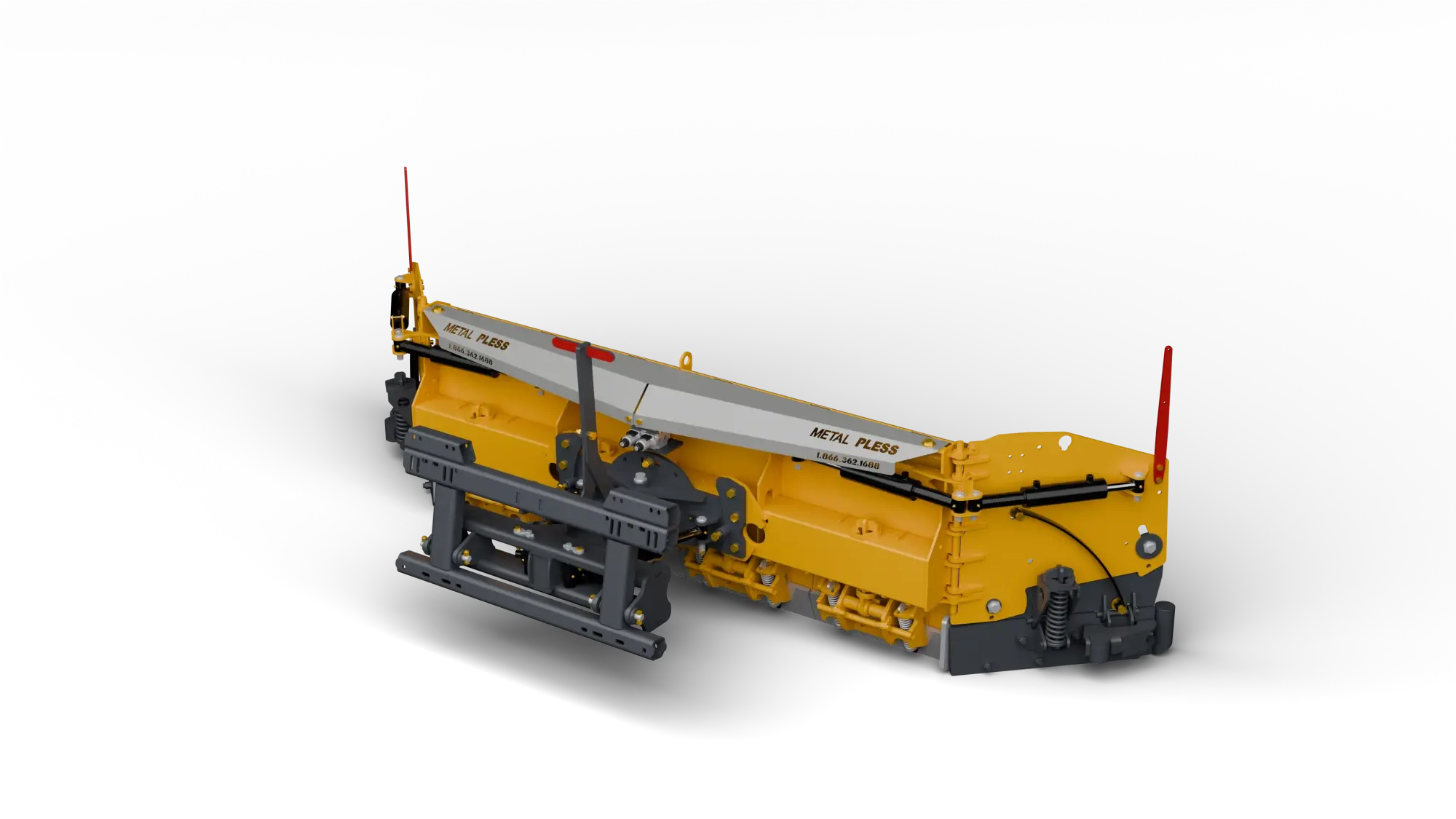

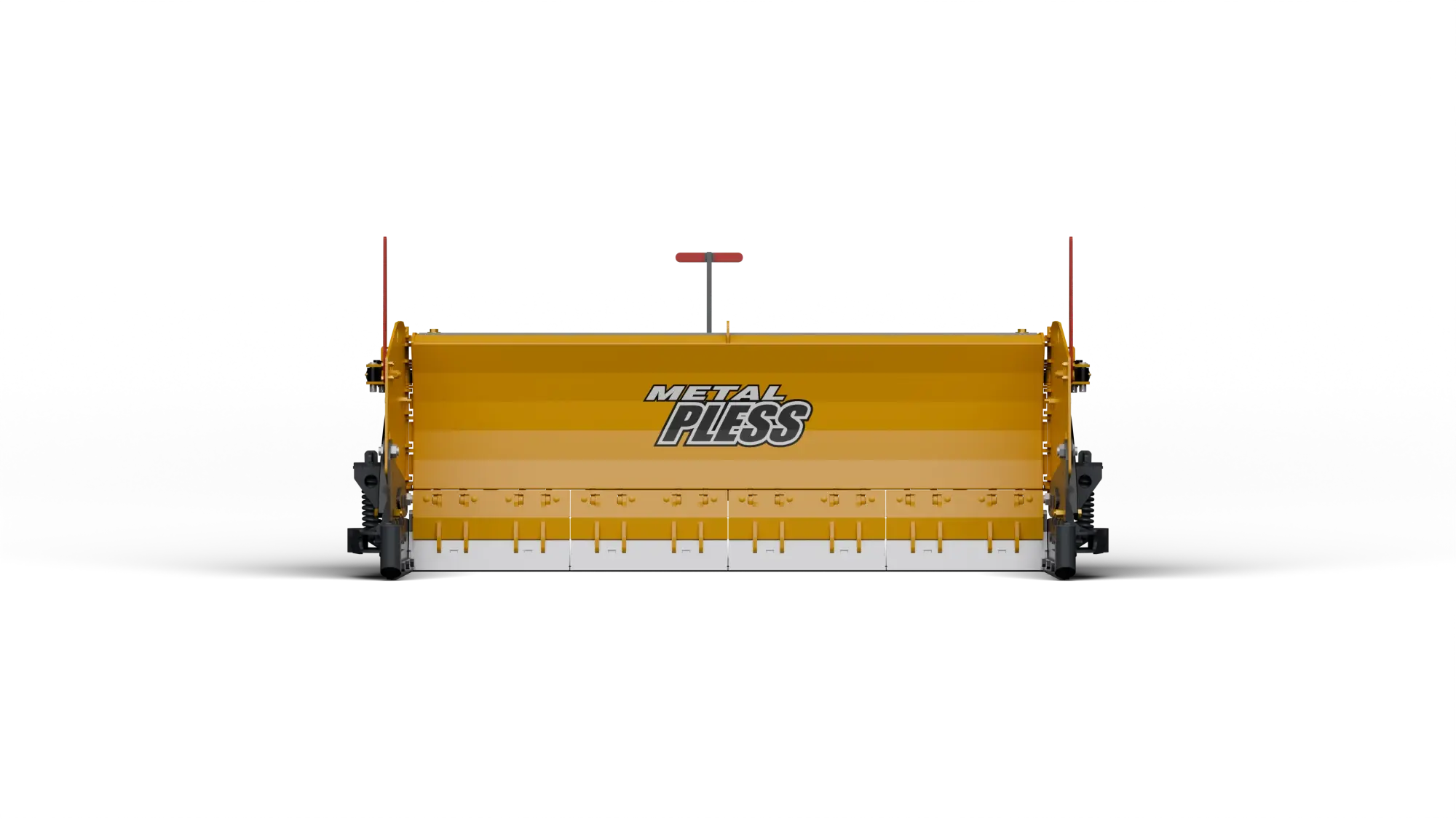

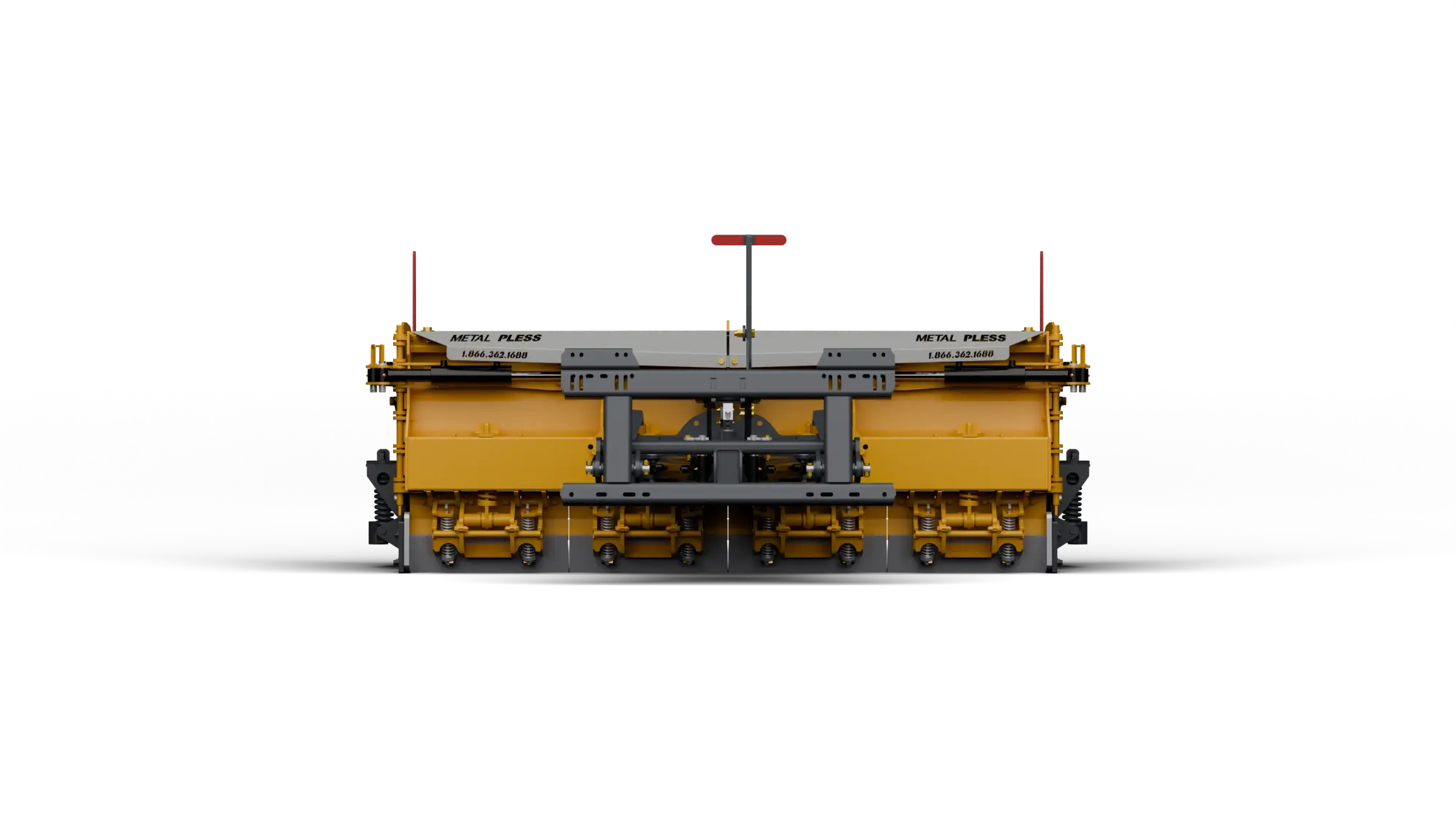

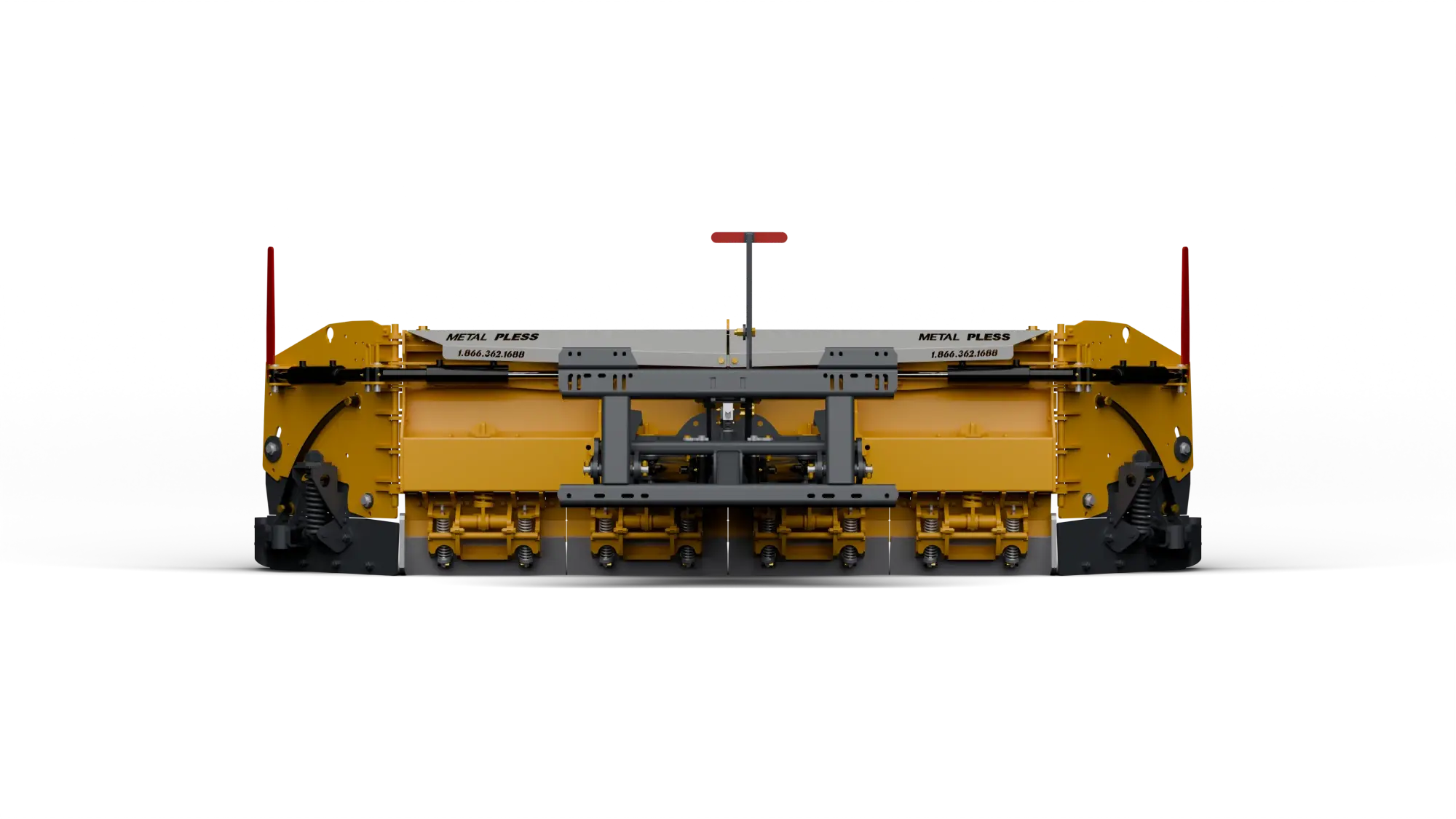

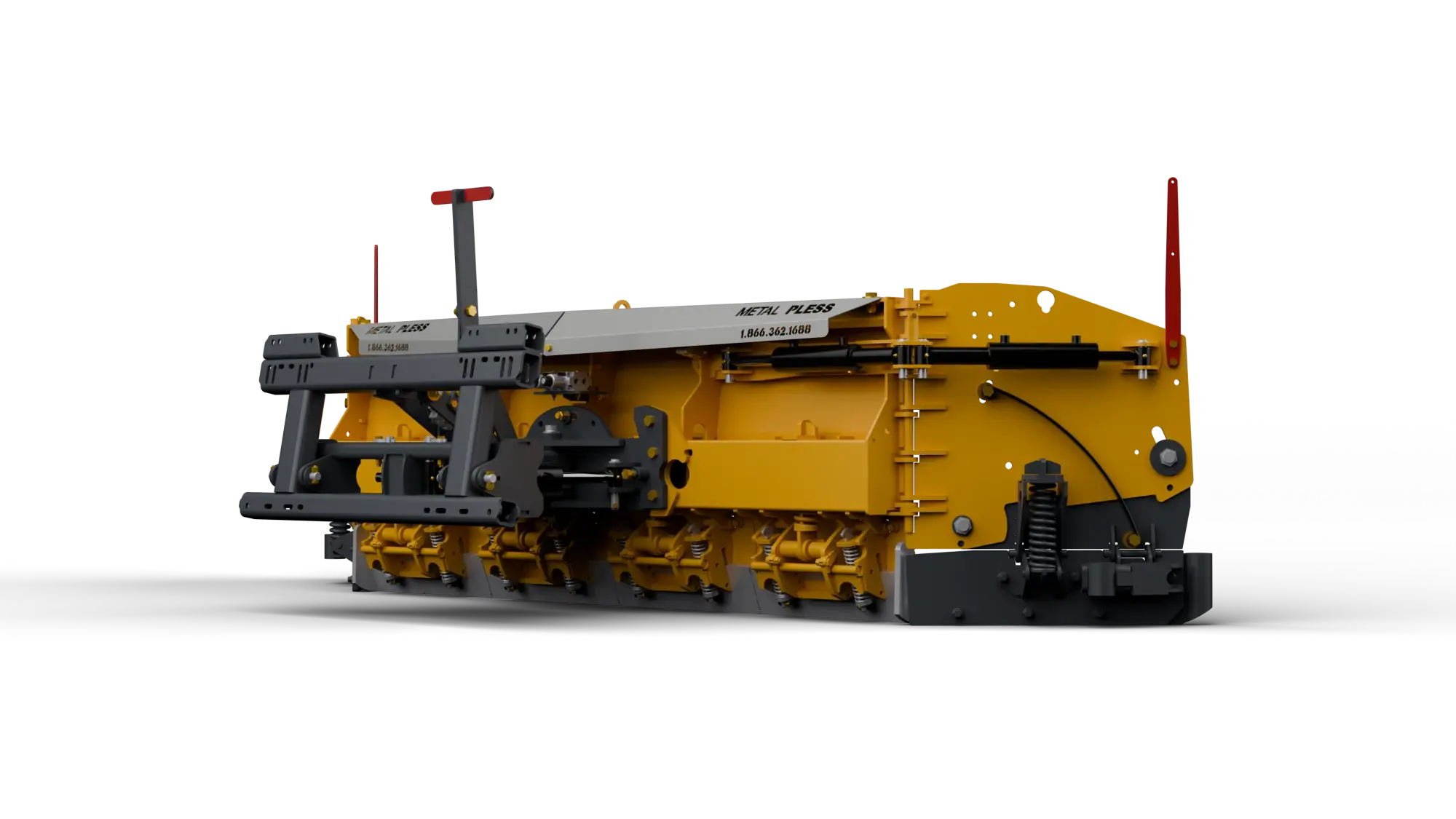

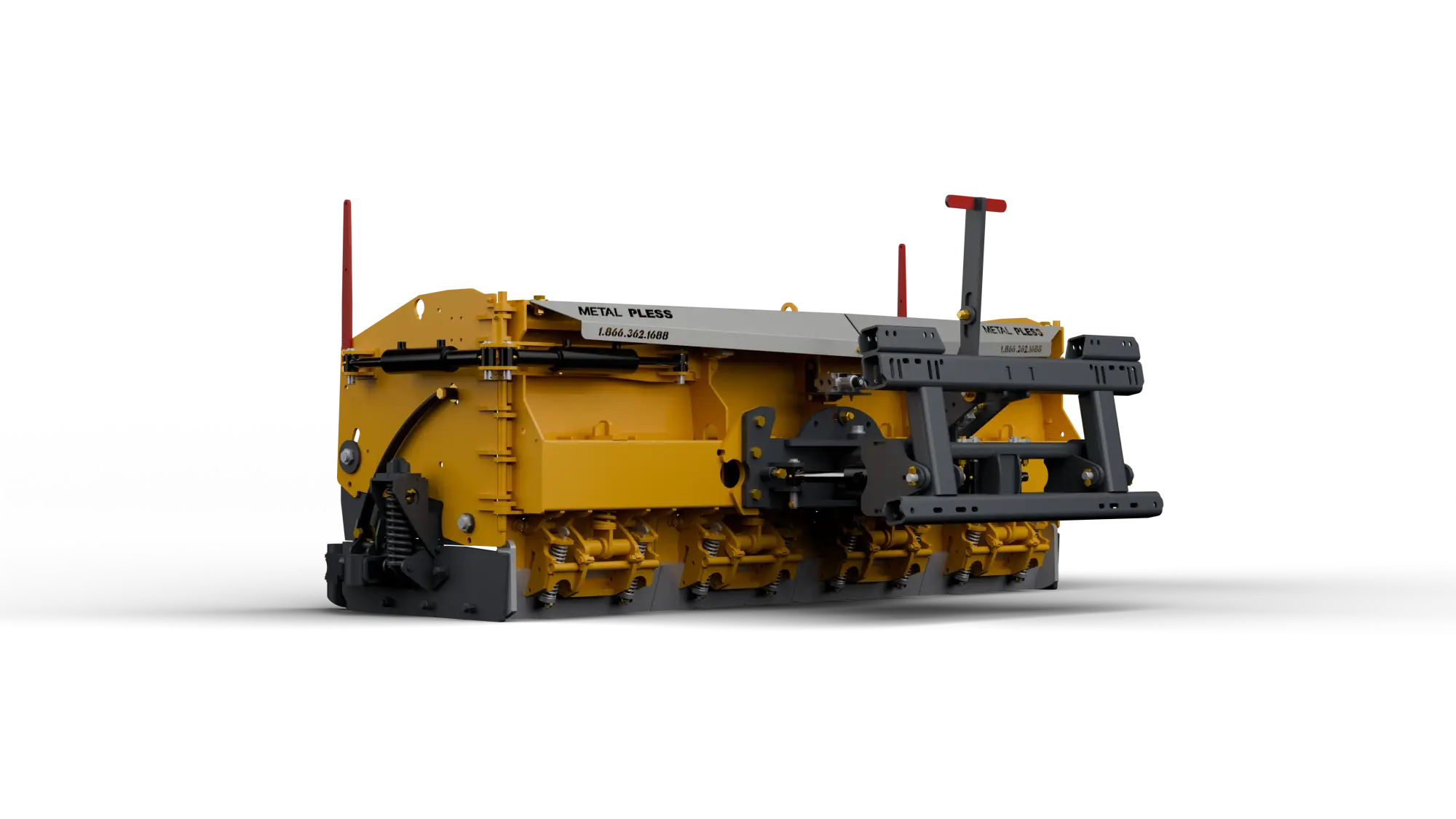

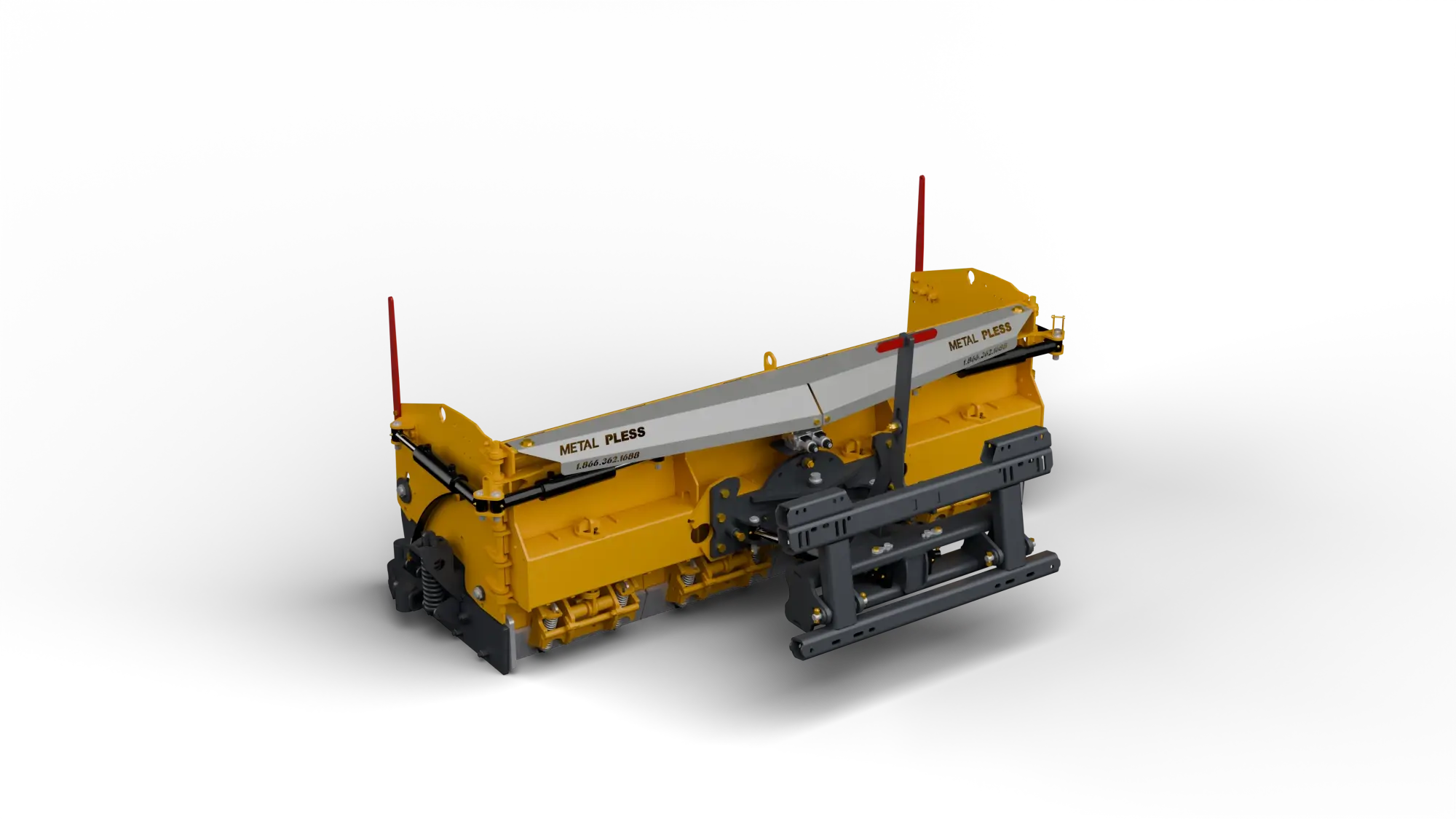

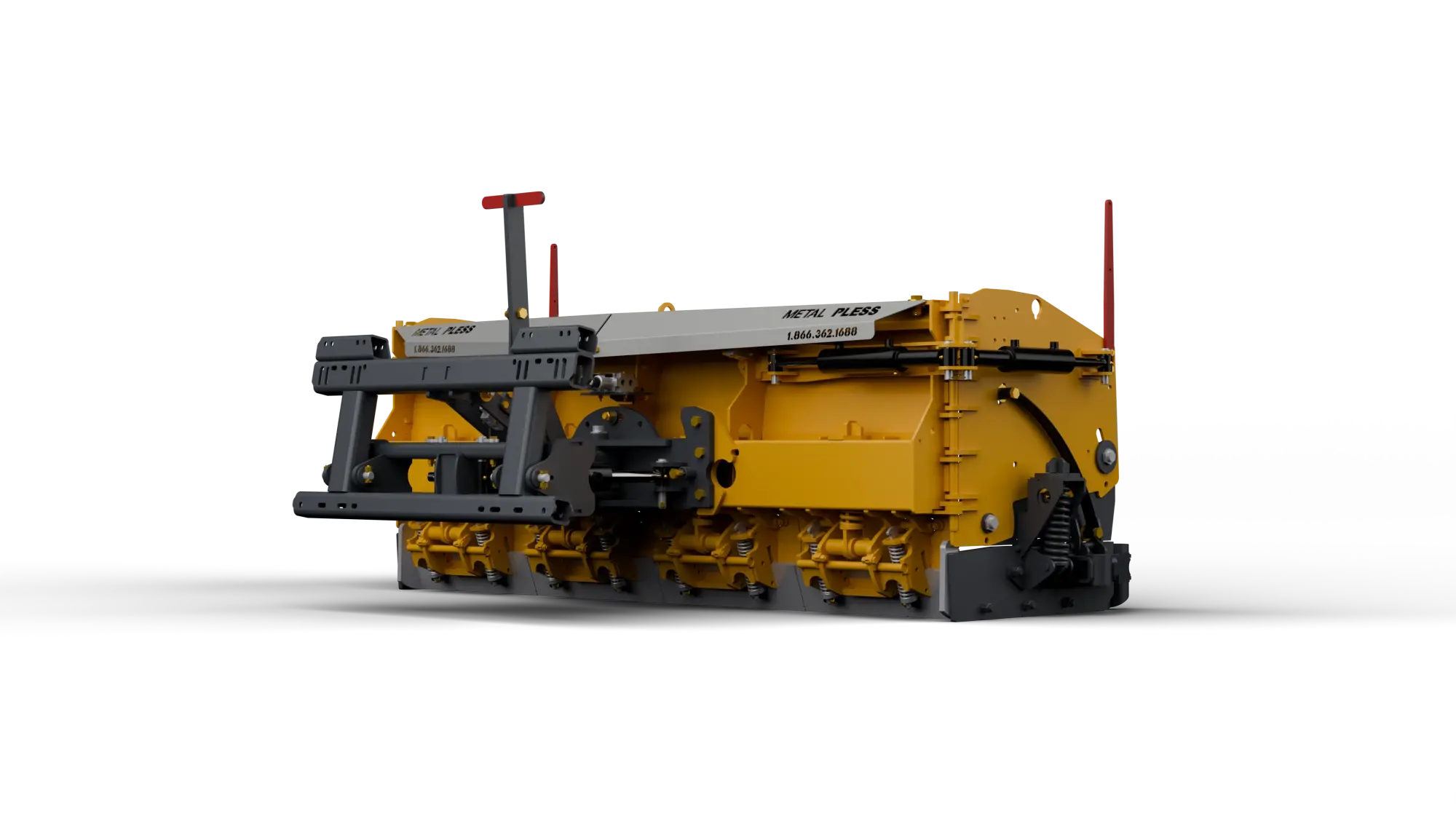

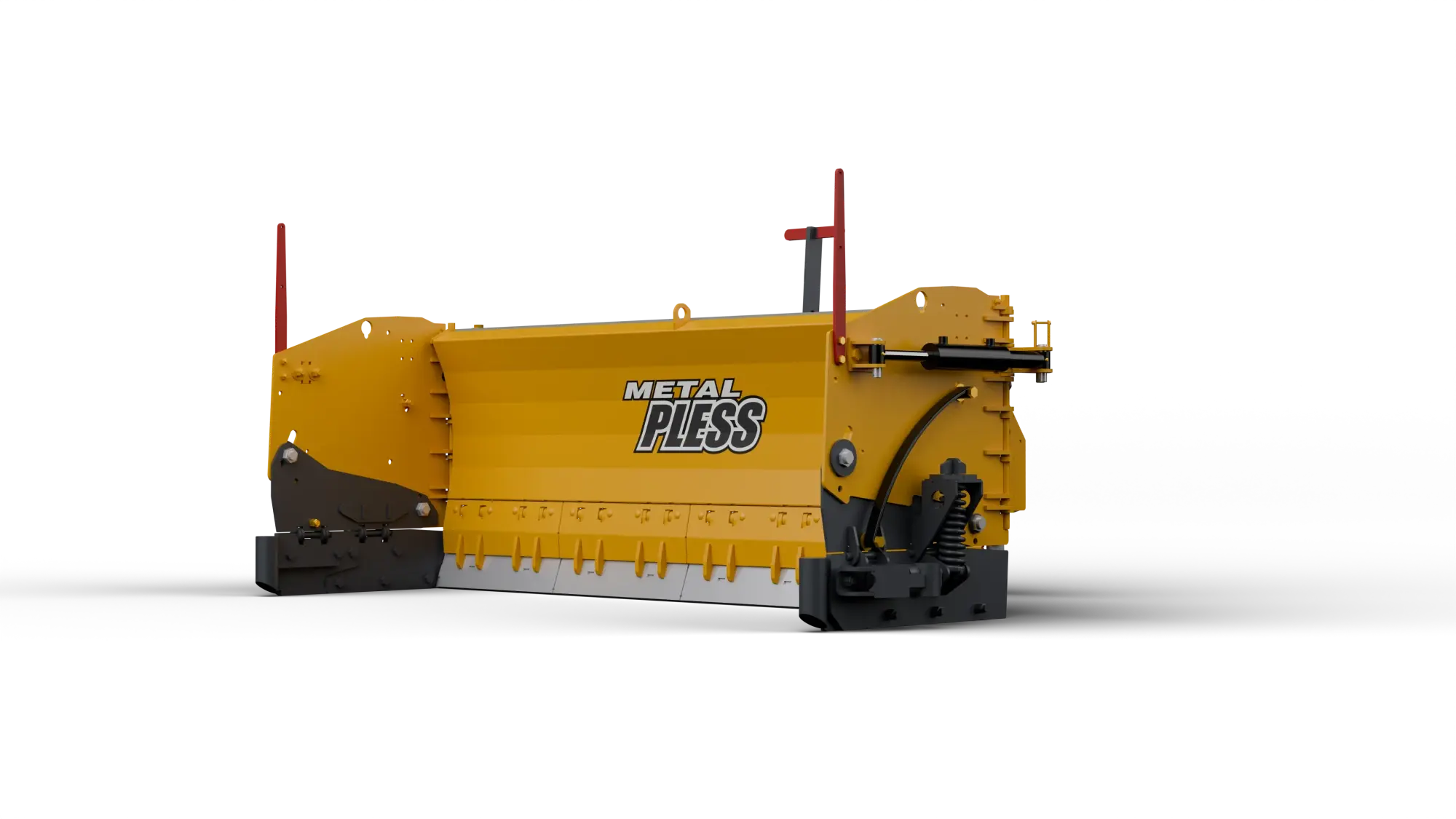

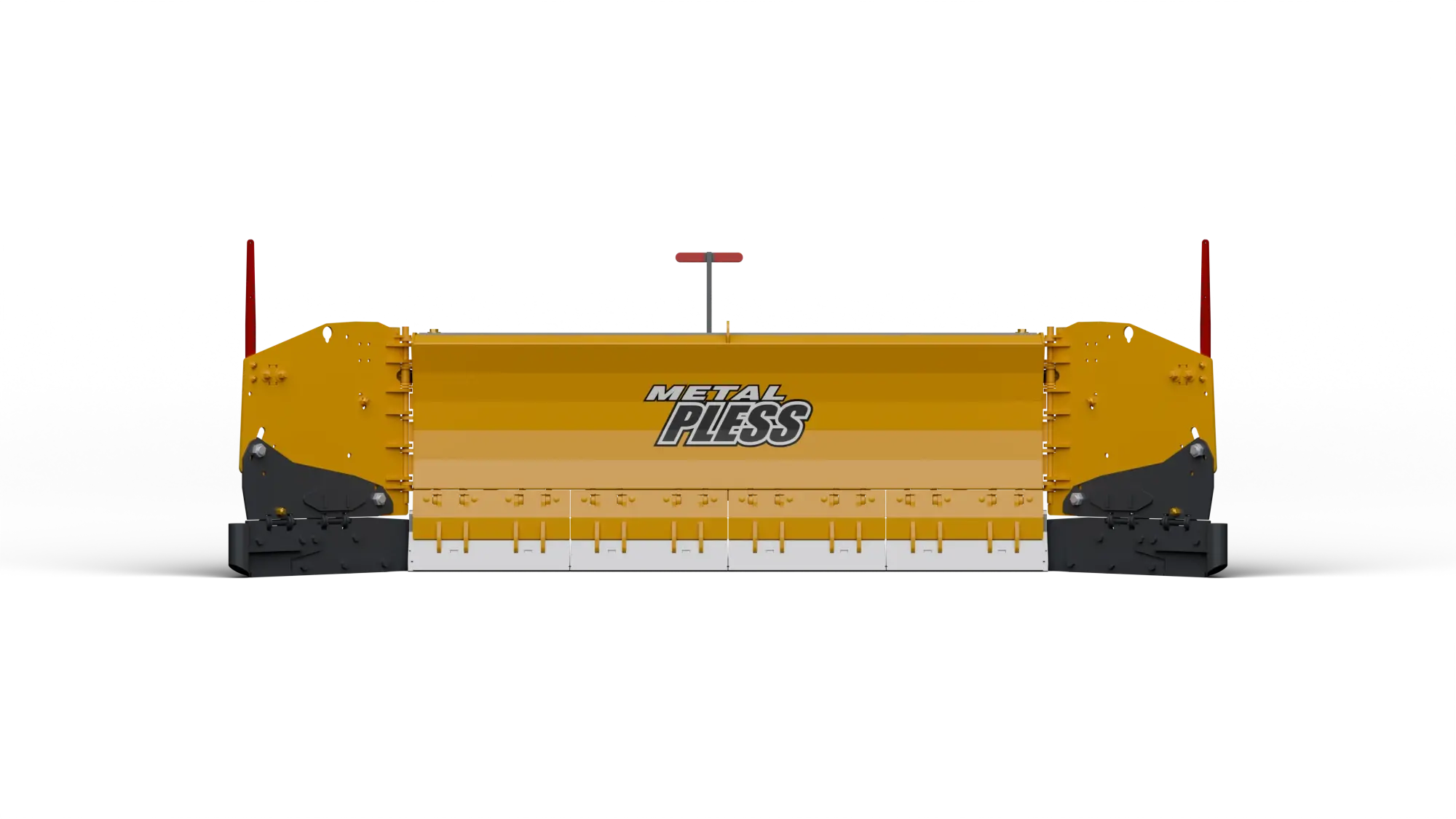

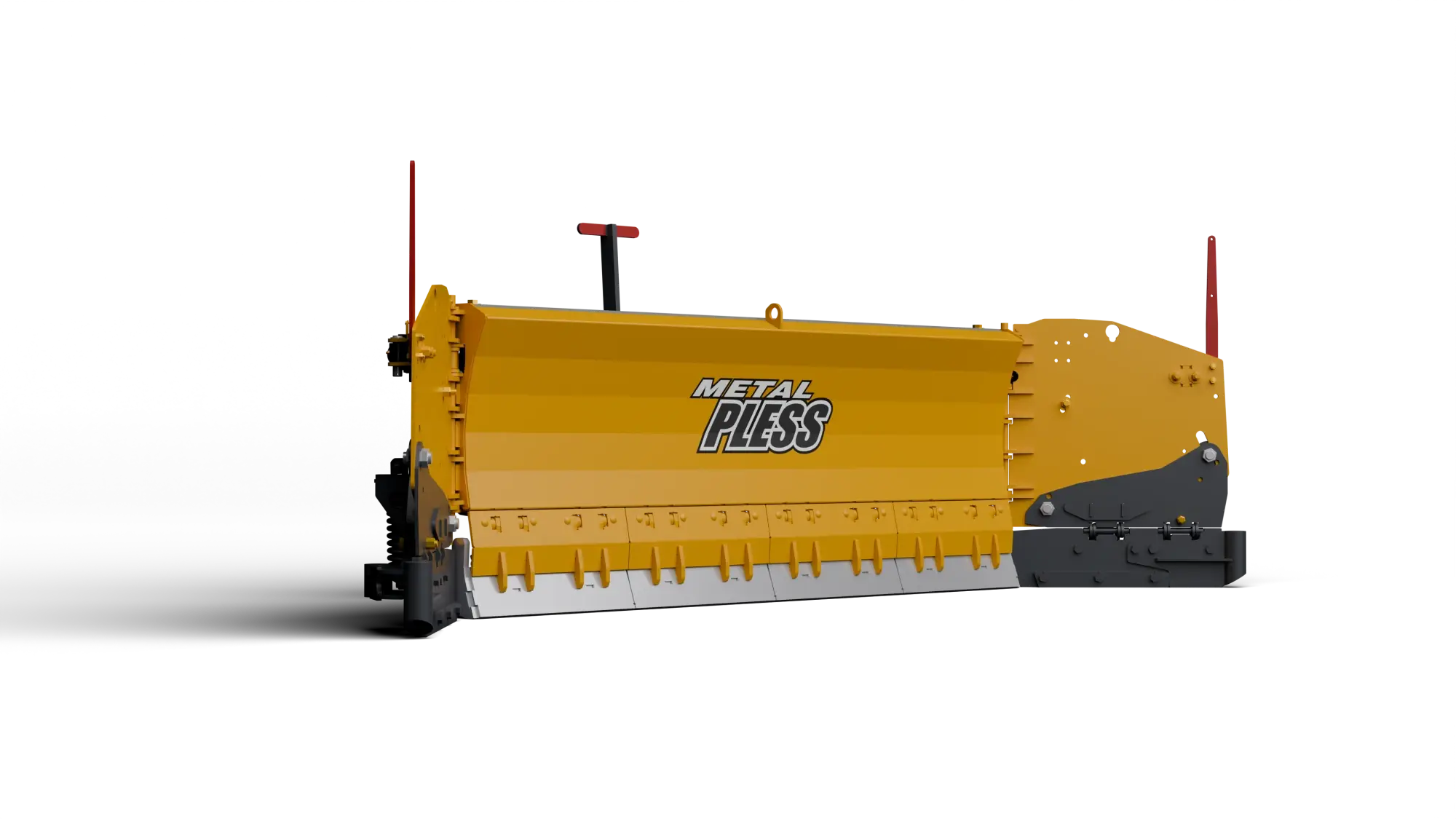

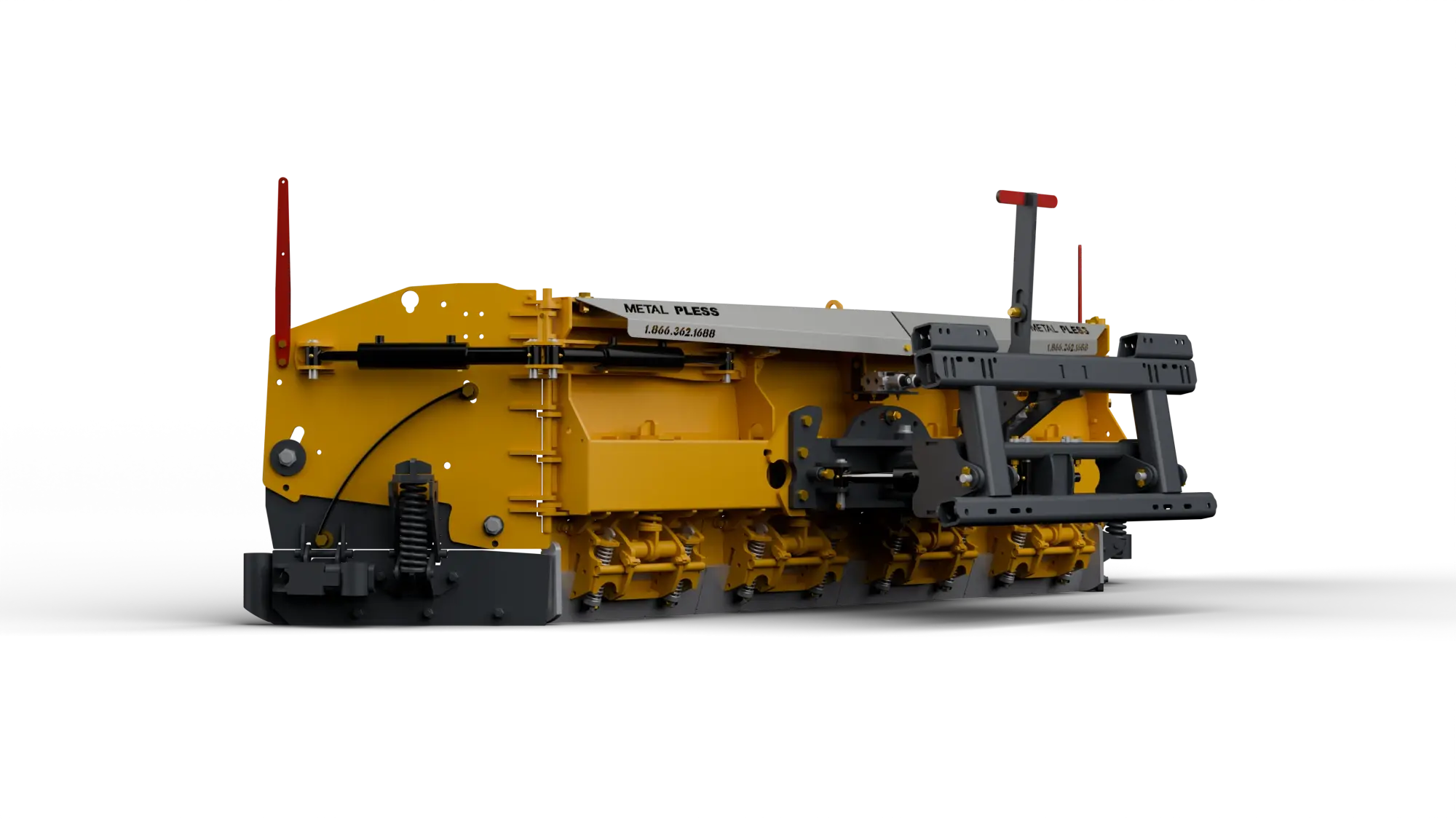

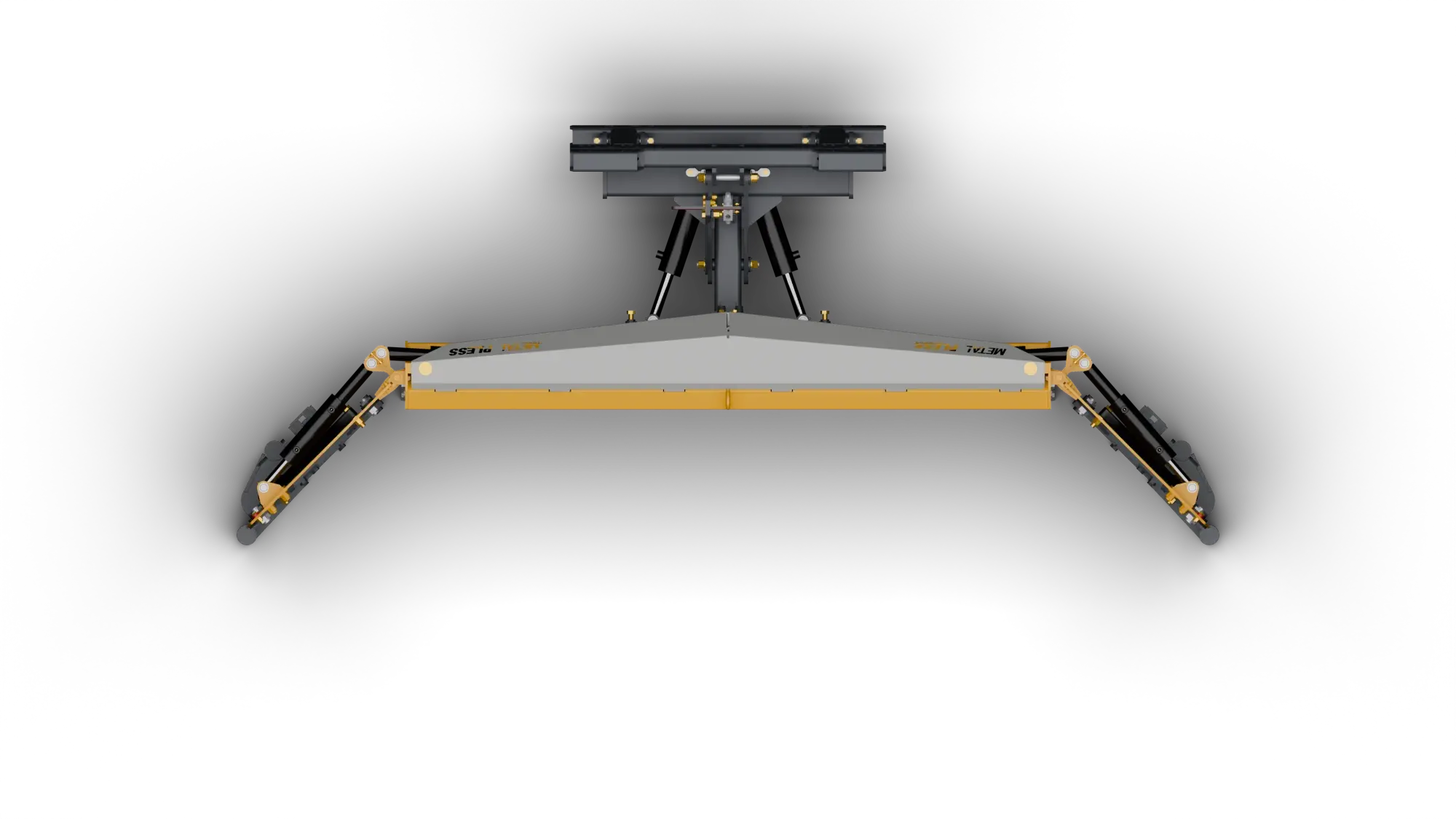

Model shown: PLSS 0830-13 with Live Edge (LE)
- Vehicles
- Wheel loader Skid steer Backhoe
- Industries
- Snow Contractors Municipalities Airports
- Compatible weights
- Up to 12,000 lb 12,000-20,000 lb 20,000-30,000 lb
- Sizes
- PLLT 04.527-8.5 PLLT 0527-10 PLLT 0627-11 PLSS 0630-11 PLSS 0730-12 PLSS 0830-13, Top pick PLSS 0830-14 PLSS 0930-15, Top pick PLSS 1030-16 PLBH 0736-13 PLBH 0836-14, Top pick PLBH 0936-15 PLBH 0836-16 PLBH 1036-16 PLBH 1236-18 PLLD 0842-15 PLLD 0842-16 PLLD 1042-17 PLLD 1042-18, Top pick PLLD 1242-19 PLLD 1242-20 Top pick
- Colors
-
Features
Hydraulic Wings 180
Our wings are constructed with CHT400 steel, making them the strongest in the industry. We use cylinders to move the wings, instead of actuators (hydraulic motors), offering superior holding strength. The leverage is increased by having two cylinders per wing. Additionally, the wings are equipped with a spring that can be adjusted to provide down pressure.
Trip Edge on the Wings
Unique Soft Drive Trip Edge design allows the individual sections to trip backward without the blade being lifted upward, greatly reducing the impact.
Live Edge Technology
Independent floating sections follow the unevenness of the ground and trip back on their own. Full contact with the surface means a cleaner pass, fewer passes and less salt, and carbide inserts extend the wear life.
Lateral Float
Automatically follows the imperfections of the pavement. Our system incorporates an adjustable oscillating mechanism for better control. Increase plowing efficiency and no need to go over the same area multiple times.
Slip Hitch
Slip hitch design allows the plow to follow surface variations. Reduces operator fatigue and increases plowing efficiency. Cutting edges wear evenly and prolong plow life.
Blade positions
Available edges
-
STD Standard
Standard trip edge allows the cutting edge to trip back.
-
LE Live Edge
A floating soft drive steel trip edge with carbide inserts for longer wear life, that contours the unevenness of the ground for a cleaner result.
-
HD Soft Drive Trip Edge
Unique Soft Drive trip edge design allows the individual sections to trip backward without the blade being lifted upward, greatly reducing the impact.
-
FULLE Full Live Edge
LIVE EDGE sections across the full width of the plow, so the whole cutting edge follows the ground.
Compatibility
- Wheel loader
- Skid steer
- Backhoe
Sizes & specifications
| Model | Available Edges | Blade Dimensions | Wing Size (each side) | Application | Wing / Gate Type | Approx. Weight | Compare | ||
|---|---|---|---|---|---|---|---|---|---|
| Box | Height | Extended | |||||||
| PLLT 04.527-8.5 | STD | 4.5' | 27" | 8.5' | 2' | 4,000 lb - 6,000 lb | Hydraulic wings | 875 lb |
|
| PLLT 0527-10 | STD | 5' | 27" | 10' | 2.5' | 4,000 lb - 6,000 lb | Hydraulic wings | 1,114 lb |
|
| PLLT 0627-11 | STD | 6' | 27" | 11' | 2.5' | 4,000 lb - 6,000 lb | Hydraulic wings | 1,242 lb |
|
| PLSS 0630-11 | STD - LE | 6' | 30" | 11' | 2.5' | 8,000 lb - 13,000 lb | Hydraulic wings | 1,640 lb |
|
| PLSS 0730-12 | STD - HD - LE | 7' | 30" | 12' | 2.5' | 8,000 lb - 13,000 lb | Hydraulic wings | 1,740 lb |
|
| PLSS 0830-13 Top pick | STD - HD - LE | 8' | 30" | 13' | 2.5' | 8,000 lb - 13,000 lb | Hydraulic wings | 1,930 lb |
|
| PLSS 0830-14 | STD - HD - LE | 8' | 30" | 13' (STD) · 14' (HD, LE) | 2.5' (STD) · 3' (HD, LE) | 8,000 lb - 13,000 lb | Hydraulic wings | 2,400 lb |
|
| PLSS 0930-15 Top pick | LE | 9' | 30" | 15' | 3' | 8,000 lb - 13,000 lb | Hydraulic wings | 2,000 lb |
|
| PLSS 1030-16 | LE | 10' | 30" | 16' | 3' | 8,000 lb - 13,000 lb | Hydraulic wings | 2,380 lb |
|
| PLBH 0736-13 | STD - HD - LE - FULLE | 7' | 36" | 13' | 3' | 12,001 lb - 18,000 lb | Hydraulic wings | 2,107 lb |
|
| PLBH 0836-14 Top pick | STD - HD - LE - FULLE | 8' | 36" | 14' | 3' | 12,001 lb - 18,000 lb | Hydraulic wings | 2,250 lb |
|
| PLBH 0936-15 | STD - HD - LE - FULLE | 9' | 36" | 15' | 3' | 12,001 lb - 18,000 lb | Hydraulic wings | 2,340 lb |
|
| PLBH 0836-16 | STD - HD - LE - FULLE | 8' | 36" | 16' | 4' | 12,001 lb - 18,000 lb | Hydraulic wings | 2,435 lb |
|
| PLBH 1036-16 | STD - HD - LE - FULLE | 10' | 36" | 16' | 3' | 16,000 lb - 20,000 lb | Hydraulic wings | 2,427 lb |
|
| PLBH 1236-18 | STD - HD - LE - FULLE | 12' | 36" | 18' | 3' | 16,000 lb - 20,000 lb | Hydraulic wings | 2,620 lb |
|
| PLLD 0842-15 | HD - LE | 8' | 42" | 15' | 3.5' | 18,001 lb - 30,000 lb | Hydraulic wings | 2,842 lb |
|
| PLLD 0842-16 | HD - LE - FULLE | 8' | 42" | 16' | 4' | 18,001 lb - 30,000 lb | Hydraulic wings | 3,000 lb |
|
| PLLD 1042-17 | HD - LE | 10' | 42" | 17' | 3.5' | 18,001 lb - 30,000 lb | Hydraulic wings | 3,205 lb |
|
| PLLD 1042-18 Top pick | HD - LE - FULLE | 10' | 42" | 18' | 4' | 18,001 lb - 30,000 lb | Hydraulic wings | 3,277 lb |
|
| PLLD 1242-19 | STD - HD - LE | 12' | 42" | 19' | 3.5' | 18,001 lb - 30,000 lb | Hydraulic wings | 3,326 lb (STD, HD) · 3,500 lb (LE) |
|
| PLLD 1242-20 | LE - FULLE | 12' | 42" | 20' | 4' | 18,001 lb - 30,000 lb | Hydraulic wings | 3,600 lb |
|
*Ask about our Tivar options
