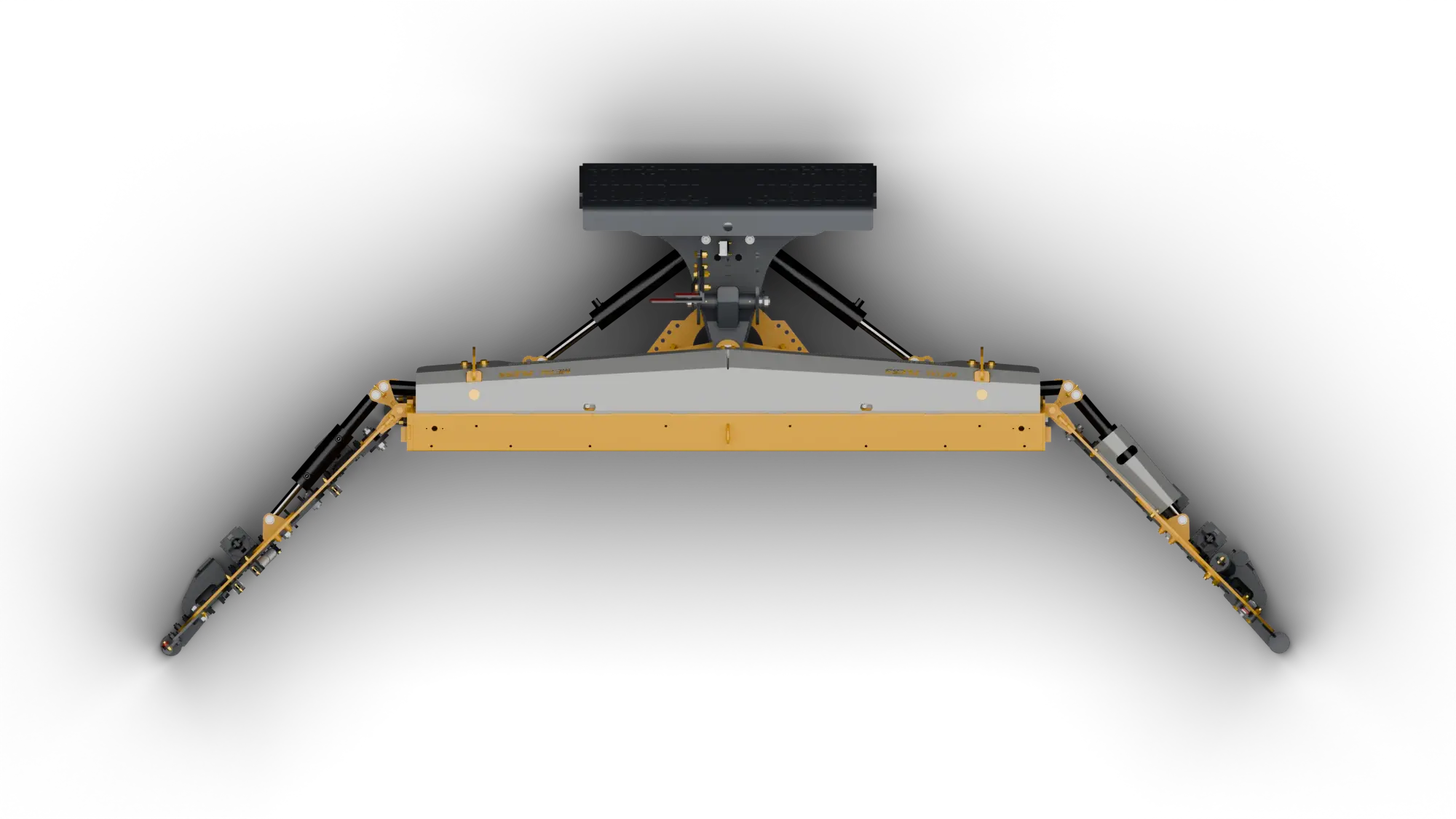

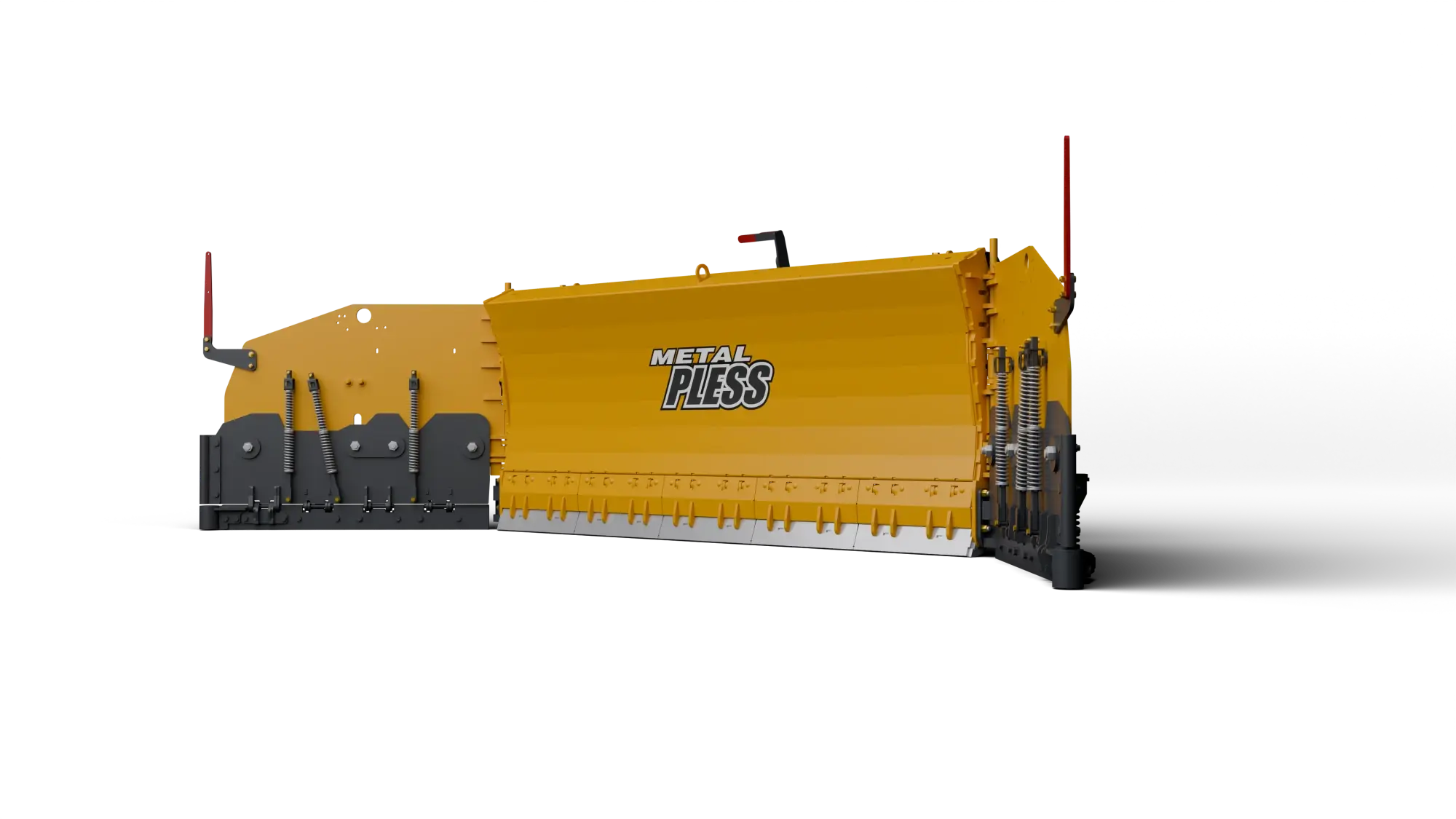

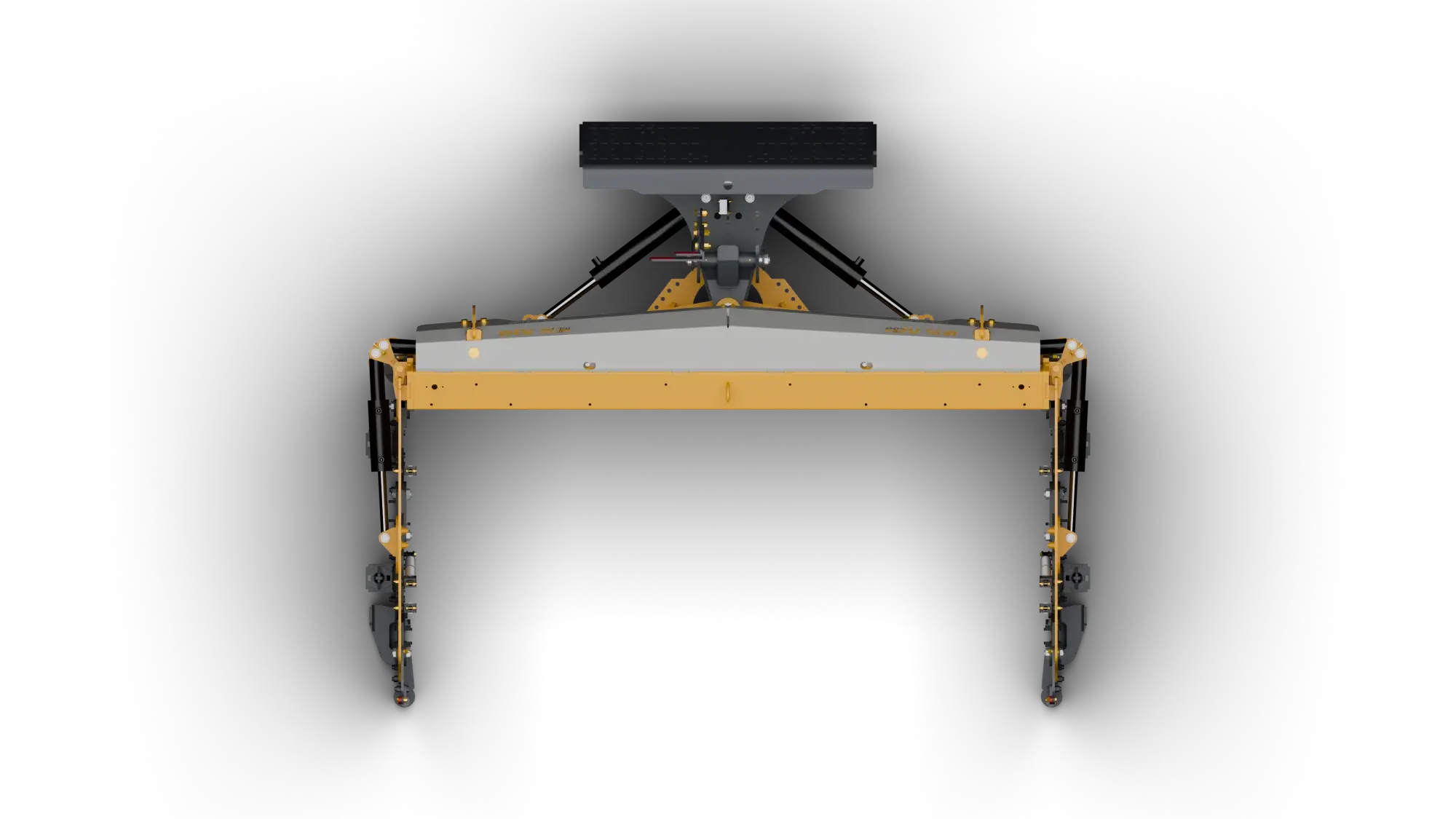

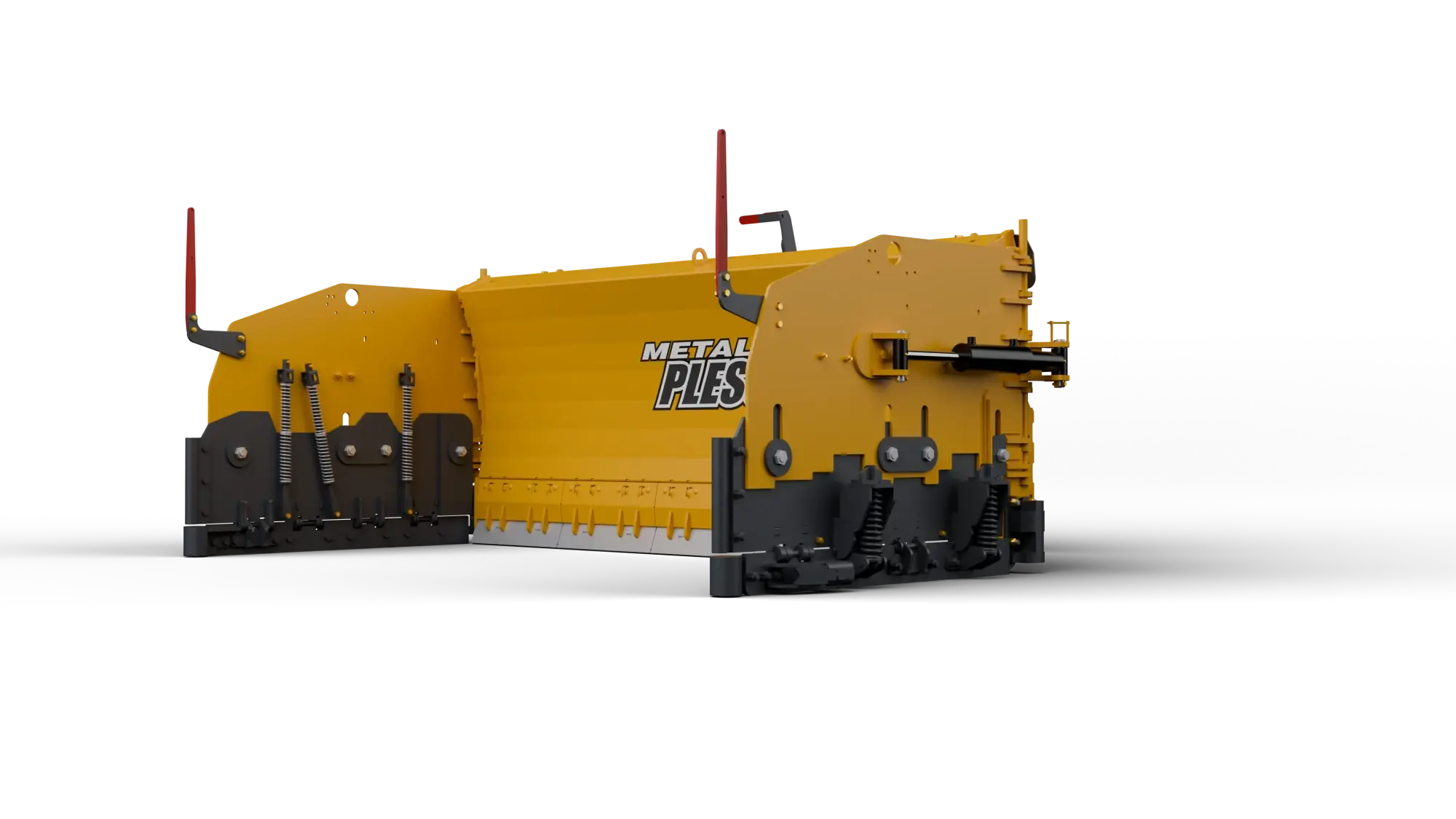

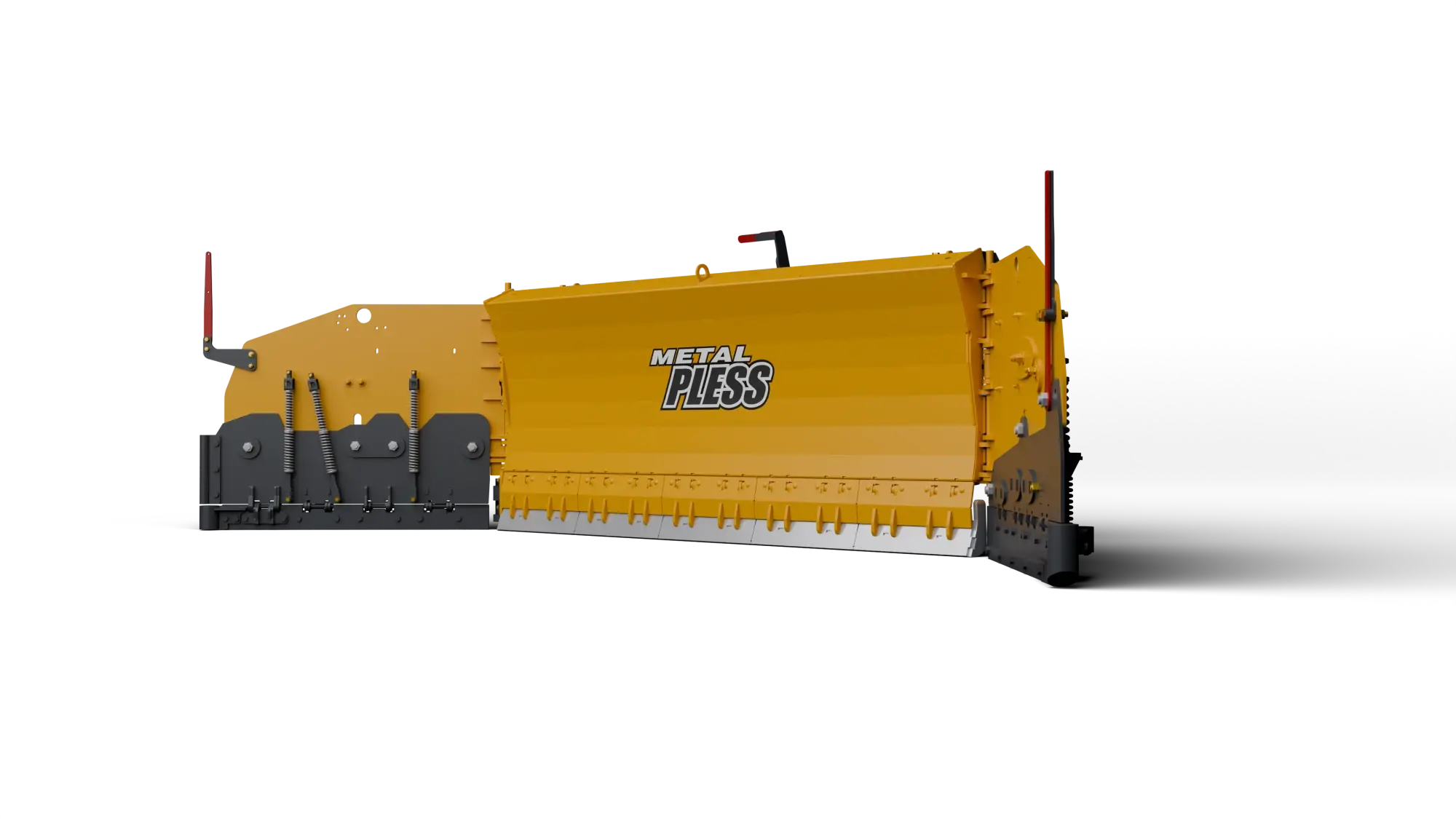

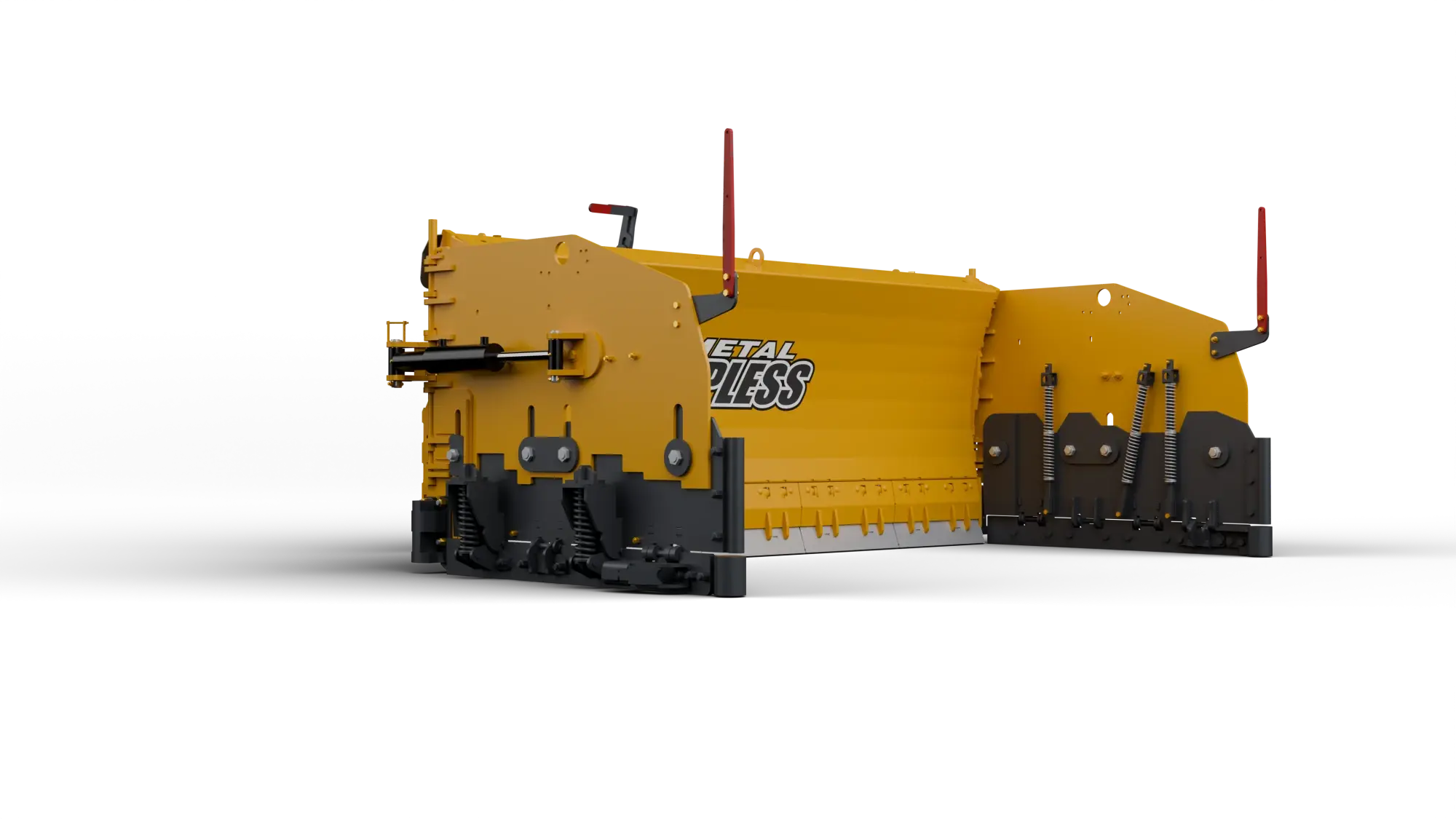

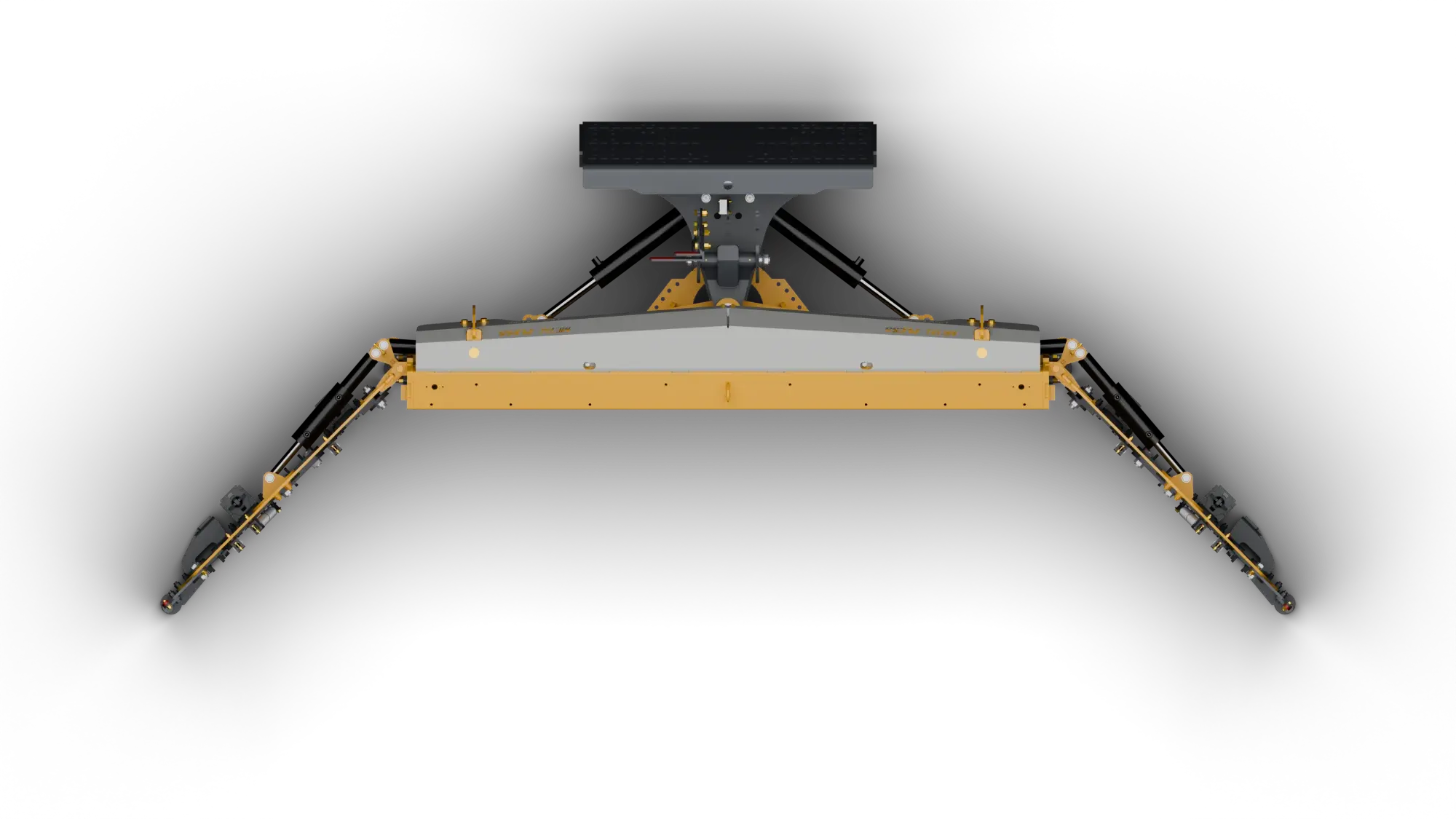

Our wings are constructed with CHT400 steel, making them the strongest in the industry. We use cylinders to move the wings, instead of actuators (hydraulic motors), offering superior holding strength. The leverage is increased by having two cylinders per wing. Additionally, the wings are equipped with a spring that can be adjusted to provide down pressure.
Trip Edge on the Wings
Unique Soft Drive Trip Edge design allows the individual sections to trip backward without the blade being lifted upward, greatly reducing the impact.
Live Edge Technology
Independent floating sections follow the unevenness of the ground and trip back on their own. Full contact with the surface means a cleaner pass, fewer passes and less salt, and carbide inserts extend the wear life.
Lateral Float
Automatically follows the imperfections of the pavement. Our system incorporates an adjustable oscillating mechanism for better control. Increase plowing efficiency and no need to go over the same area multiple times.
Slip Hitch
Slip hitch design allows the plow to follow surface variations. Reduces operator fatigue and increases plowing efficiency. Cutting edges wear evenly and prolong plow life.
Available edges
HDSoft Drive Trip Edge
Unique Soft Drive trip edge design allows the individual sections to trip backward without the blade being lifted upward, greatly reducing the impact.
LELive Edge
A floating soft drive steel trip edge with carbide inserts for longer wear life, that contours the unevenness of the ground for a cleaner result.
Compatibility
Wheel loader
Sizes & specifications
MaxxPro Sidewalk Wing — Sizes & specifications
Model
Available Edges
Blade Dimensions
Wing Size (each side)
Application
Wing / Gate Type
Approx. Weight
Compare
Box
Height
Extended
PRO 0848-18 SW
HD - R OR L - HD - BOTH WINGS - LE - R OR L - LE - BOTH WINGS
8'
48"
18'
5'
25,000 lb - 50,000 lb
Hydraulic wings
4,600 lb (HD - R OR L, LE - R OR L) · 4,700 lb (HD - BOTH WINGS, LE - BOTH WINGS)
Available Edges
HD - R OR L - HD - BOTH WINGS - LE - R OR L - LE - BOTH WINGS
Blade Dimensions – Box
8'
Blade Dimensions – Height
48"
Blade Dimensions – Extended
18'
Wing Size (each side)
5'
Application
25,000 lb - 50,000 lb
Wing / Gate Type
Hydraulic wings
Approx. Weight
4,600 lb (HD - R OR L, LE - R OR L) · 4,700 lb (HD - BOTH WINGS, LE - BOTH WINGS)
PRO 0848-20 SW
HD - R OR L - HD - BOTH WINGS - LE - R OR L - LE - BOTH WINGS
8'
48"
20'
6'
25,000 lb - 50,000 lb
Hydraulic wings
4,650 lb (HD - R OR L, LE - R OR L) · 4,750 lb (HD - BOTH WINGS, LE - BOTH WINGS)
Available Edges
HD - R OR L - HD - BOTH WINGS - LE - R OR L - LE - BOTH WINGS
Blade Dimensions – Box
8'
Blade Dimensions – Height
48"
Blade Dimensions – Extended
20'
Wing Size (each side)
6'
Application
25,000 lb - 50,000 lb
Wing / Gate Type
Hydraulic wings
Approx. Weight
4,650 lb (HD - R OR L, LE - R OR L) · 4,750 lb (HD - BOTH WINGS, LE - BOTH WINGS)
PRO 1048-20 SW
HD - R OR L - HD - BOTH WINGS - LE - R OR L - LE - BOTH WINGS
10'
48"
20'
5'
25,000 lb - 50,000 lb
Hydraulic wings
5,000 lb (HD - R OR L, LE - R OR L) · 5,100 lb (HD - BOTH WINGS, LE - BOTH WINGS)
Available Edges
HD - R OR L - HD - BOTH WINGS - LE - R OR L - LE - BOTH WINGS
Blade Dimensions – Box
10'
Blade Dimensions – Height
48"
Blade Dimensions – Extended
20'
Wing Size (each side)
5'
Application
25,000 lb - 50,000 lb
Wing / Gate Type
Hydraulic wings
Approx. Weight
5,000 lb (HD - R OR L, LE - R OR L) · 5,100 lb (HD - BOTH WINGS, LE - BOTH WINGS)
PRO 1048-22 SW
HD - R OR L - HD - BOTH WINGS - LE - R OR L - LE - BOTH WINGS
10'
48"
22'
6'
25,000 lb - 50,000 lb
Hydraulic wings
5,150 lb (HD - R OR L, LE - R OR L) · 5,200 lb (HD - BOTH WINGS, LE - BOTH WINGS)
Available Edges
HD - R OR L - HD - BOTH WINGS - LE - R OR L - LE - BOTH WINGS
Blade Dimensions – Box
10'
Blade Dimensions – Height
48"
Blade Dimensions – Extended
22'
Wing Size (each side)
6'
Application
25,000 lb - 50,000 lb
Wing / Gate Type
Hydraulic wings
Approx. Weight
5,150 lb (HD - R OR L, LE - R OR L) · 5,200 lb (HD - BOTH WINGS, LE - BOTH WINGS)
PRO 1248-22 SW
HD - R OR L - HD - BOTH WINGS - LE - R OR L - LE - BOTH WINGS
12'
48"
22' (HD - R OR L) · 24' (HD - BOTH WINGS, LE - R OR L, LE - BOTH WINGS)
5' (HD - R OR L) · 6' (HD - BOTH WINGS, LE - R OR L, LE - BOTH WINGS)
30,000 lb - 50,000 lb
Hydraulic wings
5,360 lb (HD - R OR L, LE - R OR L) · 5,410 lb (HD - BOTH WINGS, LE - BOTH WINGS)
Available Edges
HD - R OR L - HD - BOTH WINGS - LE - R OR L - LE - BOTH WINGS
Blade Dimensions – Box
12'
Blade Dimensions – Height
48"
Blade Dimensions – Extended
22' (HD - R OR L) · 24' (HD - BOTH WINGS, LE - R OR L, LE - BOTH WINGS)
Wing Size (each side)
5' (HD - R OR L) · 6' (HD - BOTH WINGS, LE - R OR L, LE - BOTH WINGS)
Application
30,000 lb - 50,000 lb
Wing / Gate Type
Hydraulic wings
Approx. Weight
5,360 lb (HD - R OR L, LE - R OR L) · 5,410 lb (HD - BOTH WINGS, LE - BOTH WINGS)
PRO 1248-24 SW
HD - R OR L - HD - BOTH WINGS - LE - R OR L - LE - BOTH WINGS
12'
48"
24'
6'
30,000 lb - 50,000 lb
Hydraulic wings
5,410 lb (HD - R OR L, LE - R OR L) · 5,510 lb (HD - BOTH WINGS, LE - BOTH WINGS)
Available Edges
HD - R OR L - HD - BOTH WINGS - LE - R OR L - LE - BOTH WINGS
Blade Dimensions – Box
12'
Blade Dimensions – Height
48"
Blade Dimensions – Extended
24'
Wing Size (each side)
6'
Application
30,000 lb - 50,000 lb
Wing / Gate Type
Hydraulic wings
Approx. Weight
5,410 lb (HD - R OR L, LE - R OR L) · 5,510 lb (HD - BOTH WINGS, LE - BOTH WINGS)
*Ask about our Tivar options
