Our wings are constructed with CHT400 steel, making them the strongest in the industry. We use cylinders to move the wings, instead of actuators (hydraulic motors), offering superior holding strength. The leverage is increased by having two cylinders per wing. Additionally, the wings are equipped with a spring that can be adjusted to provide down pressure.
Trip Edge on the Wings
Unique Soft Drive Trip Edge design allows the individual sections to trip backward without the blade being lifted upward, greatly reducing the impact.
Live Edge Technology
Independent floating sections follow the unevenness of the ground and trip back on their own. Full contact with the surface means a cleaner pass, fewer passes and less salt, and carbide inserts extend the wear life.
Lateral Float
Automatically follows the imperfections of the pavement. Our system incorporates an adjustable oscillating mechanism for better control. Increase plowing efficiency and no need to go over the same area multiple times.
Slip Hitch
Slip hitch design allows the plow to follow surface variations. Reduces operator fatigue and increases plowing efficiency. Cutting edges wear evenly and prolong plow life.

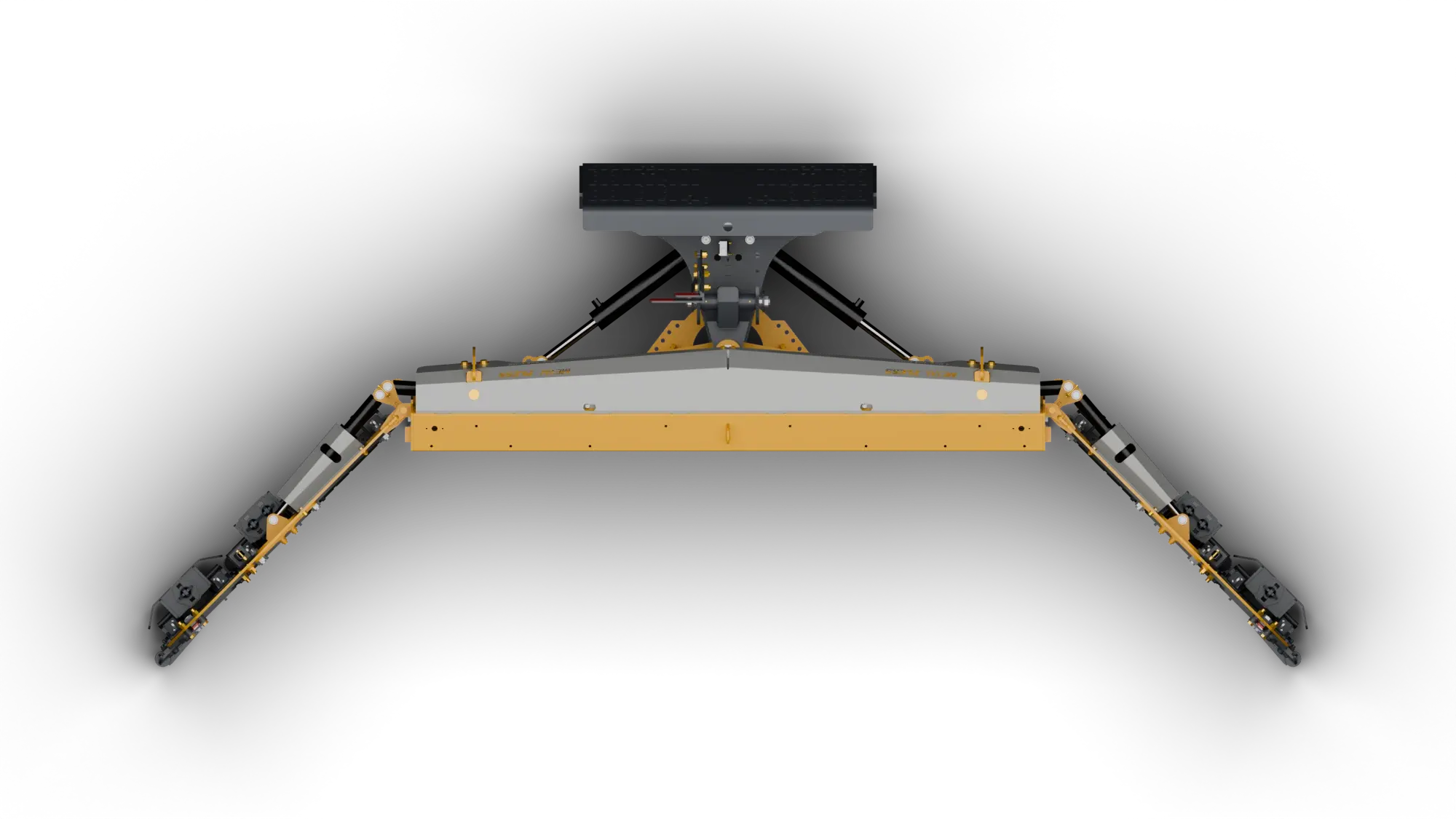

Blade positions
Available edges
HDSoft Drive Trip Edge
Unique Soft Drive trip edge design allows the individual sections to trip backward without the blade being lifted upward, greatly reducing the impact.
LELive Edge
A floating soft drive steel trip edge with carbide inserts for longer wear life, that contours the unevenness of the ground for a cleaner result.

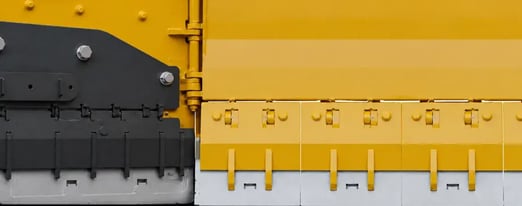

FULLEFull Live Edge
LIVE EDGE sections across the full width of the plow, so the whole cutting edge follows the ground.
Compatibility
Wheel loader
Sizes & specifications

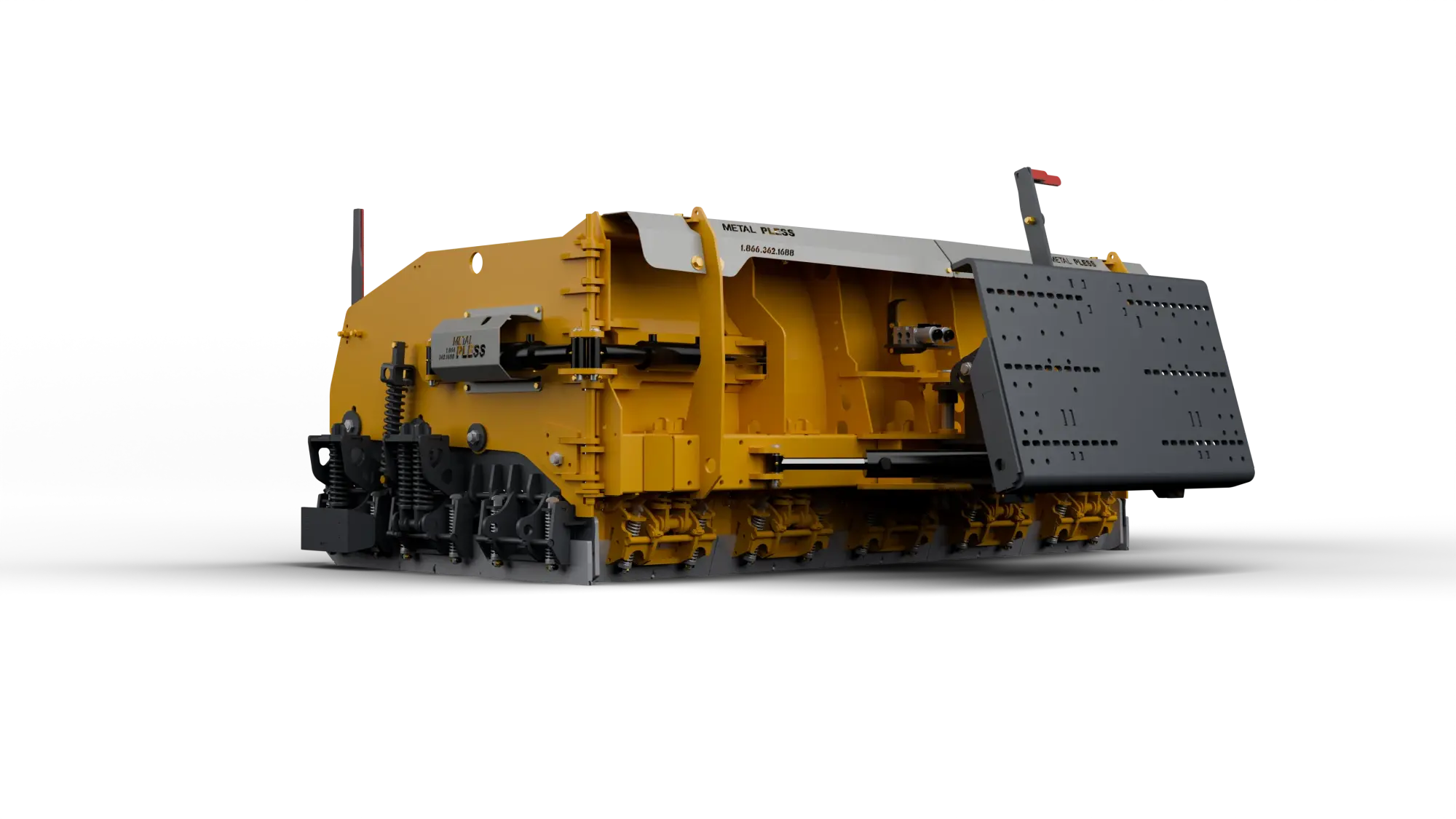

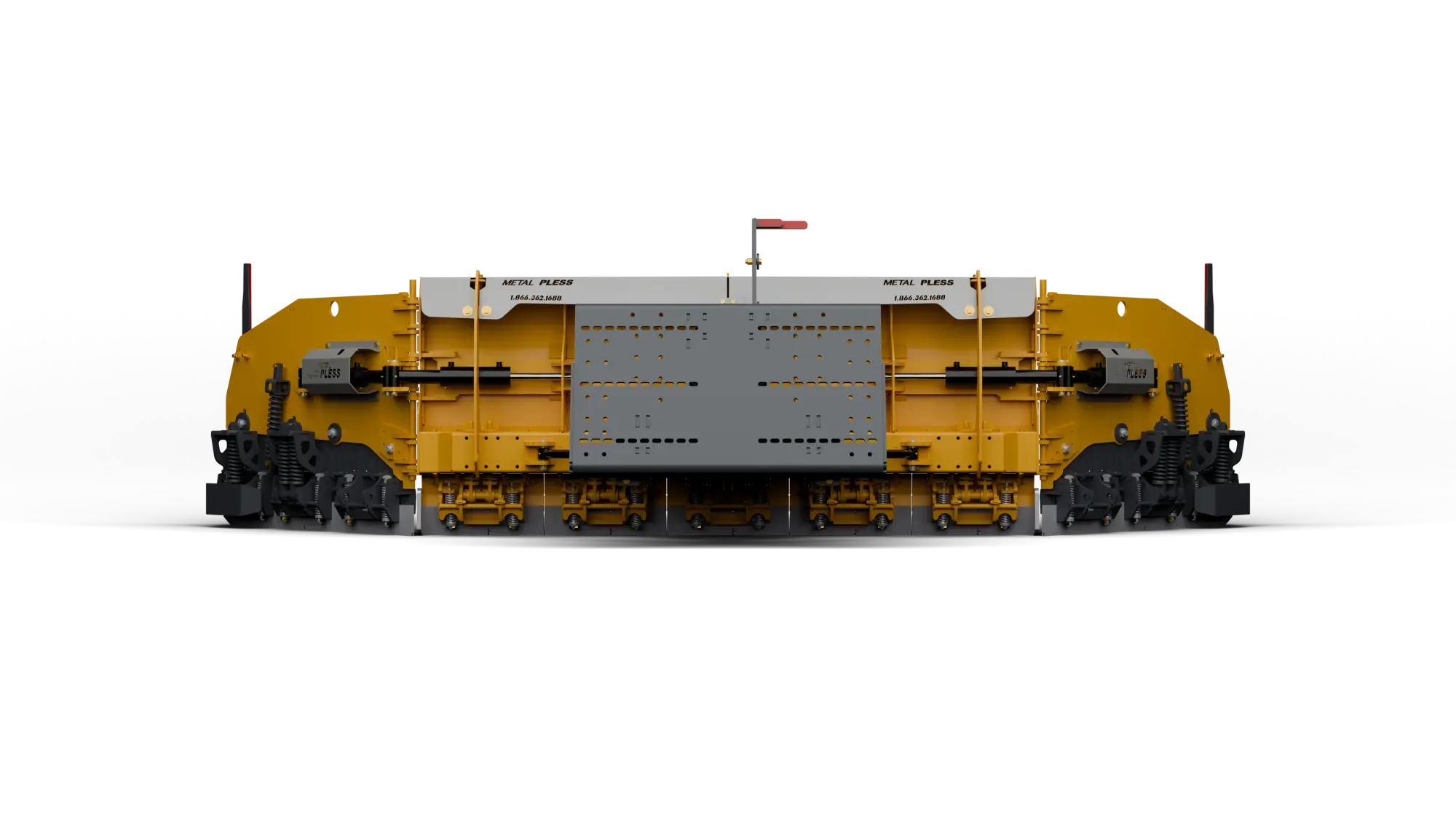

MaxxPro — Sizes & specifications
Model
Available Edges
Blade Dimensions
Wing Size (each side)
Application
Wing / Gate Type
Approx. Weight
Compare
Box
Height
Extended
PRO 0848-18
HD - LE - FULLE
8'
48"
18'
5'
25,000 lb - 50,000 lb
Hydraulic wings
4,700 lb
Available Edges
HD - LE - FULLE
Blade Dimensions – Box
8'
Blade Dimensions – Height
48"
Blade Dimensions – Extended
18'
Wing Size (each side)
5'
Application
25,000 lb - 50,000 lb
Wing / Gate Type
Hydraulic wings
Approx. Weight
4,700 lb
PRO 0848-20
HD - LE - FULLE
8'
48"
20'
6'
25,000 lb - 50,000 lb
Hydraulic wings
4,900 lb
Available Edges
HD - LE - FULLE
Blade Dimensions – Box
8'
Blade Dimensions – Height
48"
Blade Dimensions – Extended
20'
Wing Size (each side)
6'
Application
25,000 lb - 50,000 lb
Wing / Gate Type
Hydraulic wings
Approx. Weight
4,900 lb
PRO 1048-18
HD - LE - FULLE
10'
48"
18'
4'
25,000 lb - 50,000 lb
Hydraulic wings
4,800 lb
Available Edges
HD - LE - FULLE
Blade Dimensions – Box
10'
Blade Dimensions – Height
48"
Blade Dimensions – Extended
18'
Wing Size (each side)
4'
Application
25,000 lb - 50,000 lb
Wing / Gate Type
Hydraulic wings
Approx. Weight
4,800 lb
PRO 1048-20
Top pick
HD - LE - FULLE
10'
48"
20'
5'
25,000 lb - 50,000 lb
Hydraulic wings
5,000 lb
Available Edges
HD - LE - FULLE
Blade Dimensions – Box
10'
Blade Dimensions – Height
48"
Blade Dimensions – Extended
20'
Wing Size (each side)
5'
Application
25,000 lb - 50,000 lb
Wing / Gate Type
Hydraulic wings
Approx. Weight
5,000 lb
PRO 1048-22
Top pick
HD - LE - FULLE
10'
48"
22'
6'
25,000 lb - 50,000 lb
Hydraulic wings
5,200 lb
Available Edges
HD - LE - FULLE
Blade Dimensions – Box
10'
Blade Dimensions – Height
48"
Blade Dimensions – Extended
22'
Wing Size (each side)
6'
Application
25,000 lb - 50,000 lb
Wing / Gate Type
Hydraulic wings
Approx. Weight
5,200 lb
PRO 1048-26 (Van)
HD - LE - FULLE
10'
48"
26'
8'
25,000 lb - 50,000 lb
Hydraulic wings
5,900 lb
Available Edges
HD - LE - FULLE
Blade Dimensions – Box
10'
Blade Dimensions – Height
48"
Blade Dimensions – Extended
26'
Wing Size (each side)
8'
Application
25,000 lb - 50,000 lb
Wing / Gate Type
Hydraulic wings
Approx. Weight
5,900 lb
PRO 1248-20
Top pick
HD - LE - FULLE
12'
48"
20'
4'
30,000 lb - 50,000 lb
Hydraulic wings
5,200 lb
Available Edges
HD - LE - FULLE
Blade Dimensions – Box
12'
Blade Dimensions – Height
48"
Blade Dimensions – Extended
20'
Wing Size (each side)
4'
Application
30,000 lb - 50,000 lb
Wing / Gate Type
Hydraulic wings
Approx. Weight
5,200 lb
PRO 1248-22
HD - LE - FULLE
12'
48"
22'
5'
30,000 lb - 50,000 lb
Hydraulic wings
5,400 lb
Available Edges
HD - LE - FULLE
Blade Dimensions – Box
12'
Blade Dimensions – Height
48"
Blade Dimensions – Extended
22'
Wing Size (each side)
5'
Application
30,000 lb - 50,000 lb
Wing / Gate Type
Hydraulic wings
Approx. Weight
5,400 lb
PRO 1248-24
HD - LE - FULLE
12'
48"
24'
6'
30,000 lb - 50,000 lb
Hydraulic wings
5,600 lb
Available Edges
HD - LE - FULLE
Blade Dimensions – Box
12'
Blade Dimensions – Height
48"
Blade Dimensions – Extended
24'
Wing Size (each side)
6'
Application
30,000 lb - 50,000 lb
Wing / Gate Type
Hydraulic wings
Approx. Weight
5,600 lb
PRO 1248-28 (Van)
HD - LE - FULLE
12'
48"
28'
8'
30,000 lb - 50,000 lb
Hydraulic wings
6,300 lb
Available Edges
HD - LE - FULLE
Blade Dimensions – Box
12'
Blade Dimensions – Height
48"
Blade Dimensions – Extended
28'
Wing Size (each side)
8'
Application
30,000 lb - 50,000 lb
Wing / Gate Type
Hydraulic wings
Approx. Weight
6,300 lb
PRO 1448-25
HD - LE
14'
48"
25'
5.5'
35,000 lb and up
Hydraulic wings
6,400 lb
Available Edges
HD - LE
Blade Dimensions – Box
14'
Blade Dimensions – Height
48"
Blade Dimensions – Extended
25'
Wing Size (each side)
5.5'
Application
35,000 lb and up
Wing / Gate Type
Hydraulic wings
Approx. Weight
6,400 lb
PRO 1648-30
HD - LE - FULLE
16'
48"
30'
7'
40,000 lb and up
Hydraulic wings
7,000 lb
Available Edges
HD - LE - FULLE
Blade Dimensions – Box
16'
Blade Dimensions – Height
48"
Blade Dimensions – Extended
30'
Wing Size (each side)
7'
Application
40,000 lb and up
Wing / Gate Type
Hydraulic wings
Approx. Weight
7,000 lb
*Ask about our Tivar options
