Our wings are constructed with CHT400 steel, making them the strongest in the industry. We use cylinders to move the wings, instead of actuators (hydraulic motors), offering superior holding strength. The leverage is increased by having two cylinders per wing. Additionally, the wings are equipped with a spring that can be adjusted to provide down pressure.
Trip Edge on the Wings
Unique Soft Drive Trip Edge design allows the individual sections to trip backward without the blade being lifted upward, greatly reducing the impact.
Live Edge Technology
Independent floating sections follow the unevenness of the ground and trip back on their own. Full contact with the surface means a cleaner pass, fewer passes and less salt, and carbide inserts extend the wear life.
Lateral Float
Automatically follows the imperfections of the pavement. Our system incorporates an adjustable oscillating mechanism for better control. Increase plowing efficiency and no need to go over the same area multiple times.
Slip Hitch
Slip hitch design allows the plow to follow surface variations. Reduces operator fatigue and increases plowing efficiency. Cutting edges wear evenly and prolong plow life.

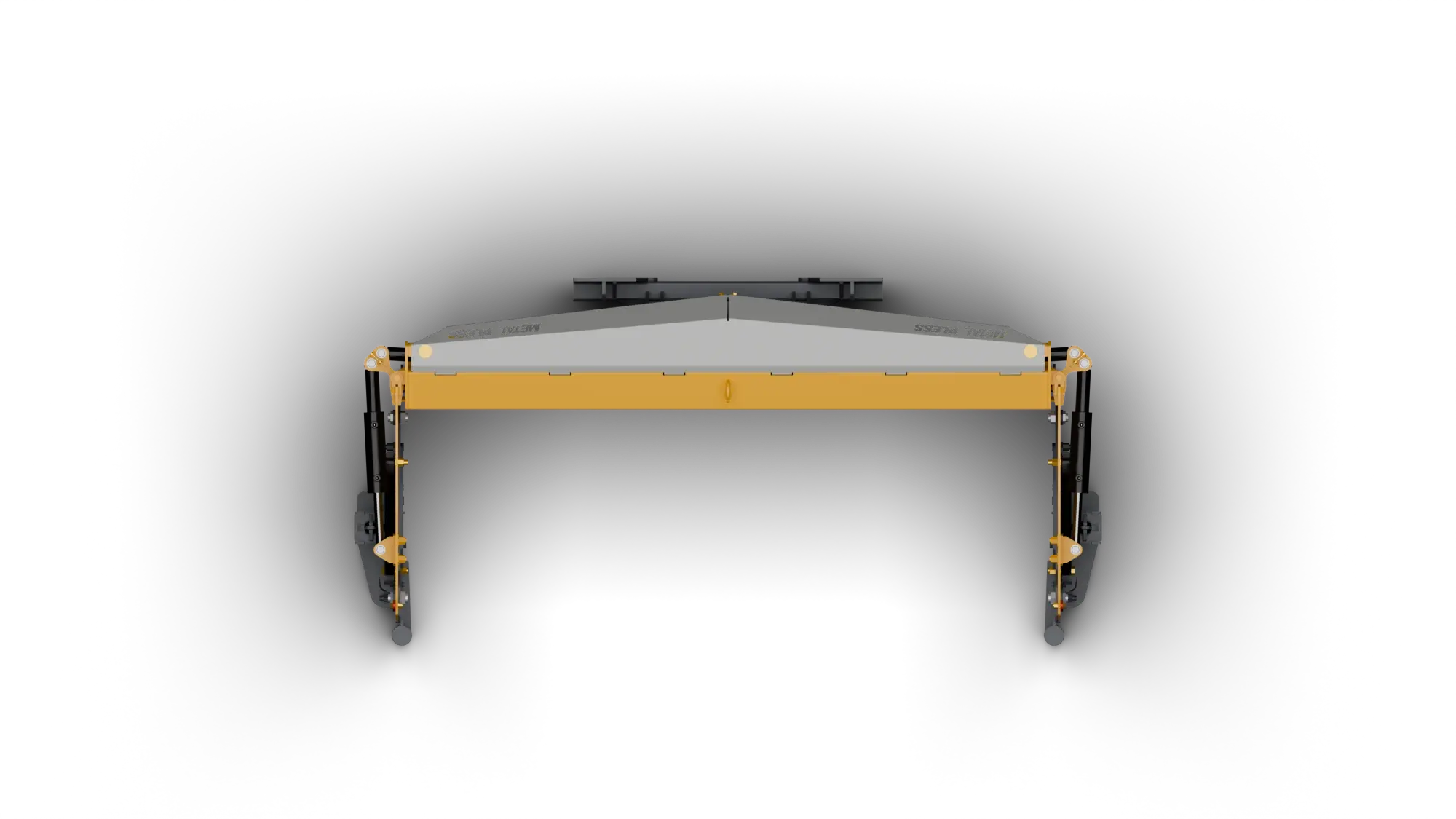

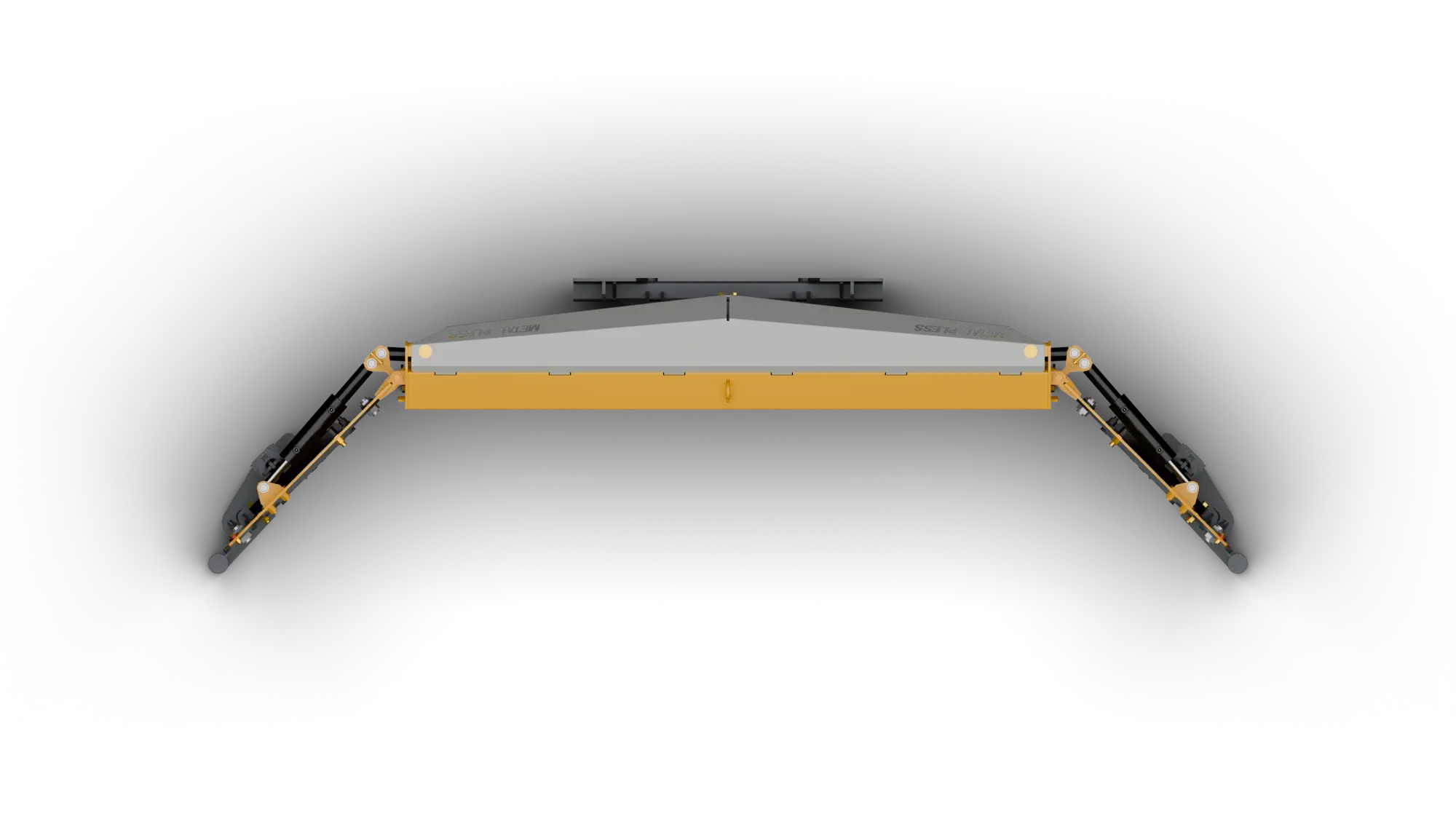

Blade positions
Available edges

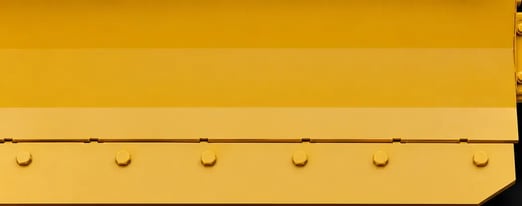

STDStandard
Standard trip edge allows the cutting edge to trip back.

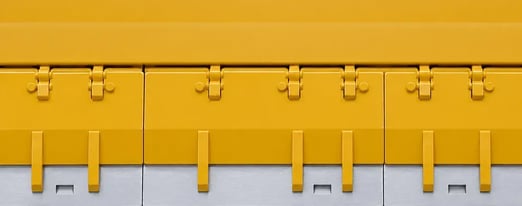

LELive Edge
A floating soft drive steel trip edge with carbide inserts for longer wear life, that contours the unevenness of the ground for a cleaner result.

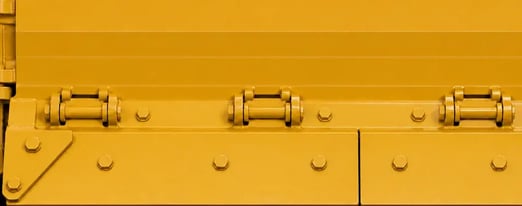

HDSoft Drive Trip Edge
Unique Soft Drive trip edge design allows the individual sections to trip backward without the blade being lifted upward, greatly reducing the impact.

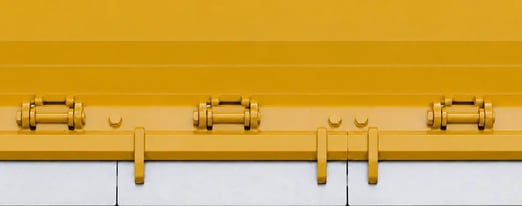

LELLive Edge Lite
A lighter LIVE EDGE for smaller carriers: floating trip sections that follow the unevenness of the ground.
Compatibility
Tractor
Sizes & specifications

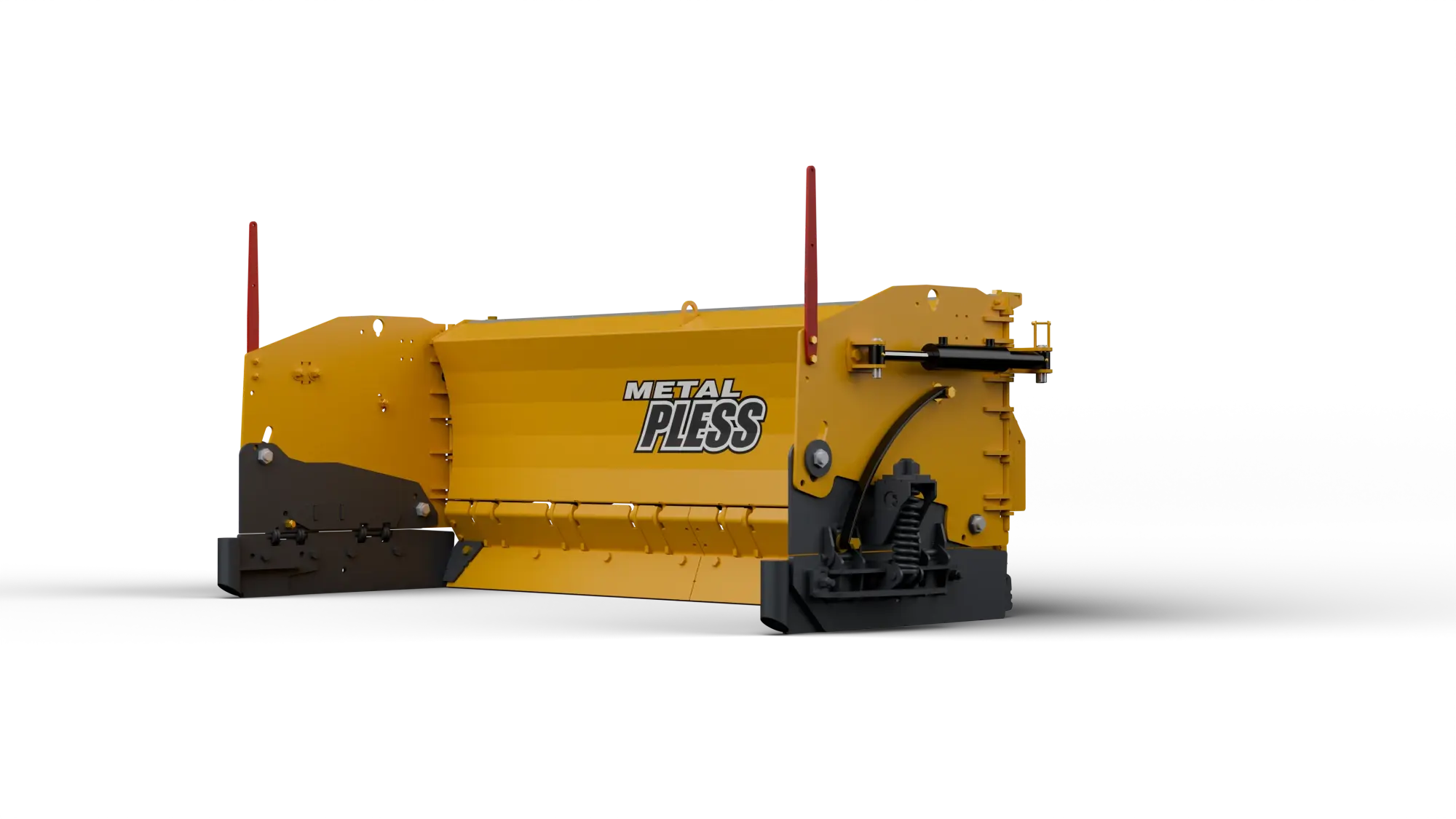

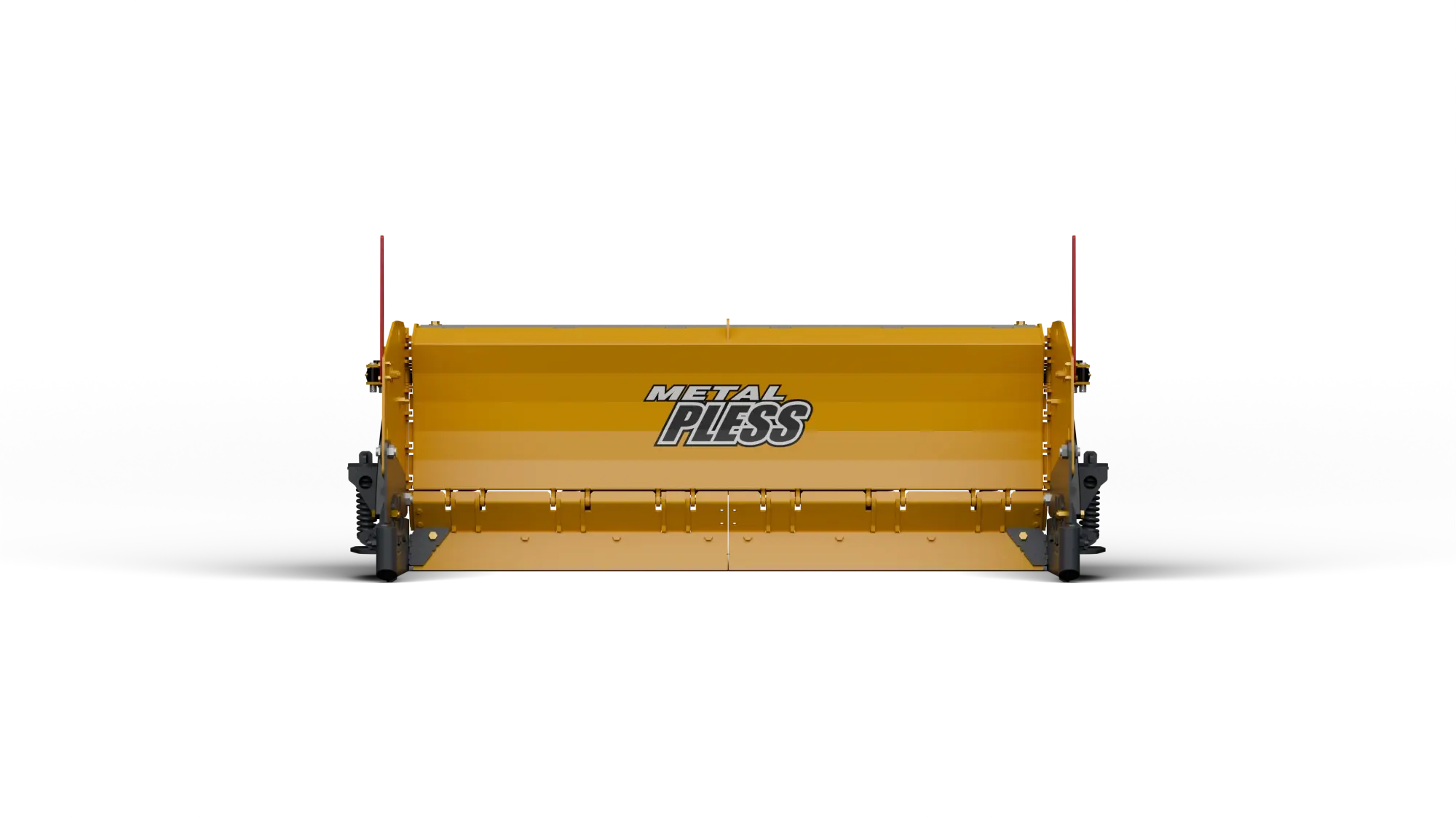

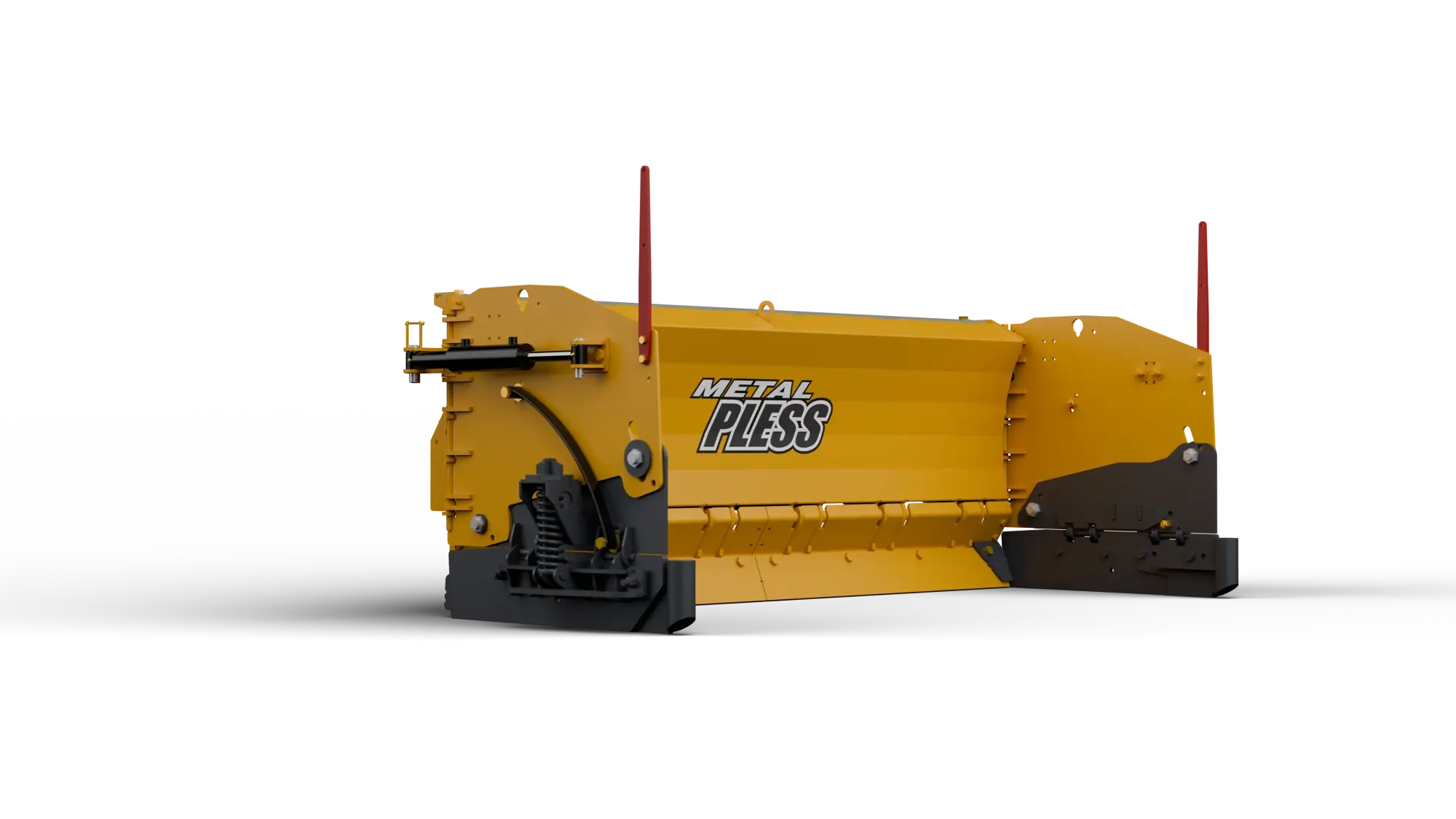

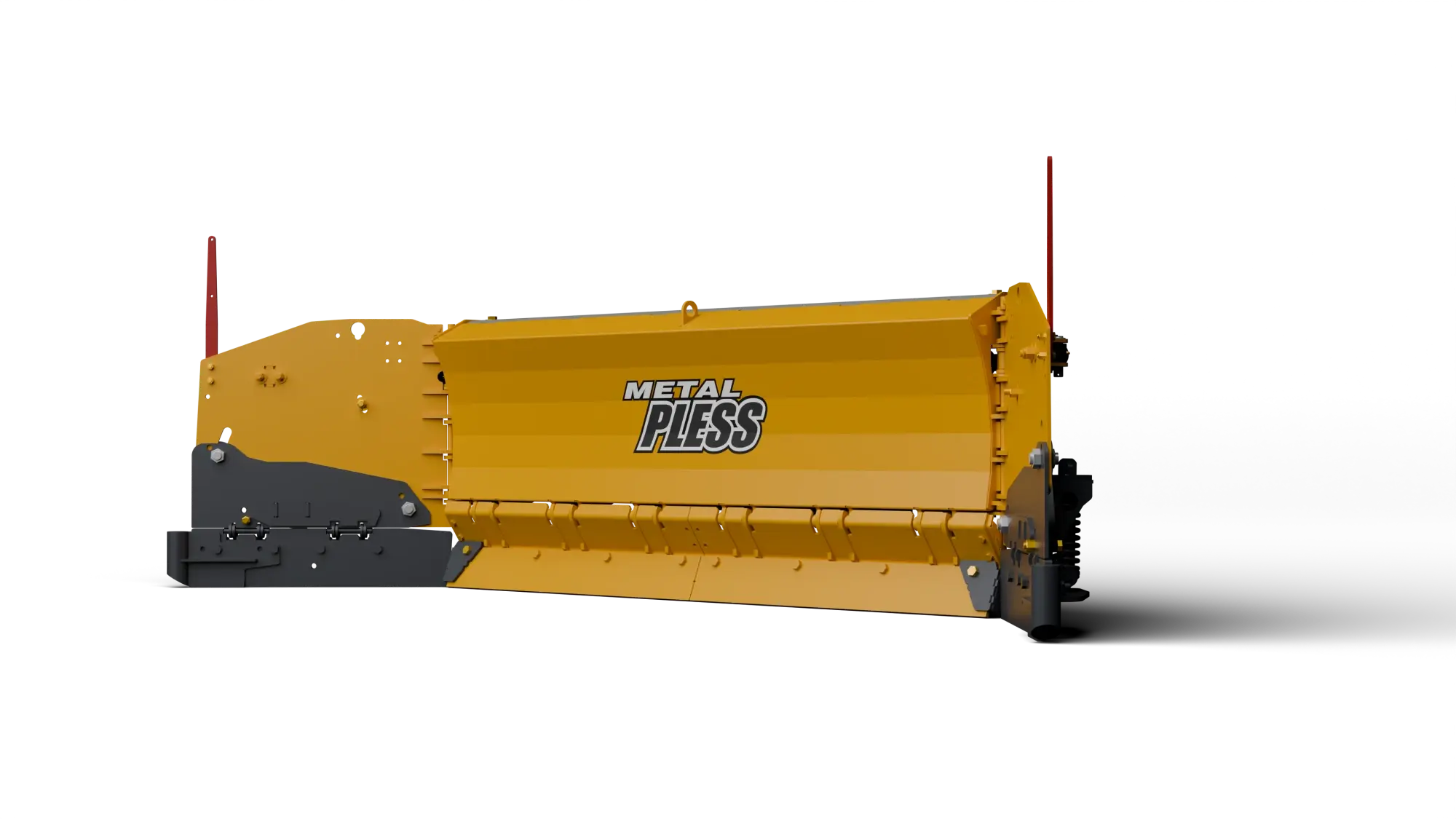

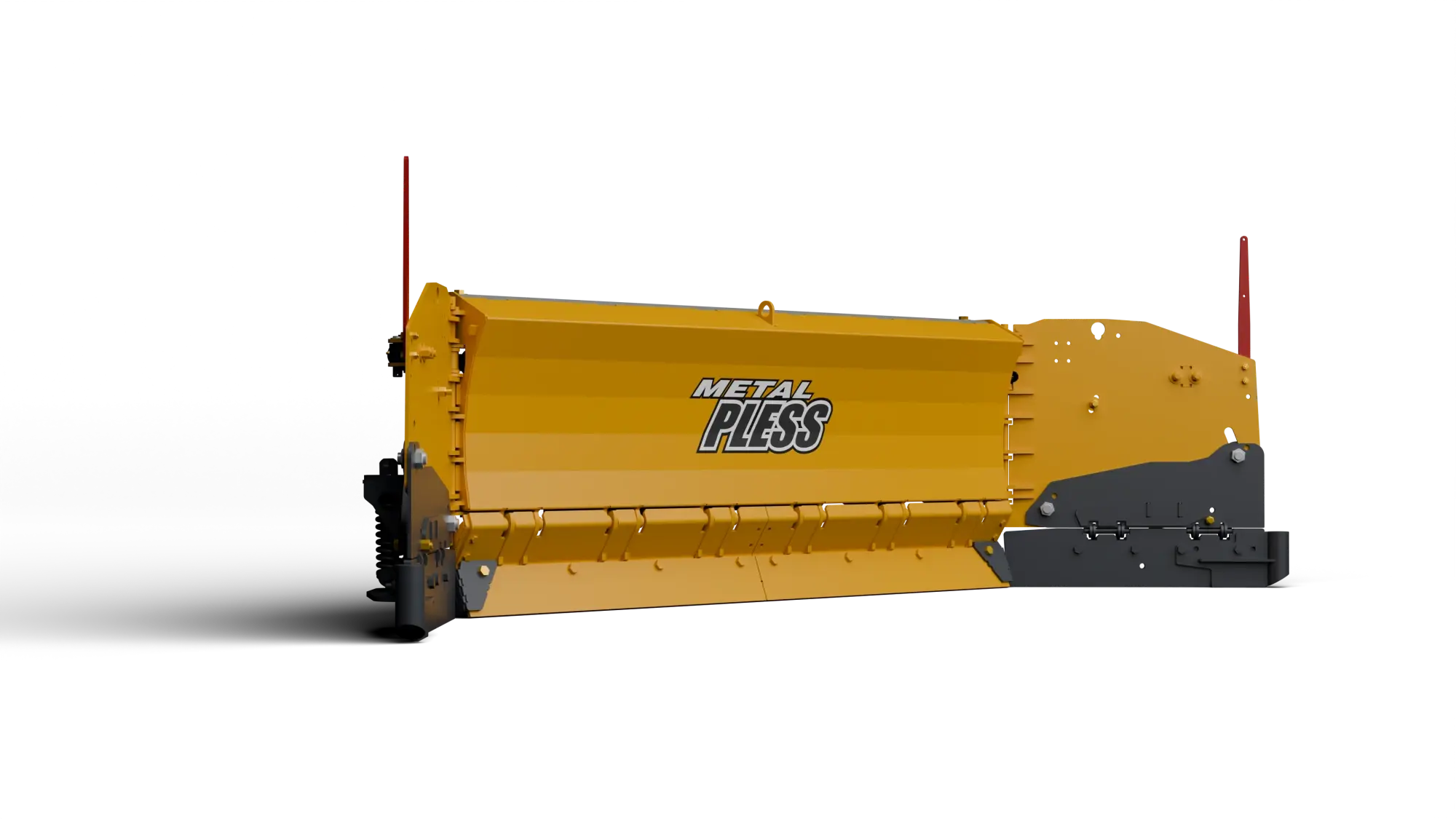

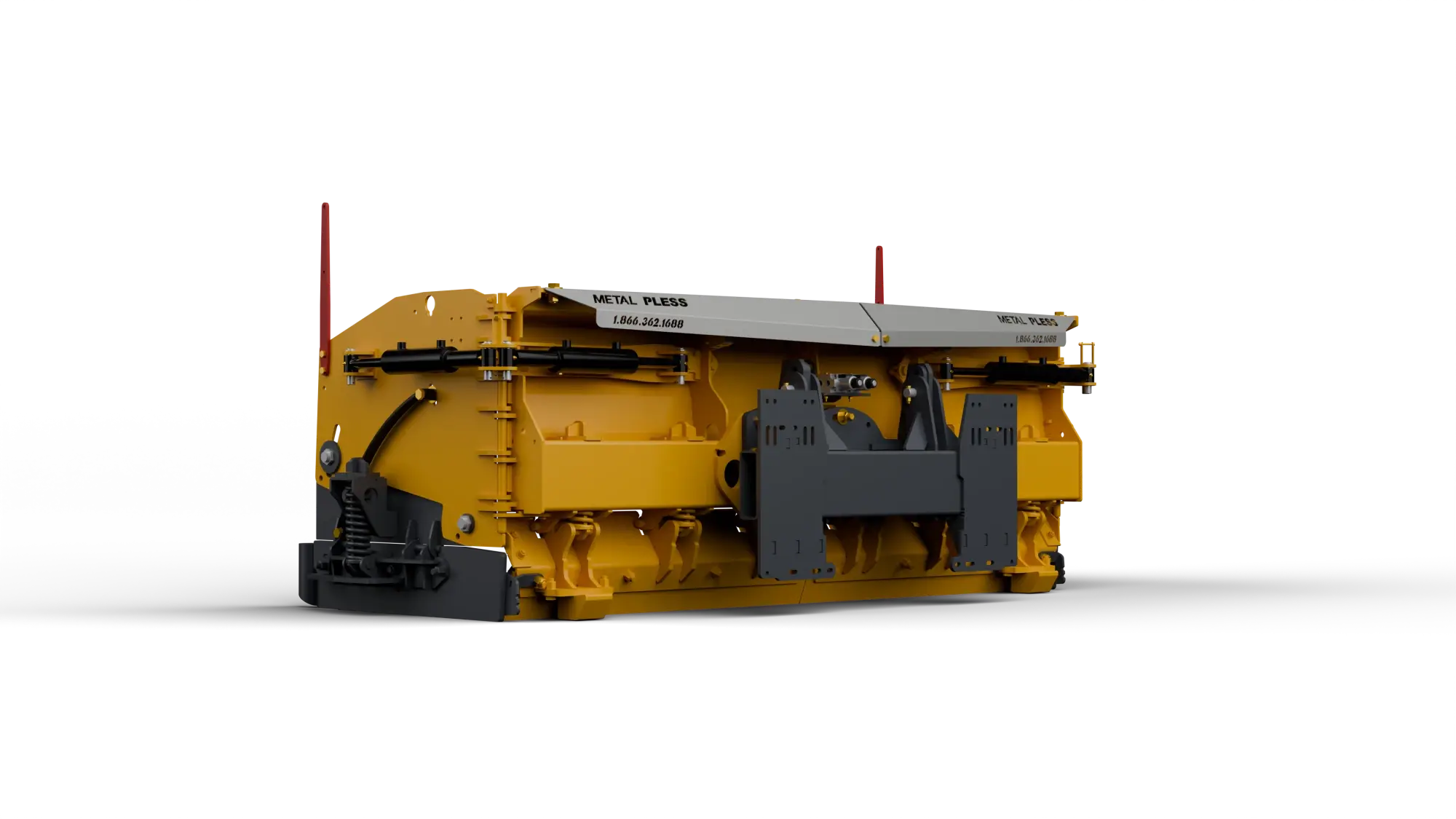

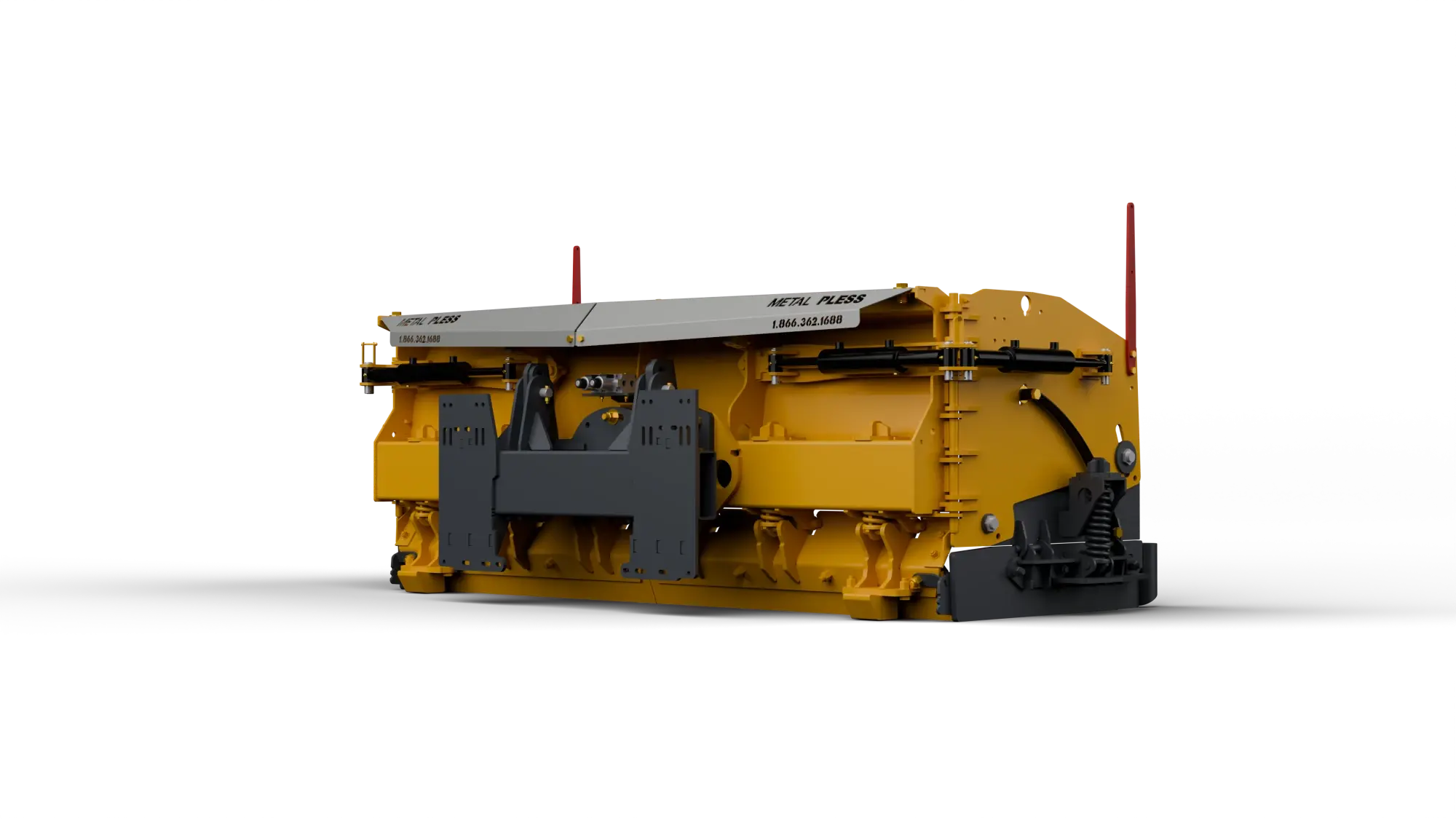

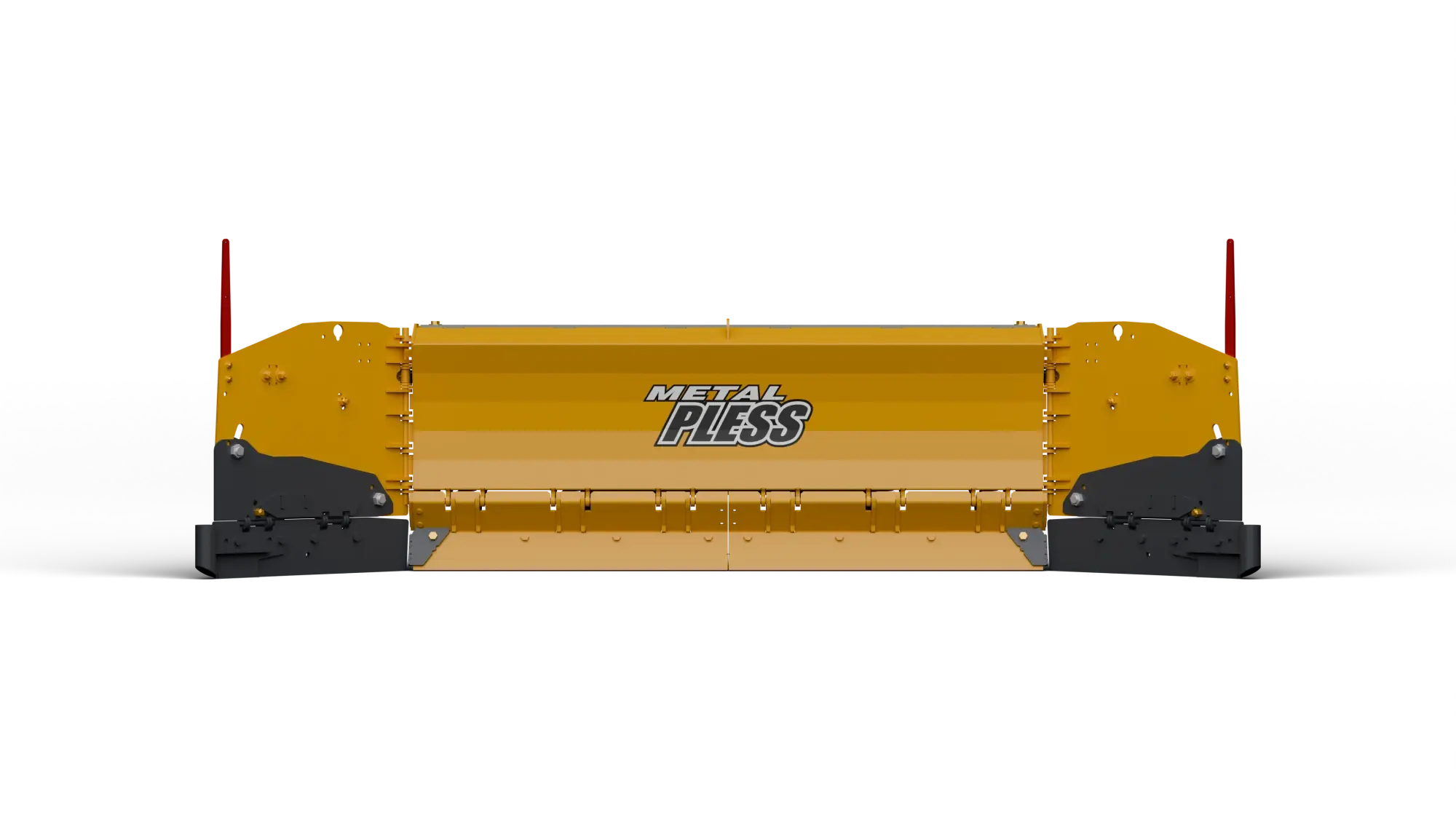

ReverseMaxx — Sizes & specifications
Model
Available Edges
Blade Dimensions
Wing Size (each side)
Application
Wing / Gate Type
Approx. Weight
Compare
Box
Height
Extended
REVLT 0527-10
STD
5'
27"
10'
2.5'
4,000 lb - 6,000 lb
Hydraulic wings; no angulation
1,000 lb
Available Edges
STD
Blade Dimensions – Box
5'
Blade Dimensions – Height
27"
Blade Dimensions – Extended
10'
Wing Size (each side)
2.5'
Application
4,000 lb - 6,000 lb
Wing / Gate Type
Hydraulic wings; no angulation
Approx. Weight
1,000 lb
REVLT 0627-11
STD
6'
27"
11'
2.5'
4,000 lb - 6,000 lb
Hydraulic wings; no angulation
1,130 lb
Available Edges
STD
Blade Dimensions – Box
6'
Blade Dimensions – Height
27"
Blade Dimensions – Extended
11'
Wing Size (each side)
2.5'
Application
4,000 lb - 6,000 lb
Wing / Gate Type
Hydraulic wings; no angulation
Approx. Weight
1,130 lb
REVLT 0727-12
STD
7'
27"
12'
2.5'
4,000 lb - 6,000 lb
Hydraulic wings; no angulation
1,185 lb
Available Edges
STD
Blade Dimensions – Box
7'
Blade Dimensions – Height
27"
Blade Dimensions – Extended
12'
Wing Size (each side)
2.5'
Application
4,000 lb - 6,000 lb
Wing / Gate Type
Hydraulic wings; no angulation
Approx. Weight
1,185 lb
REVM 0630-11
STD - LE
6'
30"
11'
2.5'
6,001 lb - 12,000 lb
Hydraulic wings; no angulation
1,398 lb
Available Edges
STD - LE
Blade Dimensions – Box
6'
Blade Dimensions – Height
30"
Blade Dimensions – Extended
11'
Wing Size (each side)
2.5'
Application
6,001 lb - 12,000 lb
Wing / Gate Type
Hydraulic wings; no angulation
Approx. Weight
1,398 lb
REVM 0730-12
STD - HD
7'
30"
12'
2.5'
6,001 lb - 12,000 lb
Hydraulic wings; no angulation
1,498 lb
Available Edges
STD - HD
Blade Dimensions – Box
7'
Blade Dimensions – Height
30"
Blade Dimensions – Extended
12'
Wing Size (each side)
2.5'
Application
6,001 lb - 12,000 lb
Wing / Gate Type
Hydraulic wings; no angulation
Approx. Weight
1,498 lb
REVM 0830-13
STD - HD - LE
8'
30"
13'
2.5'
6,001 lb - 12,000 lb
Hydraulic wings; no angulation
1,688 lb
Available Edges
STD - HD - LE
Blade Dimensions – Box
8'
Blade Dimensions – Height
30"
Blade Dimensions – Extended
13'
Wing Size (each side)
2.5'
Application
6,001 lb - 12,000 lb
Wing / Gate Type
Hydraulic wings; no angulation
Approx. Weight
1,688 lb
REVM 0830-14
STD
8'
30"
14'
3'
6,001 lb - 12,000 lb
Hydraulic wings
1,580 lb
Available Edges
STD
Blade Dimensions – Box
8'
Blade Dimensions – Height
30"
Blade Dimensions – Extended
14'
Wing Size (each side)
3'
Application
6,001 lb - 12,000 lb
Wing / Gate Type
Hydraulic wings
Approx. Weight
1,580 lb
RESM 0730-12
STD - LEL
7'
30"
12'
2.5'
6,001 lb - 12,000 lb
Hydraulic wings
1,890 lb
Available Edges
STD - LEL
Blade Dimensions – Box
7'
Blade Dimensions – Height
30"
Blade Dimensions – Extended
12'
Wing Size (each side)
2.5'
Application
6,001 lb - 12,000 lb
Wing / Gate Type
Hydraulic wings
Approx. Weight
1,890 lb
RESM 0830-13
STD - LEL
8'
30"
13'
2.5'
6,001 lb - 12,000 lb
Hydraulic wings
1,930 lb
Available Edges
STD - LEL
Blade Dimensions – Box
8'
Blade Dimensions – Height
30"
Blade Dimensions – Extended
13'
Wing Size (each side)
2.5'
Application
6,001 lb - 12,000 lb
Wing / Gate Type
Hydraulic wings
Approx. Weight
1,930 lb
RESM 0930-14
STD - LEL
9'
30"
14'
2.5'
6,001 lb - 12,000 lb
Hydraulic wings
2,130 lb
Available Edges
STD - LEL
Blade Dimensions – Box
9'
Blade Dimensions – Height
30"
Blade Dimensions – Extended
14'
Wing Size (each side)
2.5'
Application
6,001 lb - 12,000 lb
Wing / Gate Type
Hydraulic wings
Approx. Weight
2,130 lb
REVM 0736-13
STD - HD - LE
7'
36"
13'
3'
12,001 lb - 18,000 lb
Hydraulic wings; no angulation
1,865 lb
Available Edges
STD - HD - LE
Blade Dimensions – Box
7'
Blade Dimensions – Height
36"
Blade Dimensions – Extended
13'
Wing Size (each side)
3'
Application
12,001 lb - 18,000 lb
Wing / Gate Type
Hydraulic wings; no angulation
Approx. Weight
1,865 lb
REVM 0836-14
STD - HD - LE
8'
36"
14'
3'
12,001 lb - 18,000 lb
Hydraulic wings; no angulation
2,000 lb
Available Edges
STD - HD - LE
Blade Dimensions – Box
8'
Blade Dimensions – Height
36"
Blade Dimensions – Extended
14'
Wing Size (each side)
3'
Application
12,001 lb - 18,000 lb
Wing / Gate Type
Hydraulic wings; no angulation
Approx. Weight
2,000 lb
REVM 0936-15
STD - HD - LE
9'
36"
15'
3'
12,001 lb - 18,000 lb
Hydraulic wings; no angulation
2,100 lb
Available Edges
STD - HD - LE
Blade Dimensions – Box
9'
Blade Dimensions – Height
36"
Blade Dimensions – Extended
15'
Wing Size (each side)
3'
Application
12,001 lb - 18,000 lb
Wing / Gate Type
Hydraulic wings; no angulation
Approx. Weight
2,100 lb
REVM 0836-16
STD - HD - LE
8'
36"
16'
4'
12,001 lb - 18,000 lb
Hydraulic wings; no angulation
2,200 lb
Available Edges
STD - HD - LE
Blade Dimensions – Box
8'
Blade Dimensions – Height
36"
Blade Dimensions – Extended
16'
Wing Size (each side)
4'
Application
12,001 lb - 18,000 lb
Wing / Gate Type
Hydraulic wings; no angulation
Approx. Weight
2,200 lb
REVM 1036-16
STD - HD - LE
10'
36"
16'
3'
12,001 lb - 18,000 lb
Hydraulic wings; no angulation
2,185 lb
Available Edges
STD - HD - LE
Blade Dimensions – Box
10'
Blade Dimensions – Height
36"
Blade Dimensions – Extended
16'
Wing Size (each side)
3'
Application
12,001 lb - 18,000 lb
Wing / Gate Type
Hydraulic wings; no angulation
Approx. Weight
2,185 lb
REVM 1236-18
STD - HD - LE
12'
36"
18'
3'
12,001 lb - 18,000 lb
Hydraulic wings; no angulation
2,378 lb
Available Edges
STD - HD - LE
Blade Dimensions – Box
12'
Blade Dimensions – Height
36"
Blade Dimensions – Extended
18'
Wing Size (each side)
3'
Application
12,001 lb - 18,000 lb
Wing / Gate Type
Hydraulic wings; no angulation
Approx. Weight
2,378 lb
*Ask about our Tivar options
