Our wings are constructed with CHT400 steel, making them the strongest in the industry. We use cylinders to move the wings, instead of actuators (hydraulic motors), offering superior holding strength. The leverage is increased by having two cylinders per wing. Additionally, the wings are equipped with a spring that can be adjusted to provide down pressure.
Trip Edge on the Wings
Unique Soft Drive Trip Edge design allows the individual sections to trip backward without the blade being lifted upward, greatly reducing the impact.
Live Edge Technology
Independent floating sections follow the unevenness of the ground and trip back on their own. Full contact with the surface means a cleaner pass, fewer passes and less salt, and carbide inserts extend the wear life.
Lateral Float
Automatically follows the imperfections of the pavement. Our system incorporates an adjustable oscillating mechanism for better control. Increase plowing efficiency and no need to go over the same area multiple times.
Slip Hitch
Slip hitch design allows the plow to follow surface variations. Reduces operator fatigue and increases plowing efficiency. Cutting edges wear evenly and prolong plow life.
Blade positions
Available edges
STDStandard
Standard trip edge allows the cutting edge to trip back.
LELLive Edge Lite
A lighter LIVE EDGE for smaller carriers: floating trip sections that follow the unevenness of the ground.
LELive Edge
A floating soft drive steel trip edge with carbide inserts for longer wear life, that contours the unevenness of the ground for a cleaner result.
HDSoft Drive Trip Edge
Unique Soft Drive trip edge design allows the individual sections to trip backward without the blade being lifted upward, greatly reducing the impact.
Compatibility
Tractor
Sizes & specifications

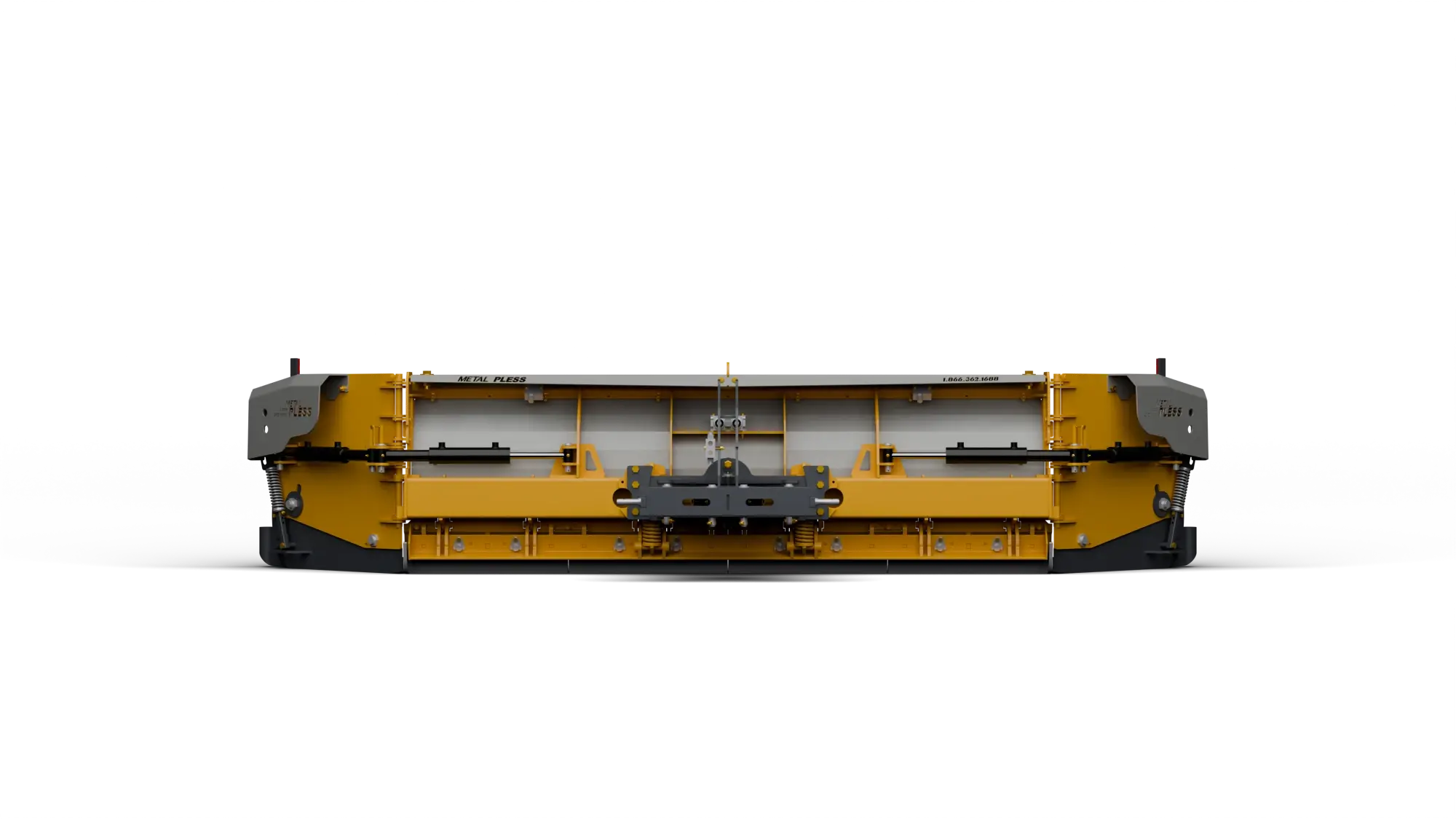

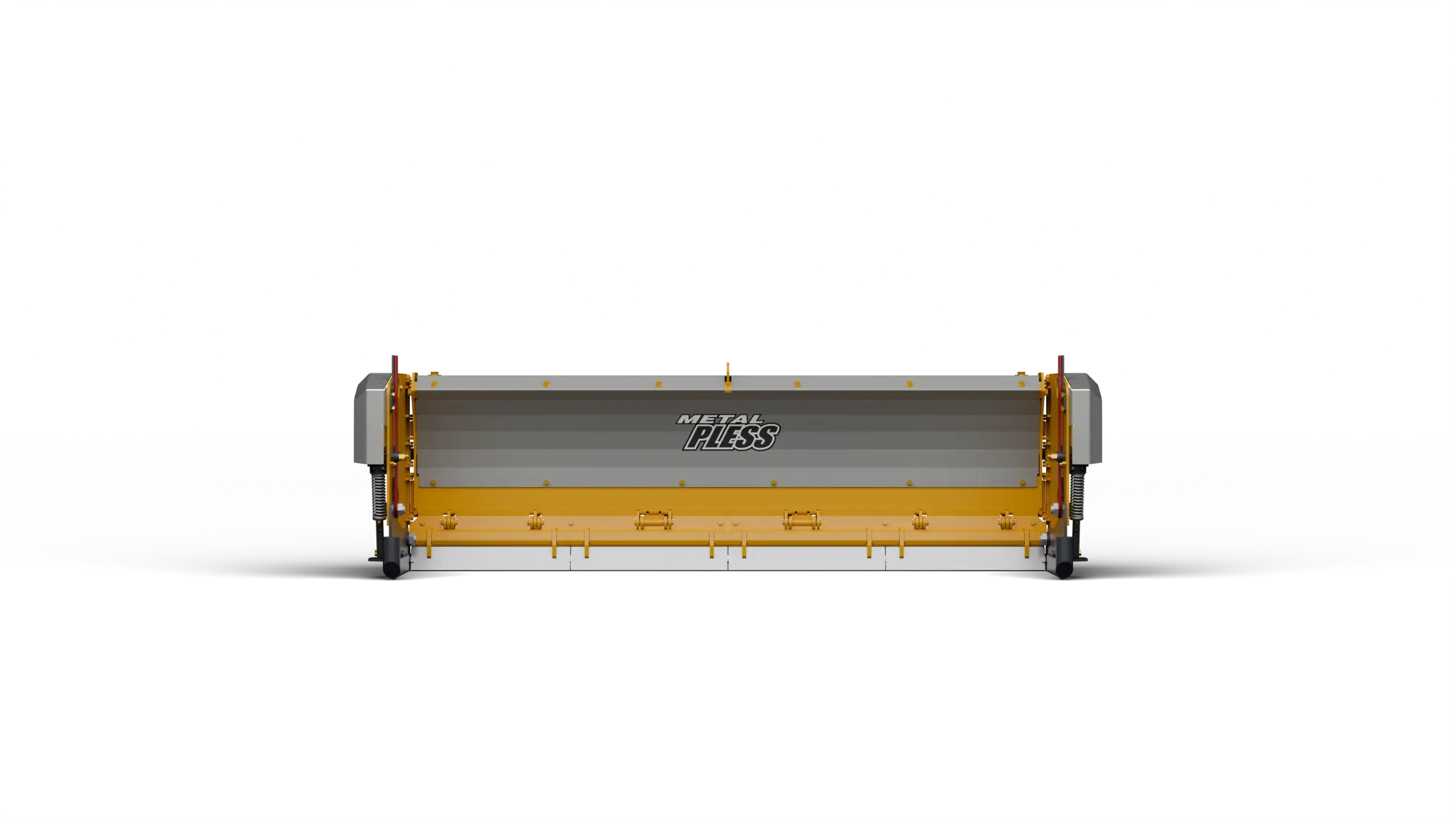

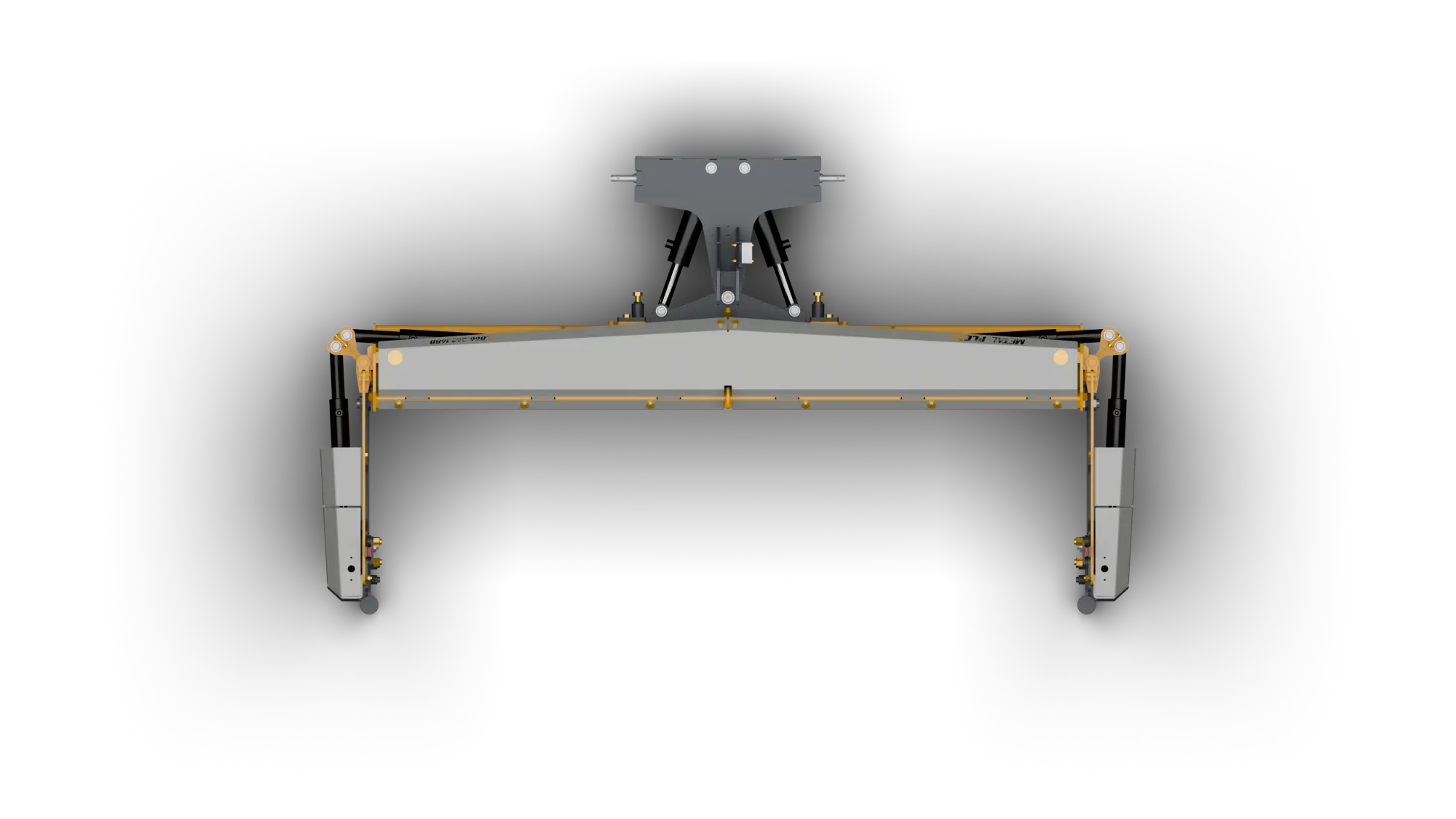

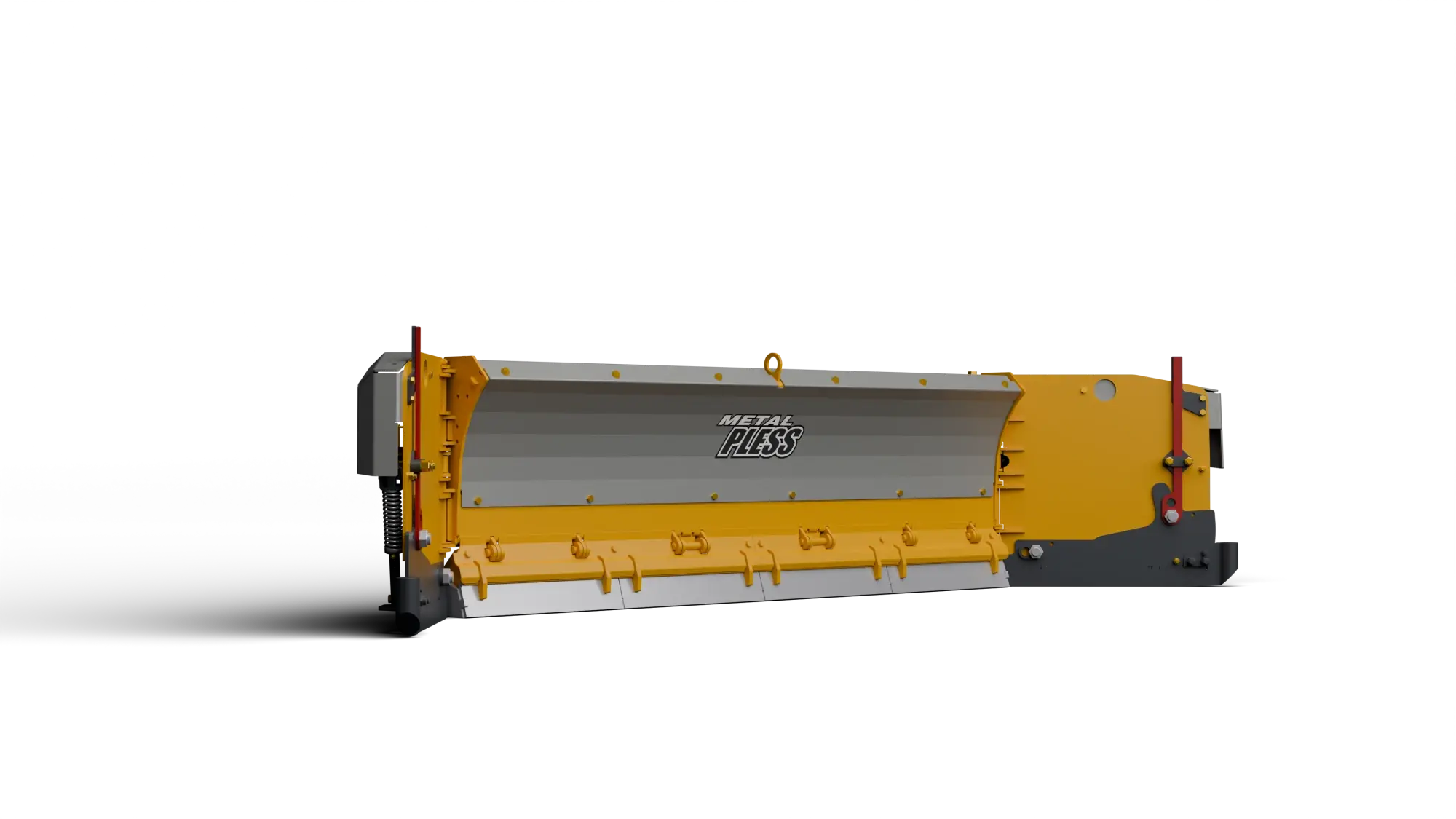

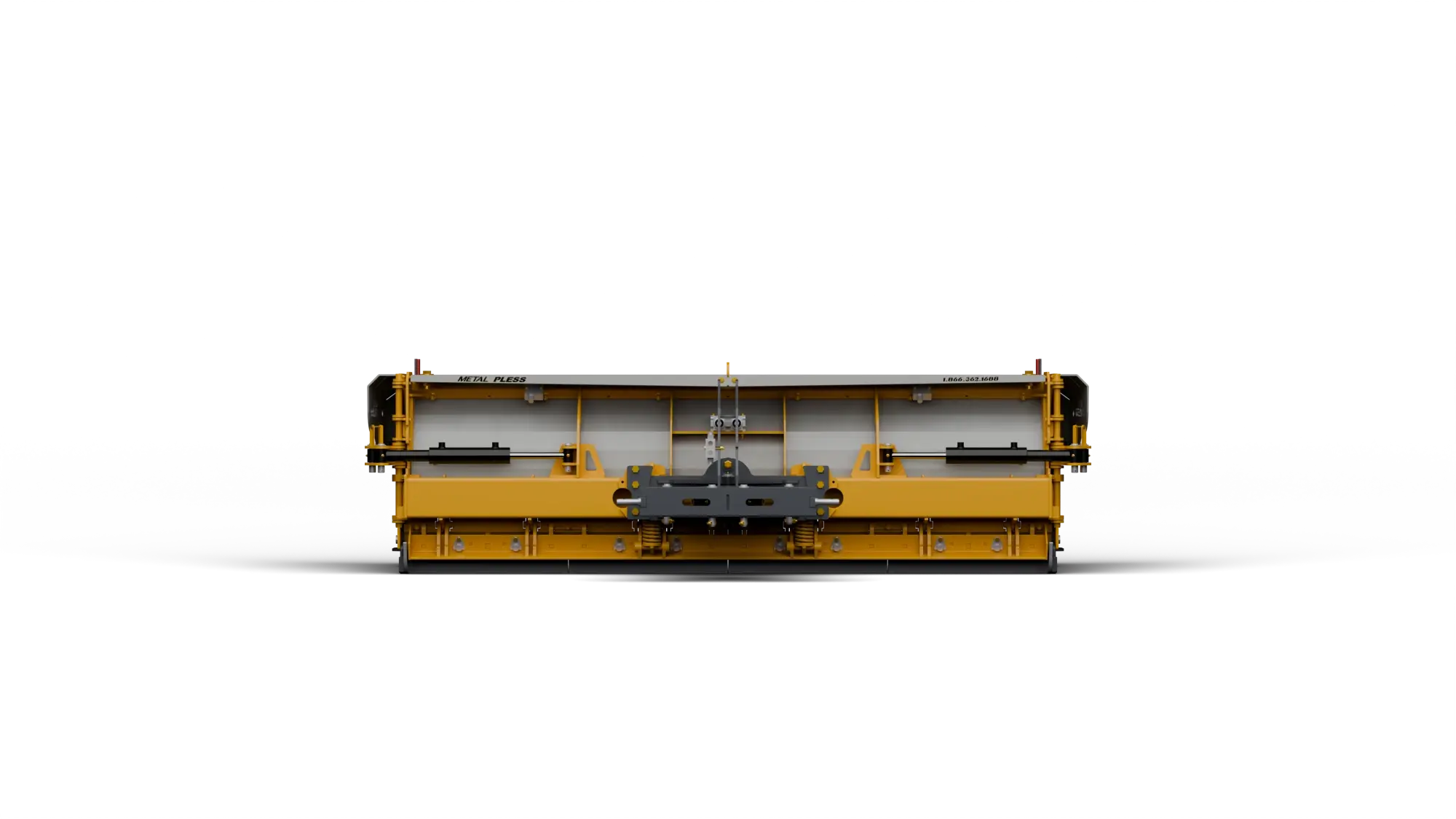

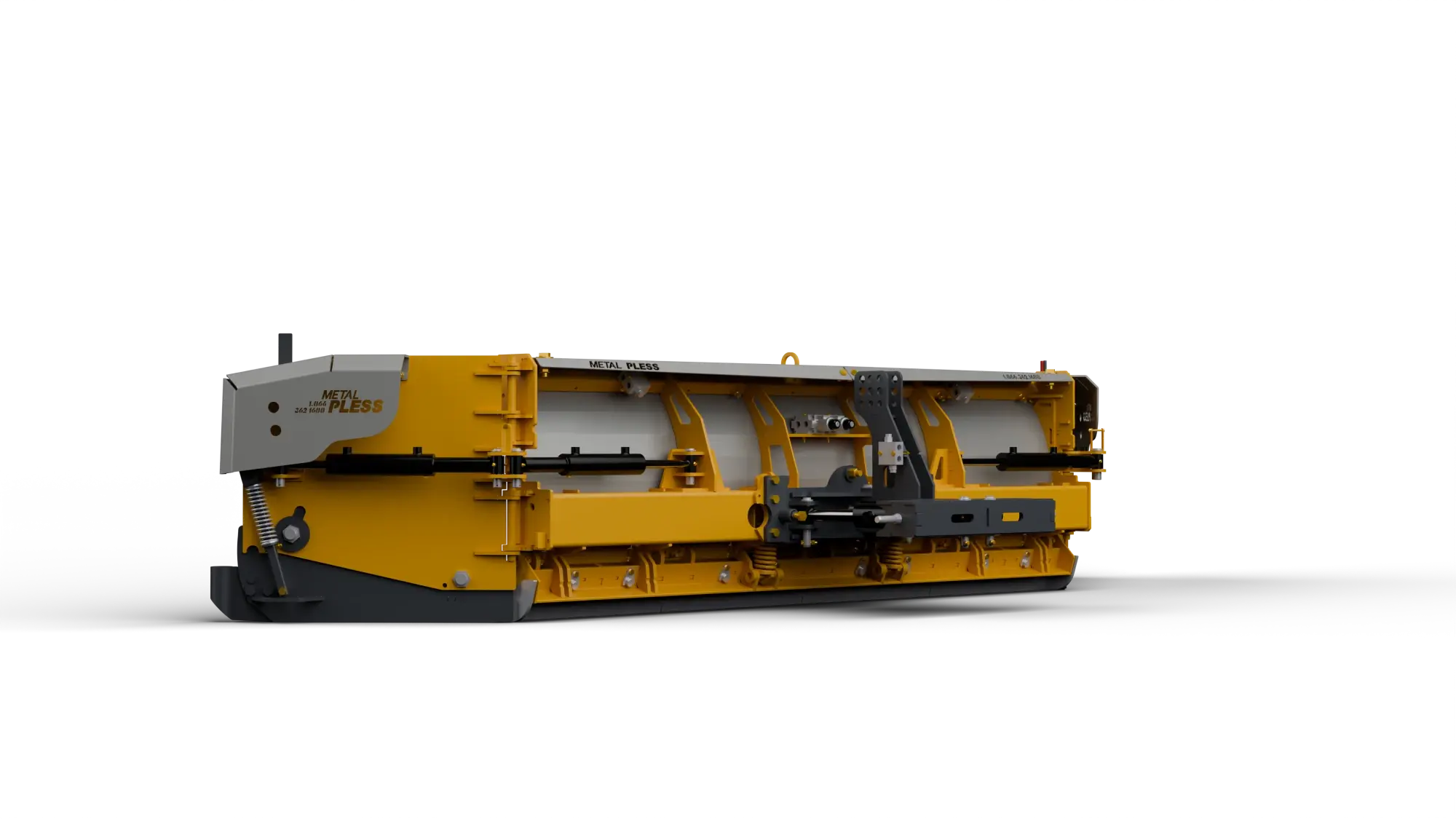

AgriMaxx — Sizes & specifications
Model
Available Edges
Blade Dimensions
Wing Size (each side)
Application
Wing / Gate Type
Approx. Weight
Compare
Box
Height
Extended
AGLT 0527-10
STD
5'
27"
10'
2.5'
40-60 HP
Hydraulic wings
982 lb
Available Edges
STD
Blade Dimensions – Box
5'
Blade Dimensions – Height
27"
Blade Dimensions – Extended
10'
Wing Size (each side)
2.5'
Application
40-60 HP
Wing / Gate Type
Hydraulic wings
Approx. Weight
982 lb
AGLT 0627-11
Top pick
STD
6'
27"
11'
2.5'
40-60 HP
Hydraulic wings
1,100 lb
Available Edges
STD
Blade Dimensions – Box
6'
Blade Dimensions – Height
27"
Blade Dimensions – Extended
11'
Wing Size (each side)
2.5'
Application
40-60 HP
Wing / Gate Type
Hydraulic wings
Approx. Weight
1,100 lb
AGSM 0730-12
Top pick
STD - LEL
7'
30"
12'
2.5'
50-60 HP
Hydraulic wings
1,501 lb
Available Edges
STD - LEL
Blade Dimensions – Box
7'
Blade Dimensions – Height
30"
Blade Dimensions – Extended
12'
Wing Size (each side)
2.5'
Application
50-60 HP
Wing / Gate Type
Hydraulic wings
Approx. Weight
1,501 lb

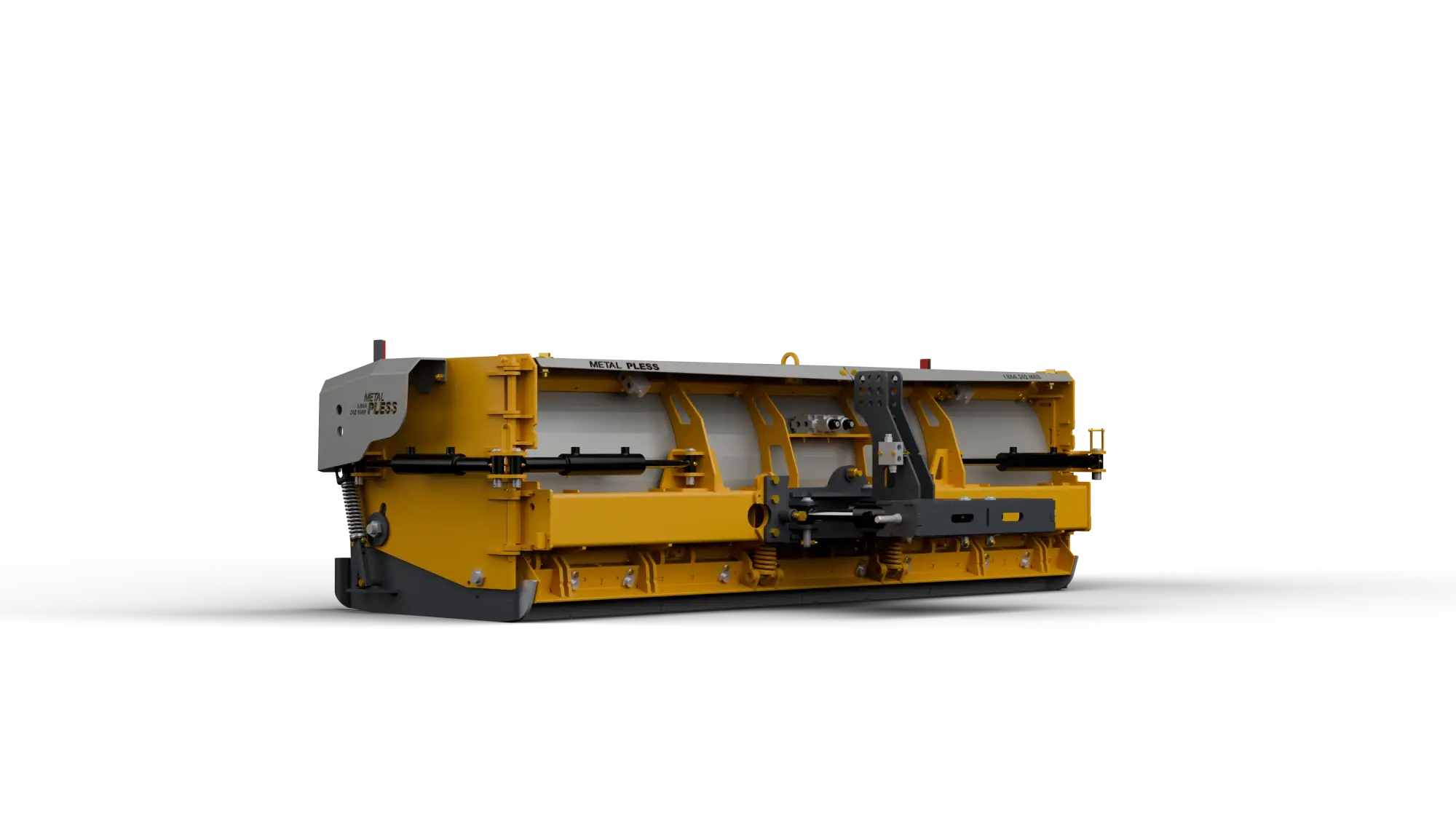

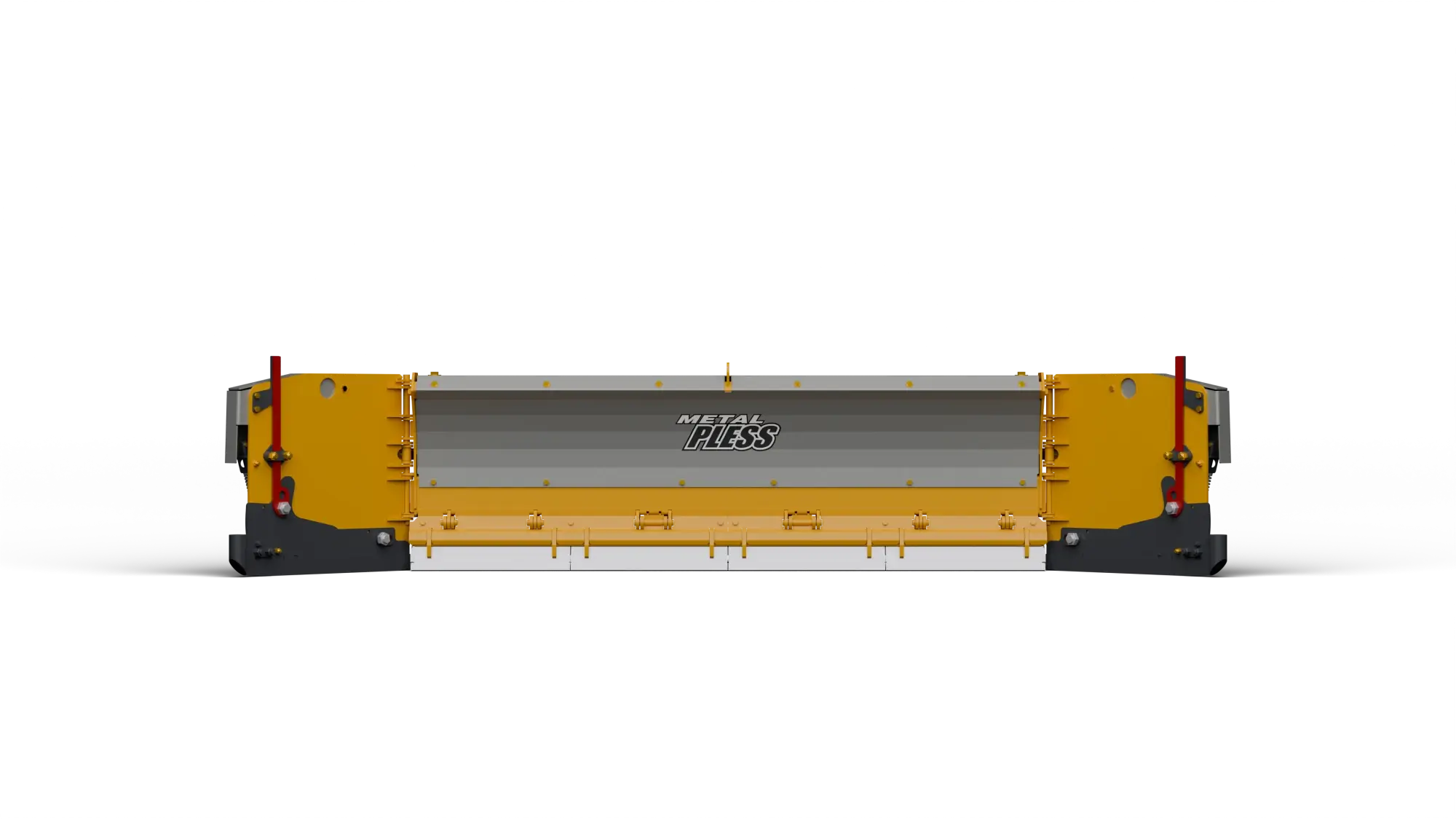

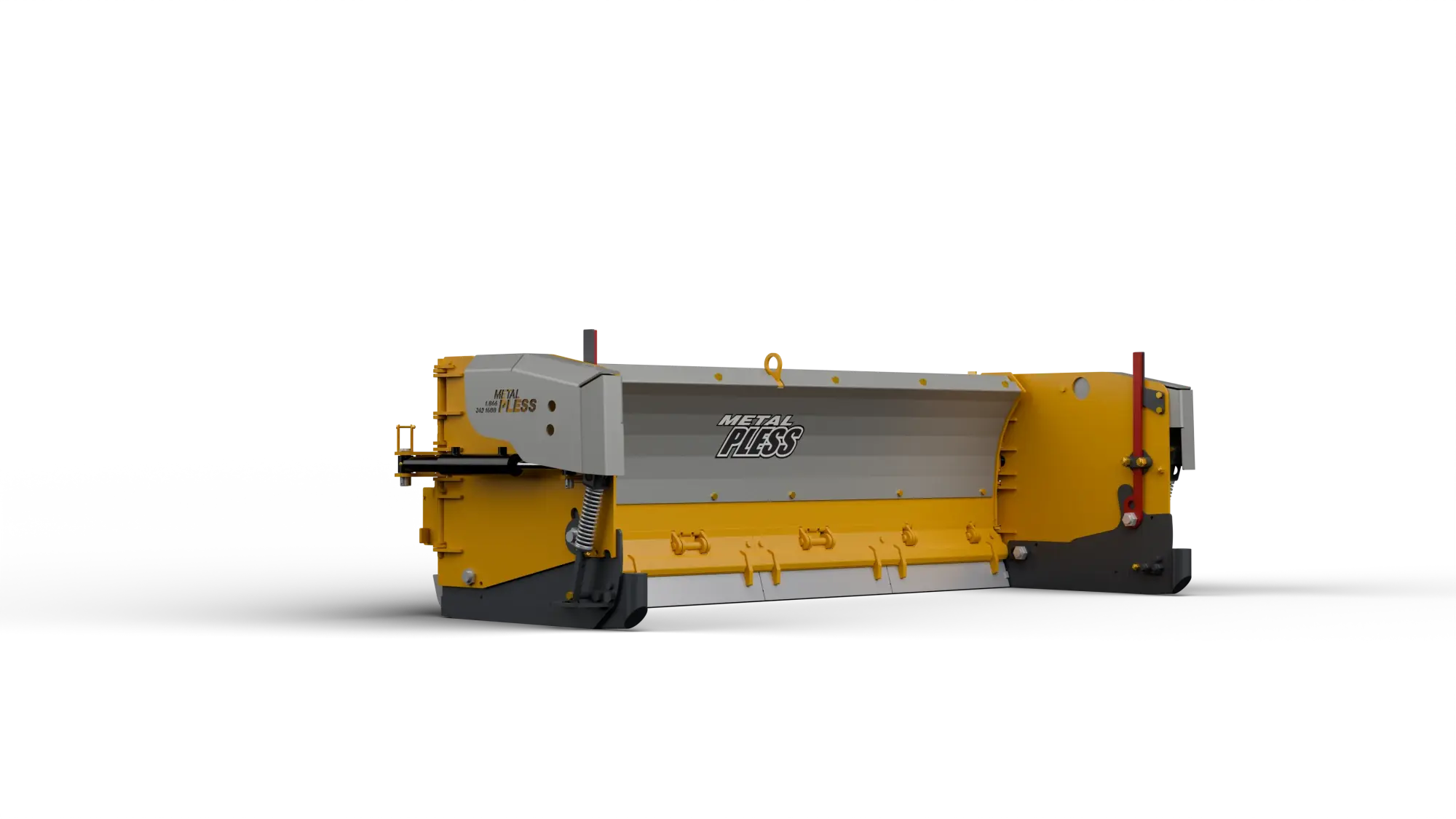

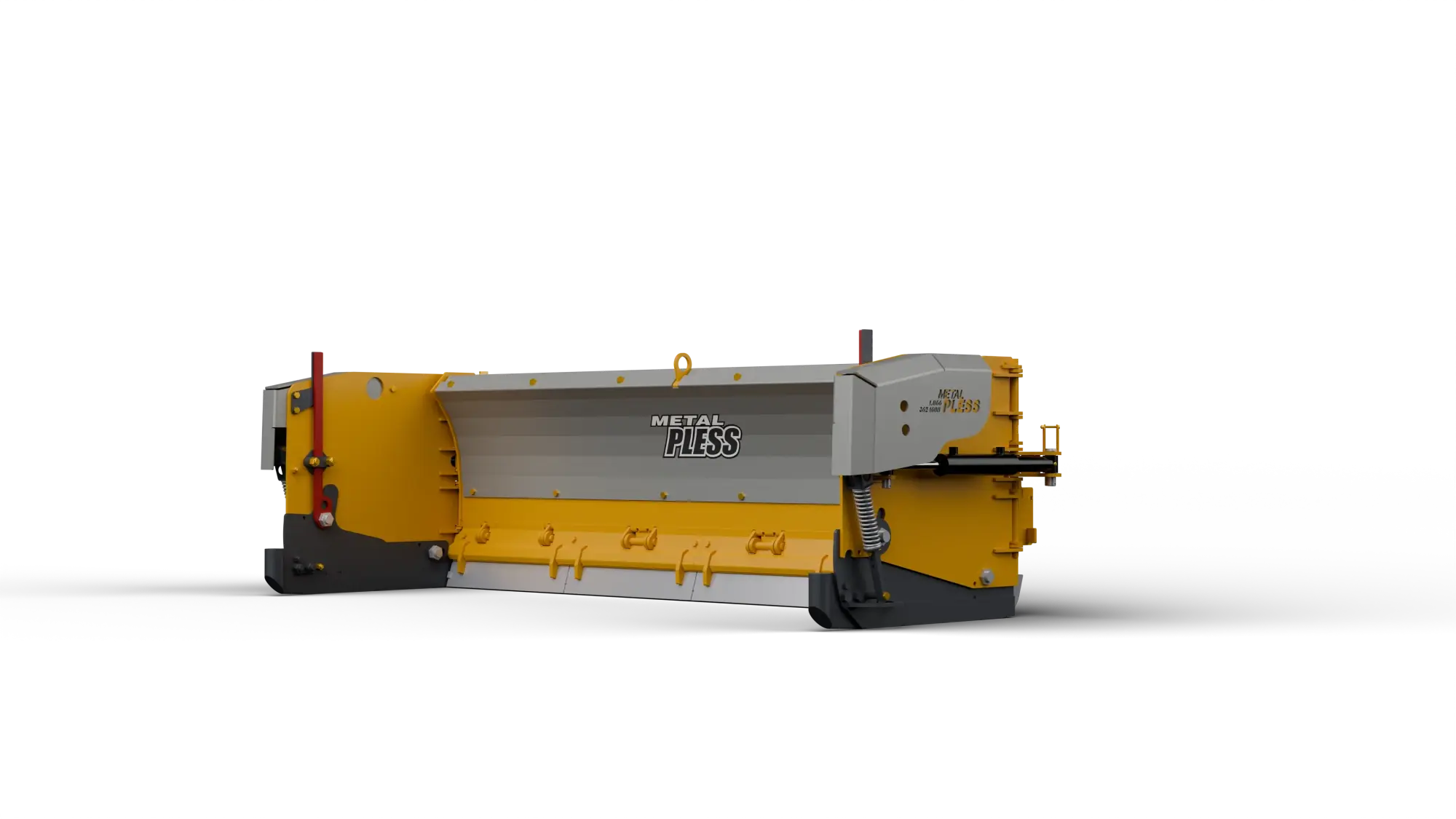

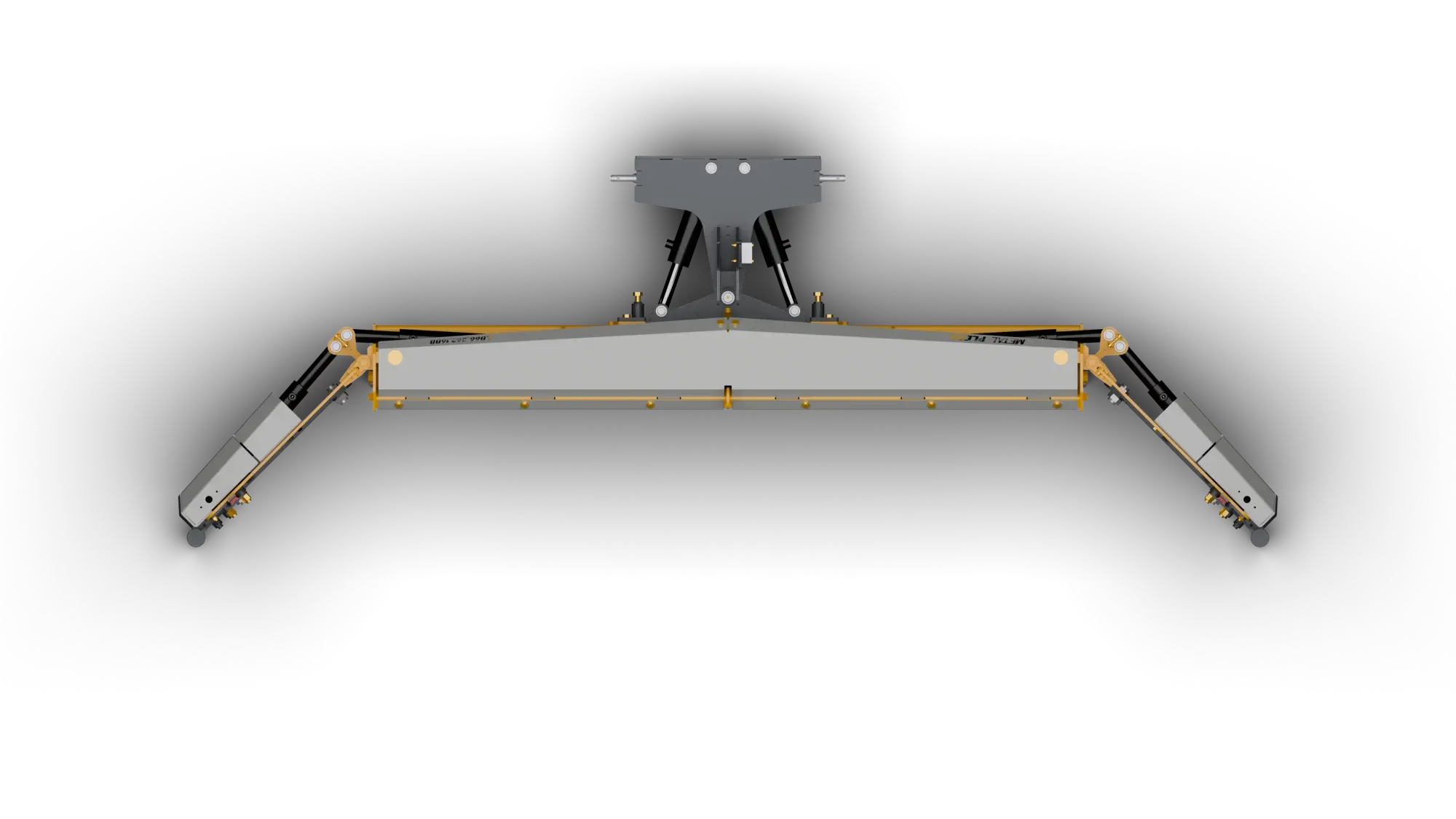

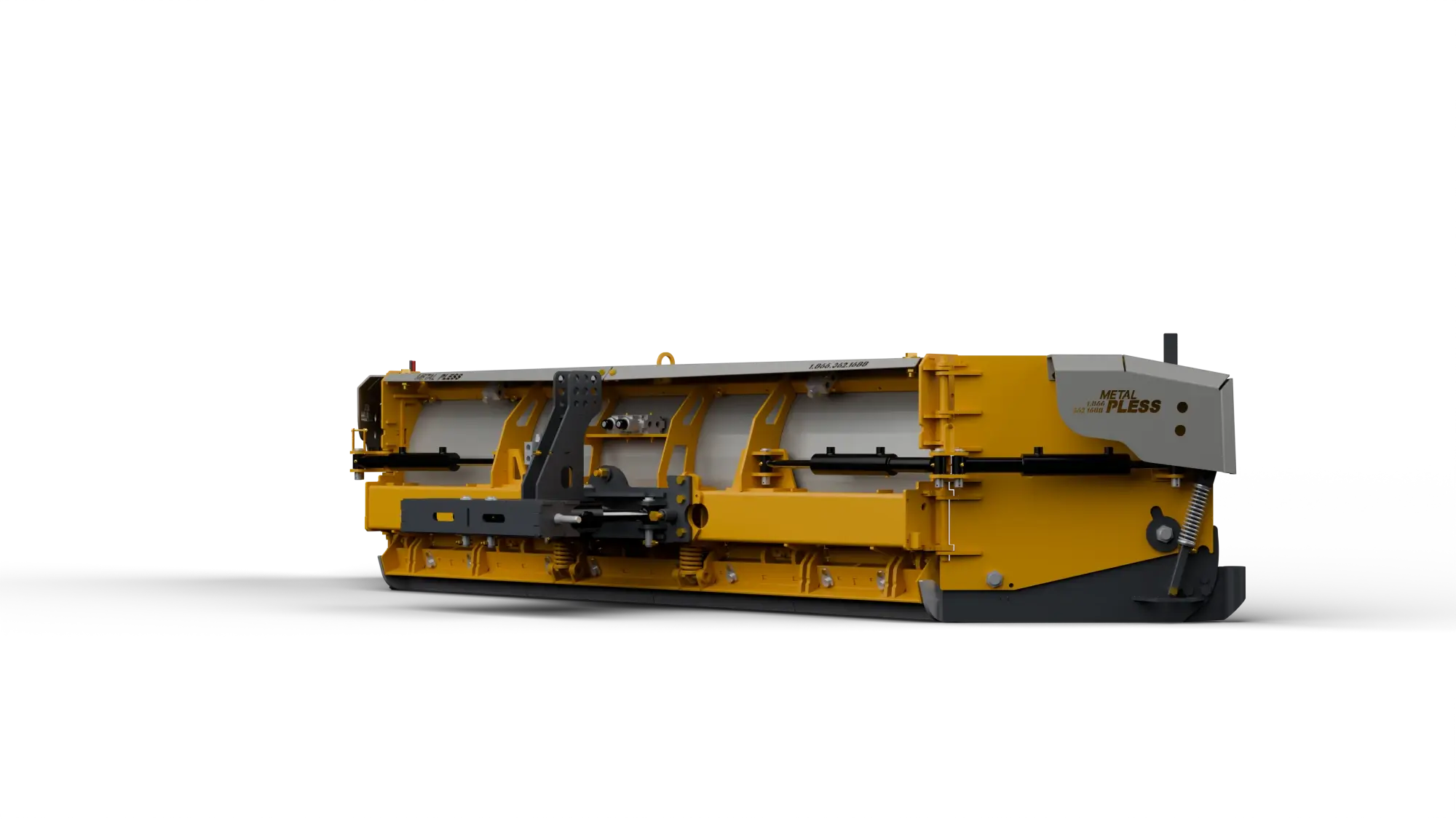

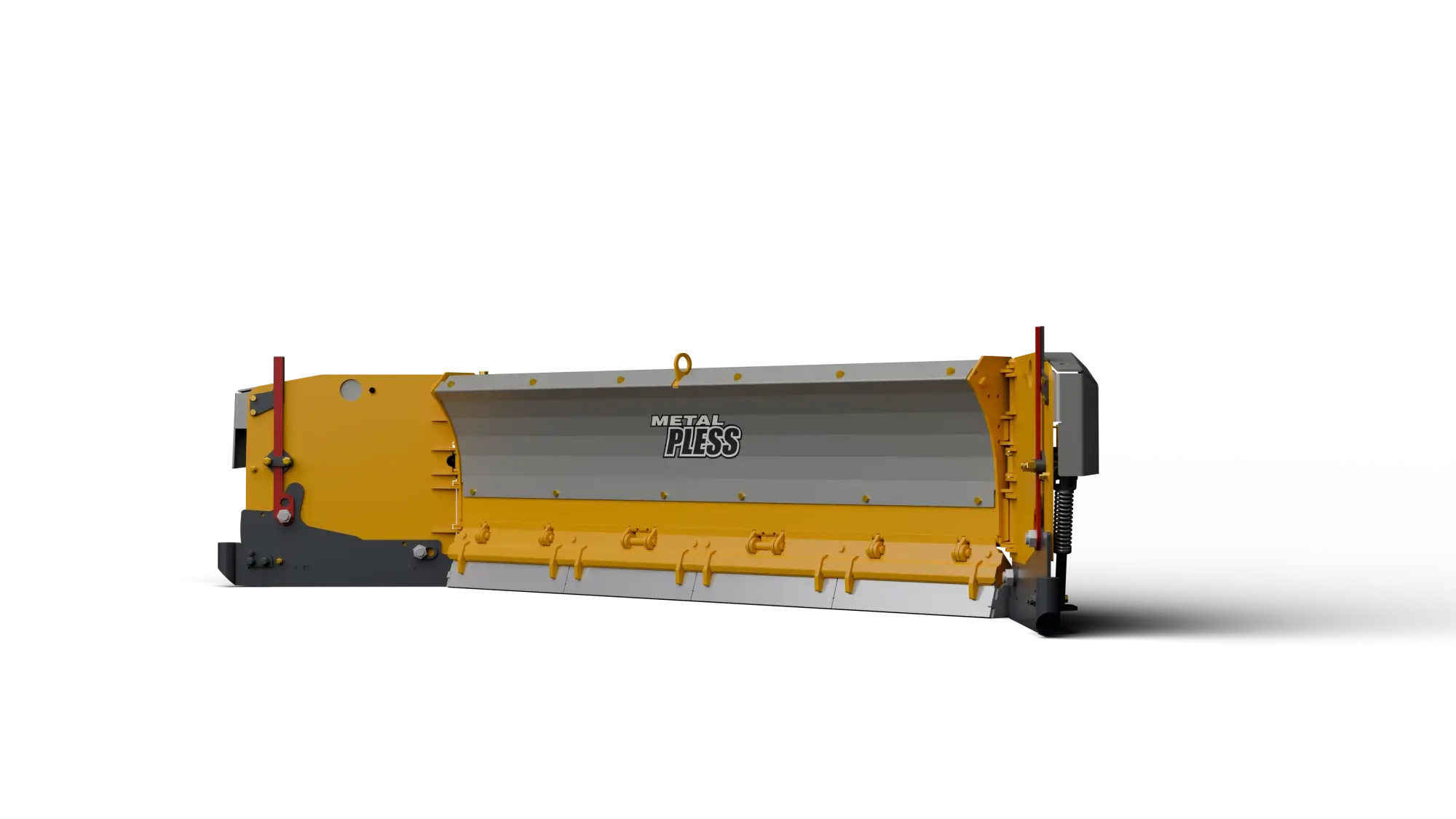

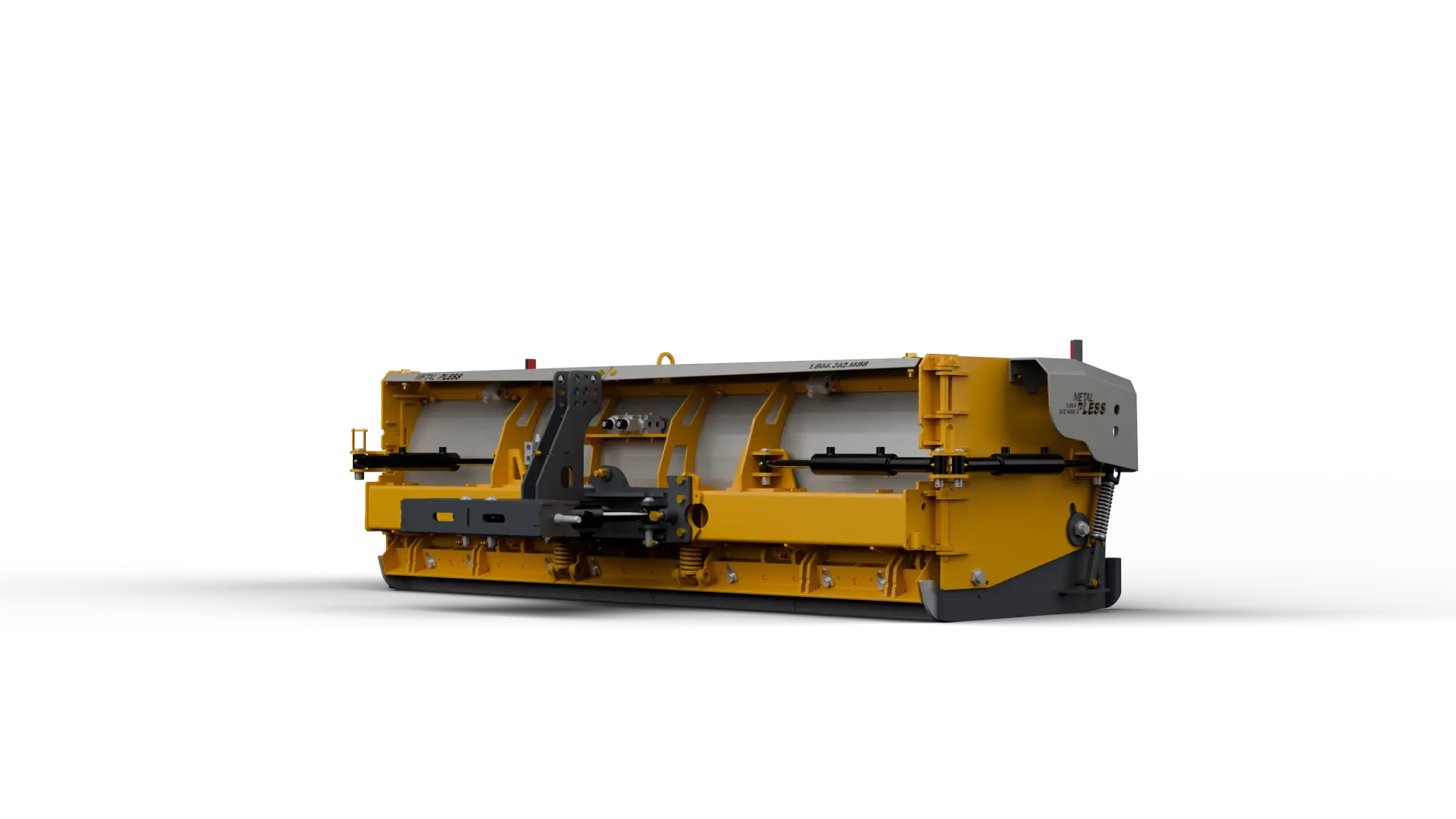

AGSM 0830-13
STD - LEL
8'
30"
13'
2.5'
50-60 HP
Hydraulic wings
1,800 lb
Available Edges
STD - LEL
Blade Dimensions – Box
8'
Blade Dimensions – Height
30"
Blade Dimensions – Extended
13'
Wing Size (each side)
2.5'
Application
50-60 HP
Wing / Gate Type
Hydraulic wings
Approx. Weight
1,800 lb
AGH 0630-11
STD - LE
6'
30"
11'
2.5'
70-80 HP
Hydraulic wings
1,446 lb
Available Edges
STD - LE
Blade Dimensions – Box
6'
Blade Dimensions – Height
30"
Blade Dimensions – Extended
11'
Wing Size (each side)
2.5'
Application
70-80 HP
Wing / Gate Type
Hydraulic wings
Approx. Weight
1,446 lb
AGH 0730-12
STD - HD - LE
7'
30"
12'
2.5'
70-80 HP
Hydraulic wings
1,501 lb
Available Edges
STD - HD - LE
Blade Dimensions – Box
7'
Blade Dimensions – Height
30"
Blade Dimensions – Extended
12'
Wing Size (each side)
2.5'
Application
70-80 HP
Wing / Gate Type
Hydraulic wings
Approx. Weight
1,501 lb
AGH 0830-13
STD - HD - LE
8'
30"
13'
2.5'
70-80 HP
Hydraulic wings
1,556 lb
Available Edges
STD - HD - LE
Blade Dimensions – Box
8'
Blade Dimensions – Height
30"
Blade Dimensions – Extended
13'
Wing Size (each side)
2.5'
Application
70-80 HP
Wing / Gate Type
Hydraulic wings
Approx. Weight
1,556 lb
AGH 0736-13
STD - HD - LE
7'
36"
13'
3'
60-80 HP
Hydraulic wings
1,868 lb
Available Edges
STD - HD - LE
Blade Dimensions – Box
7'
Blade Dimensions – Height
36"
Blade Dimensions – Extended
13'
Wing Size (each side)
3'
Application
60-80 HP
Wing / Gate Type
Hydraulic wings
Approx. Weight
1,868 lb
AGH 0836-14
Top pick
STD - HD - LE
8'
36"
14'
3'
80-100 HP
Hydraulic wings
2,000 lb
Available Edges
STD - HD - LE
Blade Dimensions – Box
8'
Blade Dimensions – Height
36"
Blade Dimensions – Extended
14'
Wing Size (each side)
3'
Application
80-100 HP
Wing / Gate Type
Hydraulic wings
Approx. Weight
2,000 lb
AGH 0936-15
STD - HD - LE
9'
36"
15'
3'
90-120 HP
Hydraulic wings
2,110 lb
Available Edges
STD - HD - LE
Blade Dimensions – Box
9'
Blade Dimensions – Height
36"
Blade Dimensions – Extended
15'
Wing Size (each side)
3'
Application
90-120 HP
Wing / Gate Type
Hydraulic wings
Approx. Weight
2,110 lb
AGH 0836-16
STD - HD - LE
8'
36"
16'
4'
90-120 HP
Hydraulic wings
2,200 lb
Available Edges
STD - HD - LE
Blade Dimensions – Box
8'
Blade Dimensions – Height
36"
Blade Dimensions – Extended
16'
Wing Size (each side)
4'
Application
90-120 HP
Wing / Gate Type
Hydraulic wings
Approx. Weight
2,200 lb
AGH 1036-16
Top pick
STD - HD - LE
10'
36"
16'
3'
100-120 HP
Hydraulic wings
2,188 lb
Available Edges
STD - HD - LE
Blade Dimensions – Box
10'
Blade Dimensions – Height
36"
Blade Dimensions – Extended
16'
Wing Size (each side)
3'
Application
100-120 HP
Wing / Gate Type
Hydraulic wings
Approx. Weight
2,188 lb
AGH 1236-18
STD - HD - LE
12'
36"
18'
3'
100-120 HP
Hydraulic wings
2,380 lb
Available Edges
STD - HD - LE
Blade Dimensions – Box
12'
Blade Dimensions – Height
36"
Blade Dimensions – Extended
18'
Wing Size (each side)
3'
Application
100-120 HP
Wing / Gate Type
Hydraulic wings
Approx. Weight
2,380 lb
AGH 0842-15
HD - LE
8'
42"
15'
3.5'
120 HP and up
Hydraulic wings
2,427 lb
Available Edges
HD - LE
Blade Dimensions – Box
8'
Blade Dimensions – Height
42"
Blade Dimensions – Extended
15'
Wing Size (each side)
3.5'
Application
120 HP and up
Wing / Gate Type
Hydraulic wings
Approx. Weight
2,427 lb
AGH 0842-16
HD - LE
8'
42"
16'
4'
120 HP and up
Hydraulic wings
2,502 lb
Available Edges
HD - LE
Blade Dimensions – Box
8'
Blade Dimensions – Height
42"
Blade Dimensions – Extended
16'
Wing Size (each side)
4'
Application
120 HP and up
Wing / Gate Type
Hydraulic wings
Approx. Weight
2,502 lb
AGH 1042-17
HD - LE
10'
42"
17'
3.5'
120 HP and up
Hydraulic wings
2,582 lb
Available Edges
HD - LE
Blade Dimensions – Box
10'
Blade Dimensions – Height
42"
Blade Dimensions – Extended
17'
Wing Size (each side)
3.5'
Application
120 HP and up
Wing / Gate Type
Hydraulic wings
Approx. Weight
2,582 lb
AGH 1042-18
LE
10'
42"
18'
4'
120 HP and up
Hydraulic wings
2,600 lb
Available Edges
LE
Blade Dimensions – Box
10'
Blade Dimensions – Height
42"
Blade Dimensions – Extended
18'
Wing Size (each side)
4'
Application
120 HP and up
Wing / Gate Type
Hydraulic wings
Approx. Weight
2,600 lb
AGH 1242-19
STD - HD - LE
12'
42"
19'
3.5'
120 HP and up
Hydraulic wings
2,768 lb
Available Edges
STD - HD - LE
Blade Dimensions – Box
12'
Blade Dimensions – Height
42"
Blade Dimensions – Extended
19'
Wing Size (each side)
3.5'
Application
120 HP and up
Wing / Gate Type
Hydraulic wings
Approx. Weight
2,768 lb
*Ask about our Tivar options
