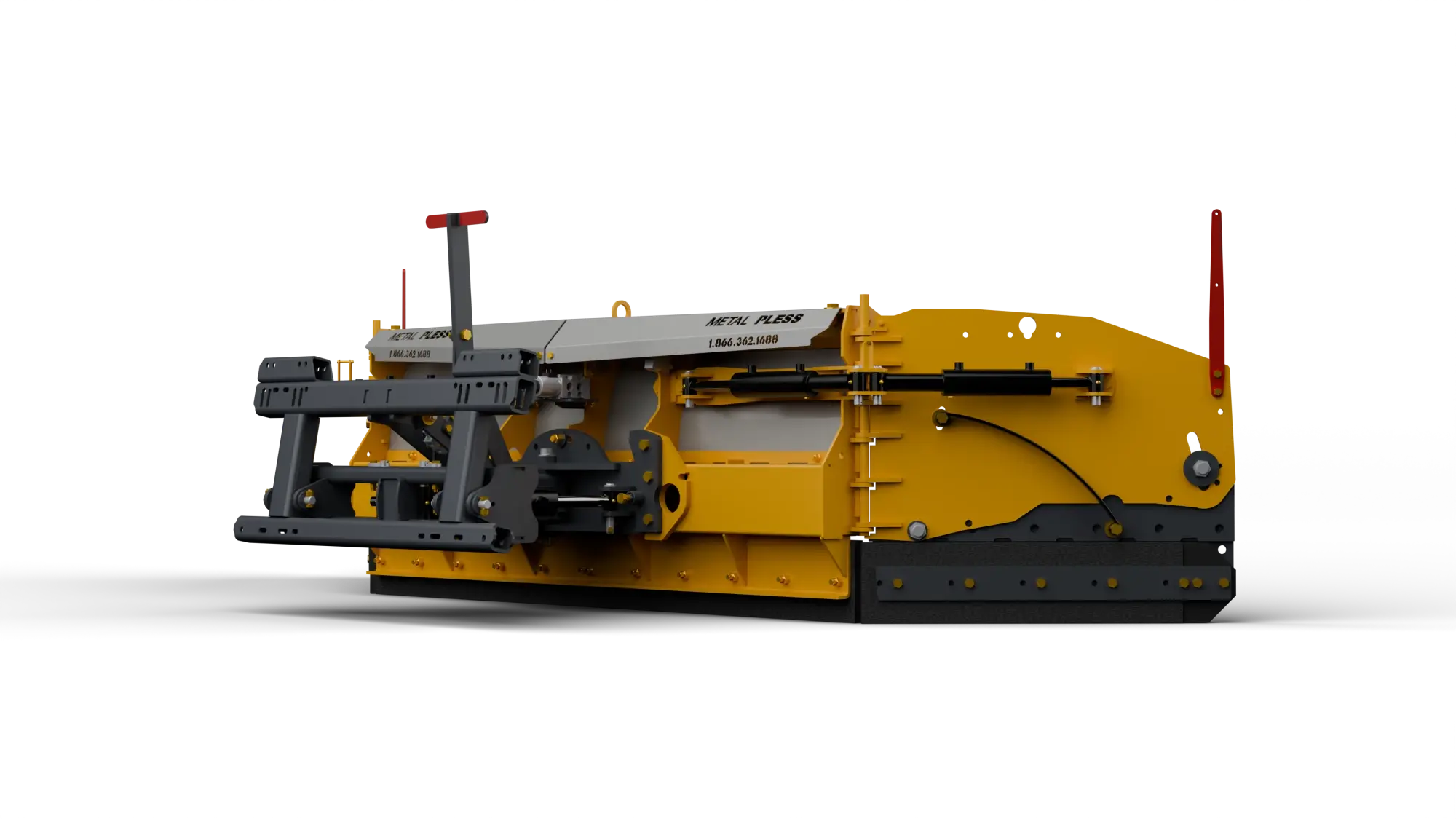

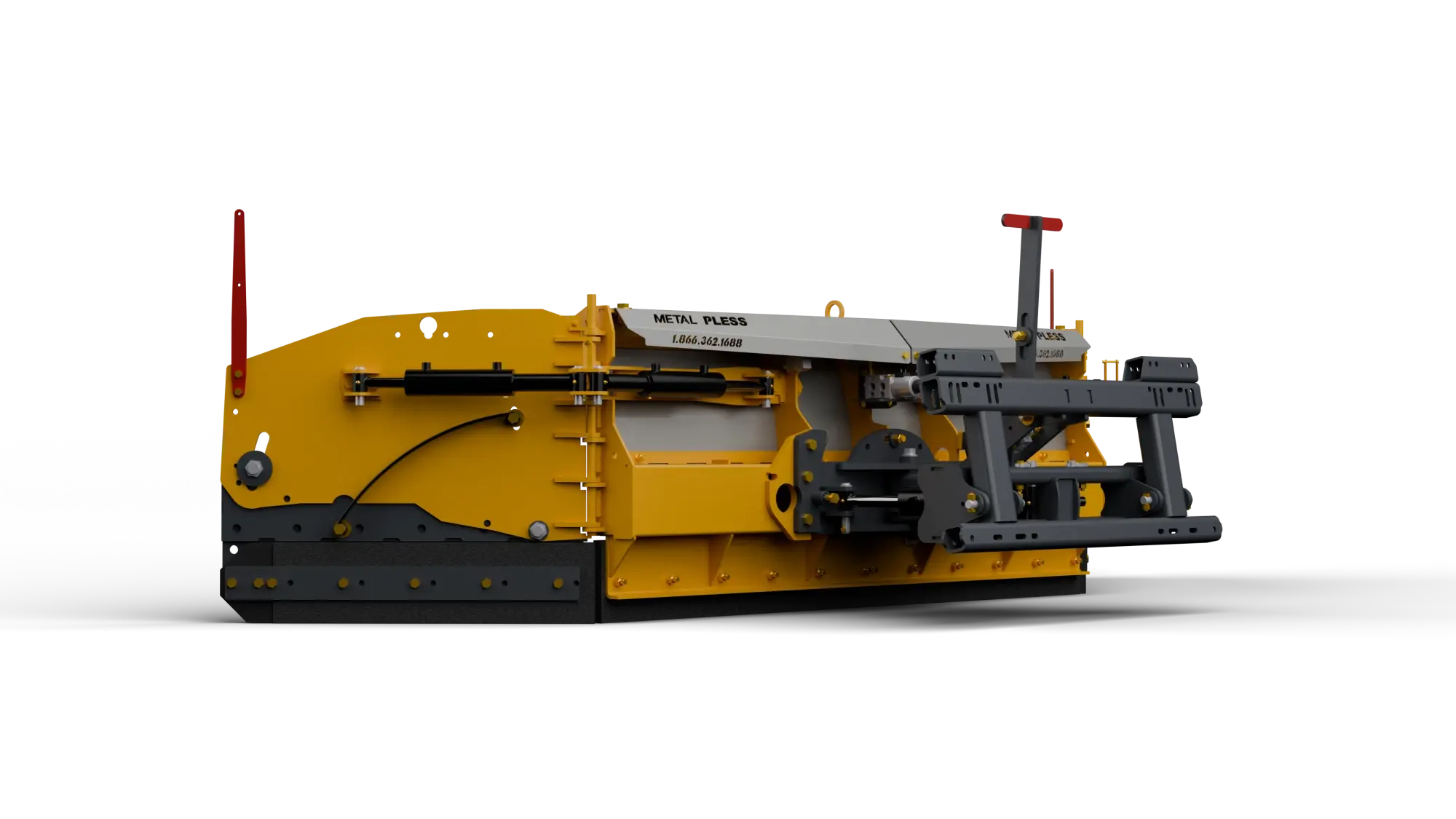

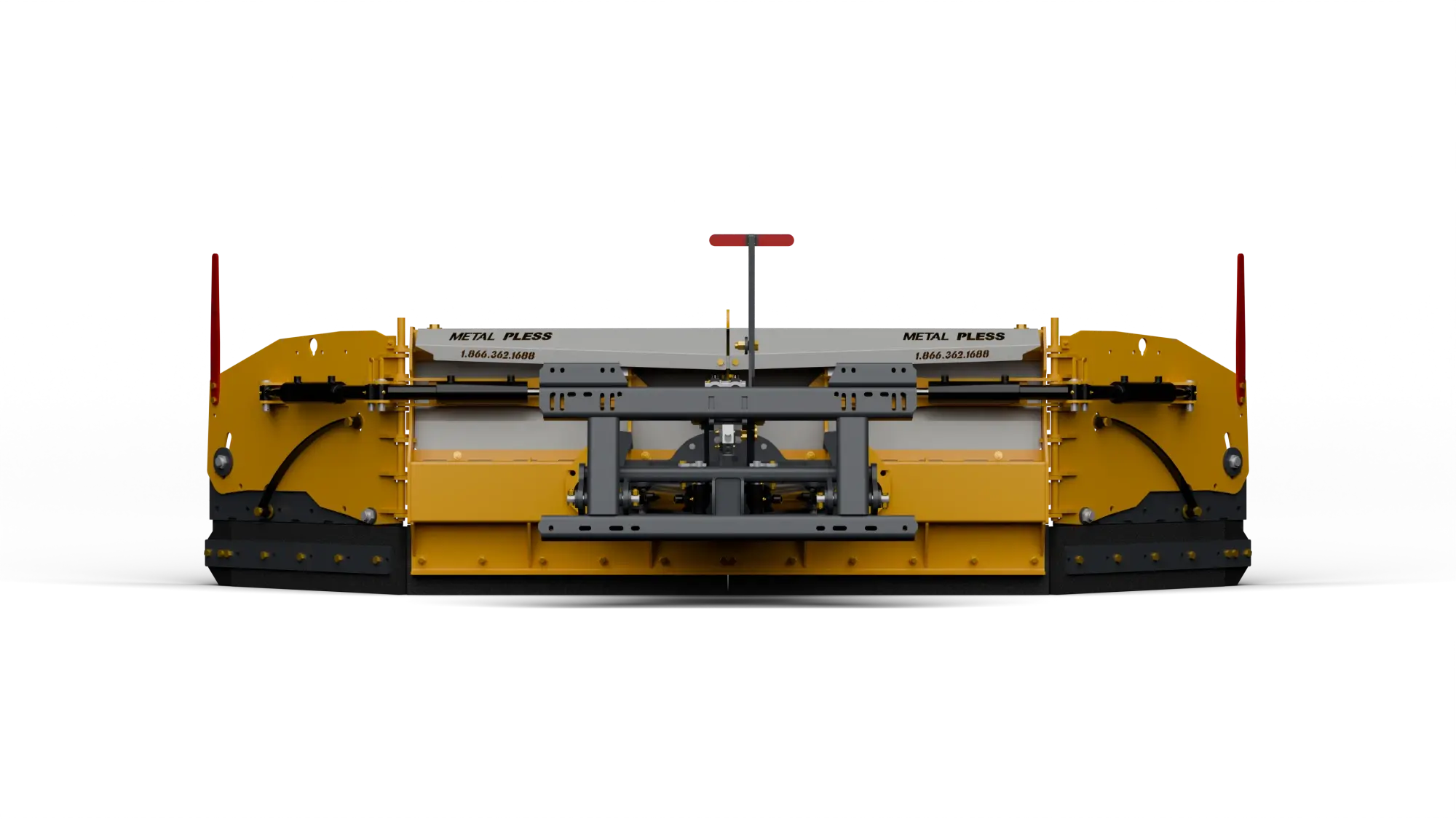

Our wings are constructed with CHT400 steel, making them the strongest in the industry. We use cylinders to move the wings, instead of actuators (hydraulic motors), offering superior holding strength. The leverage is increased by having two cylinders per wing. Additionally, the wings are equipped with a spring that can be adjusted to provide down pressure.
Trip Edge on the Wings
Unique Soft Drive Trip Edge design allows the individual sections to trip backward without the blade being lifted upward, greatly reducing the impact.
Lateral Float
Automatically follows the imperfections of the pavement. Our system incorporates an adjustable oscillating mechanism for better control. Increase plowing efficiency and no need to go over the same area multiple times.
Slip Hitch
Slip hitch design allows the plow to follow surface variations. Reduces operator fatigue and increases plowing efficiency. Cutting edges wear evenly and prolong plow life.

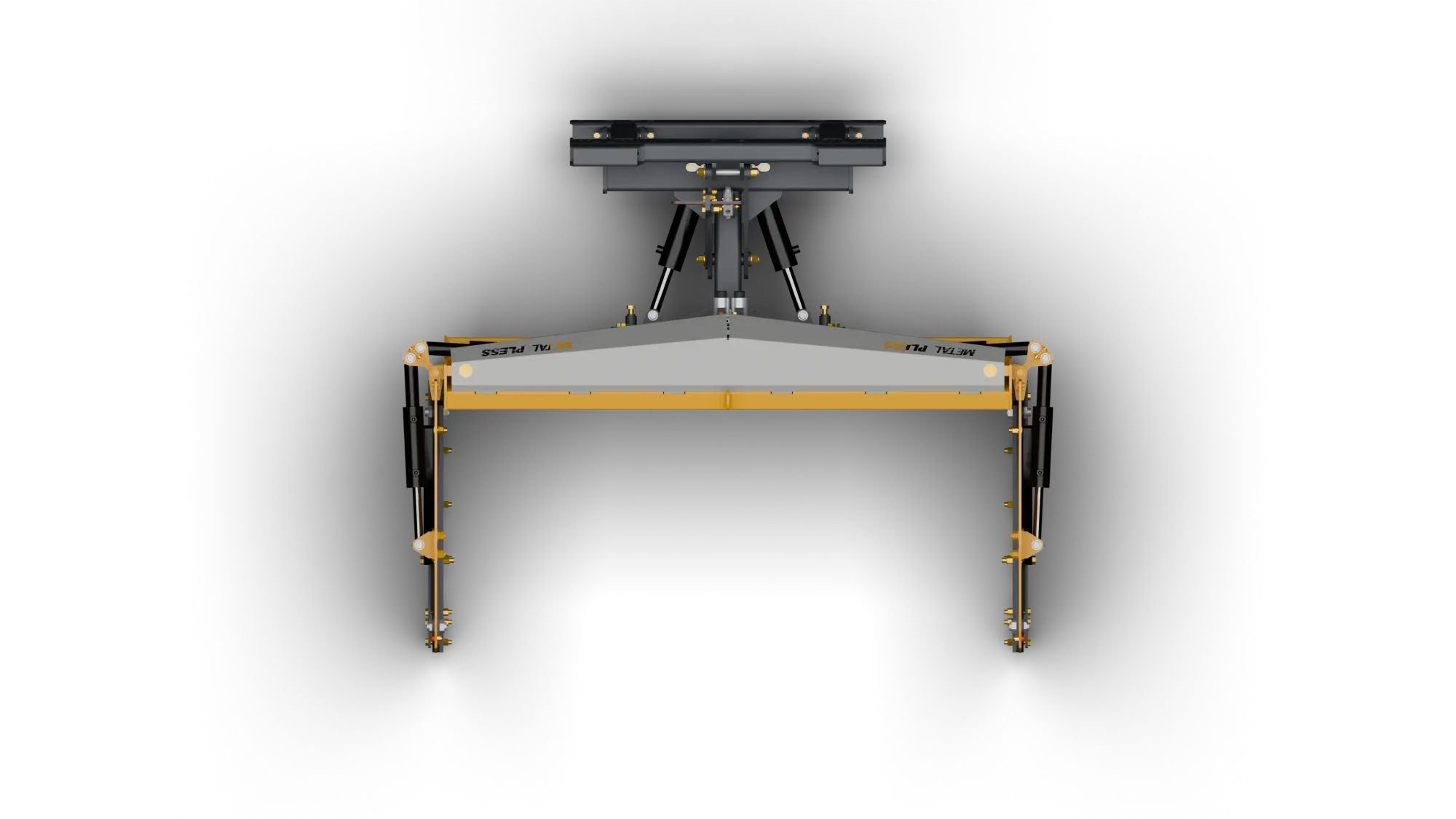

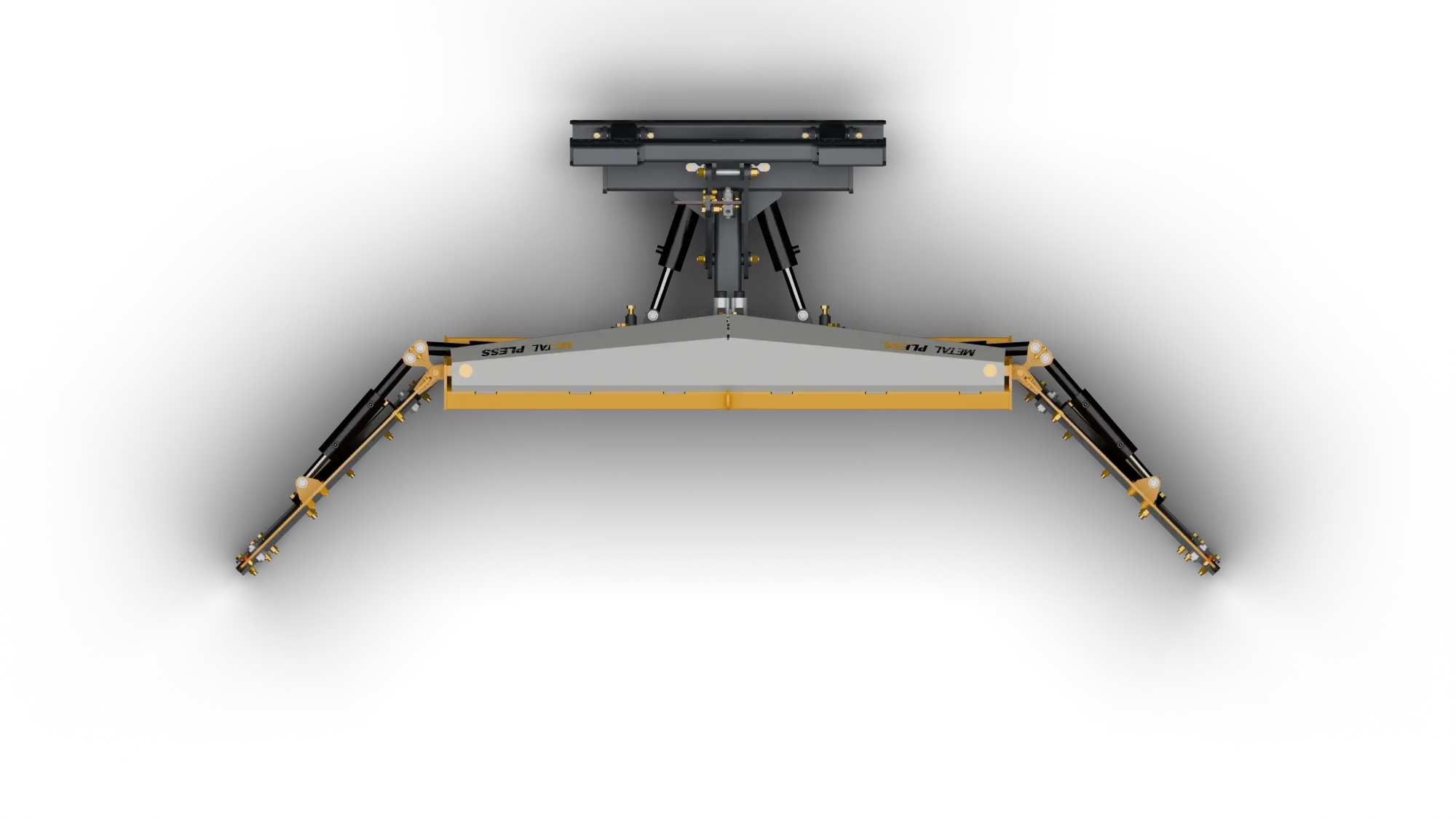

Blade positions
Available edges
RBRubber
Rubber edges are flexible, tough and quiet, and at the same time less likely to damage delicate surfaces.
Compatibility
Skid steer
Tractor
Backhoe
Sizes & specifications

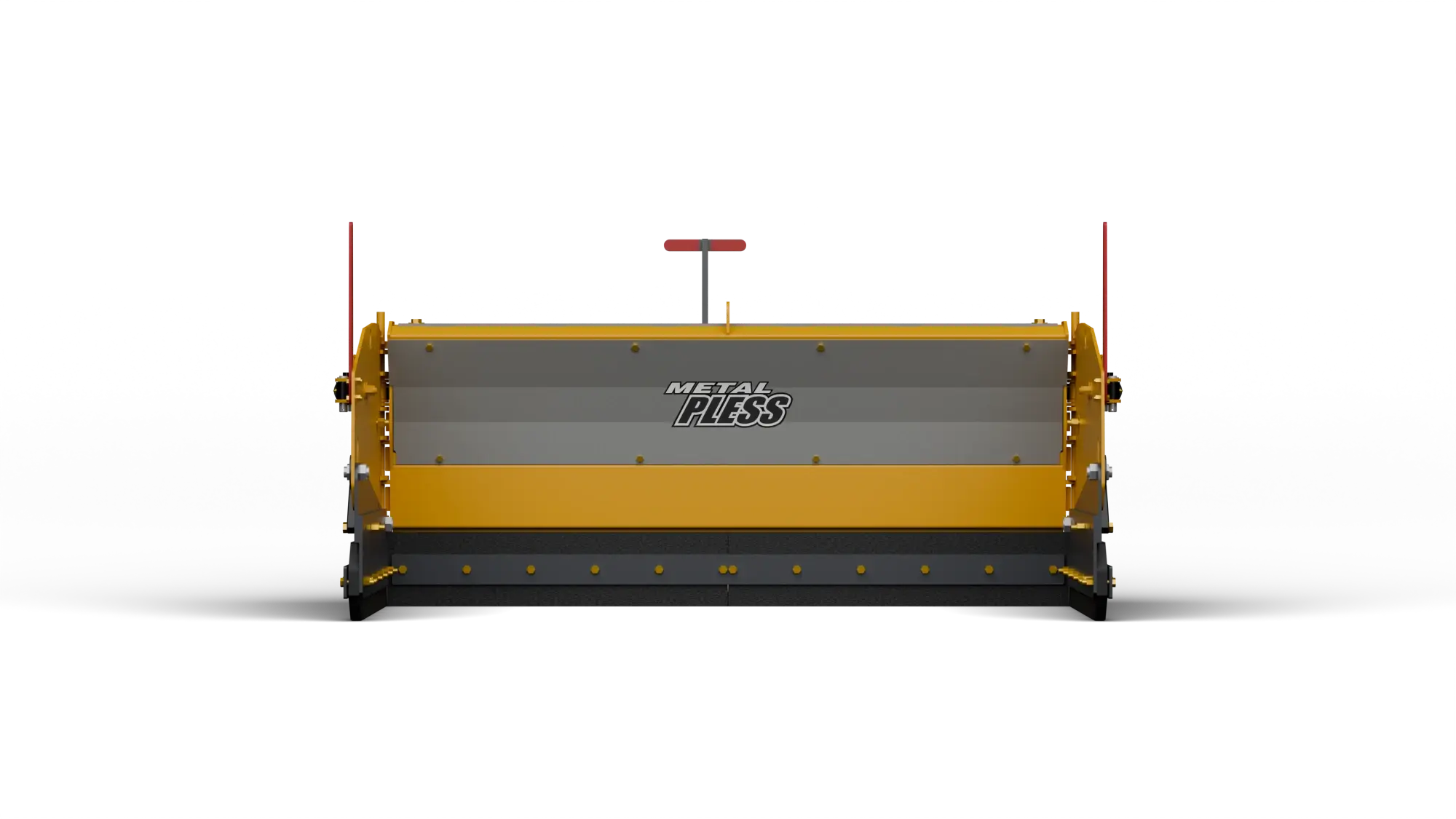

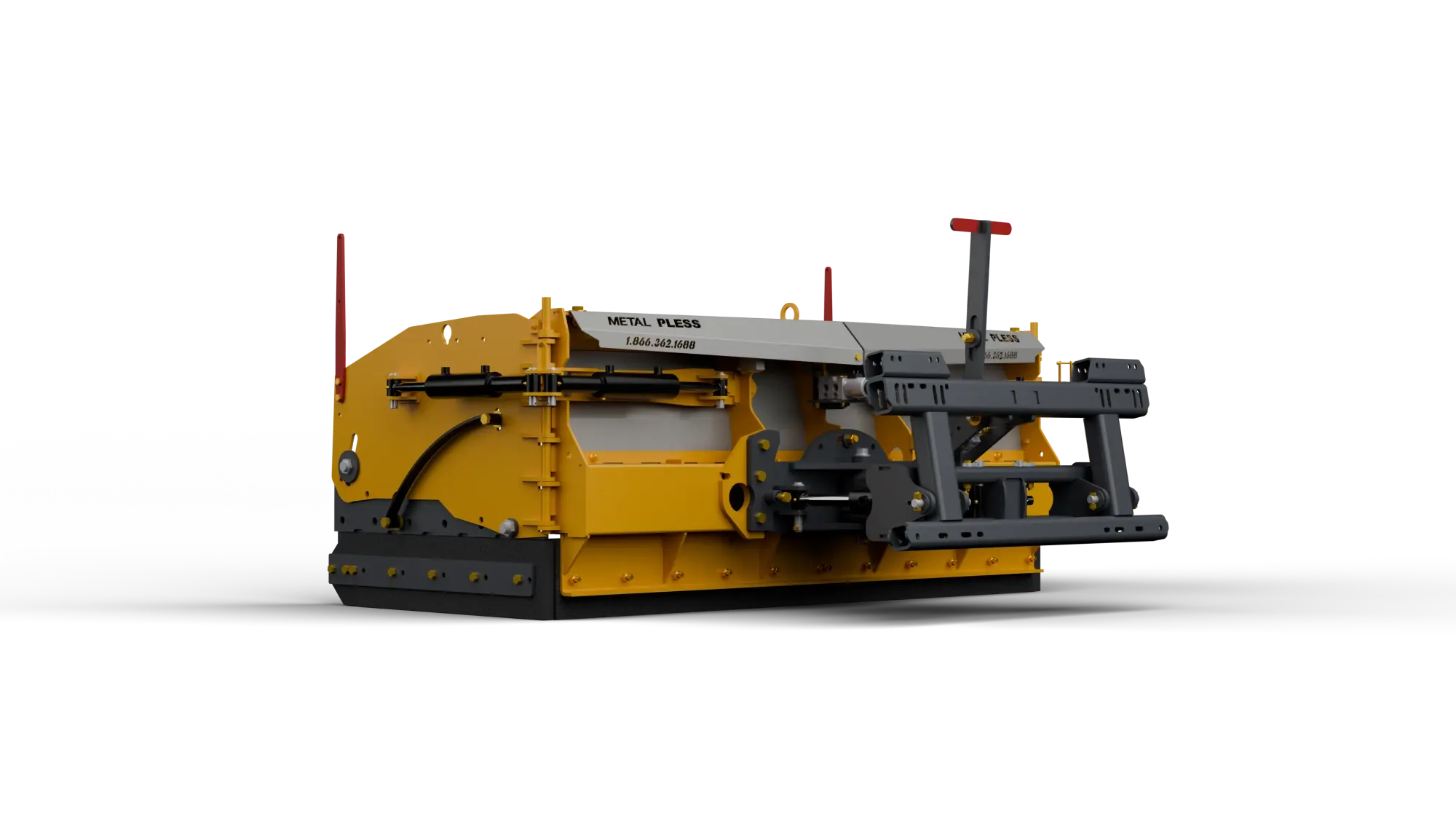

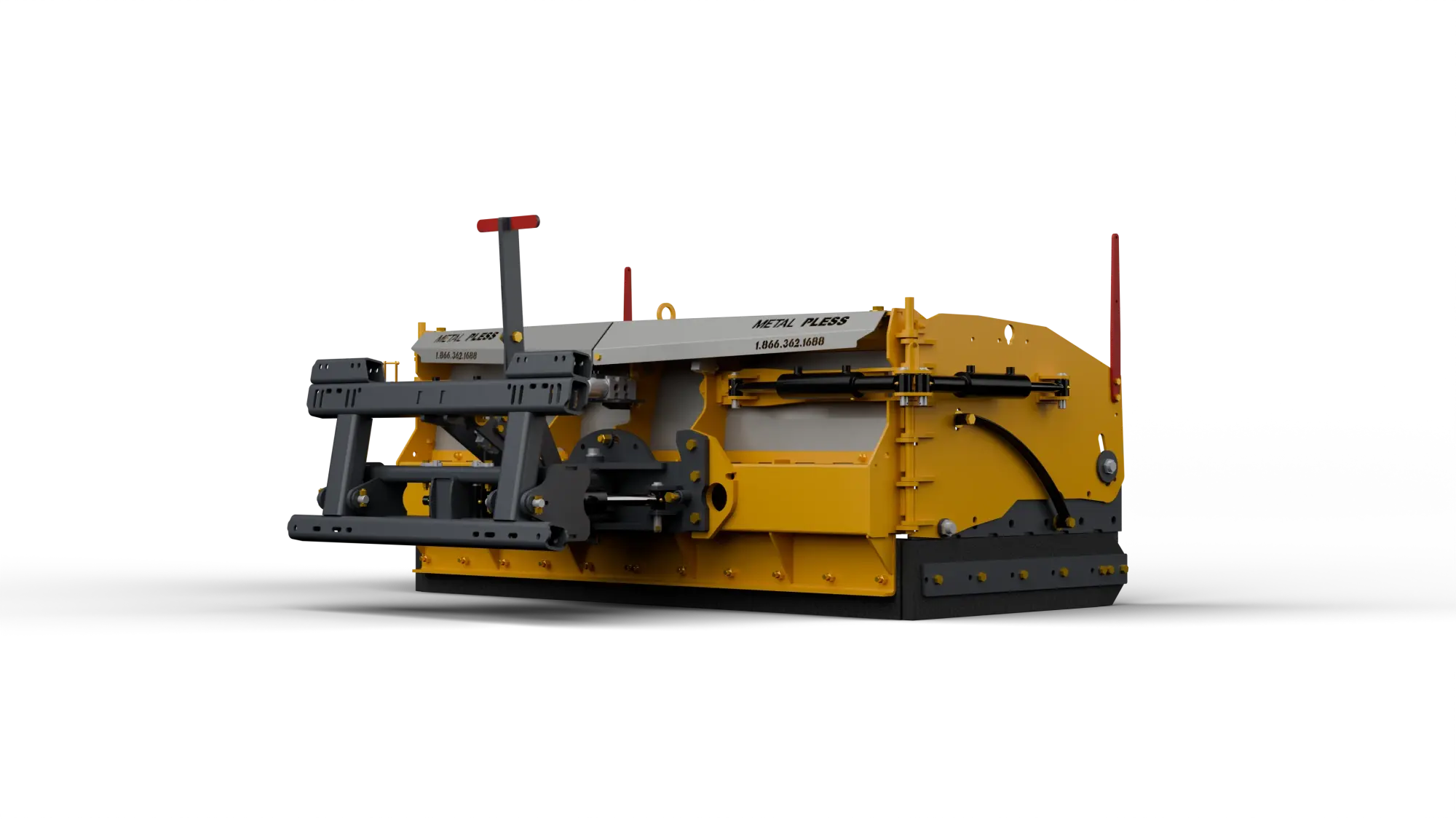

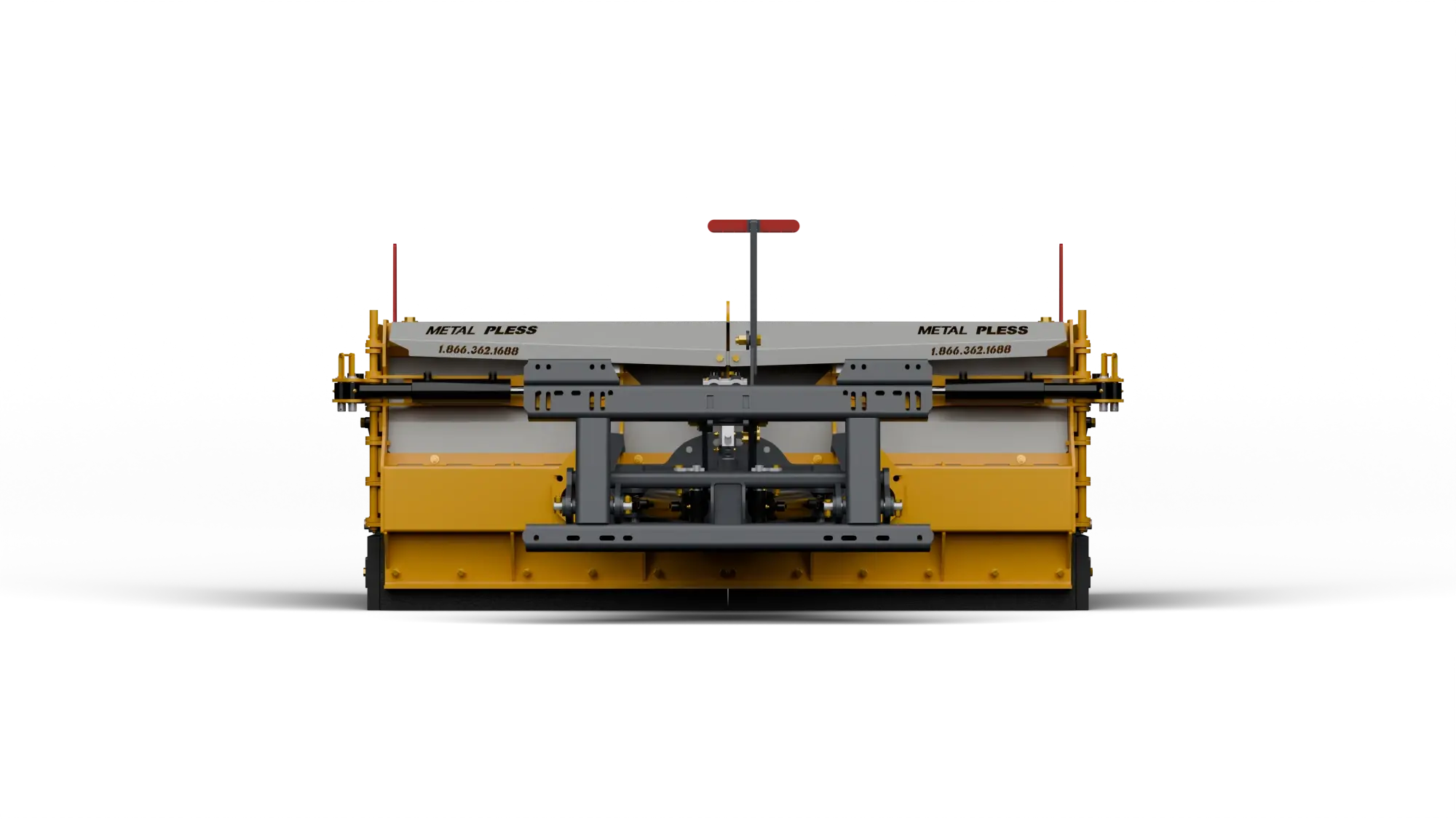

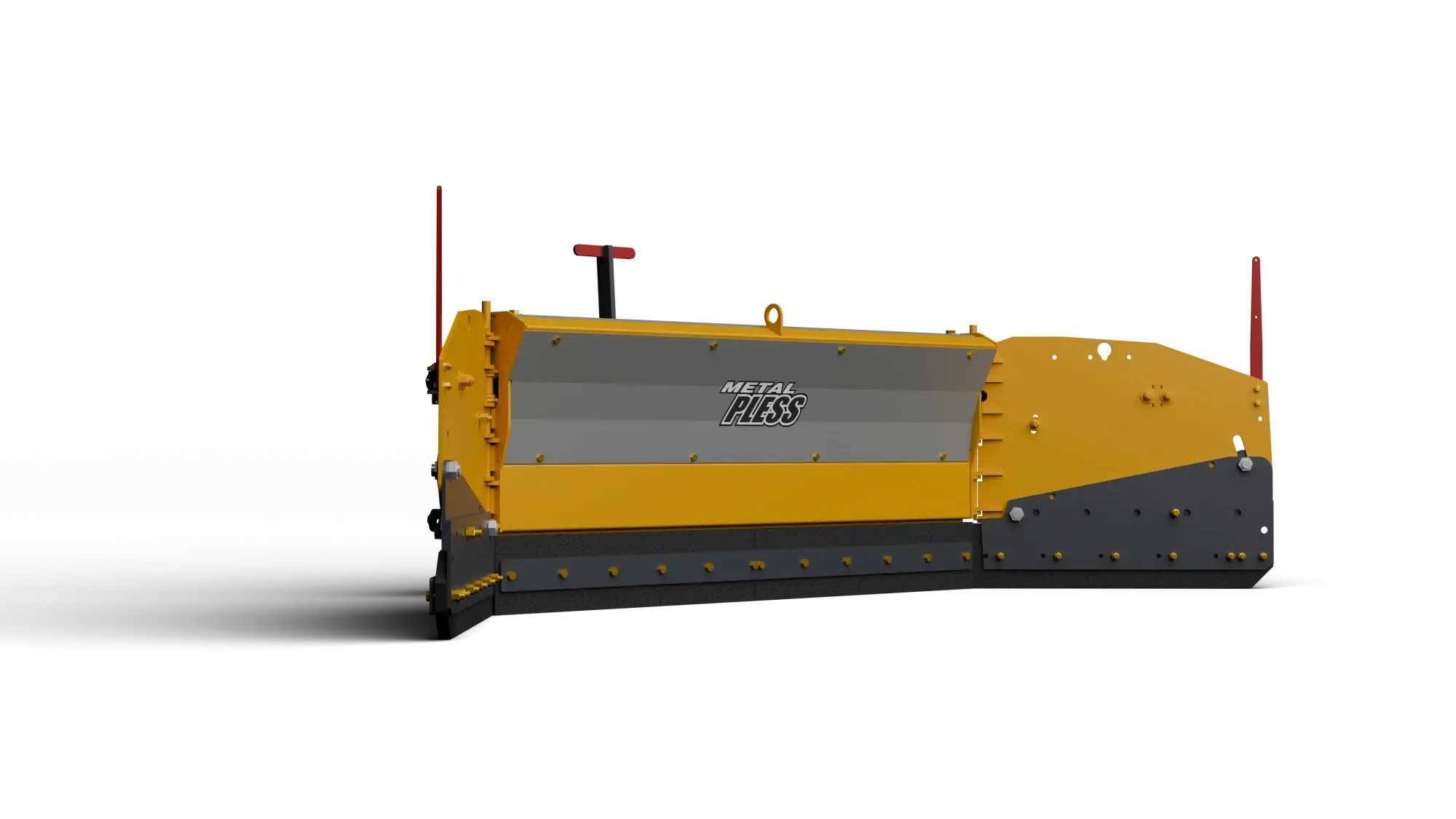

RubberMaxx — Sizes & specifications
Model
Available Edges
Blade Dimensions
Wing Size (each side)
Application
Wing / Gate Type
Approx. Weight
Compare
Box
Height
Extended
RBX 0626-11
RB - Without Angulation (ReverseMaxx) - RB - With Angulation (Plowmaxx) - RB - With Angulation (Agrimaxx)
6'
26"
11'
2.5'
4,000 lb - 6,000 lb
Hydraulic wings depending on configuration
900 lb
Available Edges
RB - Without Angulation (ReverseMaxx) - RB - With Angulation (Plowmaxx) - RB - With Angulation (Agrimaxx)
Blade Dimensions – Box
6'
Blade Dimensions – Height
26"
Blade Dimensions – Extended
11'
Wing Size (each side)
2.5'
Application
4,000 lb - 6,000 lb
Wing / Gate Type
Hydraulic wings depending on configuration
Approx. Weight
900 lb
RBX 0730-12
RB - With Angulation (Plowmaxx) - RB - With Angulation (Agrimaxx)
7'
30"
12'
2.5'
6,001 lb - 12,000 lb
Hydraulic wings depending on configuration
1,350 lb
Available Edges
RB - With Angulation (Plowmaxx) - RB - With Angulation (Agrimaxx)
Blade Dimensions – Box
7'
Blade Dimensions – Height
30"
Blade Dimensions – Extended
12'
Wing Size (each side)
2.5'
Application
6,001 lb - 12,000 lb
Wing / Gate Type
Hydraulic wings depending on configuration
Approx. Weight
1,350 lb
RBX 0830-13
Top pick
RB - Without Angulation (ReverseMaxx) - RB - With Angulation (Plowmaxx) - RB - With Angulation (Agrimaxx)
8'
30"
13'
2.5'
6,001 lb - 12,000 lb
Hydraulic wings
1,800 lb
Available Edges
RB - Without Angulation (ReverseMaxx) - RB - With Angulation (Plowmaxx) - RB - With Angulation (Agrimaxx)
Blade Dimensions – Box
8'
Blade Dimensions – Height
30"
Blade Dimensions – Extended
13'
Wing Size (each side)
2.5'
Application
6,001 lb - 12,000 lb
Wing / Gate Type
Hydraulic wings
Approx. Weight
1,800 lb
RBX 0930-14
RB - Without Angulation (ReverseMaxx) - RB - With Angulation (Plowmaxx) - RB - With Angulation (Agrimaxx)
9'
30"
14'
2.5'
6,001 lb - 12,000 lb
Hydraulic wings
2,250 lb
Available Edges
RB - Without Angulation (ReverseMaxx) - RB - With Angulation (Plowmaxx) - RB - With Angulation (Agrimaxx)
Blade Dimensions – Box
9'
Blade Dimensions – Height
30"
Blade Dimensions – Extended
14'
Wing Size (each side)
2.5'
Application
6,001 lb - 12,000 lb
Wing / Gate Type
Hydraulic wings
Approx. Weight
2,250 lb
RBX 0736-14
RB - Without Angulation (ReverseMaxx) - RB - With Angulation (Plowmaxx) - RB - With Angulation (Agrimaxx)
7'
36"
14'
3.5'
12,001 lb - 18,000 lb
Hydraulic wings
1,550 lb
Available Edges
RB - Without Angulation (ReverseMaxx) - RB - With Angulation (Plowmaxx) - RB - With Angulation (Agrimaxx)
Blade Dimensions – Box
7'
Blade Dimensions – Height
36"
Blade Dimensions – Extended
14'
Wing Size (each side)
3.5'
Application
12,001 lb - 18,000 lb
Wing / Gate Type
Hydraulic wings
Approx. Weight
1,550 lb
RBX 0836-15
RB - Without Angulation (ReverseMaxx) - RB - With Angulation (Plowmaxx) - RB - With Angulation (Agrimaxx)
8'
36"
15'
3.5'
12,001 lb - 18,000 lb
Hydraulic wings depending on configuration
1,550 lb (RB - Without Angulation (ReverseMaxx)) · 1,910 lb (RB - With Angulation (Plowmaxx), RB - With Angulation (Agrimaxx))
Available Edges
RB - Without Angulation (ReverseMaxx) - RB - With Angulation (Plowmaxx) - RB - With Angulation (Agrimaxx)
Blade Dimensions – Box
8'
Blade Dimensions – Height
36"
Blade Dimensions – Extended
15'
Wing Size (each side)
3.5'
Application
12,001 lb - 18,000 lb
Wing / Gate Type
Hydraulic wings depending on configuration
Approx. Weight
1,550 lb (RB - Without Angulation (ReverseMaxx)) · 1,910 lb (RB - With Angulation (Plowmaxx), RB - With Angulation (Agrimaxx))
*Ask about our Tivar options
