PlowMaxx PLSM

PlowMaxx PLSM comes in 3 sizes, with moldboards from 7' to 9'. Built for wheel loaders, skid steers and backhoes.

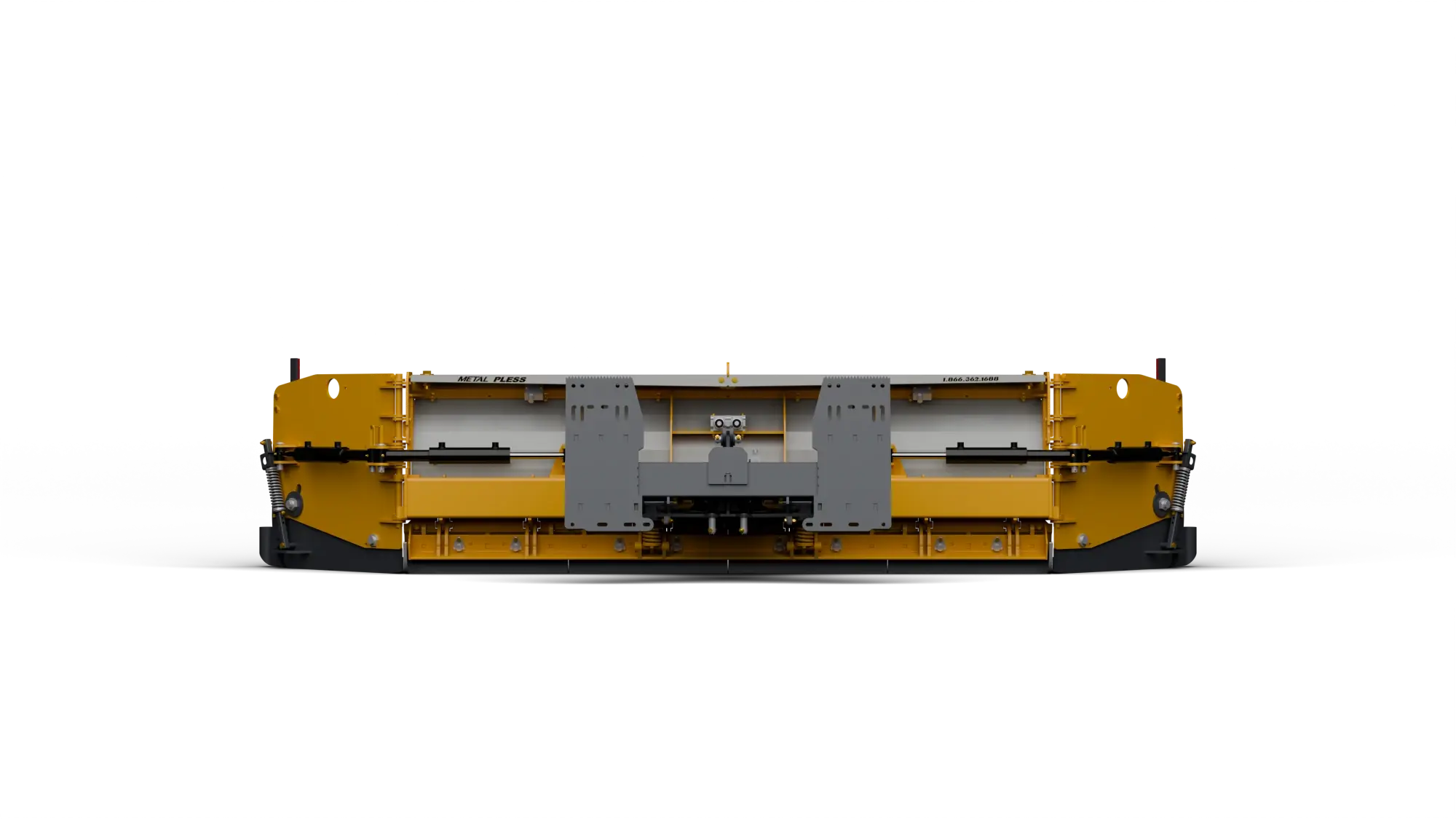

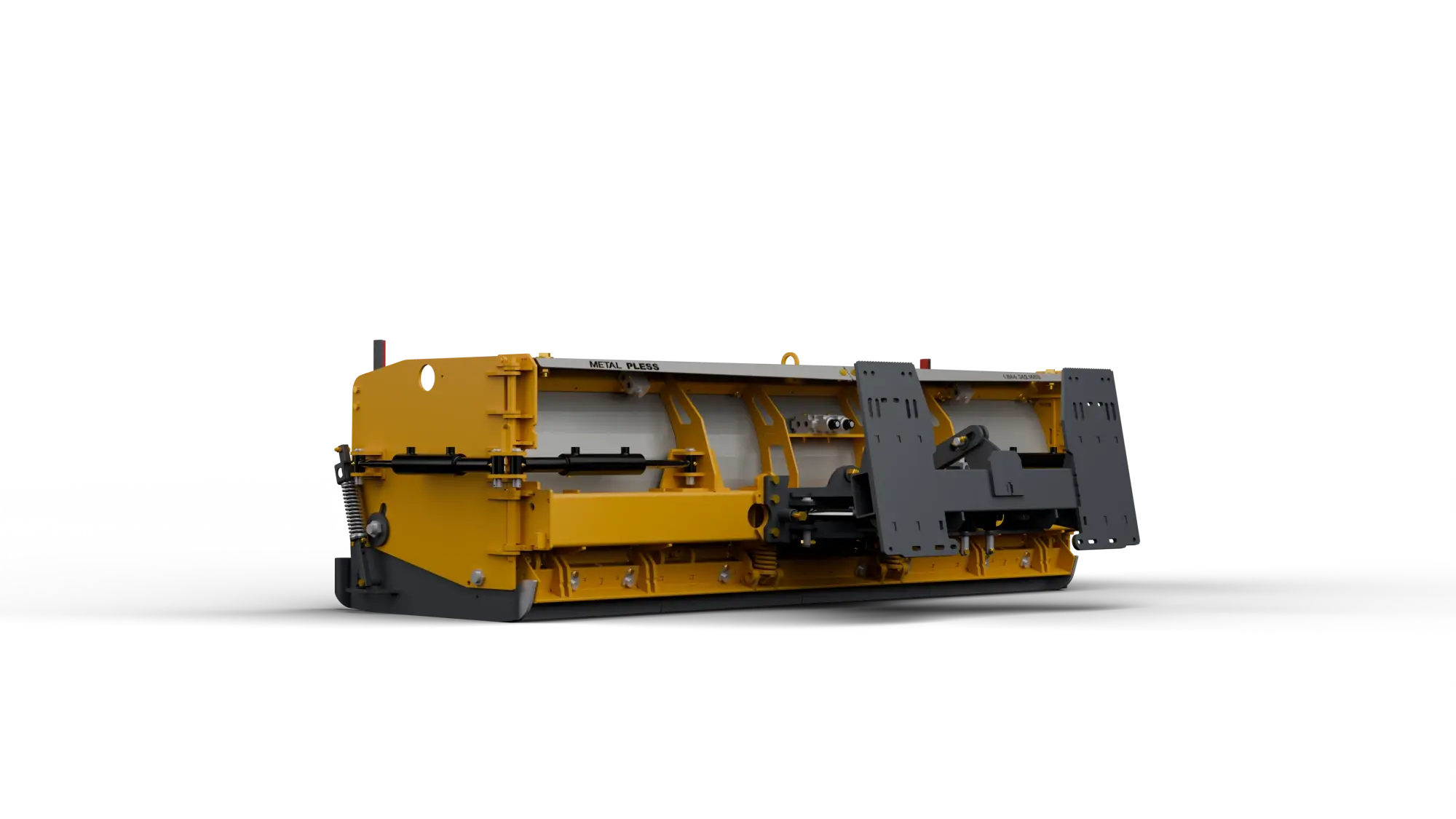

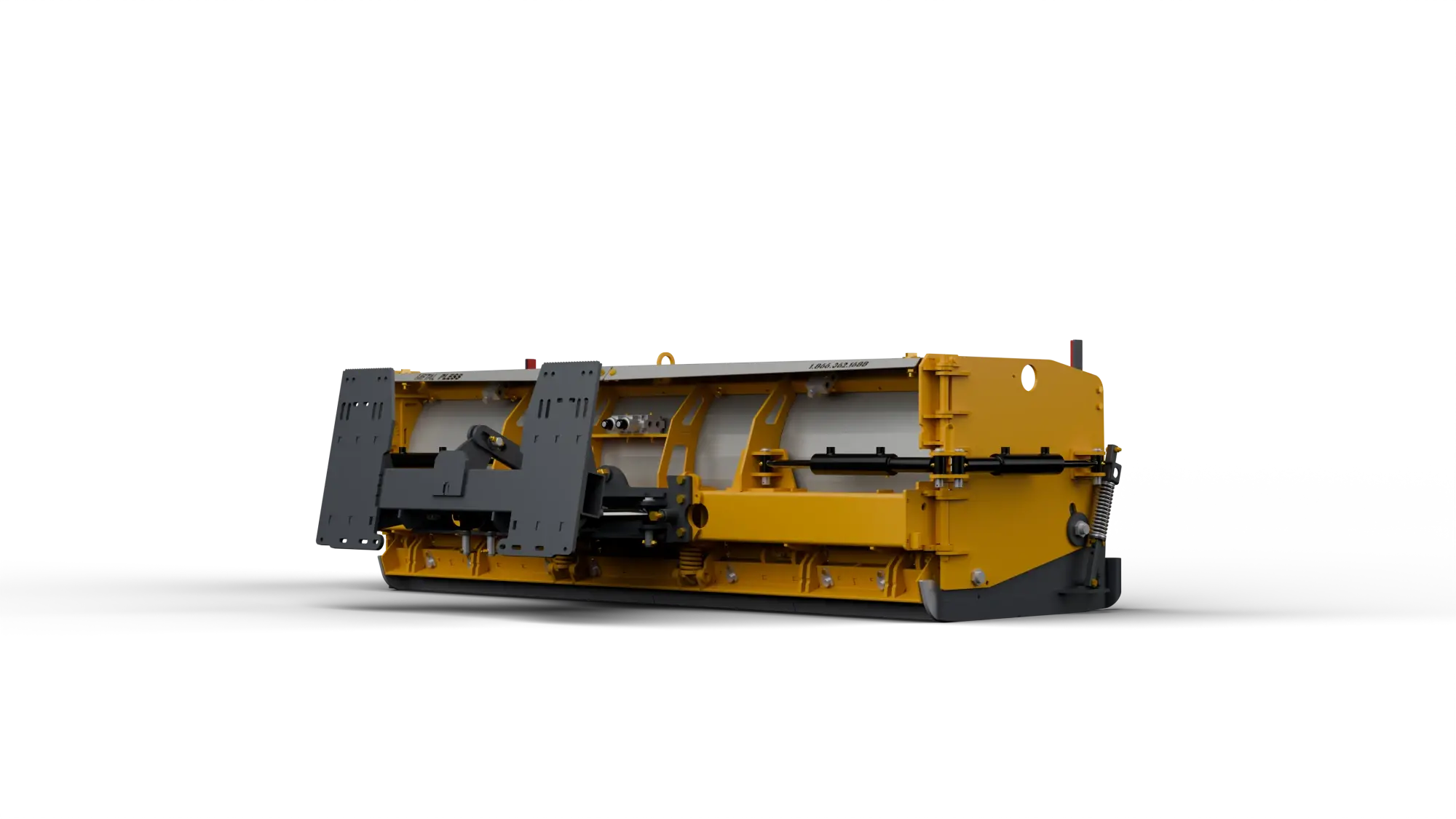

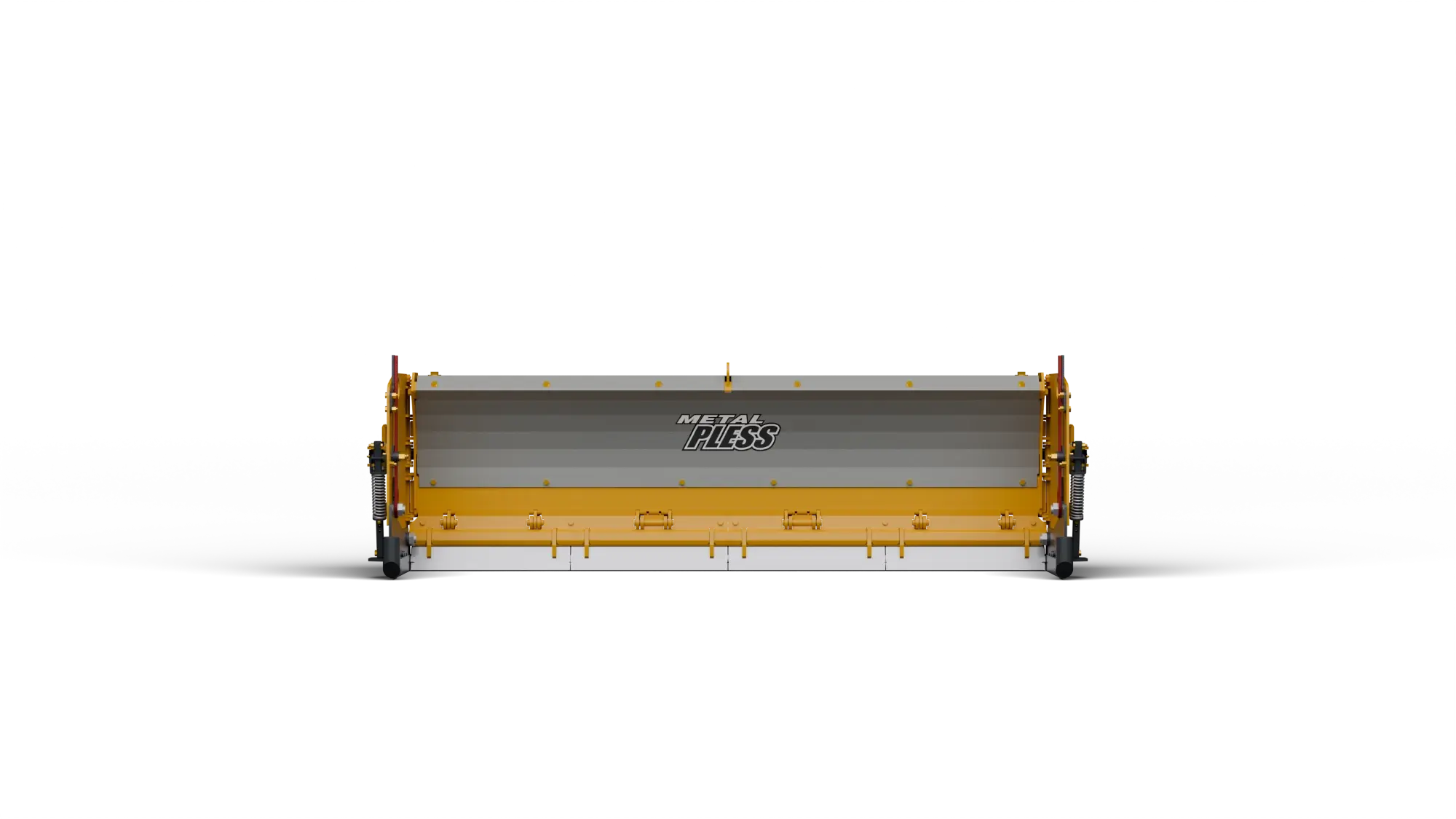

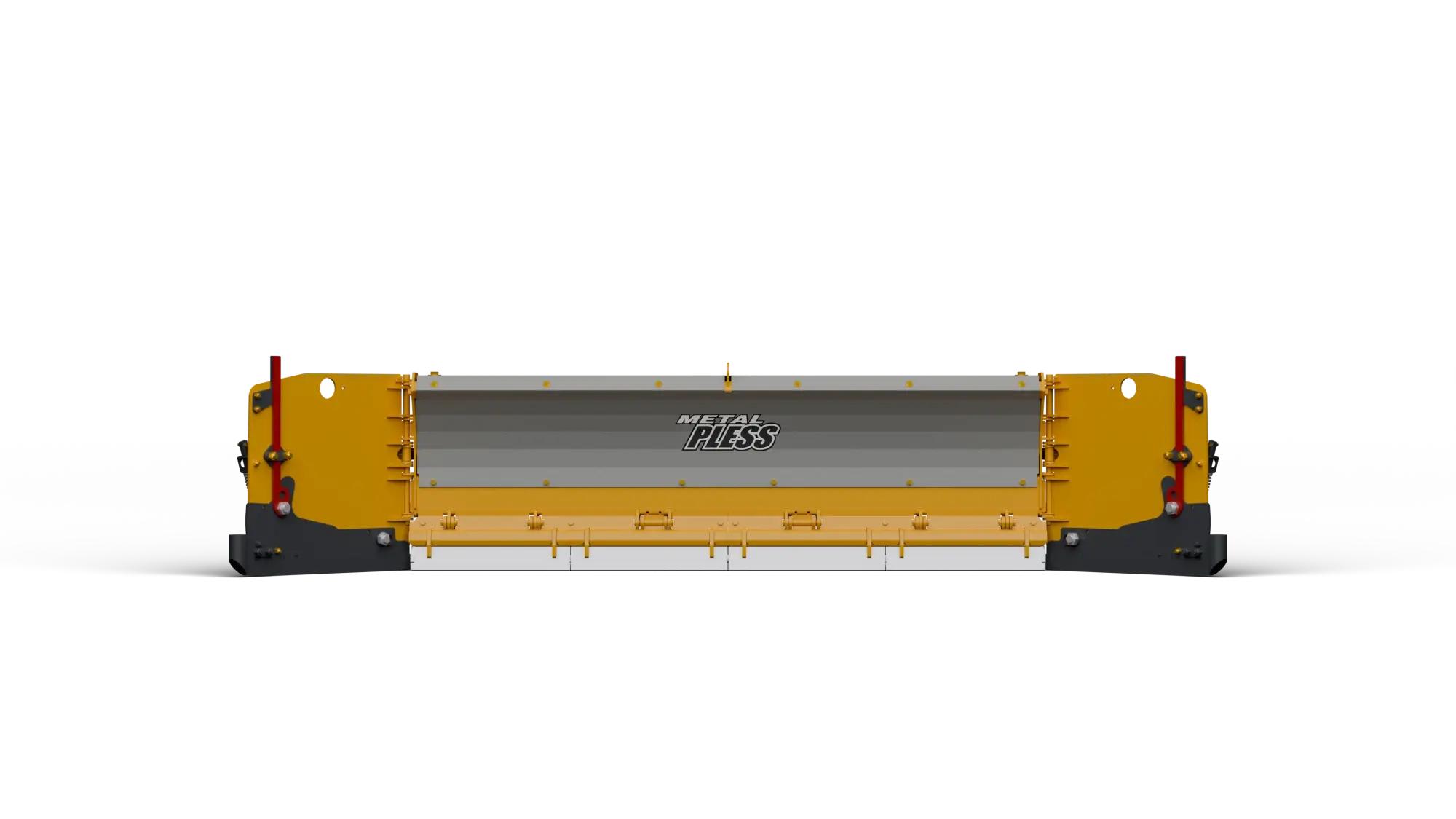

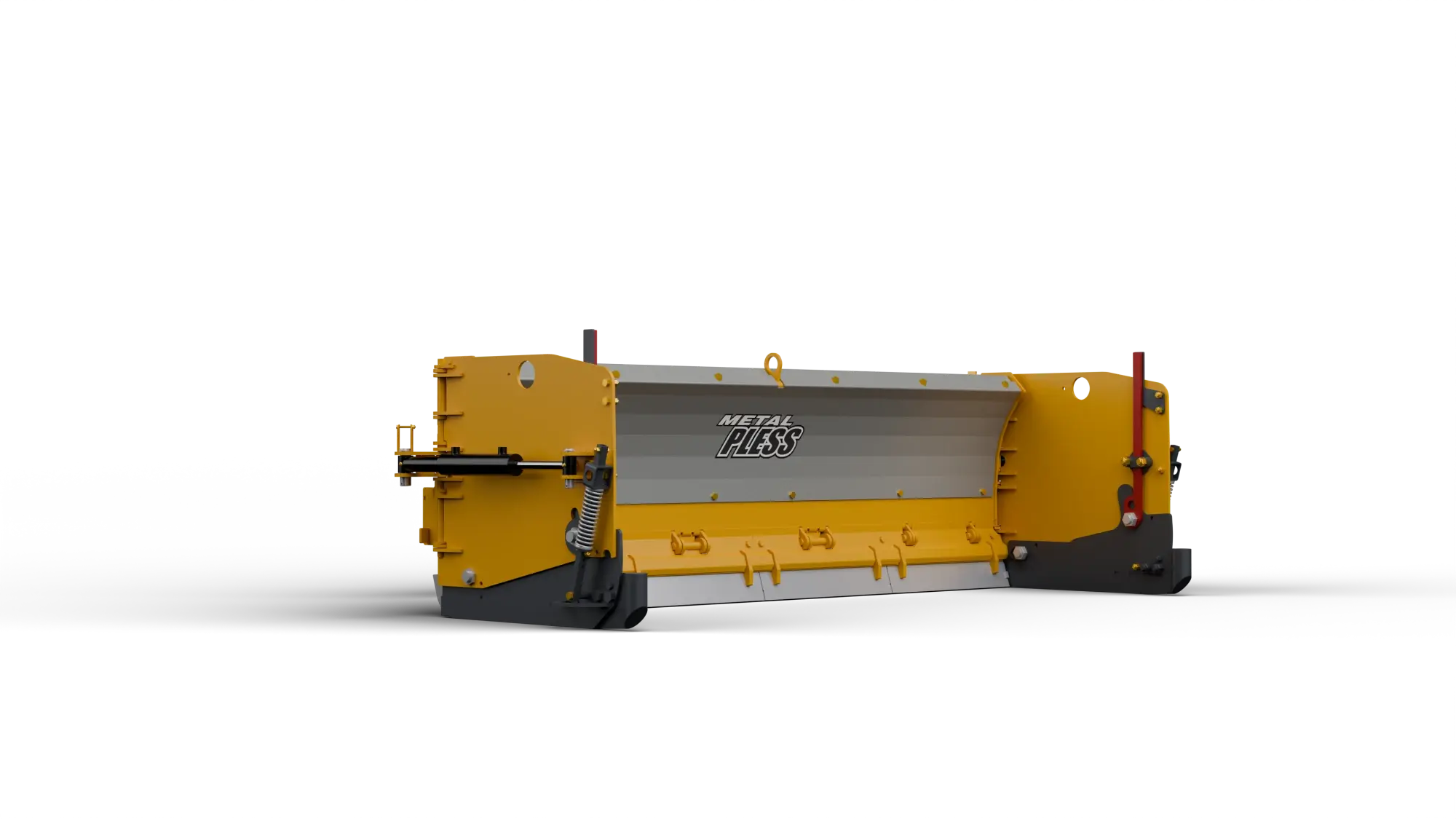

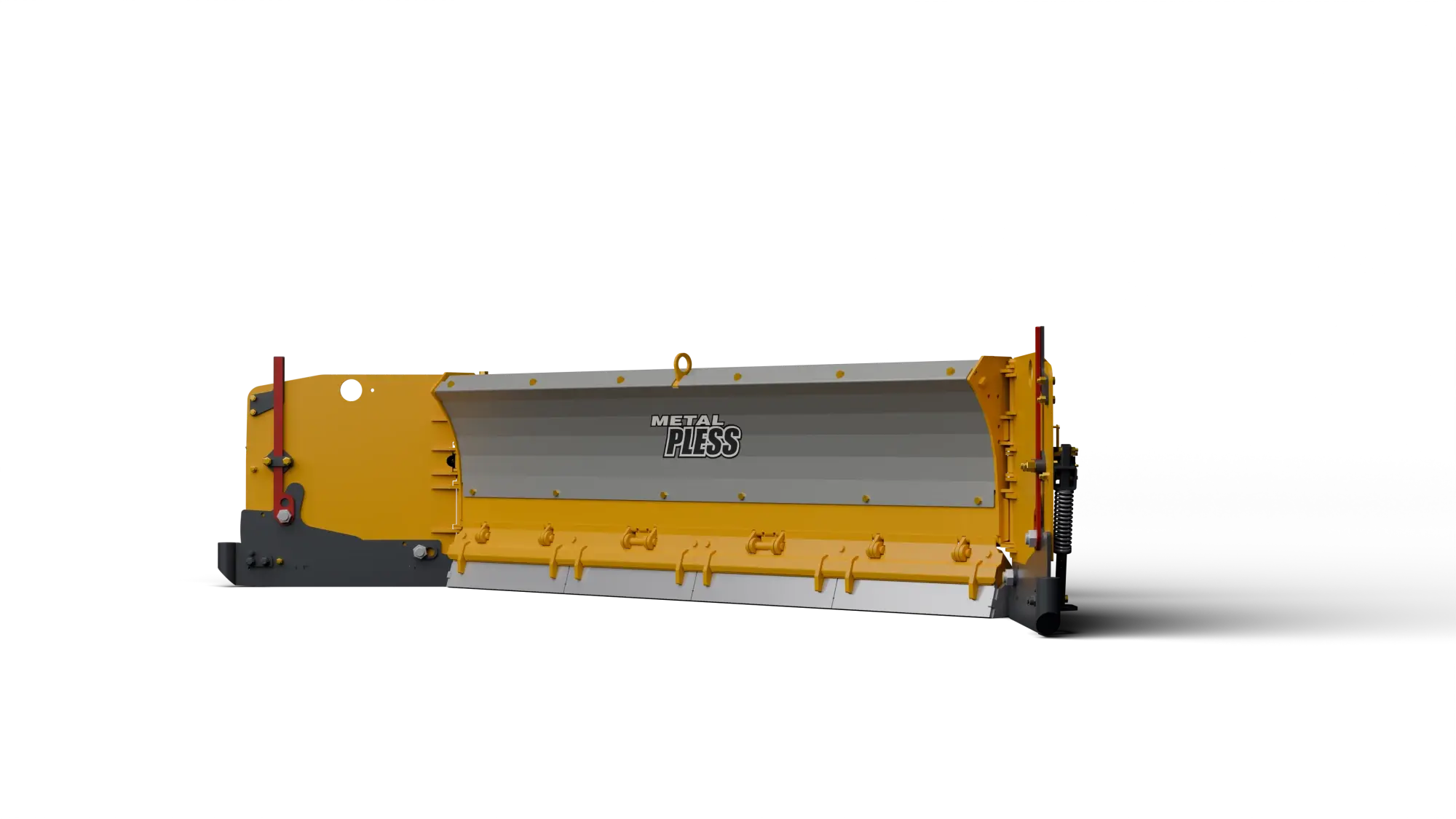

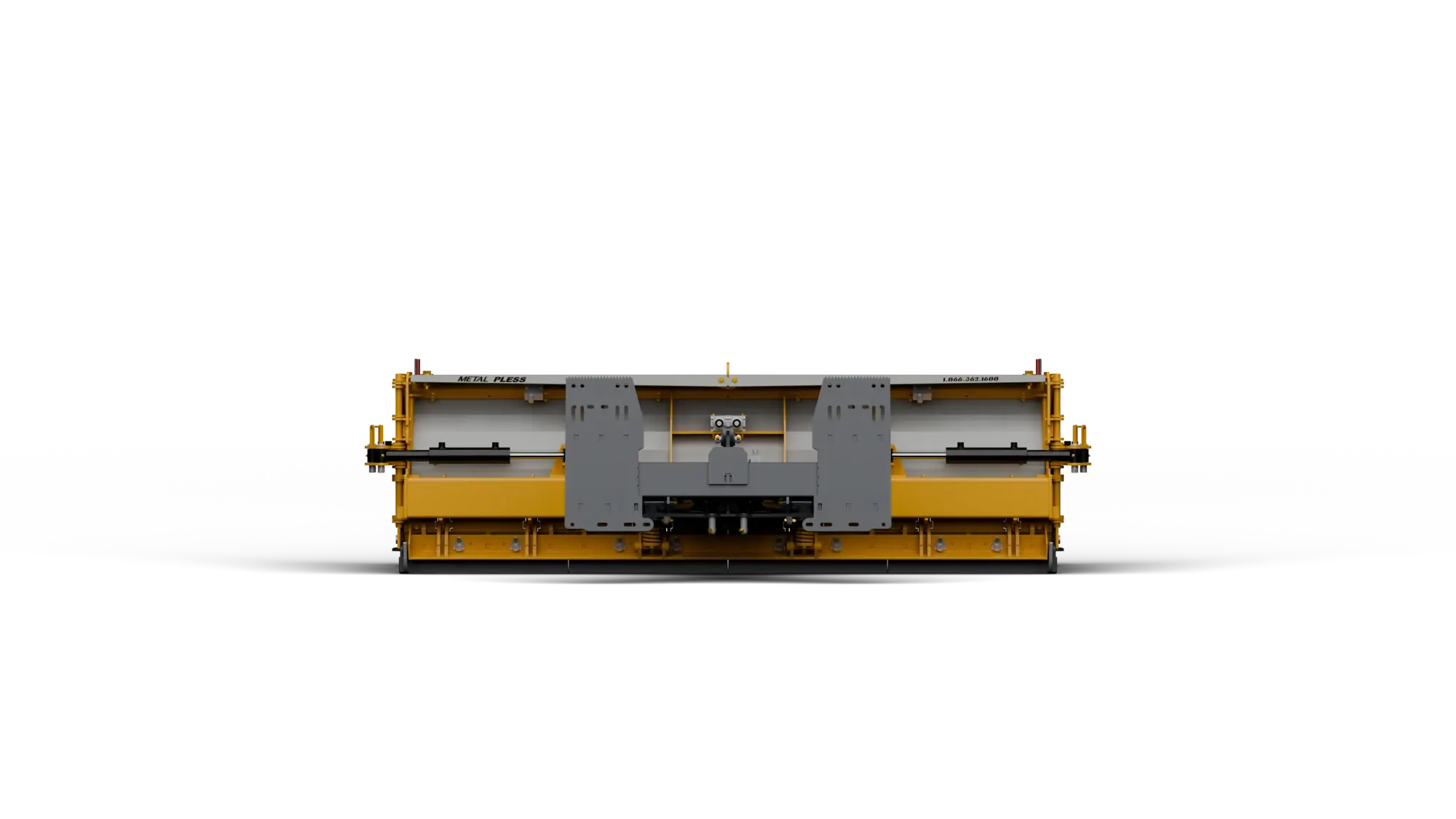

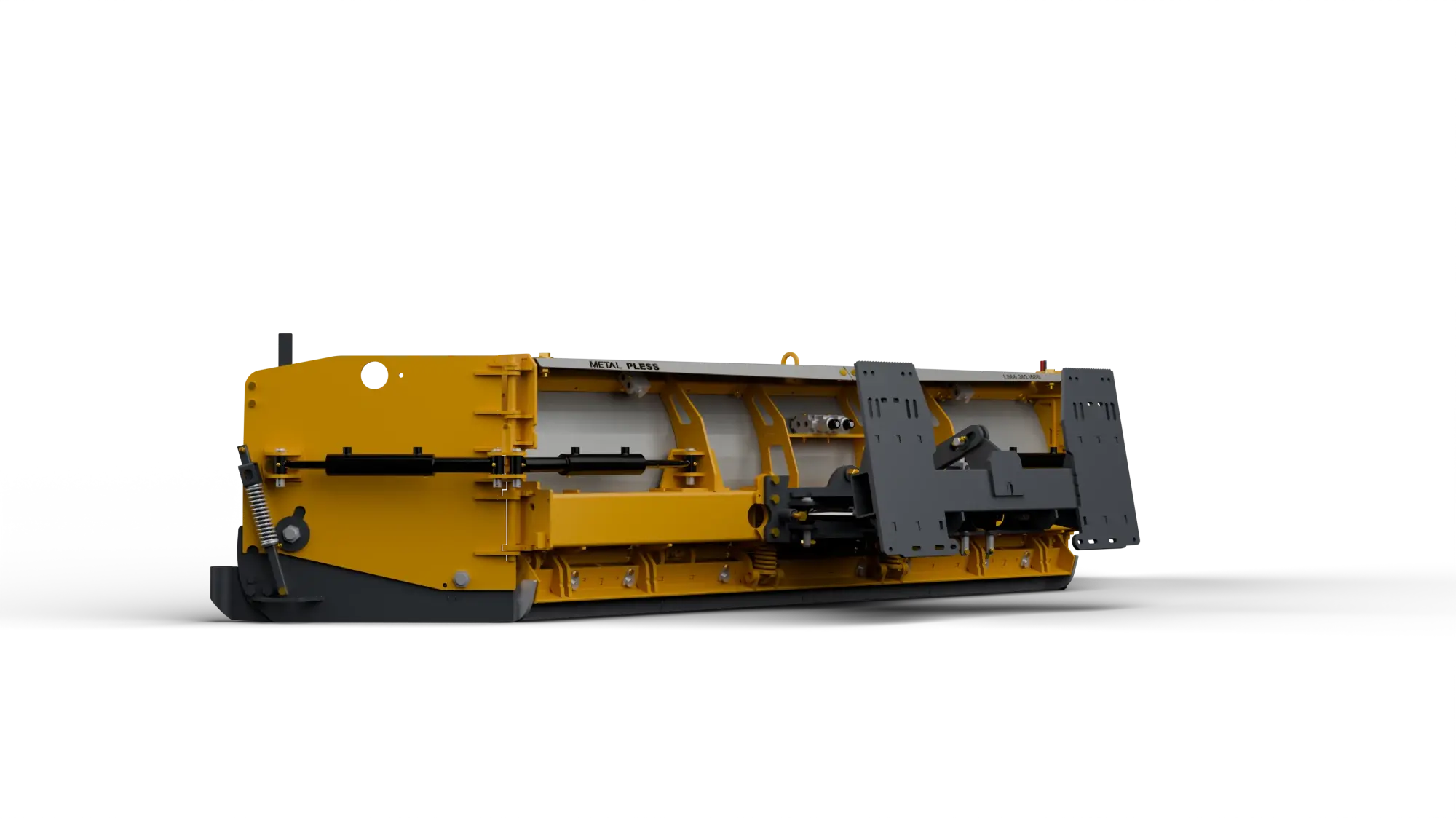

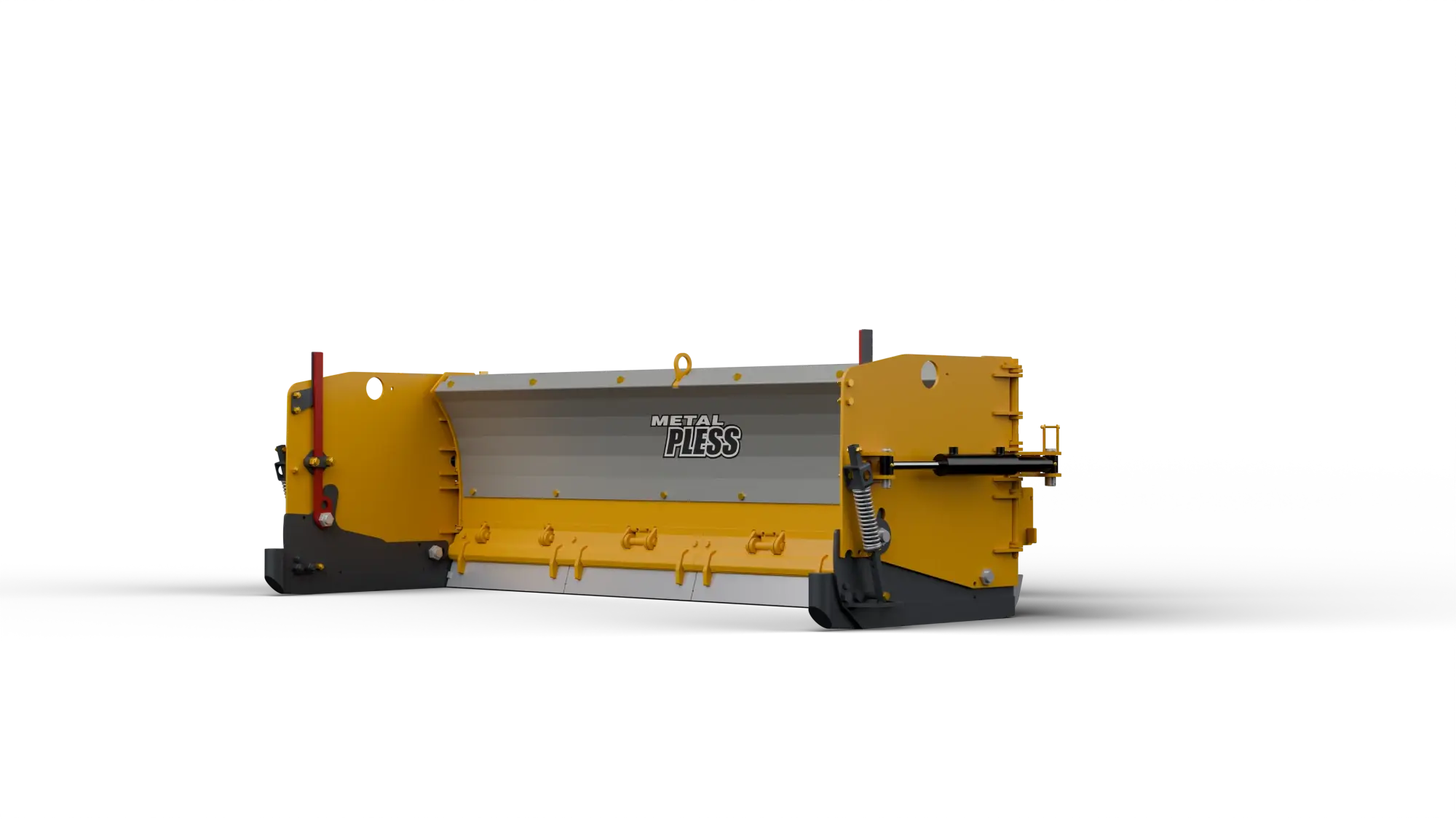

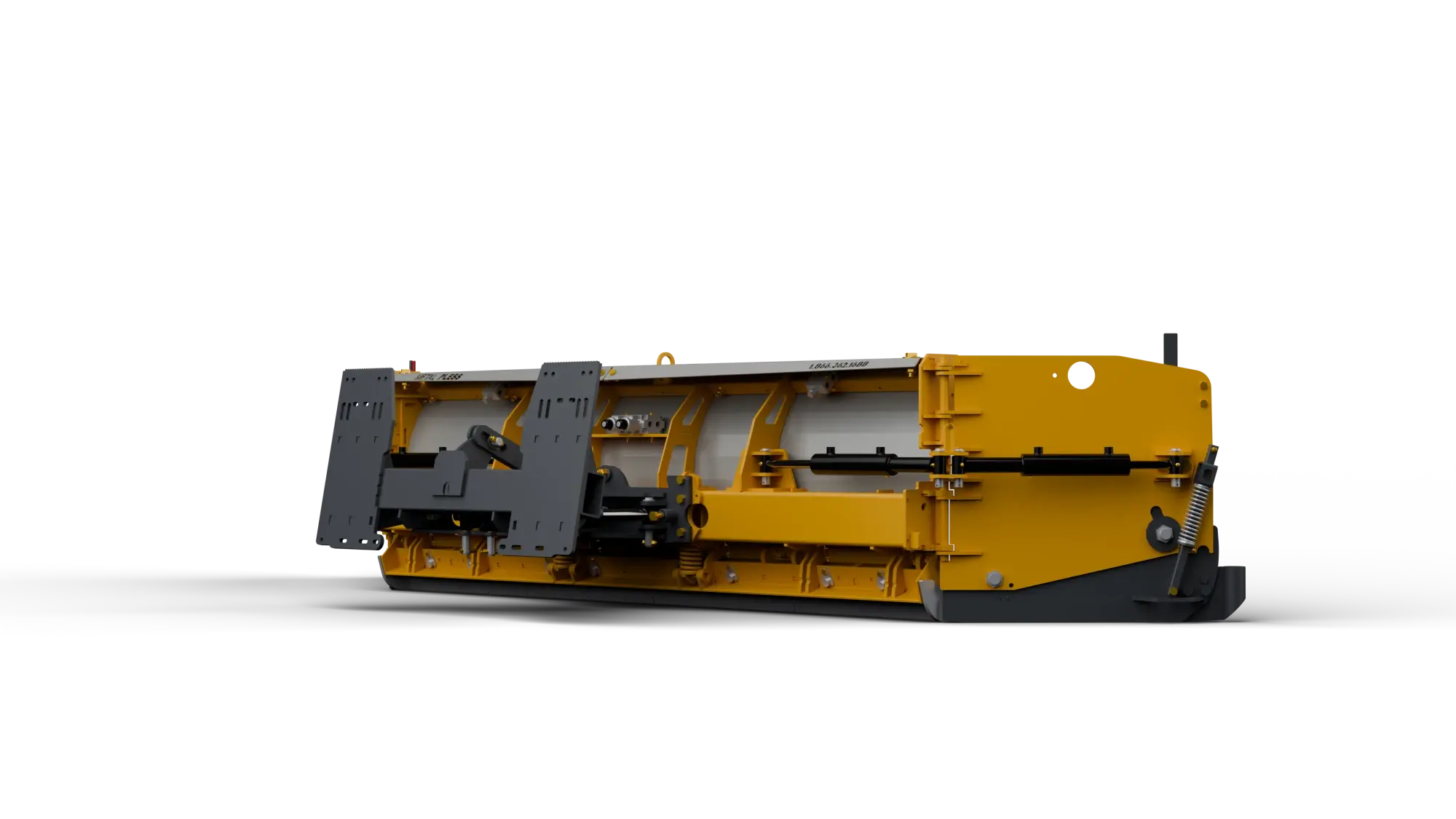

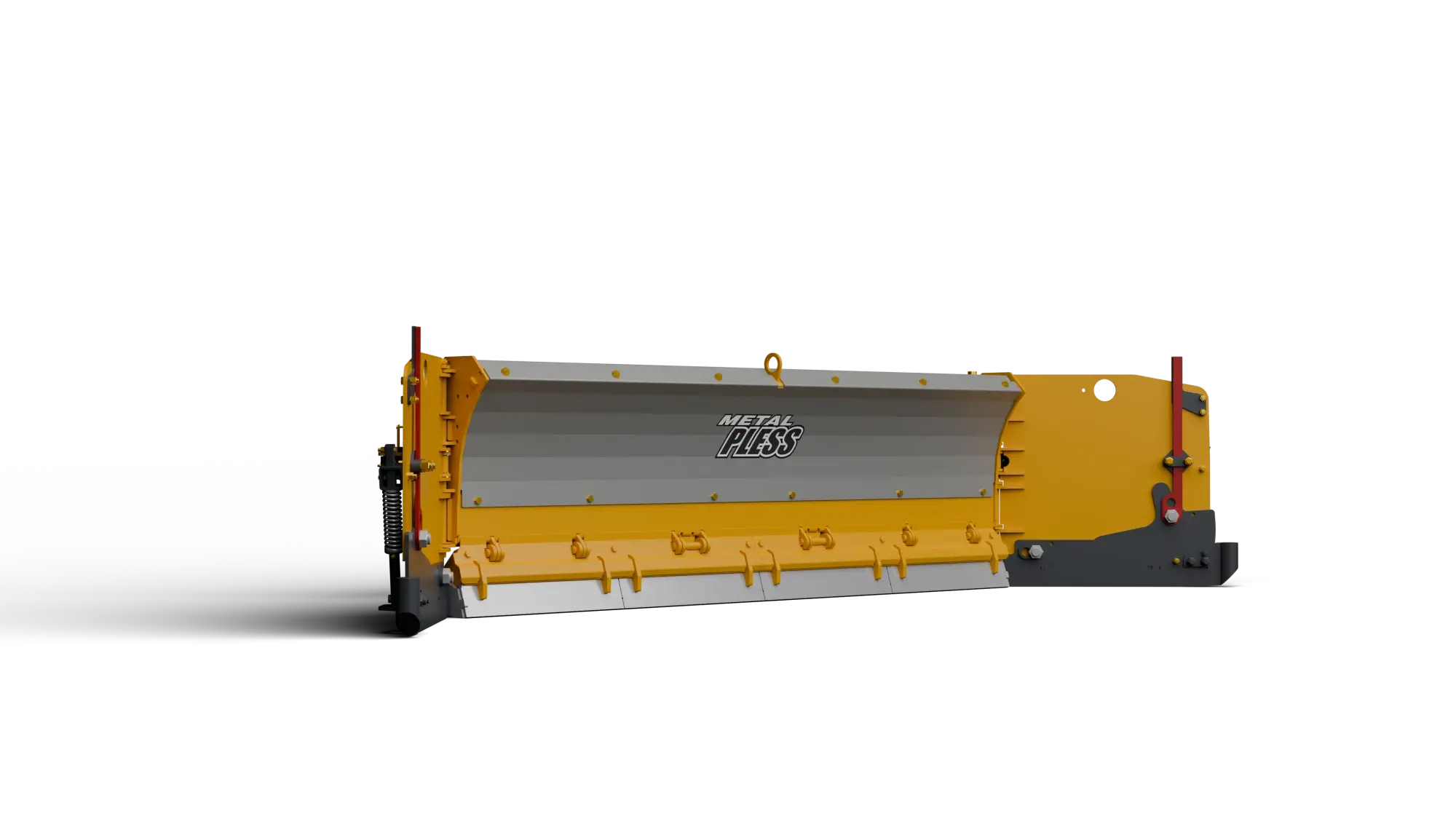

Model shown: PLSM 0830-13 with Live Edge Lite (LEL)

Vehicles: Wheel loader Skid steer Backhoe
Industries: Snow Contractors Municipalities Airports
Compatible weights: Up to 12,000 lb
Sizes: PLSM 0730-12, Top pick PLSM 0830-13, Top pick PLSM 0930-14
Edges: STD LEL LEL CARB
Colors

Get a quote now Find my size

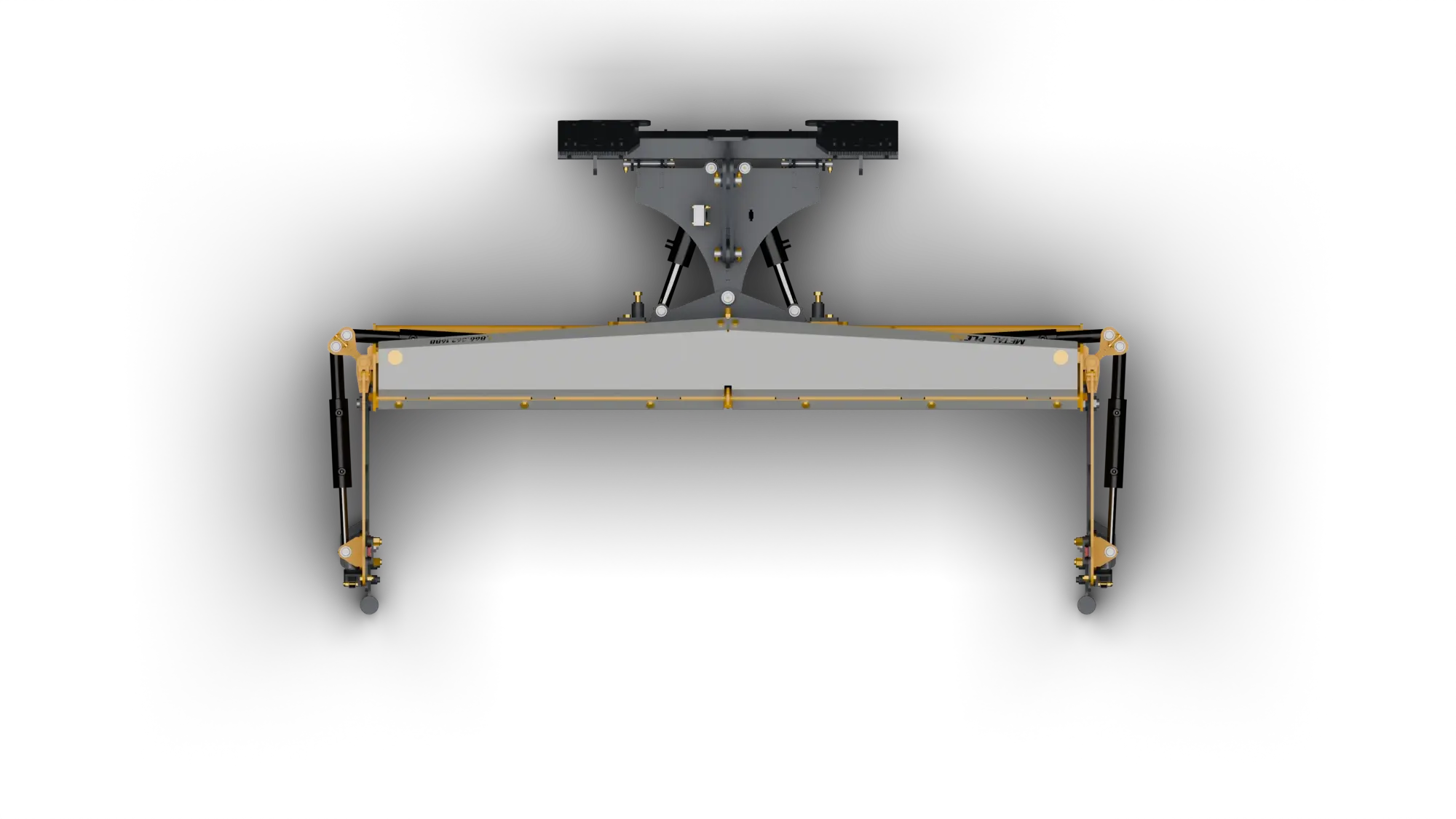

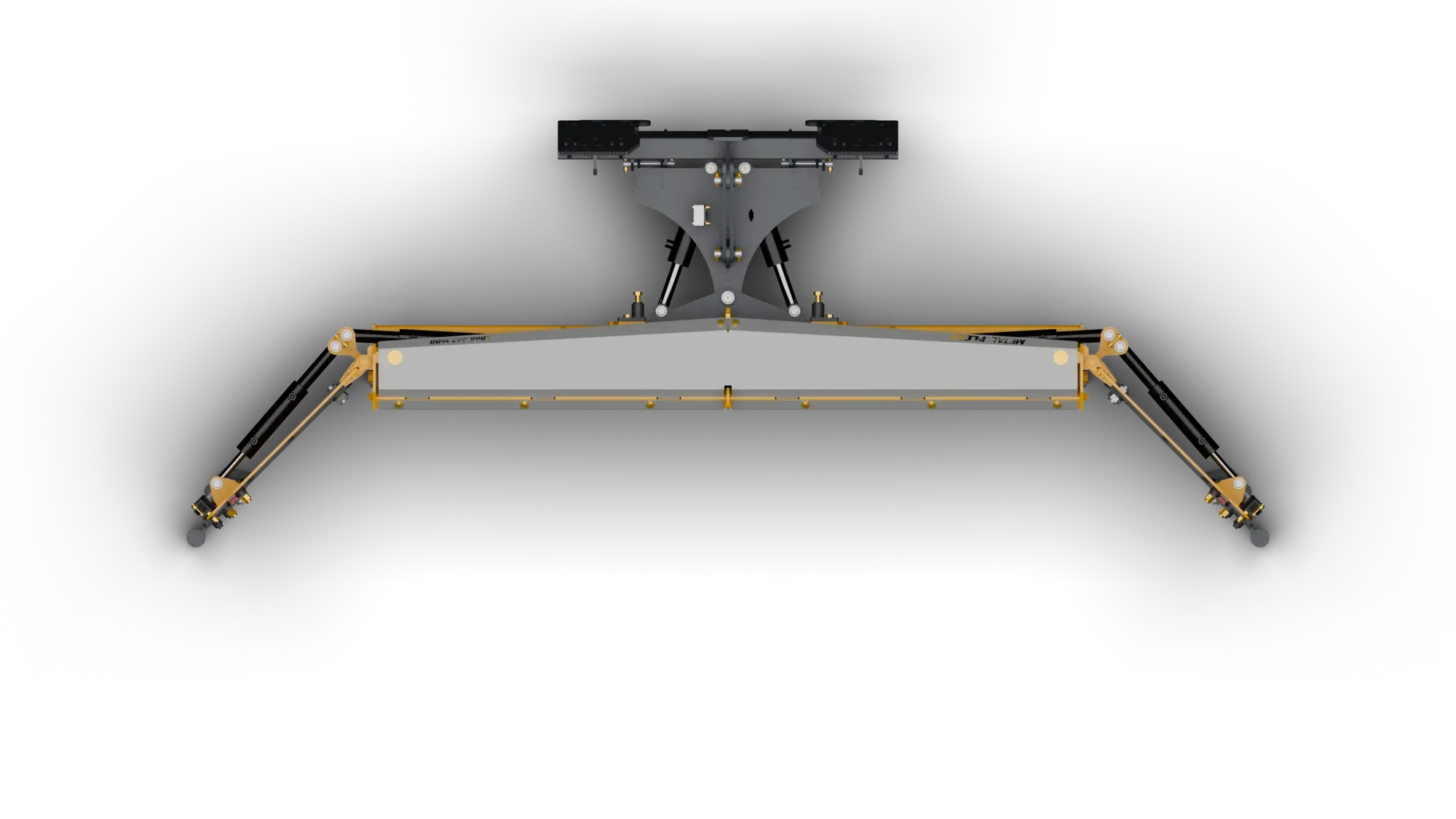

Hydraulic Wings 180

Our wings are constructed with CHT400 steel, making them the strongest in the industry. We use cylinders to move the wings, instead of actuators (hydraulic motors), offering superior holding strength. The leverage is increased by having two cylinders per wing. Additionally, the wings are equipped with a spring that can be adjusted to provide down pressure.

Trip Edge on the Wings

Unique Soft Drive Trip Edge design allows the individual sections to trip backward without the blade being lifted upward, greatly reducing the impact.

Live Edge Technology

Independent floating sections follow the unevenness of the ground and trip back on their own. Full contact with the surface means a cleaner pass, fewer passes and less salt, and carbide inserts extend the wear life.

Lateral Float

Automatically follows the imperfections of the pavement. Our system incorporates an adjustable oscillating mechanism for better control. Increase plowing efficiency and no need to go over the same area multiple times.

Slip Hitch

Slip hitch design allows the plow to follow surface variations. Reduces operator fatigue and increases plowing efficiency. Cutting edges wear evenly and prolong plow life.

STD Standard

Standard trip edge allows the cutting edge to trip back.
LEL Live Edge Lite

A lighter LIVE EDGE for smaller carriers: floating trip sections that follow the unevenness of the ground.
LEL CARB Live Edge Lite Carbide

The Live Edge Lite with carbide inserts for a longer wear life.

PlowMaxx PLSM — Sizes & specifications
Model	Available Edges	Blade Dimensions			Wing Size (each side)	Application	Wing / Gate Type	Approx. Weight	Compare
Model	Available Edges	Box	Height	Extended	Wing Size (each side)	Application	Wing / Gate Type	Approx. Weight	Compare
PLSM 0730-12 Top pick	STD - LEL - LEL CARB	7'	30"	12'	2.5'	6,000 lb - 8,000 lb	Hydraulic wings	1,558 lb
PLSM 0830-13 Top pick	STD - LEL - LEL CARB	8'	30"	13'	2.5'	6,000 lb - 8,000 lb	Hydraulic wings	1,615 lb
PLSM 0930-14	STD - LEL - LEL CARB	9'	30"	14'	2.5'	6,000 lb - 8,000 lb	Hydraulic wings	1,680 lb

*Ask about our Tivar options
