PlowMaxx Jr

PlowMaxx Jr comes in 10 sizes, with moldboards from 5' to 12'. Built for wheel loaders, skid steers and backhoes.

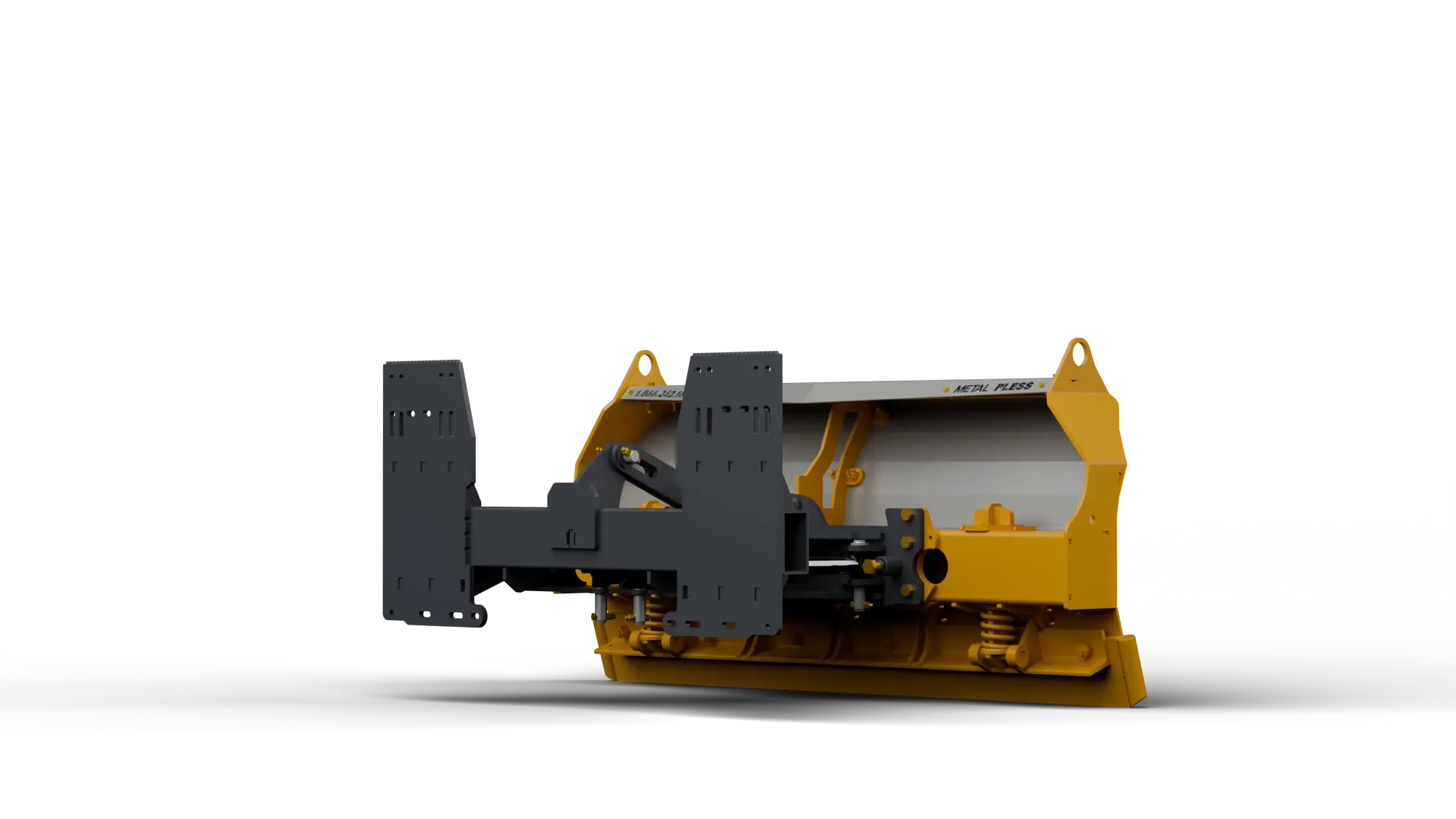

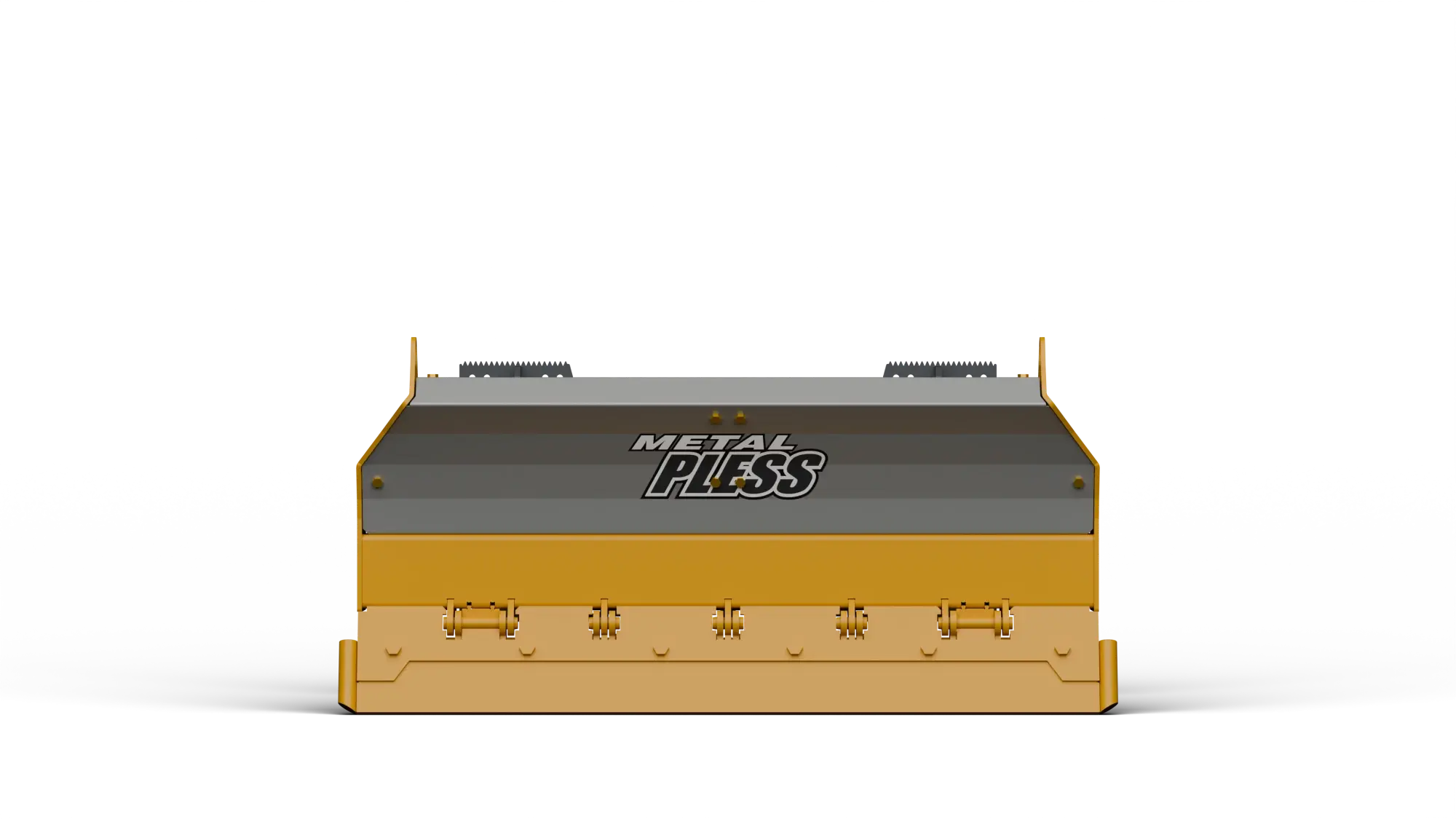

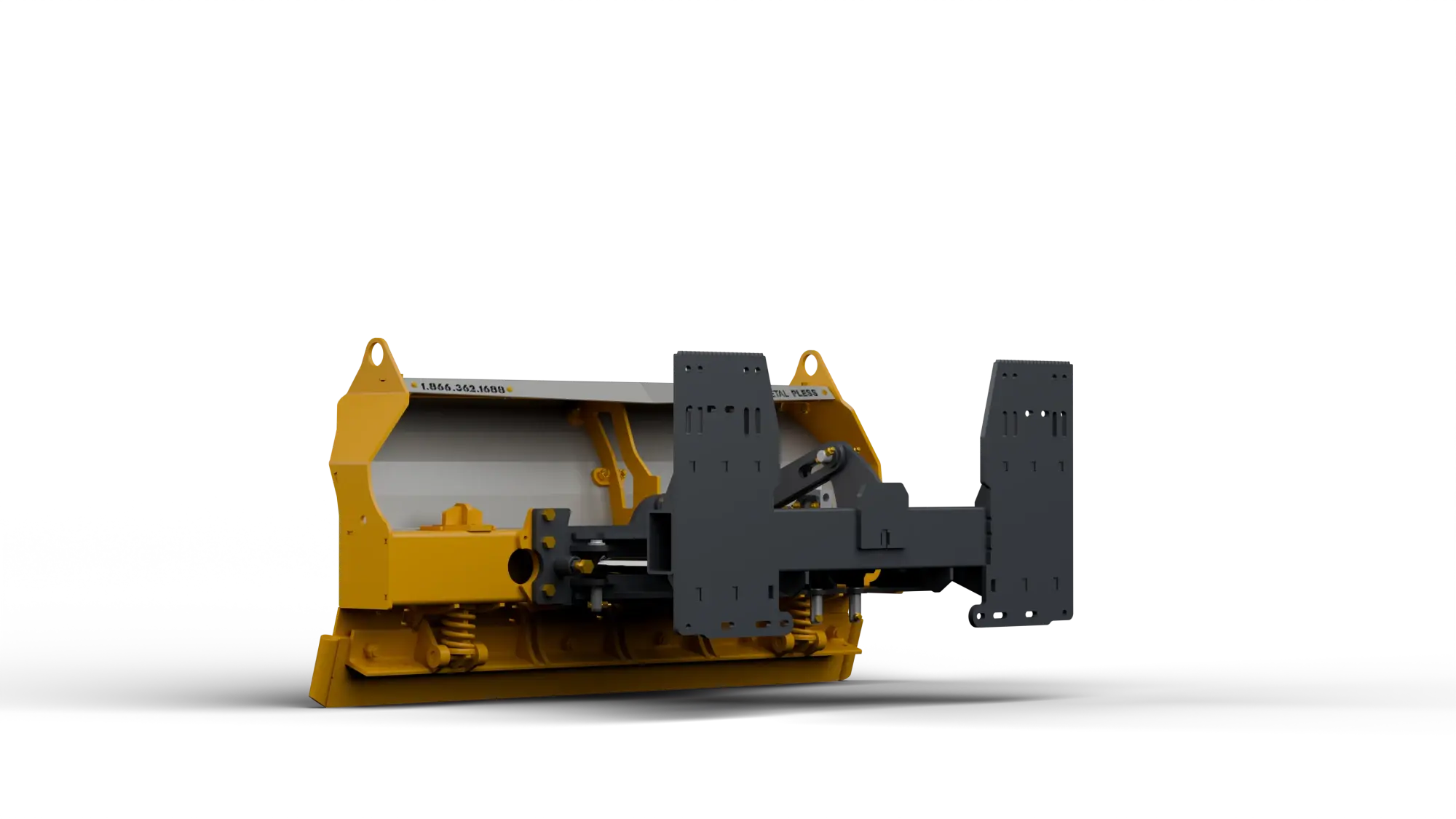

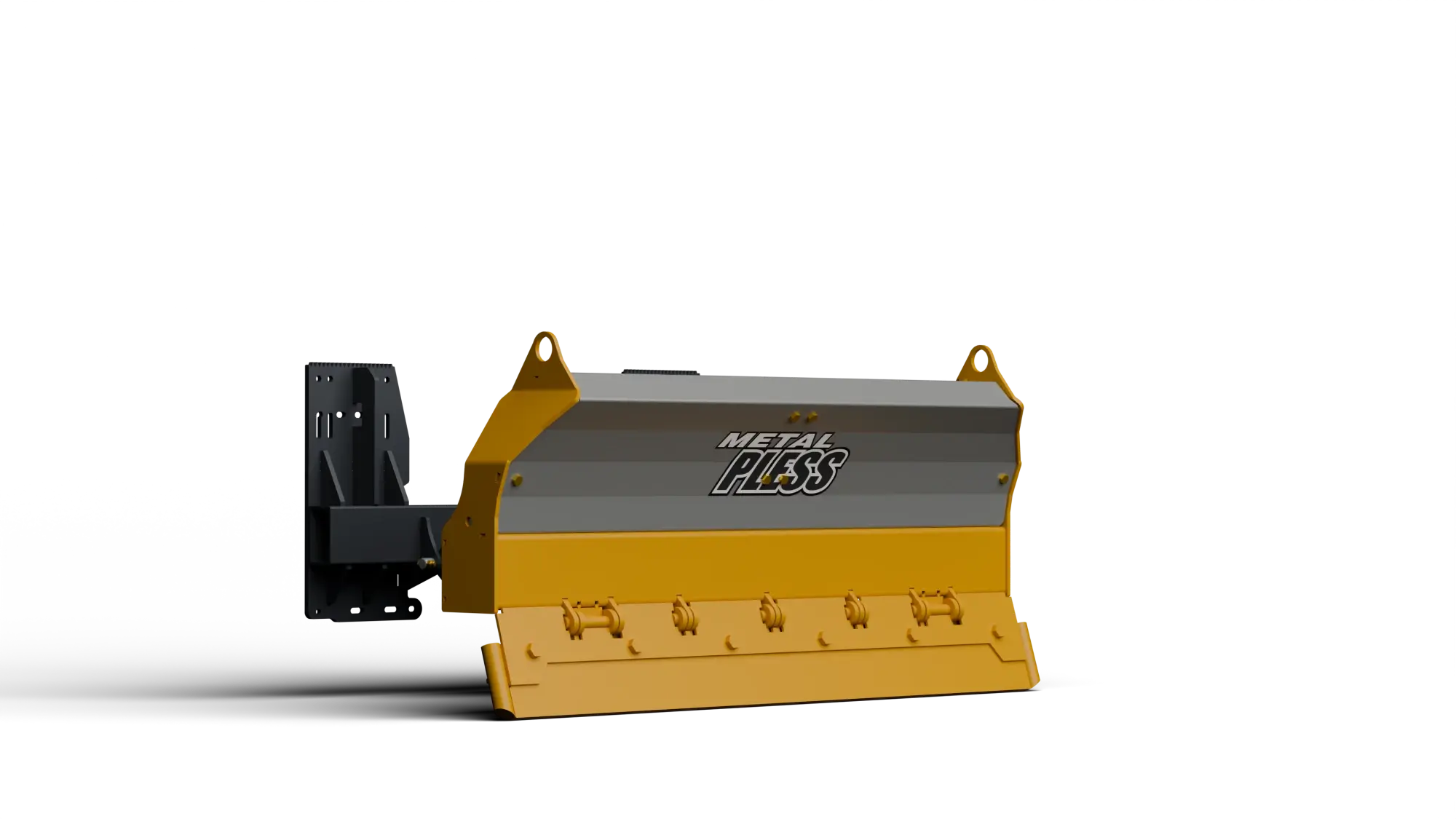

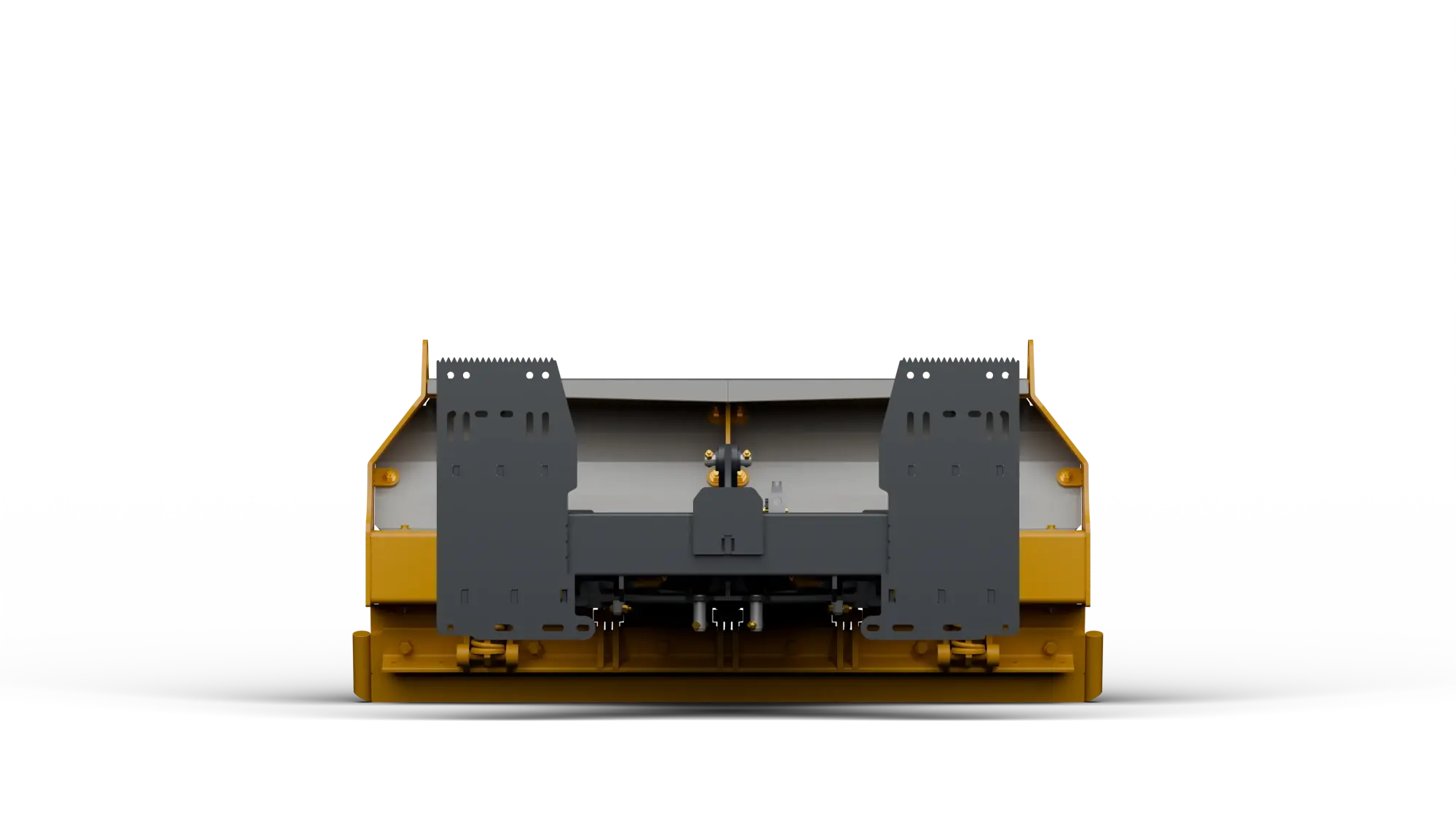

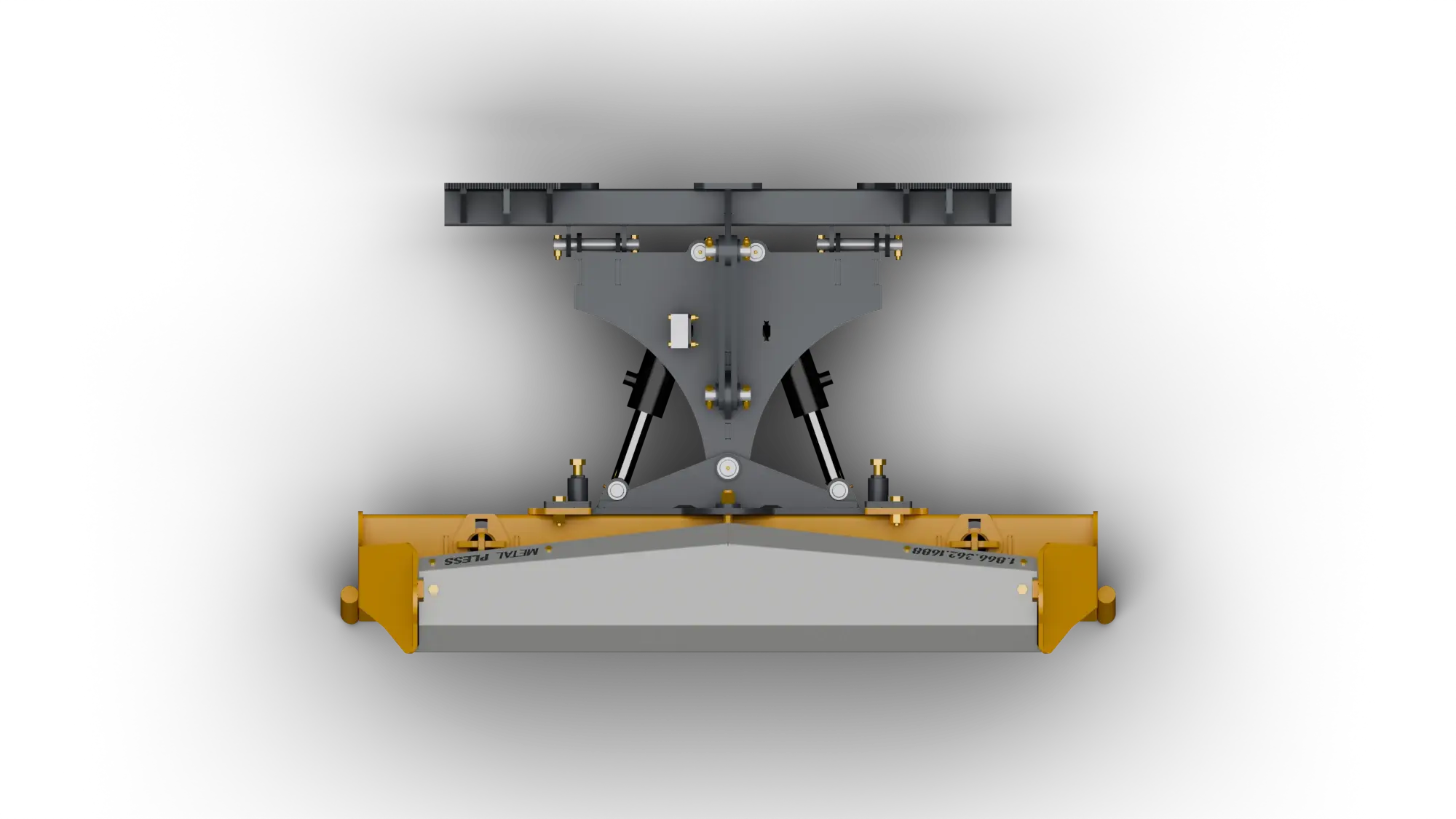

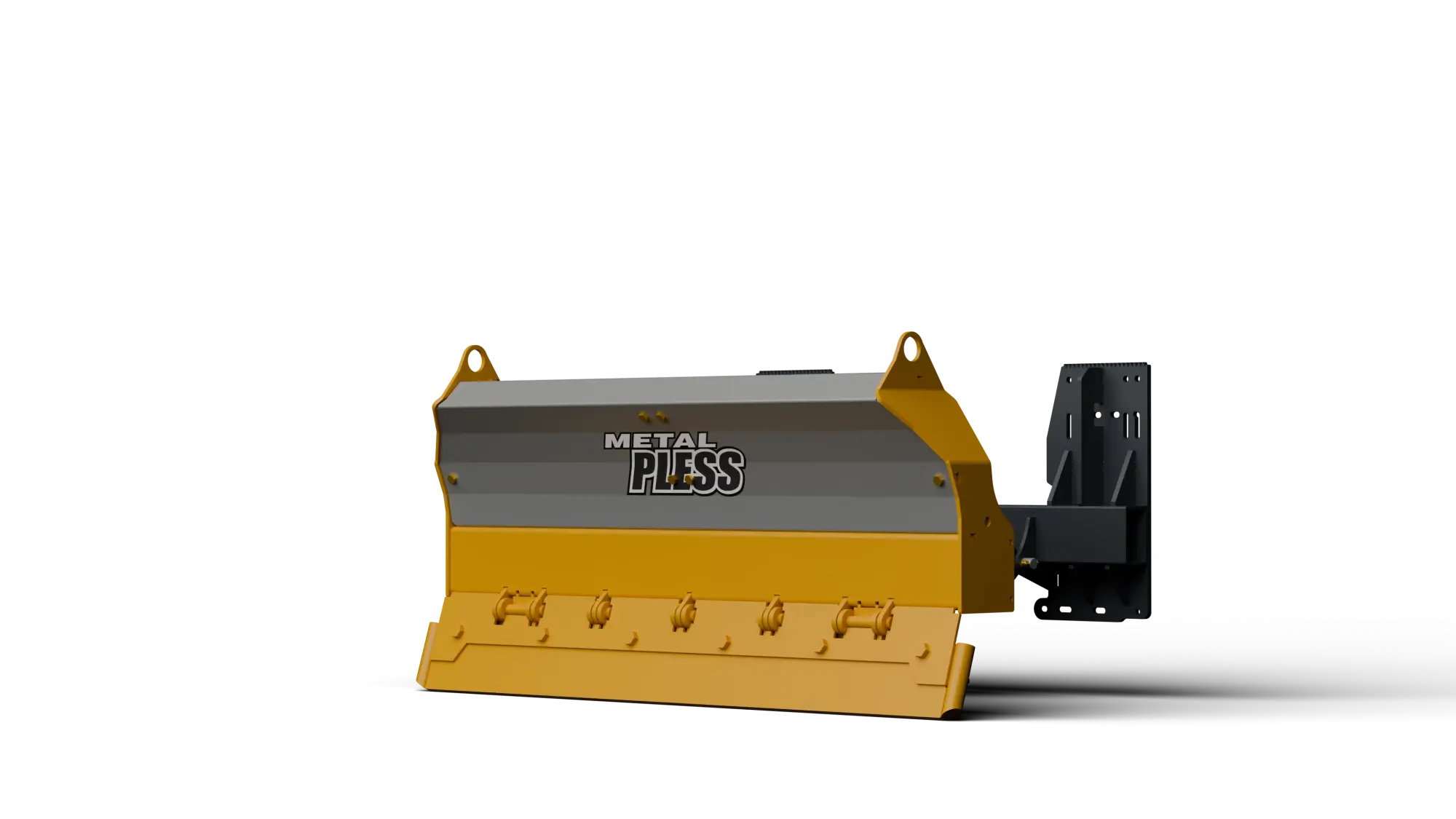

Model shown: PLJR 527 with Standard Edge (STD)

Vehicles: Wheel loader Skid steer Backhoe
Industries: Snow Contractors Municipalities Airports
Compatible weights: Up to 12,000 lb 12,000-20,000 lb 20,000-30,000 lb
Sizes: PLJR 527 PLJR 627 PLJR 727 PLJR 827 PLSO 730 PLSO 830 PLSO 930 PLSO 1036 PLSO 1236 PLSO 1242
Edges: STD HD LE
Colors

Get a quote now Find my size

Live Edge Technology

Independent floating sections follow the unevenness of the ground and trip back on their own. Full contact with the surface means a cleaner pass, fewer passes and less salt, and carbide inserts extend the wear life.

Lateral Float

Automatically follows the imperfections of the pavement. Our system incorporates an adjustable oscillating mechanism for better control. Increase plowing efficiency and no need to go over the same area multiple times.

Slip Hitch

Slip hitch design allows the plow to follow surface variations. Reduces operator fatigue and increases plowing efficiency. Cutting edges wear evenly and prolong plow life.

STD Standard

Standard trip edge allows the cutting edge to trip back.
HD Soft Drive Trip Edge

Unique Soft Drive trip edge design allows the individual sections to trip backward without the blade being lifted upward, greatly reducing the impact.
LE Live Edge

A floating soft drive steel trip edge with carbide inserts for longer wear life, that contours the unevenness of the ground for a cleaner result.

PlowMaxx Jr — Sizes & specifications
Model	Available Edges	Blade Dimensions		Application	Approx. Weight	Compare
Model	Available Edges	Box	Height	Application	Approx. Weight	Compare
PLJR 527	STD	5'	27"	4,000 lb - 6,000 lb	600 lb
PLJR 627	STD	6'	27"	4,000 lb - 6,000 lb	675 lb
PLJR 727	STD	7'	27"	4,000 lb - 6,000 lb	728 lb
PLJR 827	STD	8'	27"	4,000 lb - 6,000 lb	785 lb
PLSO 730	STD	7'	30"	6,001 lb - 12,000 lb	1,150 lb
PLSO 830	STD	8'	30"	6,001 lb - 12,000 lb	1,210 lb
PLSO 930	STD	9'	30"	6,001 lb - 12,000 lb	1,360 lb
PLSO 1036	STD - HD - LE	10'	36"	12,001 lb - 18,000 lb	1,500 lb (STD) · 1,540 lb (HD, LE)
PLSO 1236	STD - HD - LE	12'	36"	12,001 lb - 18,000 lb	1,850 lb (STD) · 1,870 lb (HD, LE)
PLSO 1242	STD - HD - LE	12'	42"	18,001 lb - 30,000 lb	1,990 lb (STD) · 2,000 lb (HD, LE)

*Ask about our Tivar options
