Name: LiveBoxx
Brand: Metal Pless

LiveBoxx

LiveBoxx comes in 20 sizes, with moldboards from 7' to 30'. Built for wheel loaders, skid steers and backhoes.

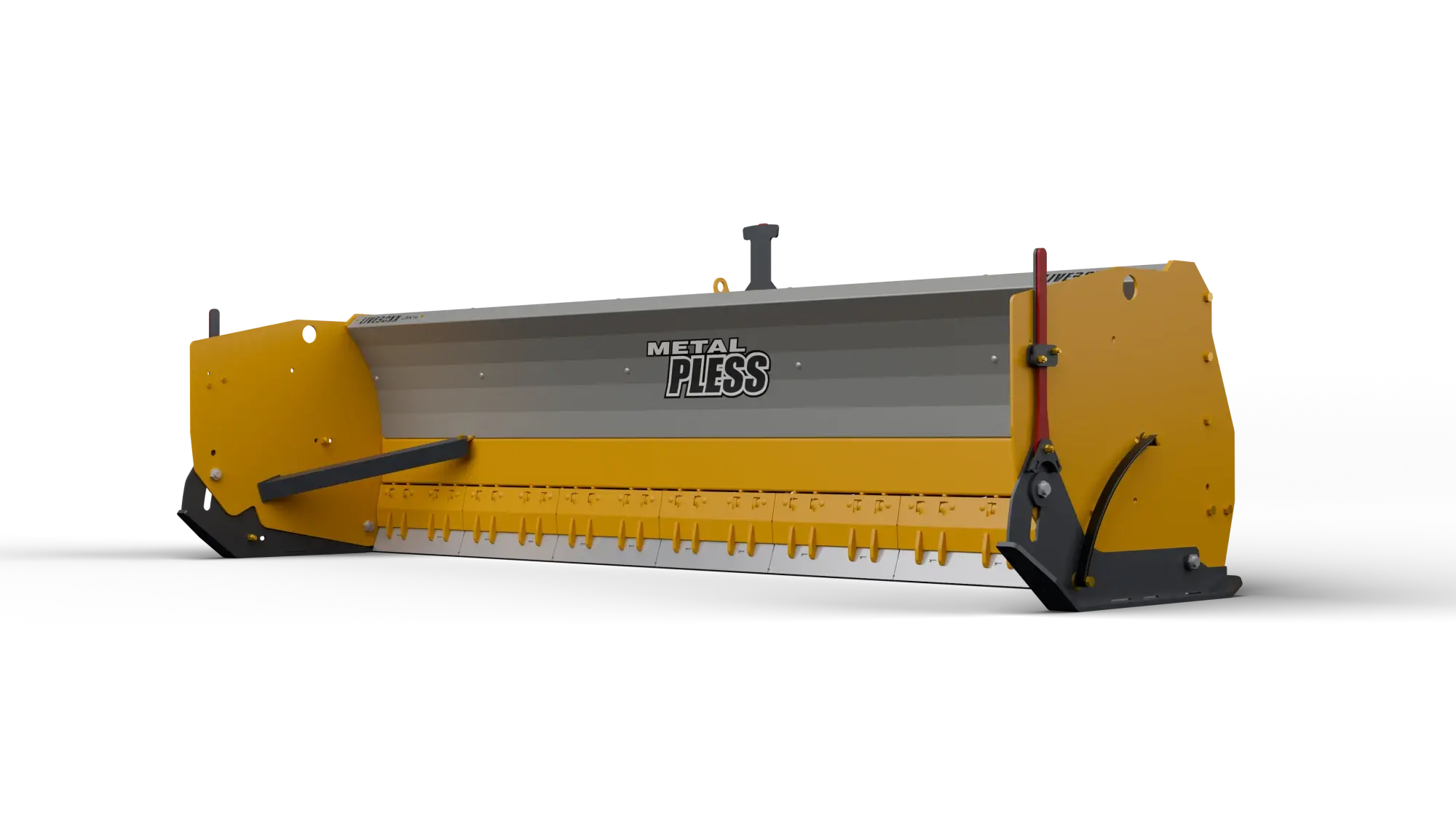

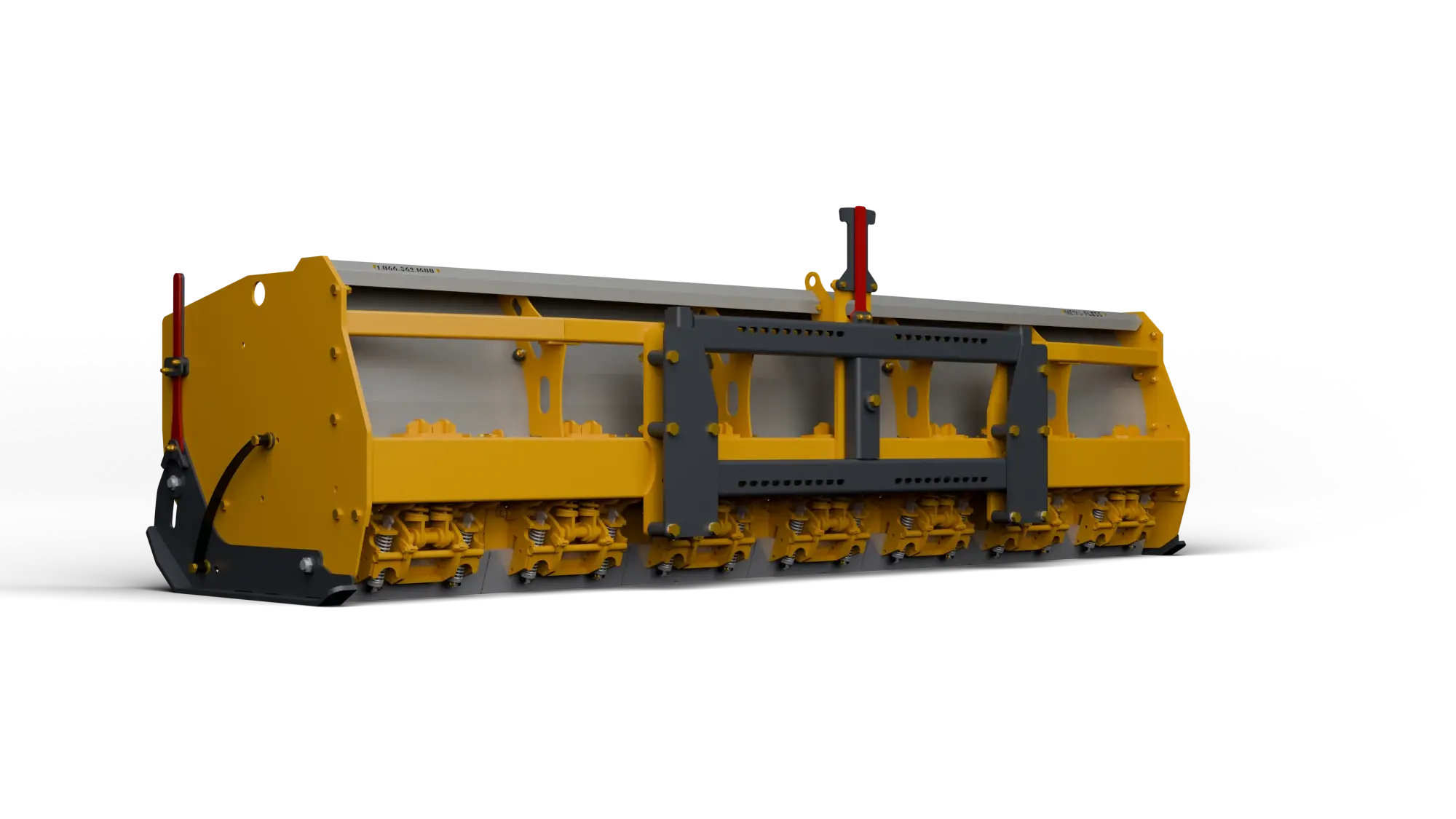

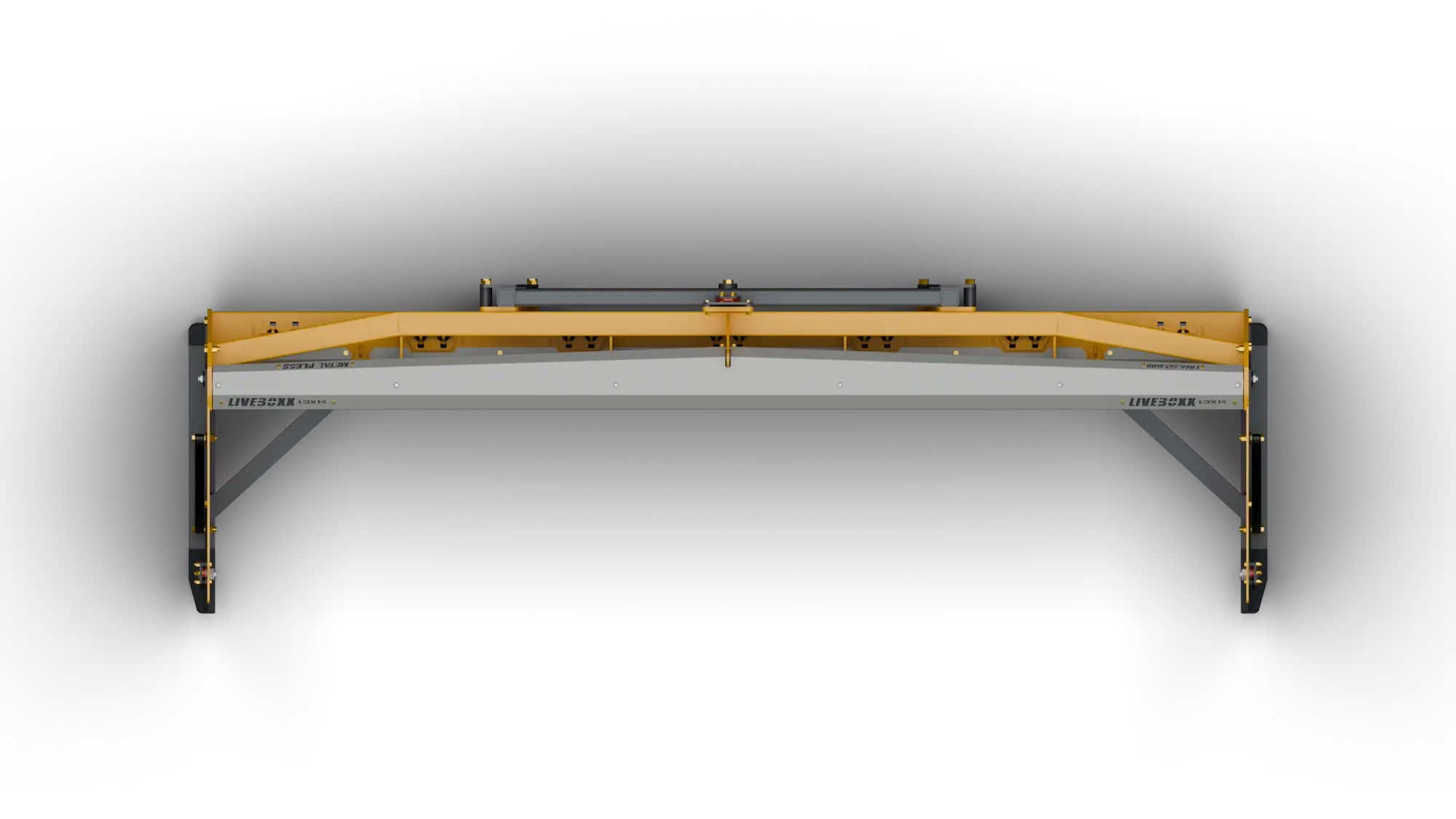

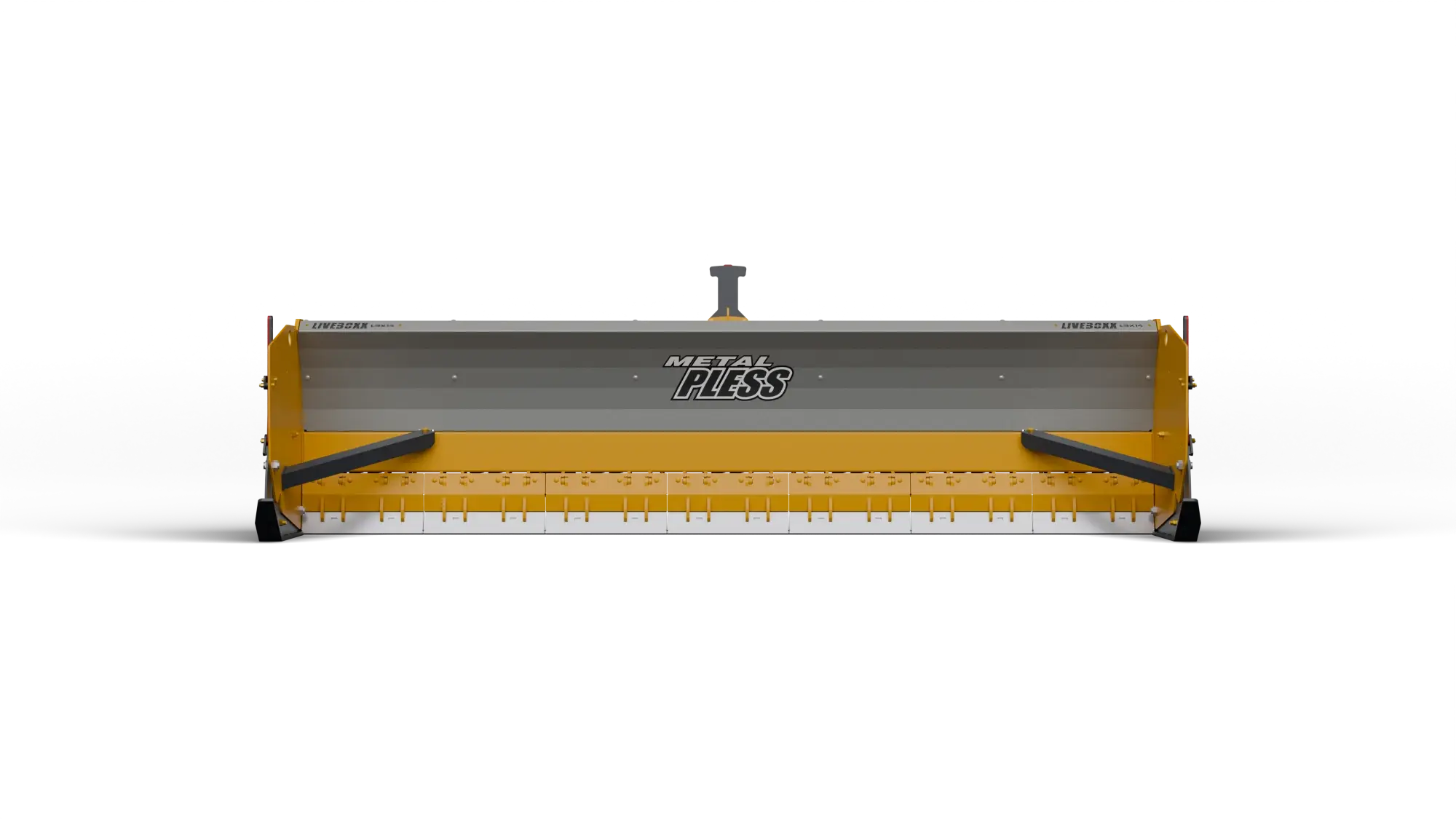

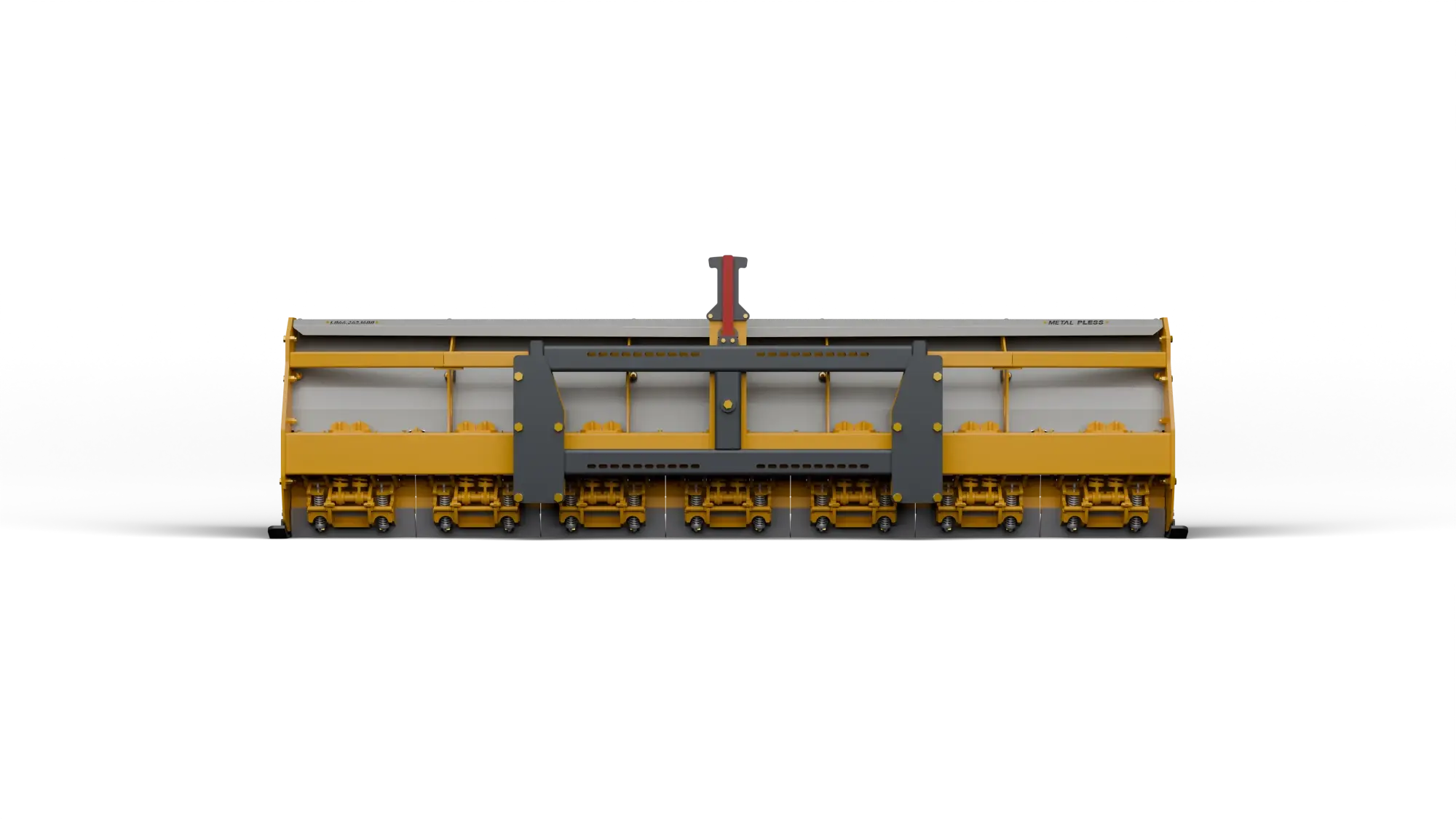

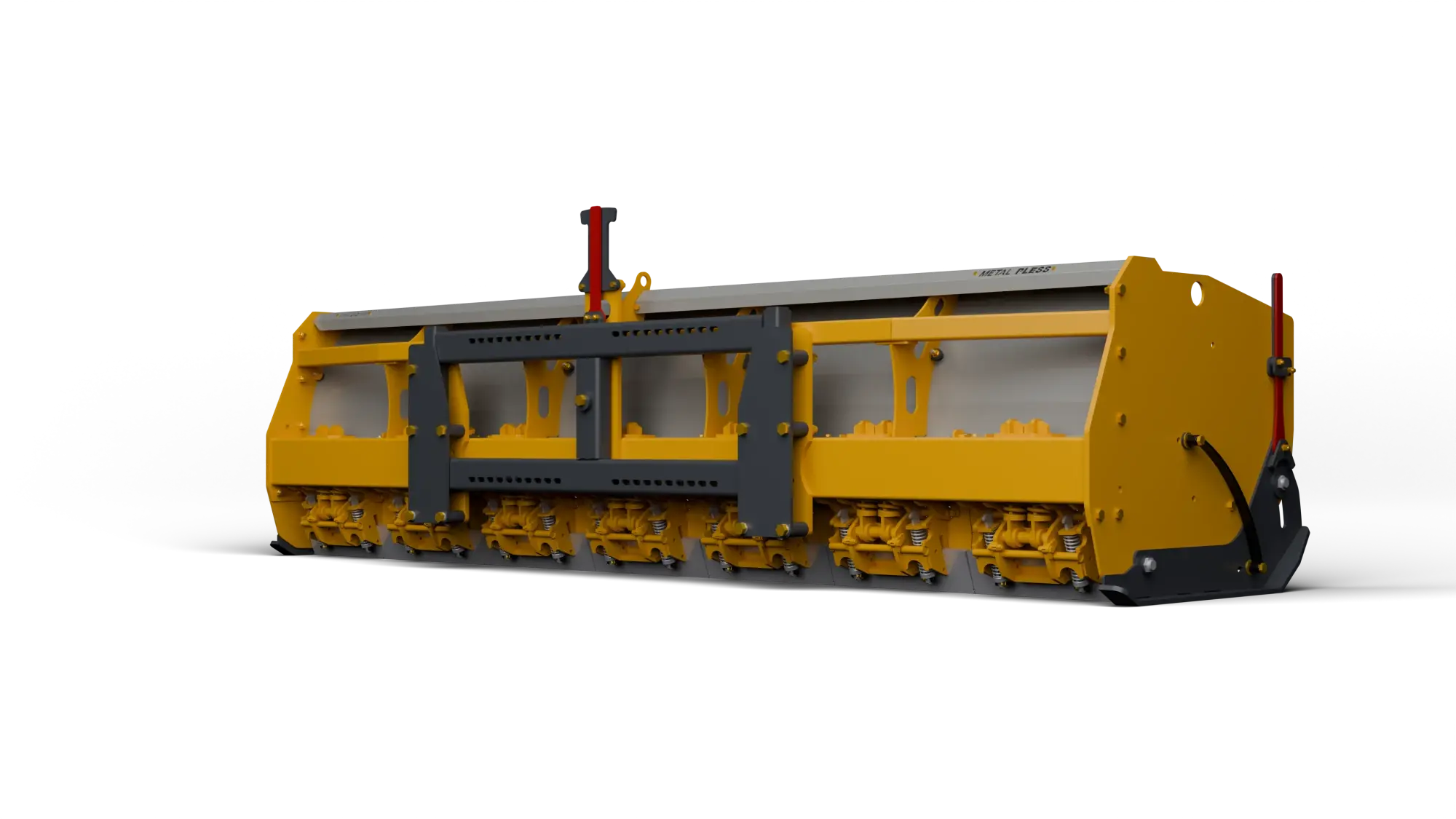

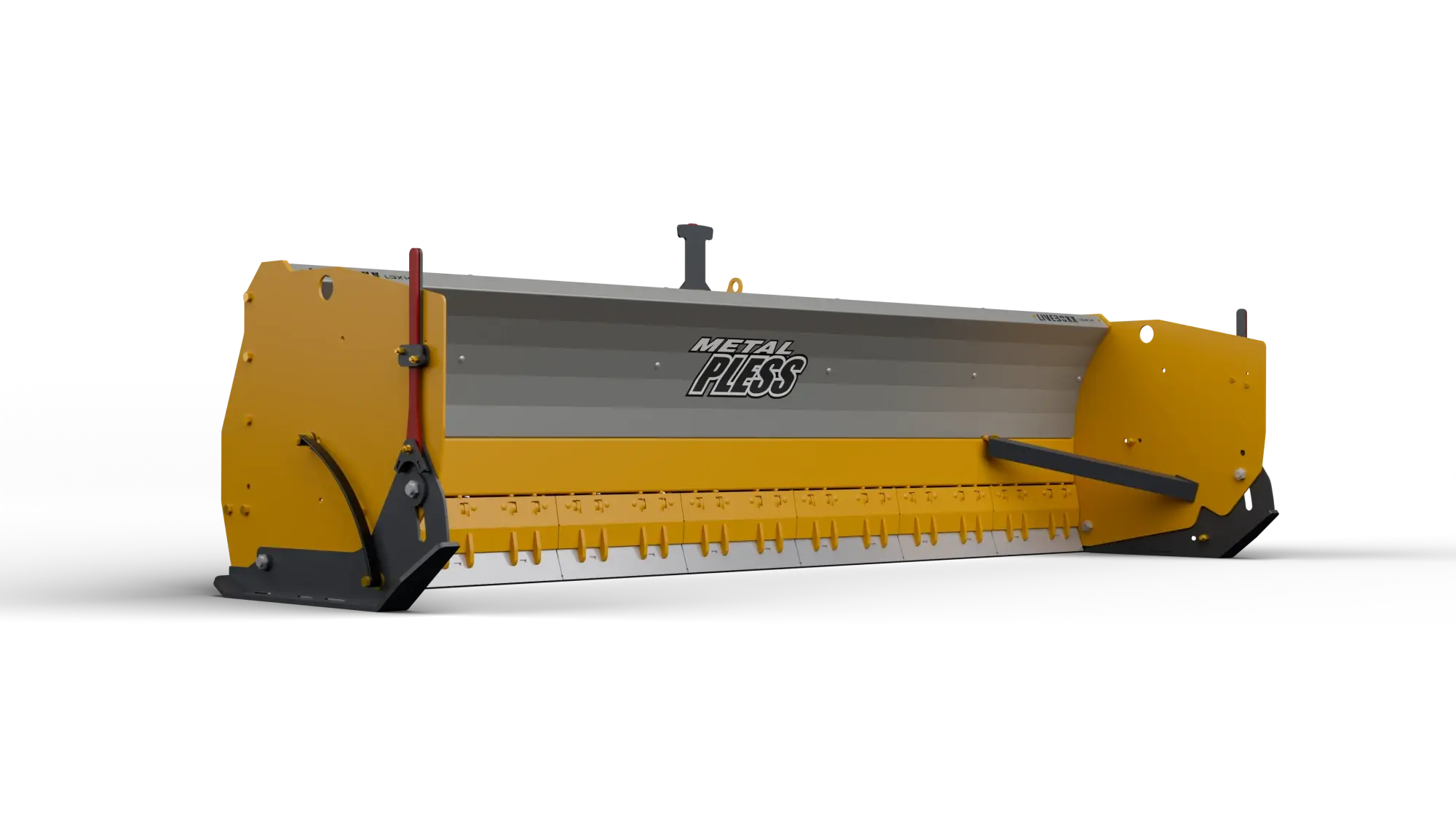

Model shown: LBX 1442 with Live Edge (LE)

Live Edge Technology

Independent floating sections follow the unevenness of the ground and trip back on their own. Full contact with the surface means a cleaner pass, fewer passes and less salt, and carbide inserts extend the wear life.

Lateral Float

Automatically follows the imperfections of the pavement. Our system incorporates an adjustable oscillating mechanism for better control. Increase plowing efficiency and no need to go over the same area multiple times.

Slip Hitch

Slip hitch design allows the plow to follow surface variations. Reduces operator fatigue and increases plowing efficiency. Cutting edges wear evenly and prolong plow life.

LEL Live Edge Lite

A lighter LIVE EDGE for smaller carriers: floating trip sections that follow the unevenness of the ground.
STD Standard

Standard trip edge allows the cutting edge to trip back.
LE Live Edge

A floating soft drive steel trip edge with carbide inserts for longer wear life, that contours the unevenness of the ground for a cleaner result.

Model	Available Edges	Blade Dimensions		Application	Approx. Weight	Side Gate Depth	Wing / Gate Type	Compare
Model	Available Edges	Box	Height	Application	Approx. Weight	Side Gate Depth	Wing / Gate Type	Compare
LBSM 0730	LEL - STD - BD (BACK DRAG)	7'	30"	6,000 lb - 8,000 lb	1,450 lb (LEL) · 1,700 lb (STD - BD (BACK DRAG))	—	—
LBSM 0830	LEL - STD - BD (BACK DRAG)	8'	30"	6,000 lb - 8,000 lb	1,500 lb (LEL) · 1,800 lb (STD - BD (BACK DRAG))	—	—
LBSM 0930	LEL - STD - BD (BACK DRAG)	9'	30"	6,000 lb - 8,000 lb	1,750 lb (LEL) · 2,100 lb (STD - BD (BACK DRAG))	—	—
LBX 0832	LE	8'	32"	8,000 lb - 15,000 lb	1,345 lb	36"	Fixed side gates
LBX 1032 Top pick	LE	10'	32"	8,000 lb - 15,000 lb	1,550 lb	36"	Fixed side gates
LBX 1232	LE	12'	32"	8,000 lb - 15,000 lb	1,760 lb	36"	Fixed side gates
LBX 1432	LE	14'	32"	8,000 lb - 15,000 lb	2,225 lb	36"	—
LBX 1236	LE	12'	36"	10,000 lb - 18,000 lb	1,935 lb	36"	Fixed side gates
LBX 1042	LE	10'	42"	18,001 lb - 40,000 lb	2,250 lb	42"	Fixed side gates
LBX 1242 Top pick	LE	12'	42"	18,001 lb - 40,000 lb	2,565 lb	42"	Fixed side gates
LBX 1442	LE	14'	42"	18,001 lb - 40,000 lb	2,805 lb	42"	Fixed side gates
LBX 1642 Top pick	LE	16'	42"	18,001 lb - 40,000 lb	3,045 lb	42"	Fixed side gates
LBX 1842	LE	18'	42"	18,001 lb - 40,000 lb	3,285 lb	42"	Fixed side gates
LBX 2042	LE	20'	42"	30,000 lb - 50,000 lb	3,525 lb	42"	Fixed side gates
LBX 3042	LE	30'	42"	30,000 lb - 50,000 lb	4,700 lb	42"	—
LBX 1248	LE	12'	48"	45,000 lb and up	2,615 lb	42"	Fixed side gates
LBX 1448	LE	14'	48"	45,000 lb and up	3,305 lb	48"	Fixed side gates
LBX 1648	LE	16'	48"	45,000 lb and up	3,545 lb	48"	Fixed side gates
LBX 1848	LE	18'	48"	45,000 lb and up	3,785 lb	48"	Fixed side gates
LBX 2048	LE	20'	48"	45,000 lb and up	4,025 lb	48"	Fixed side gates
