ExtendMaxx-HD

ExtendMaxx-HD comes in 5 sizes, with moldboards from 8' to 12'. Built for wheel loaders.

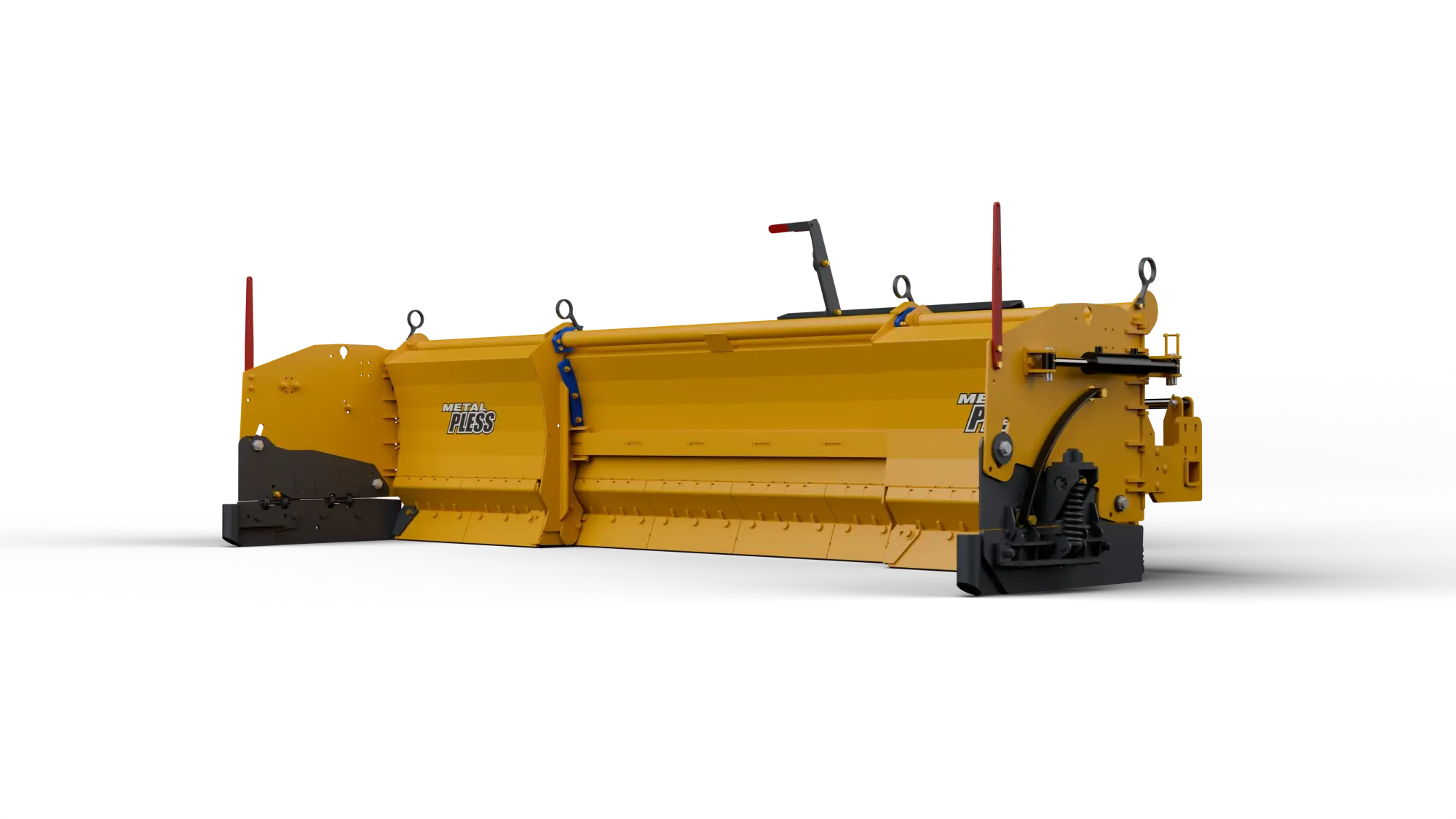

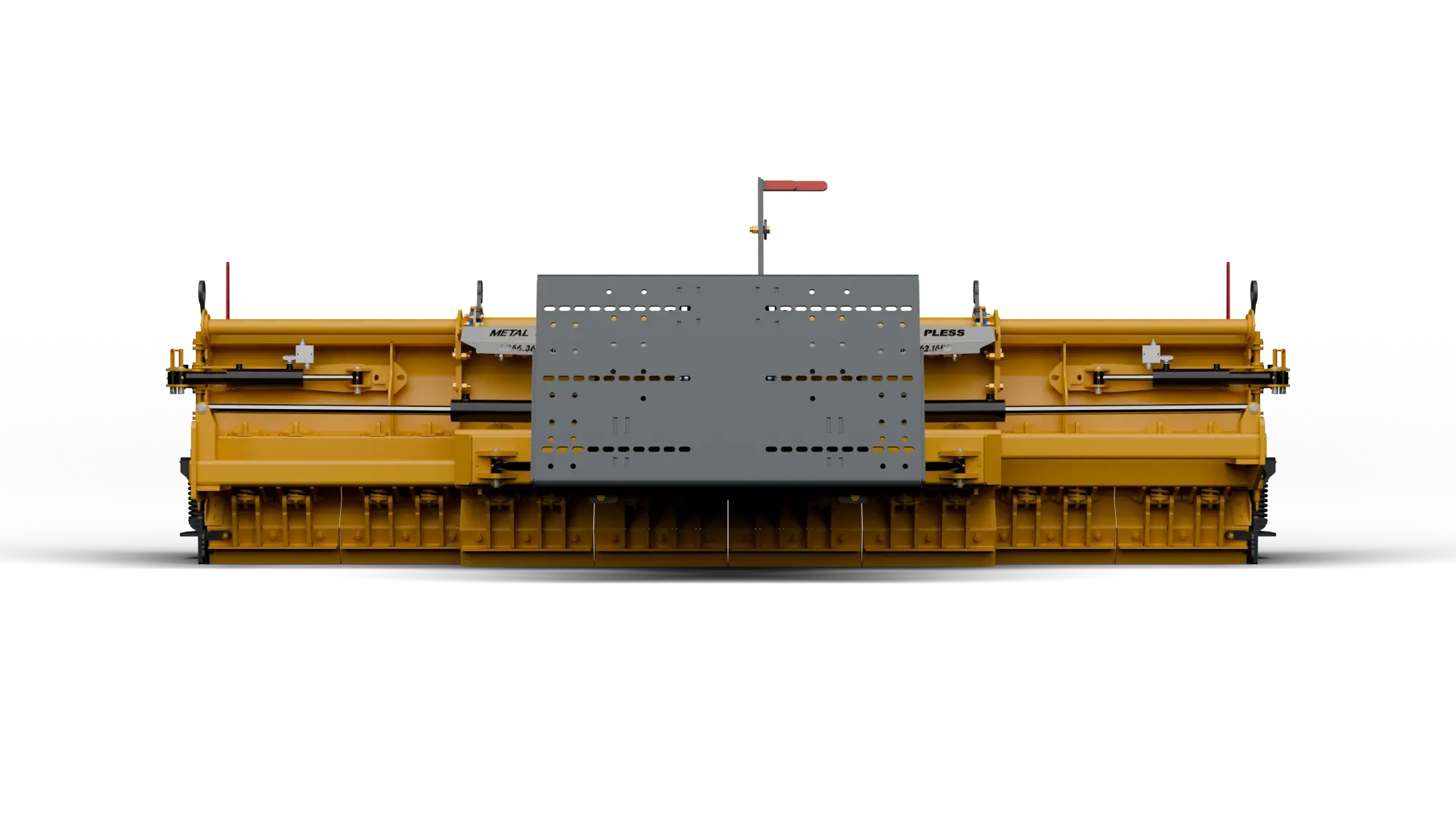

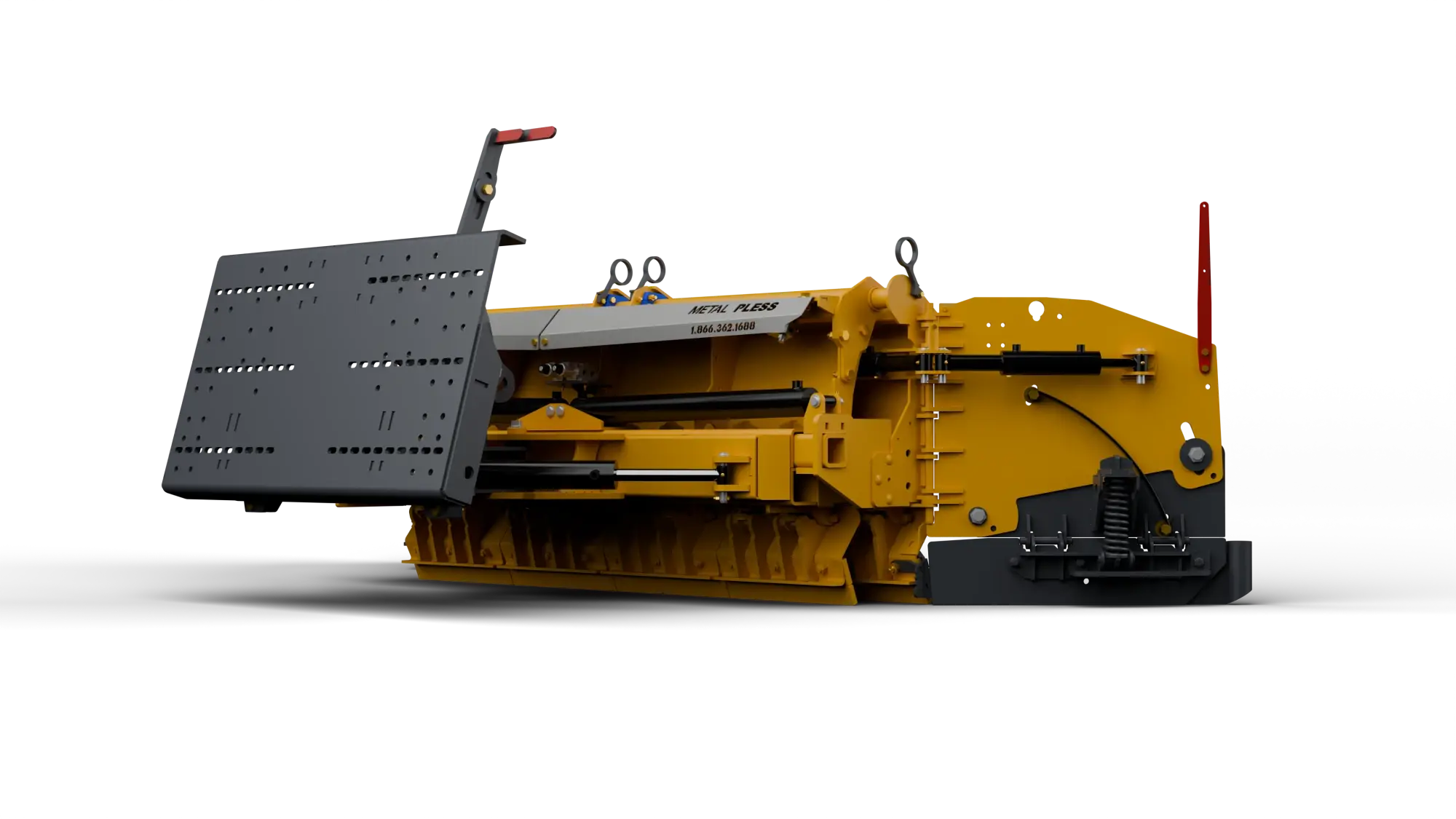

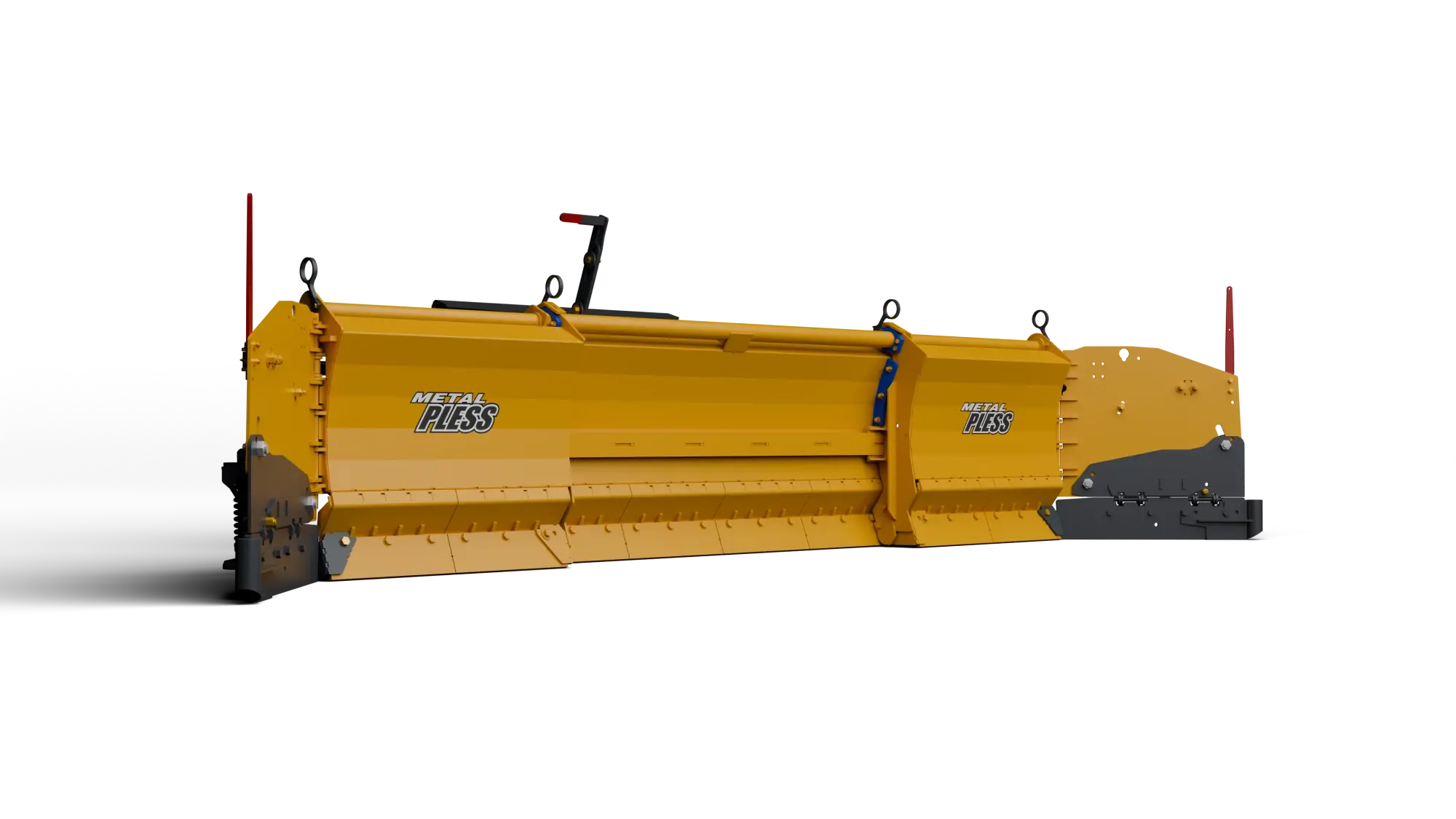

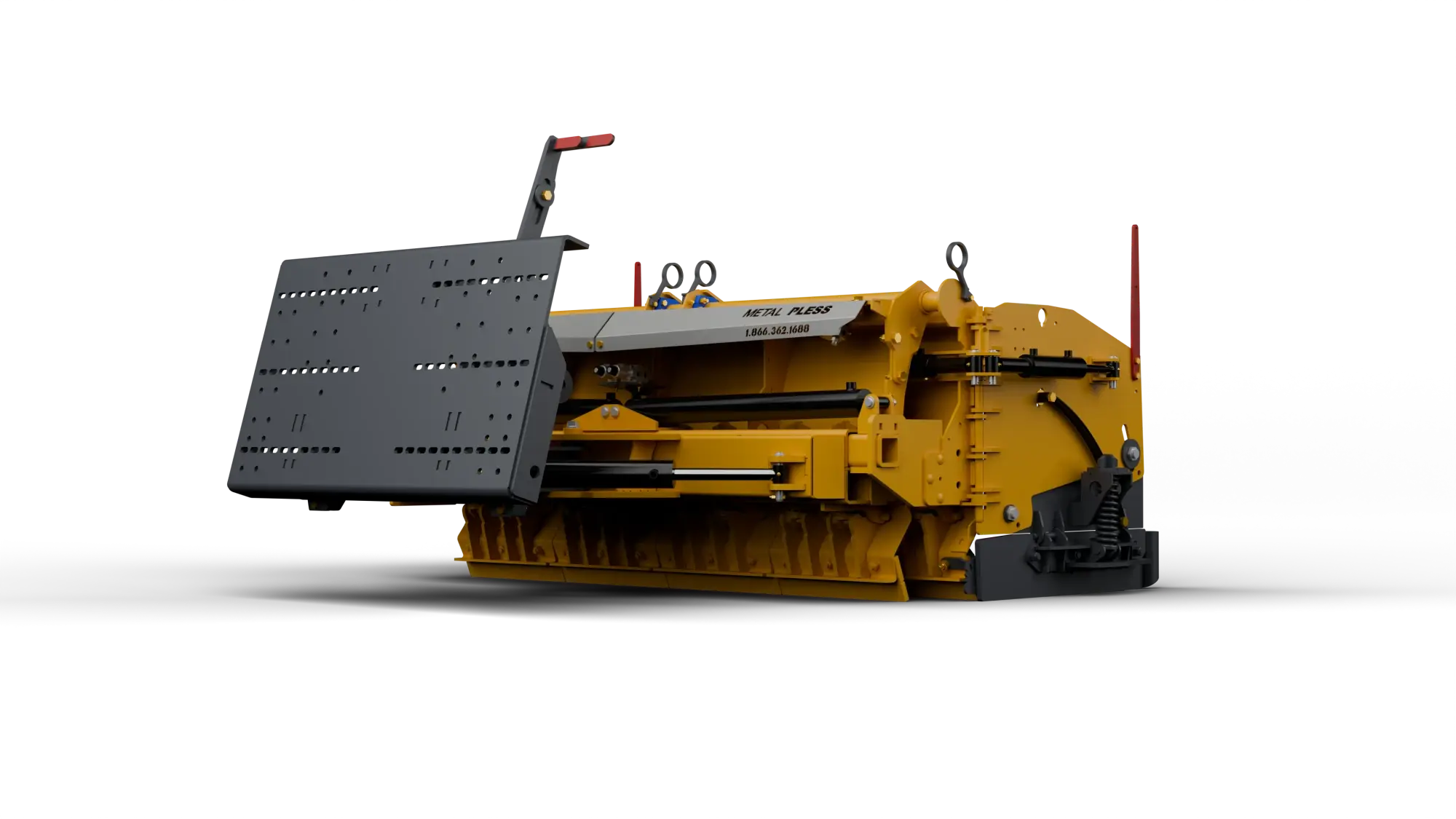

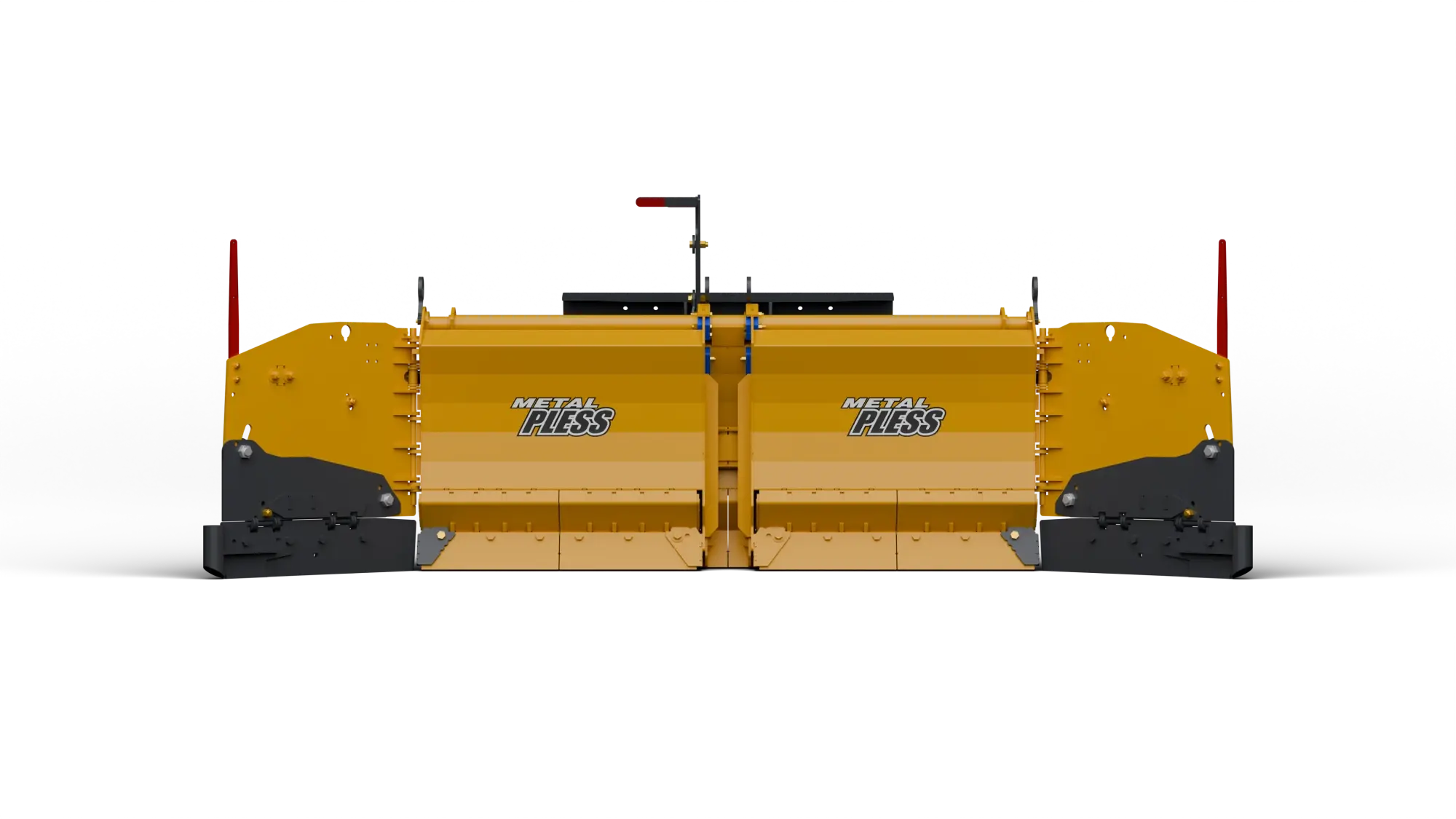

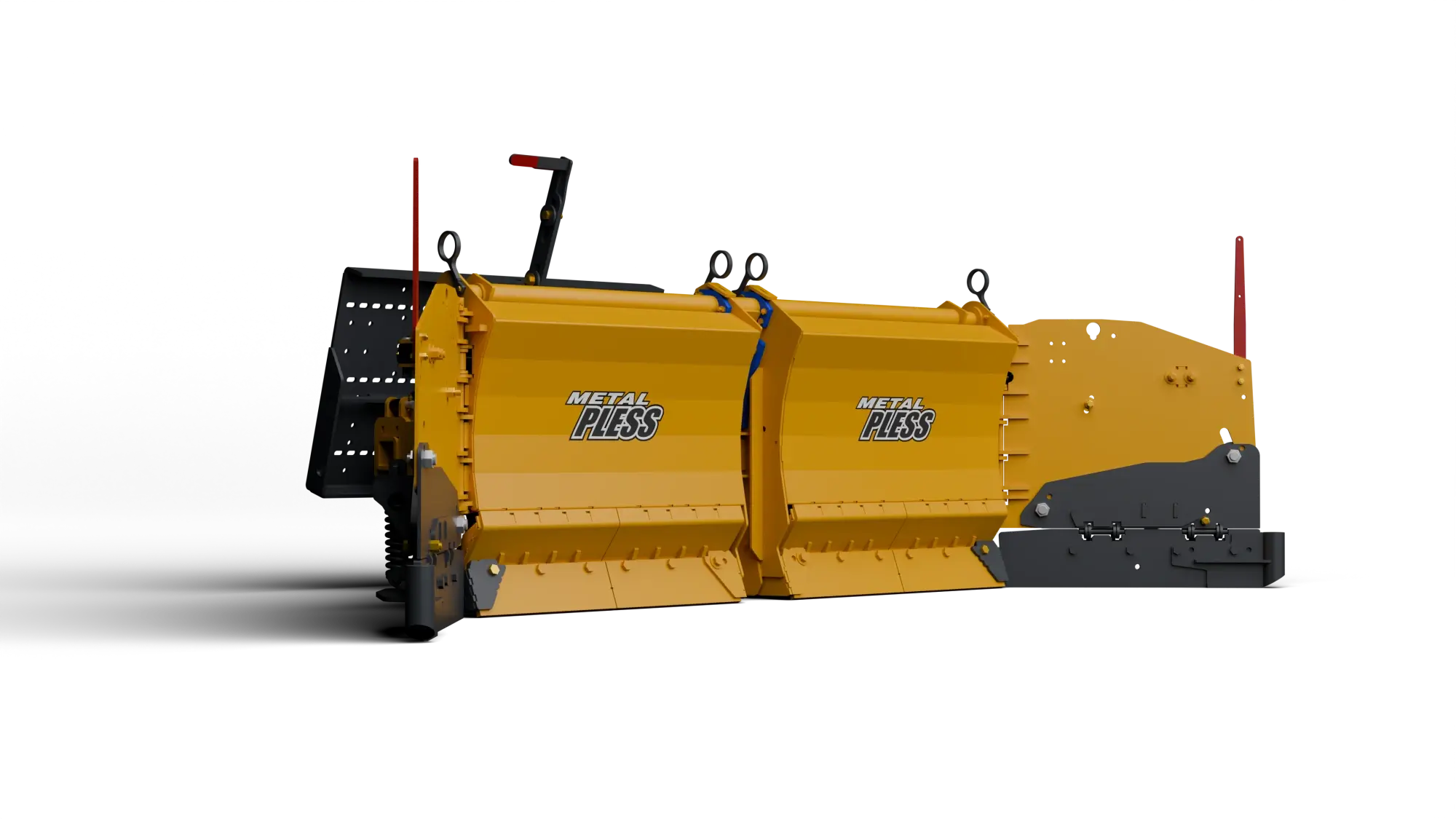

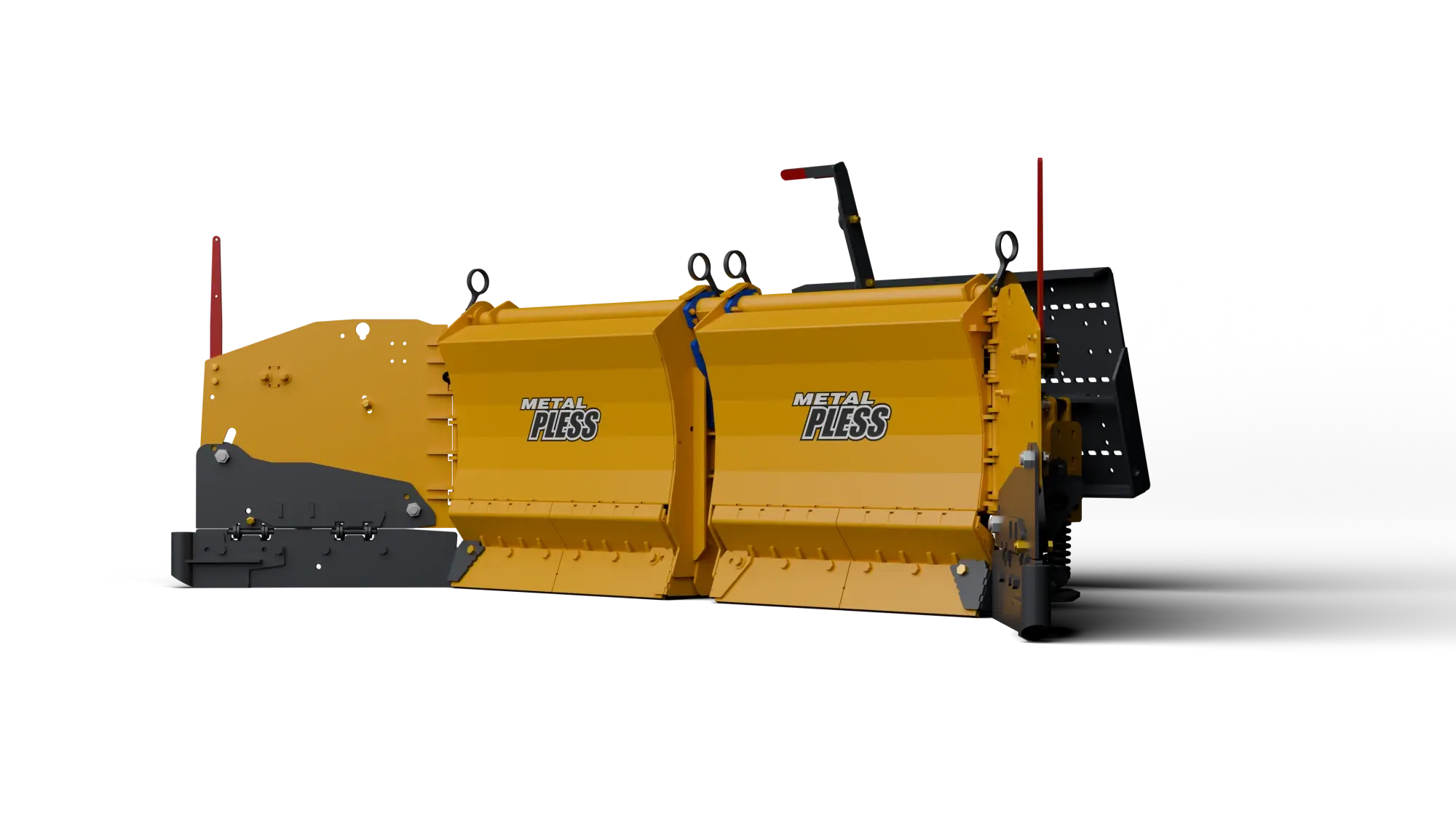

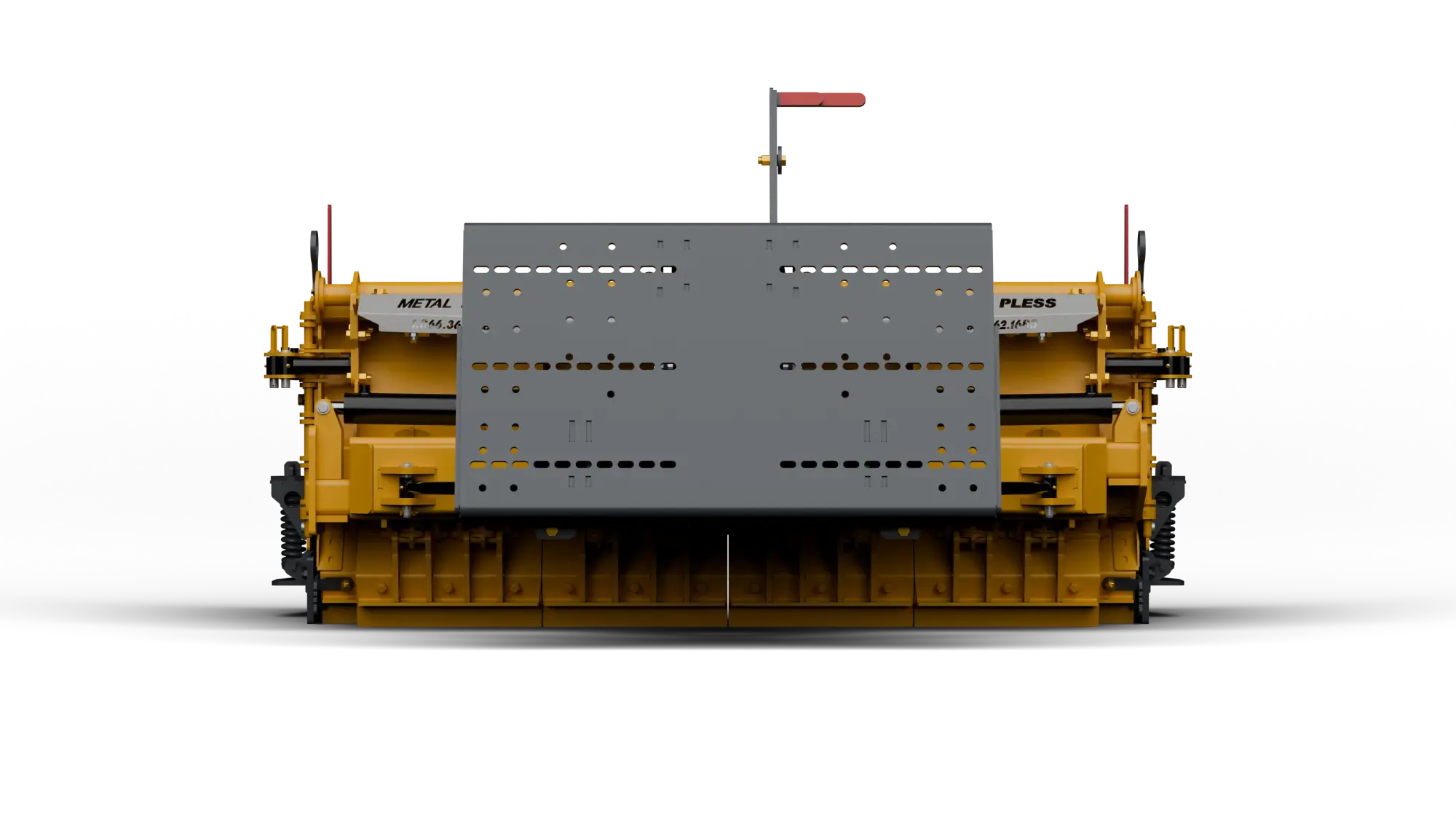

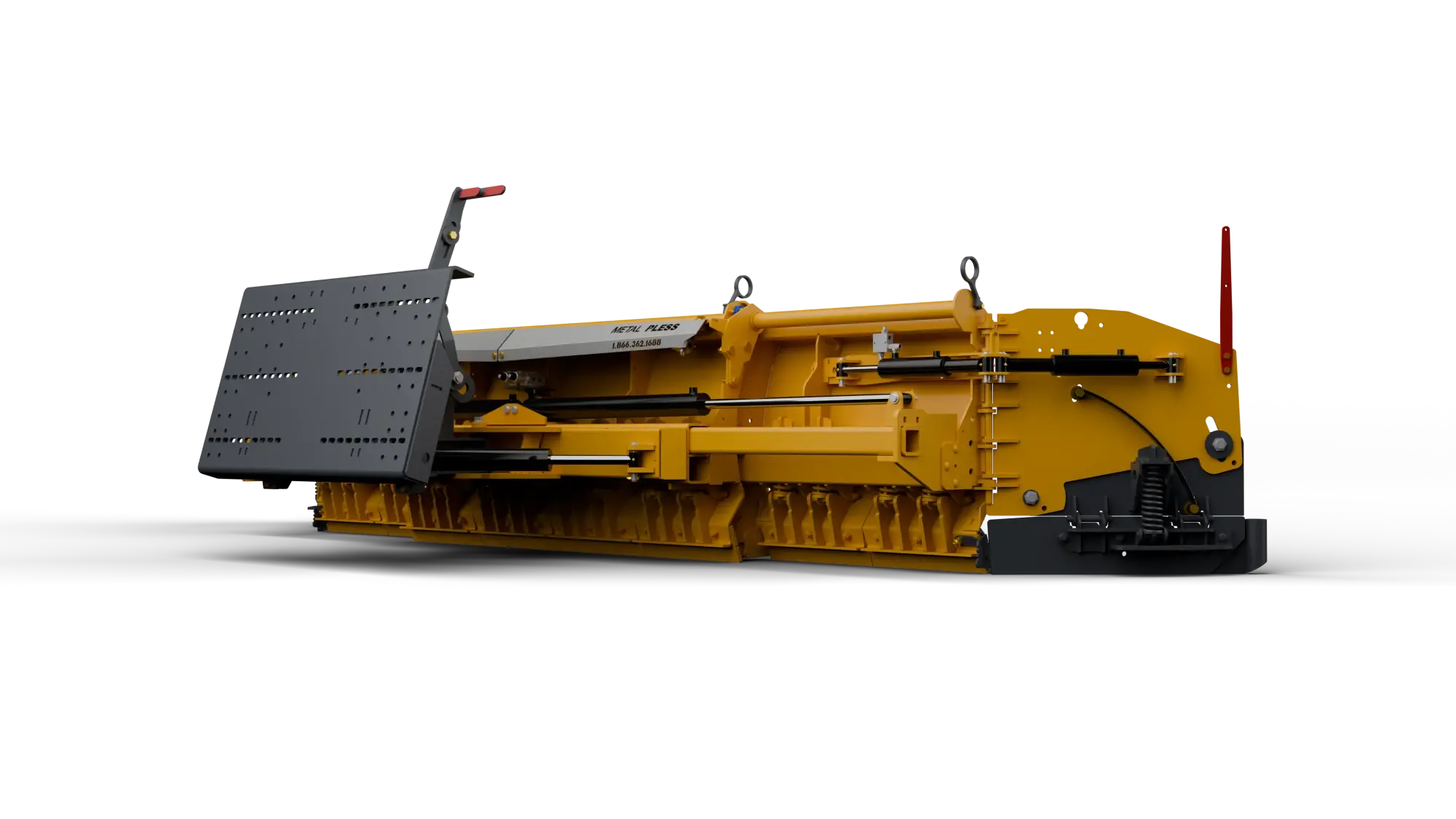

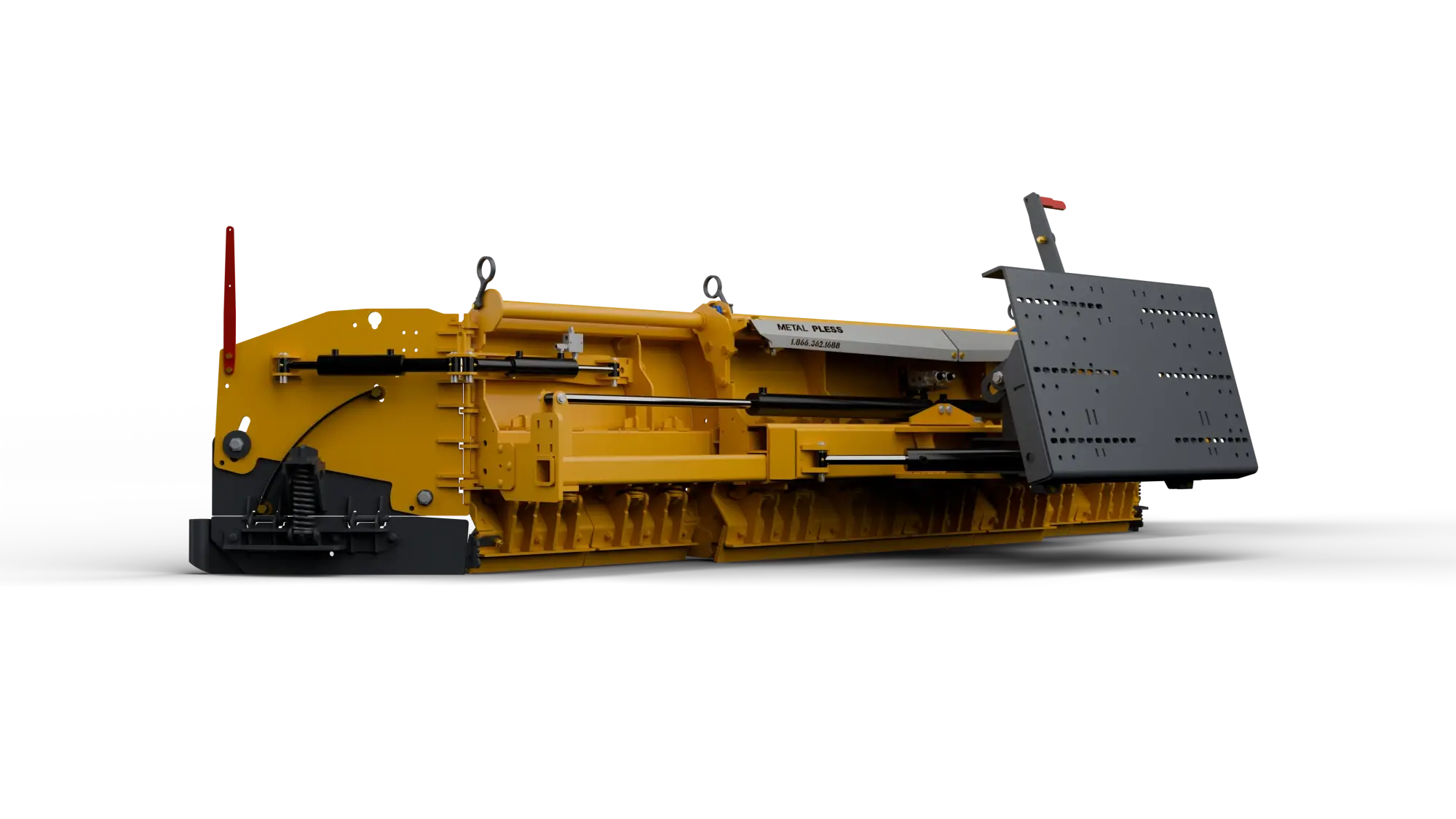

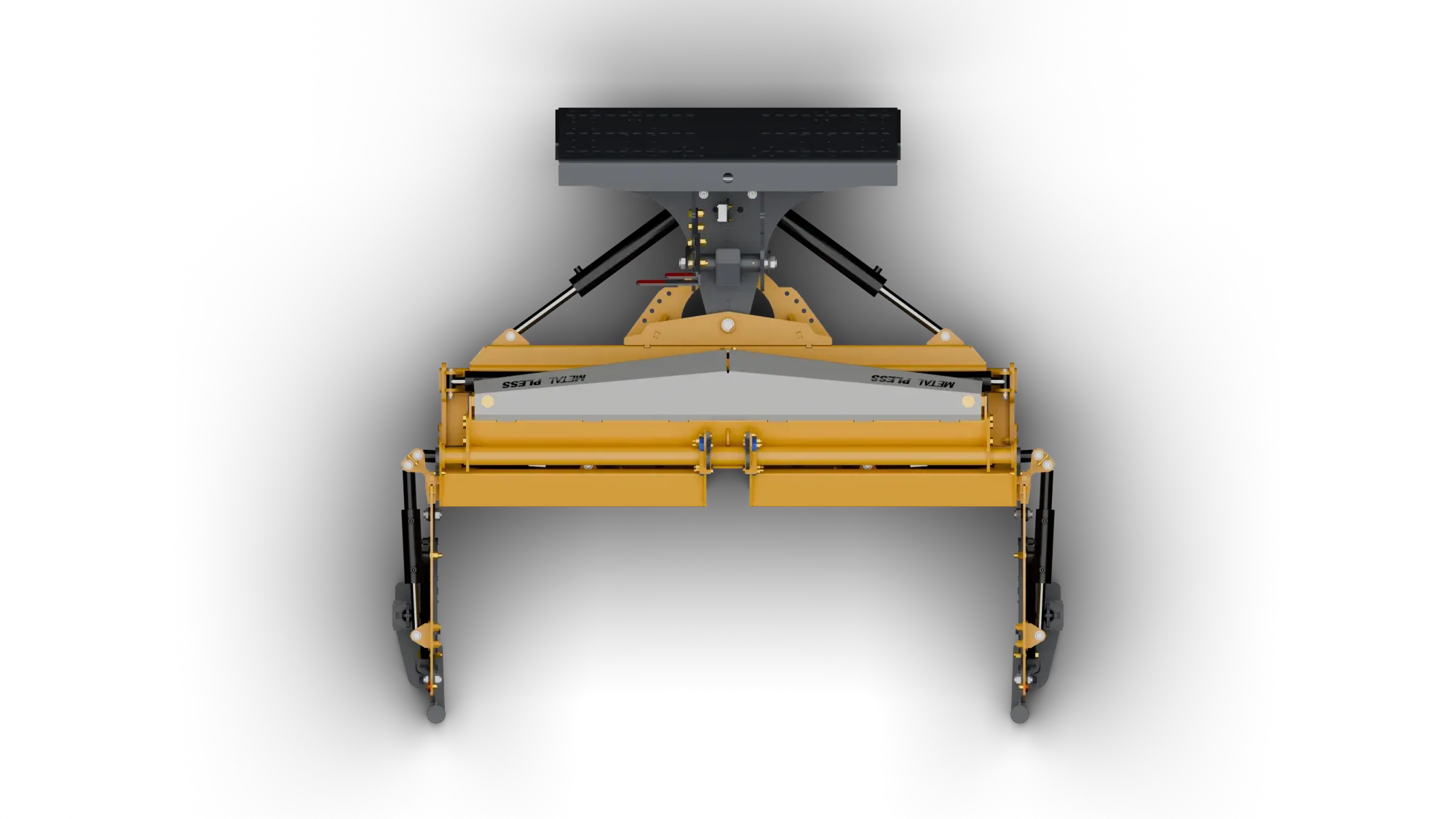

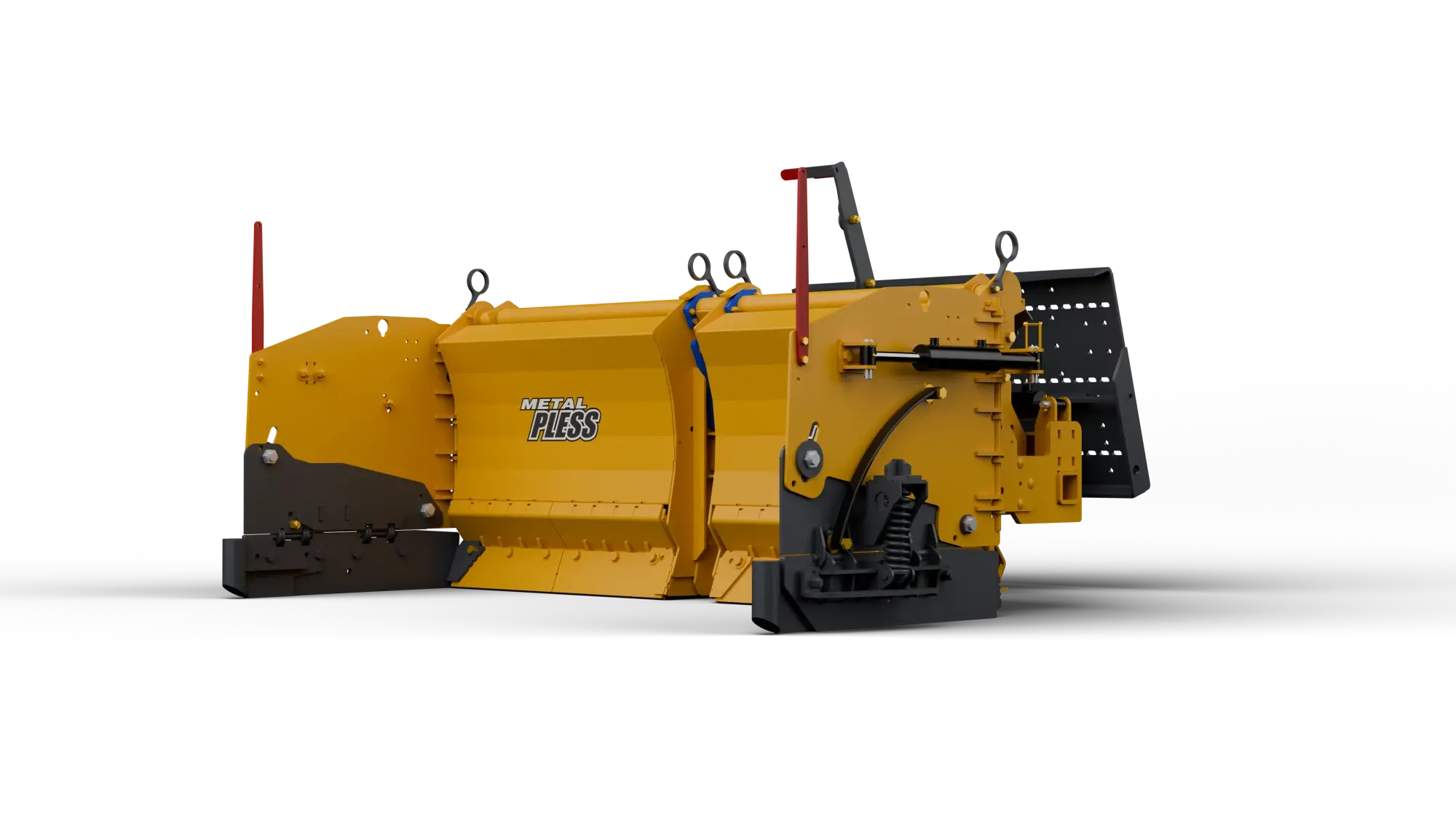

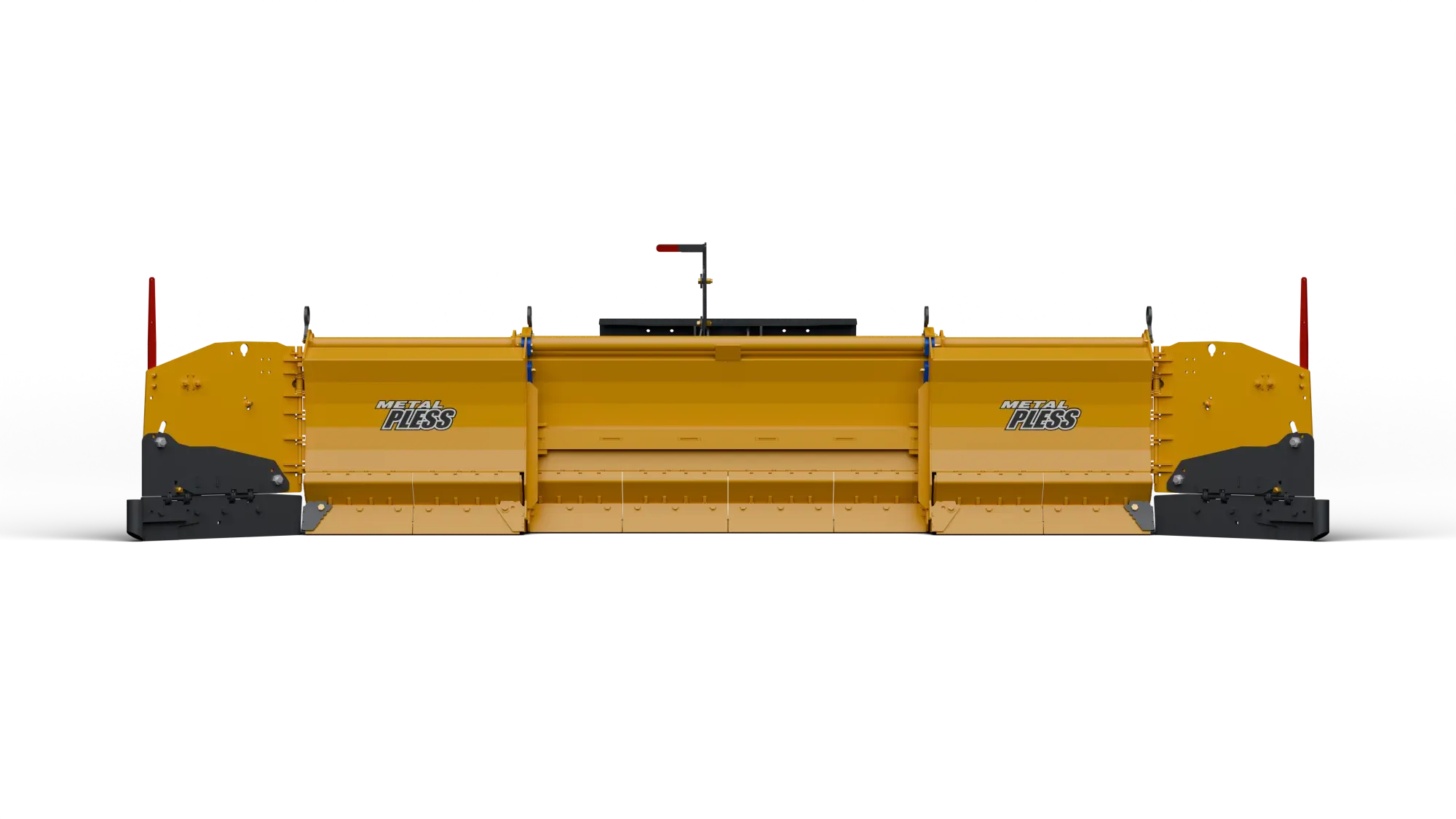

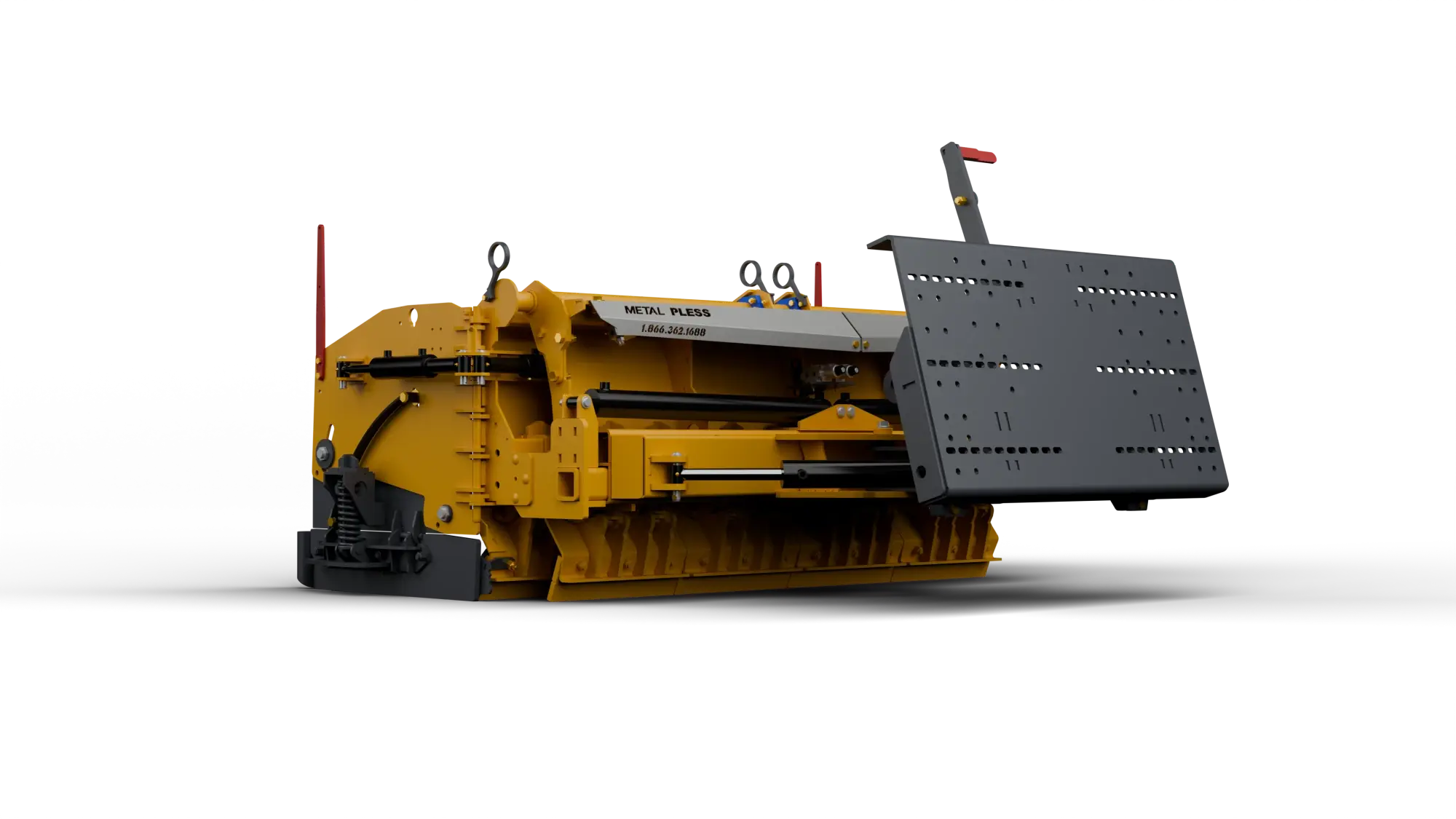

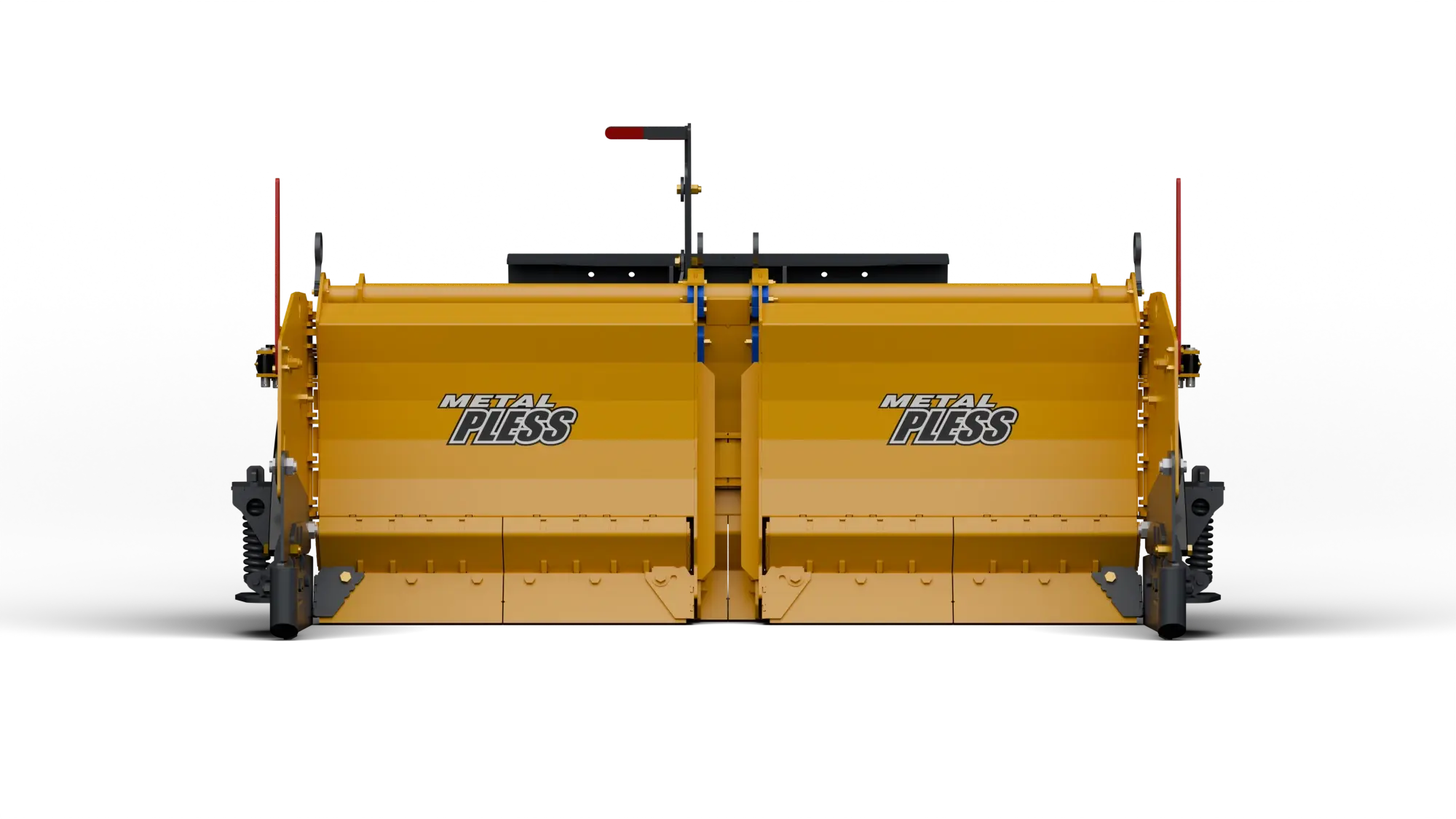

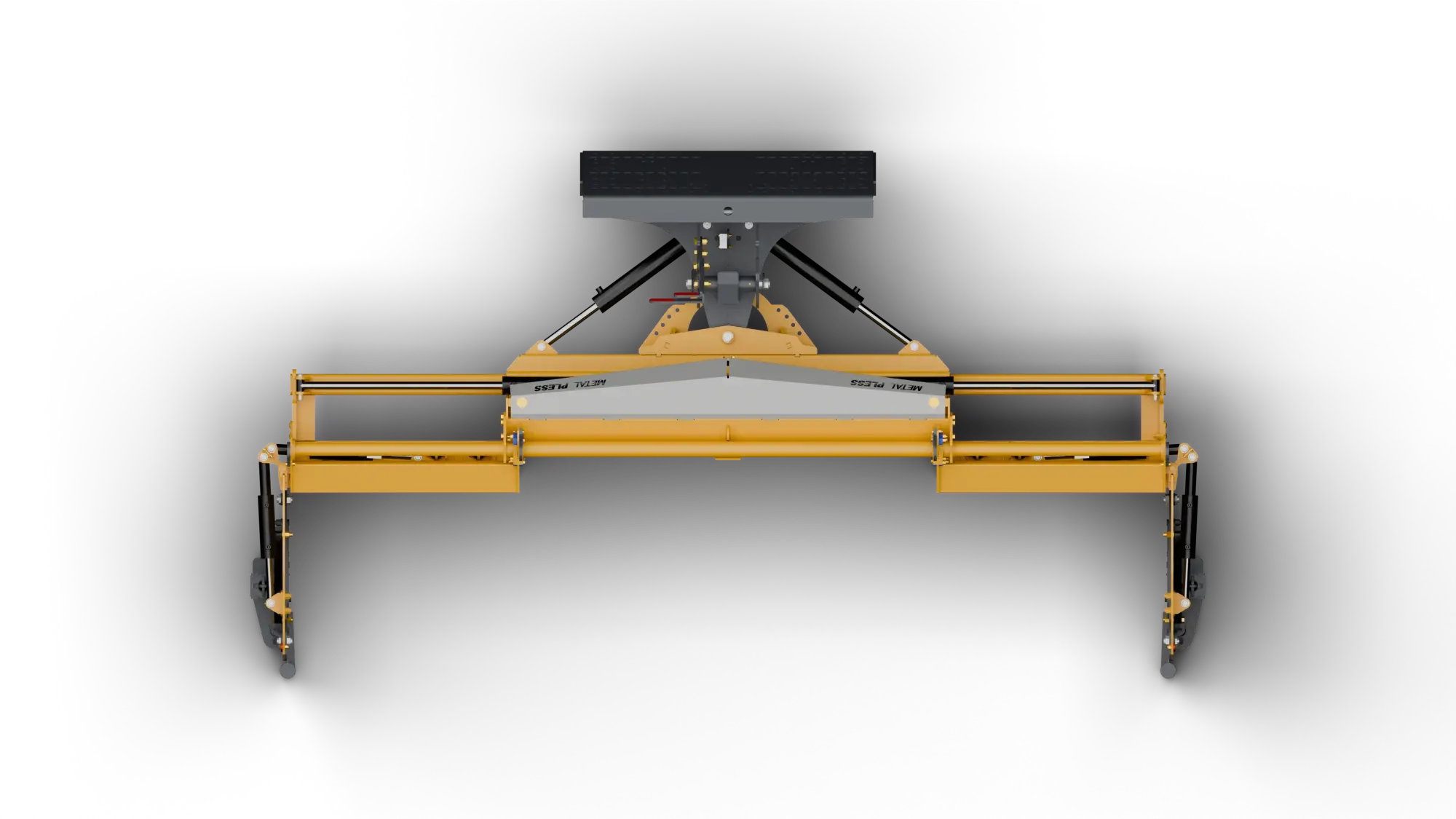

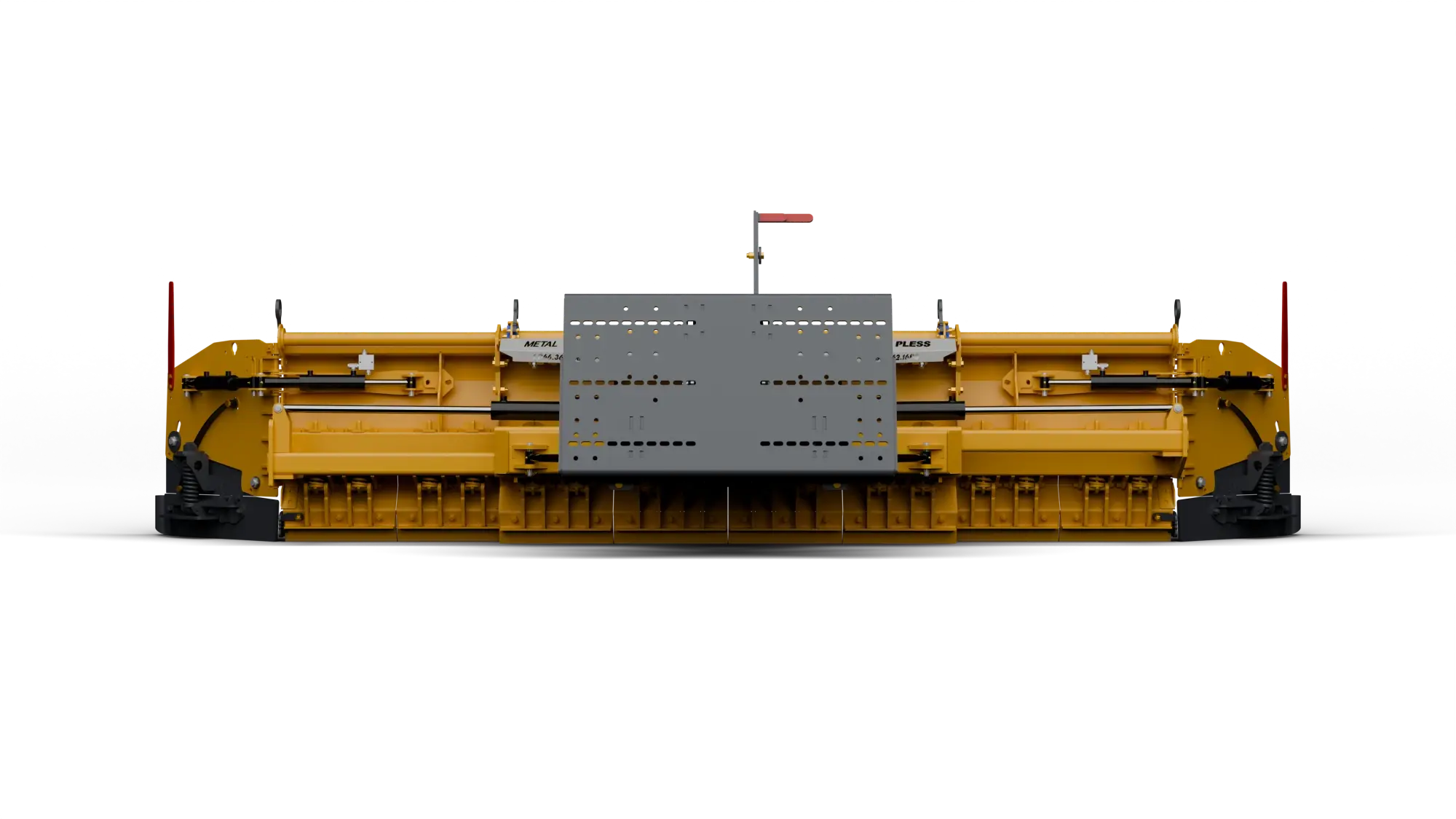

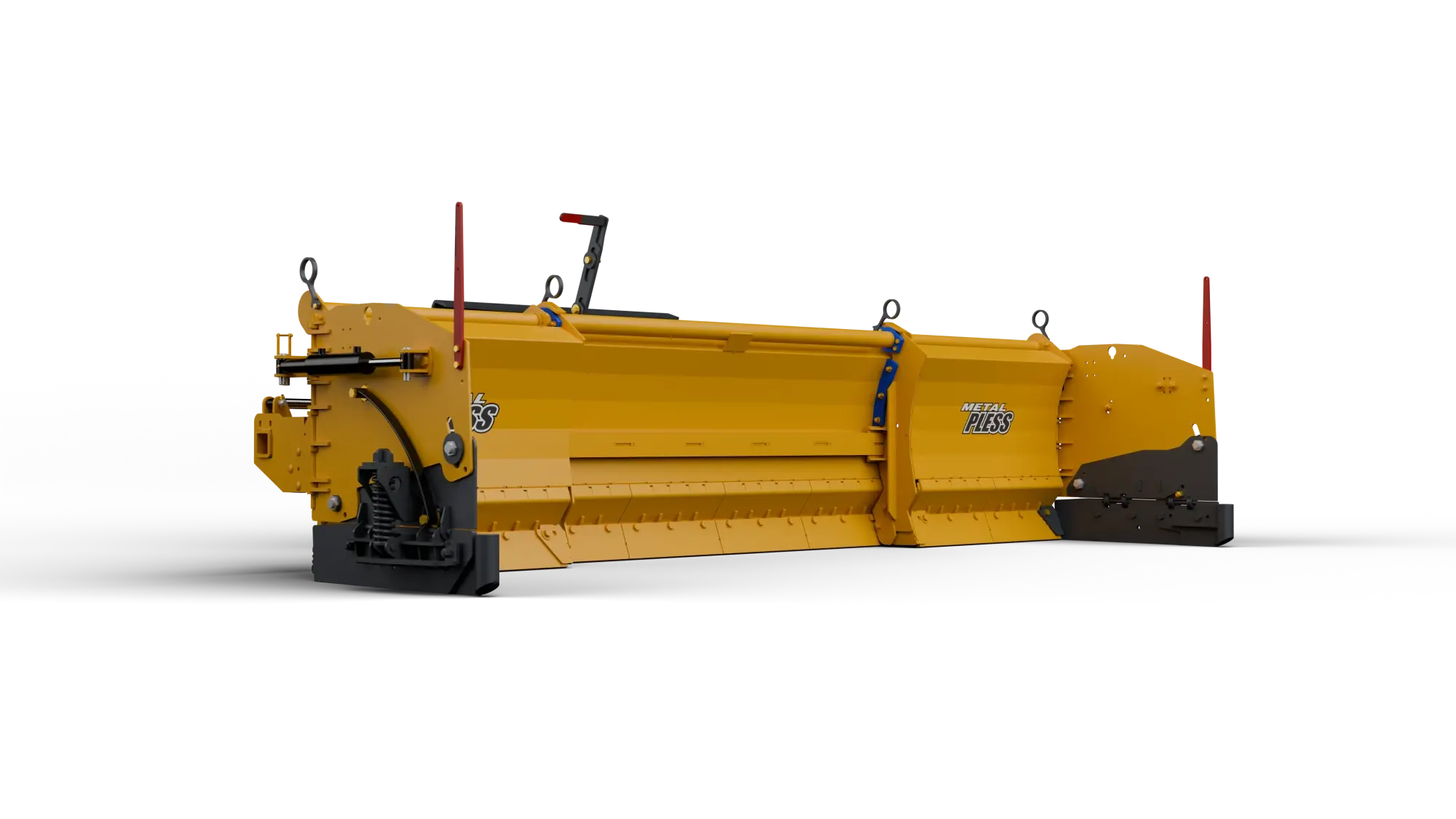

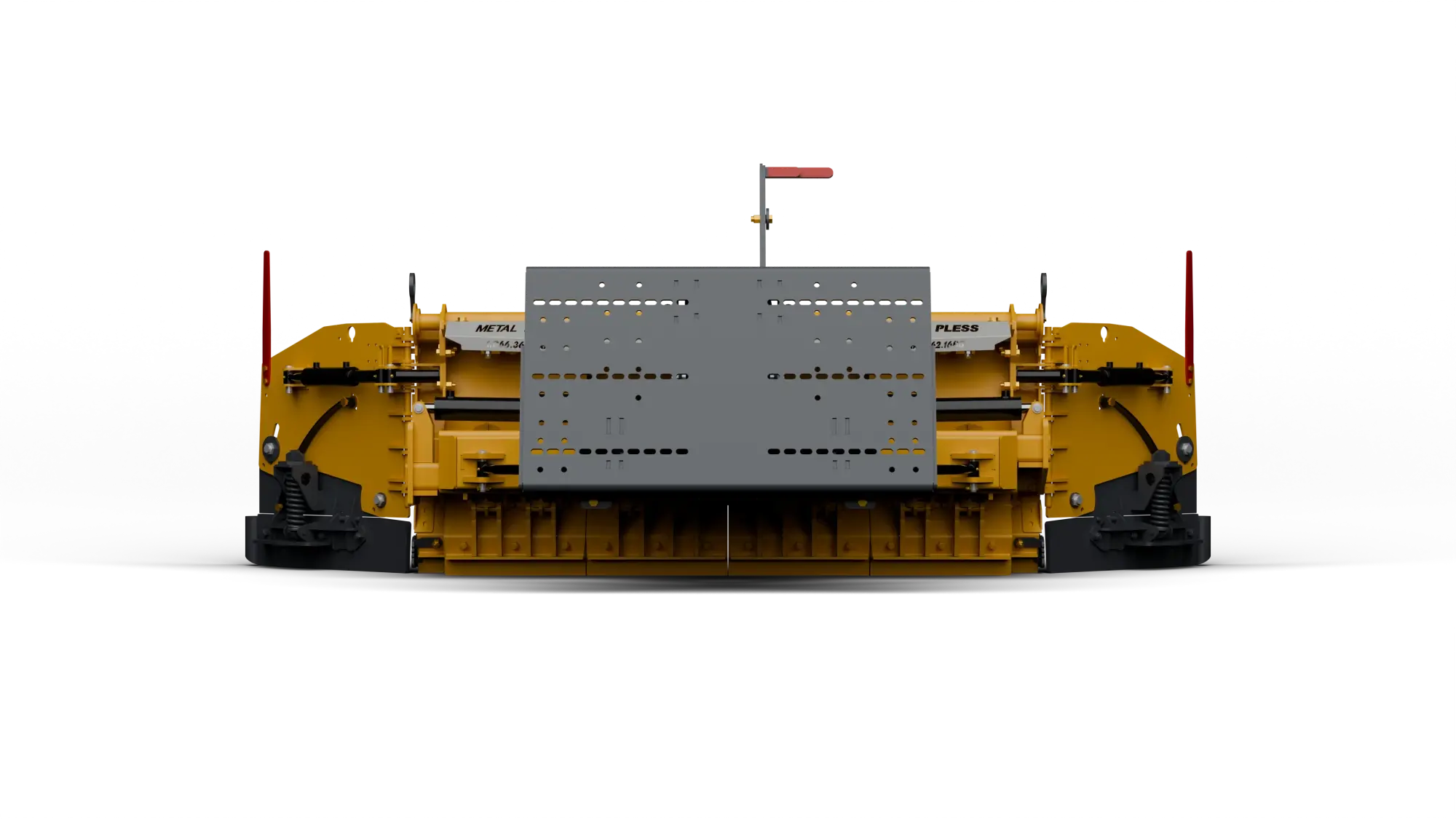

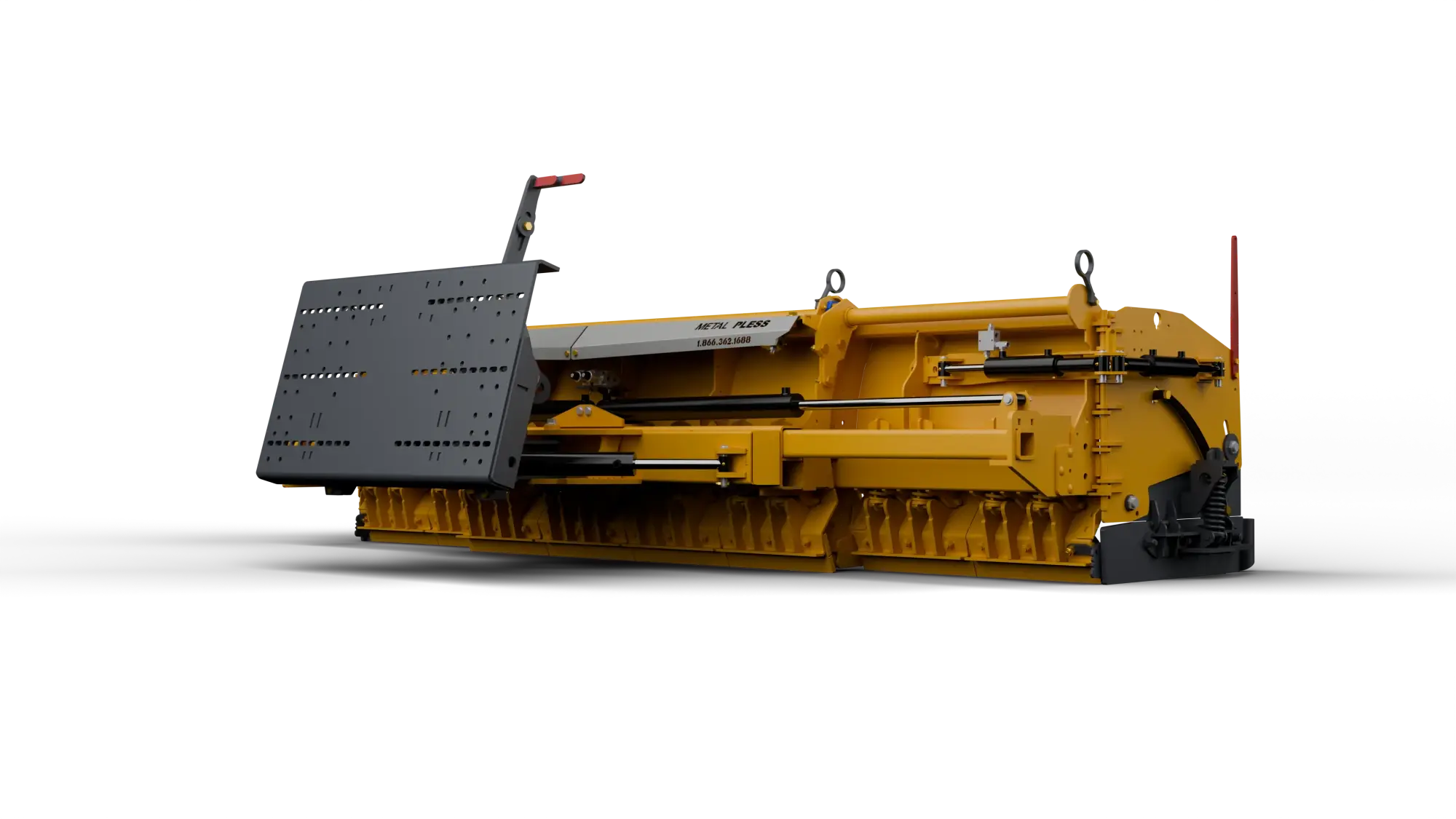

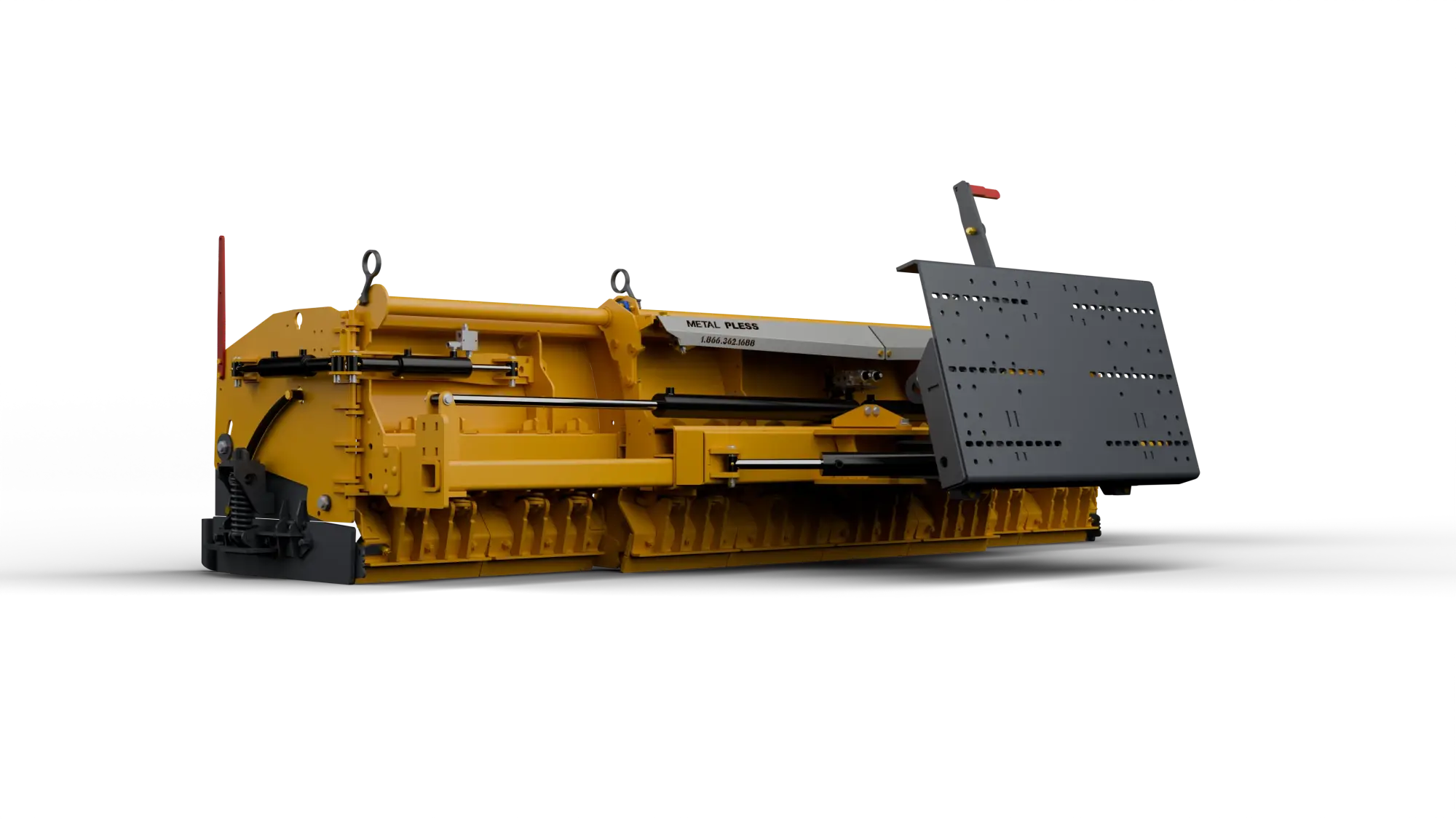

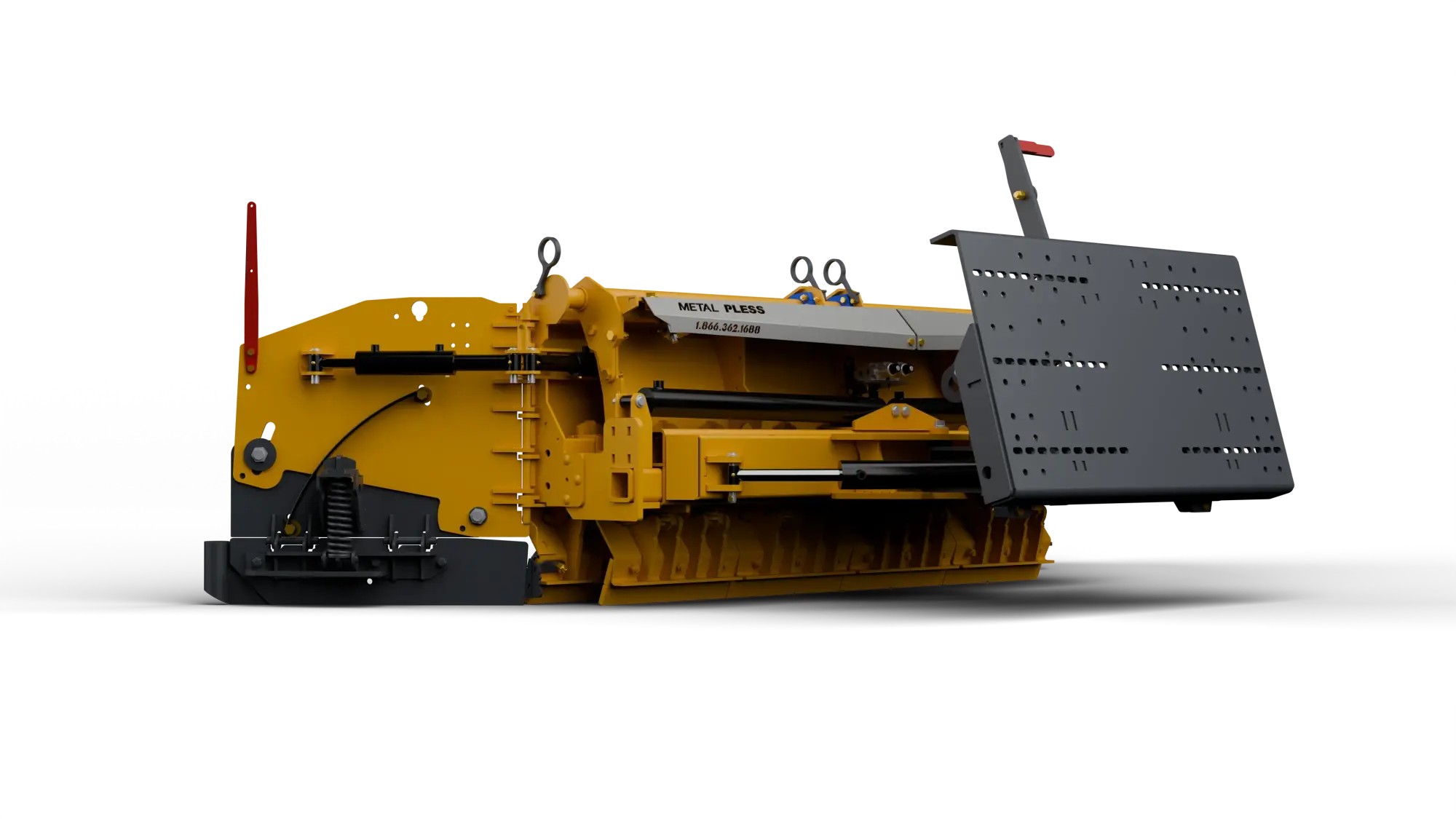

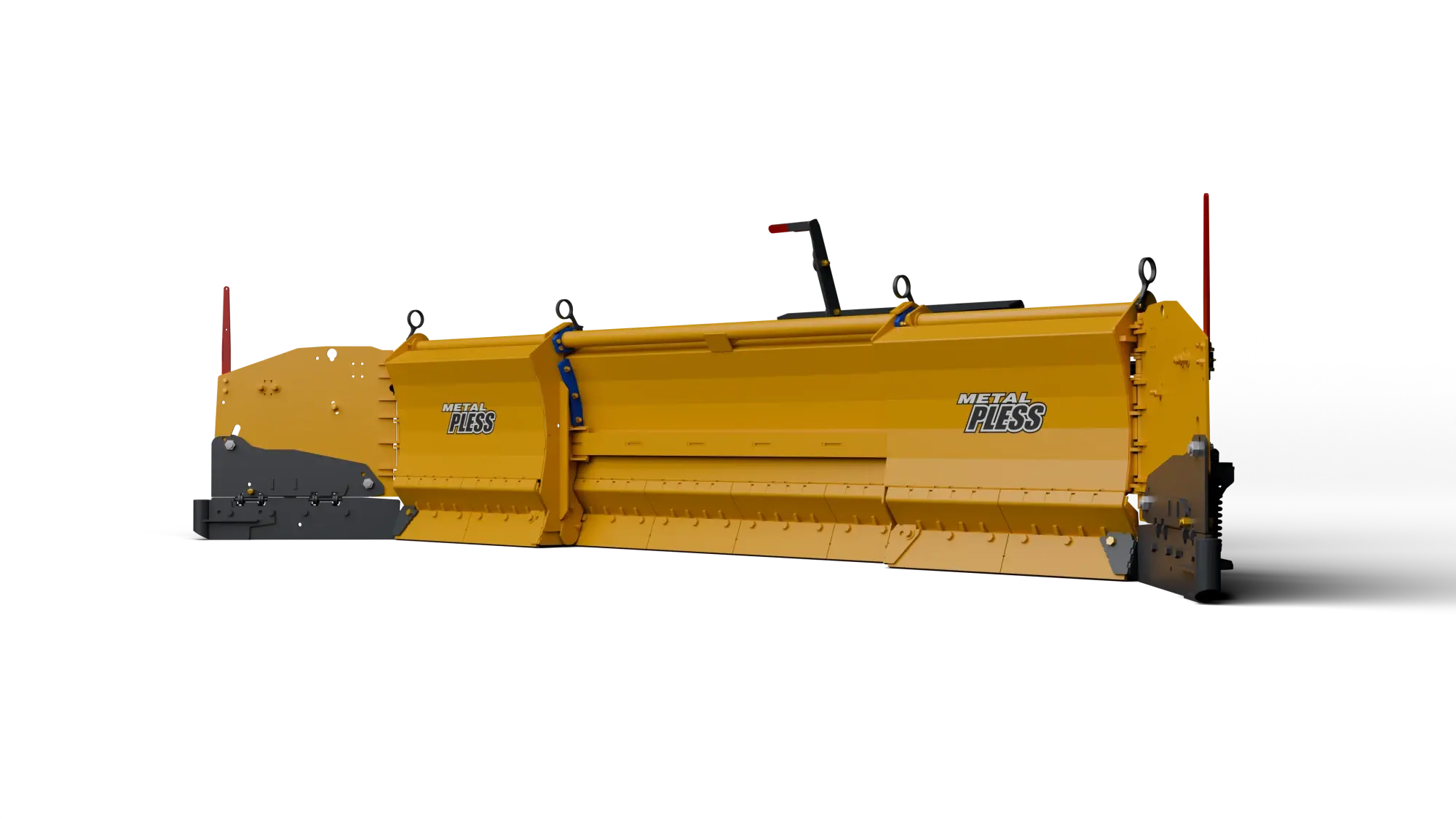

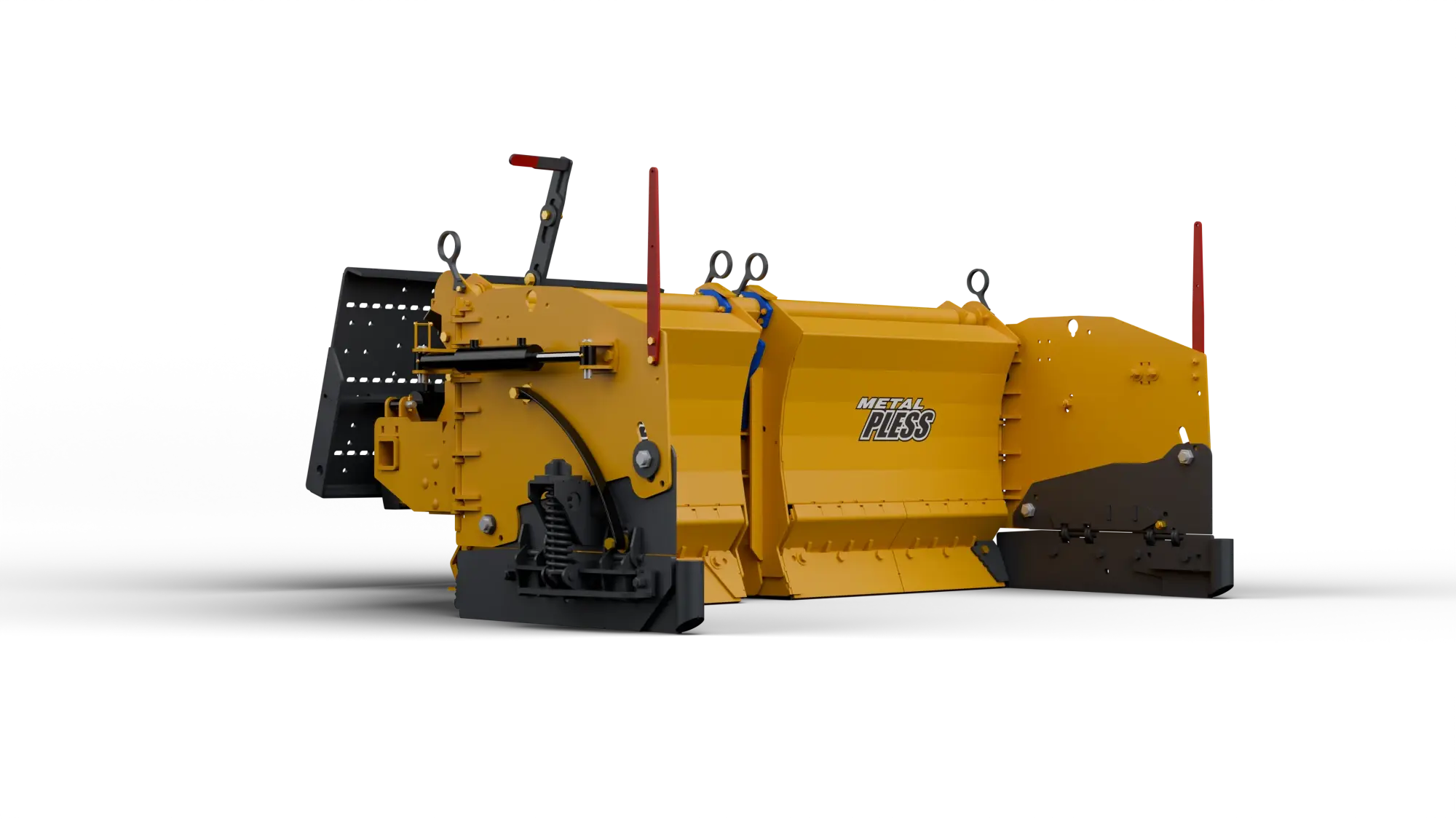

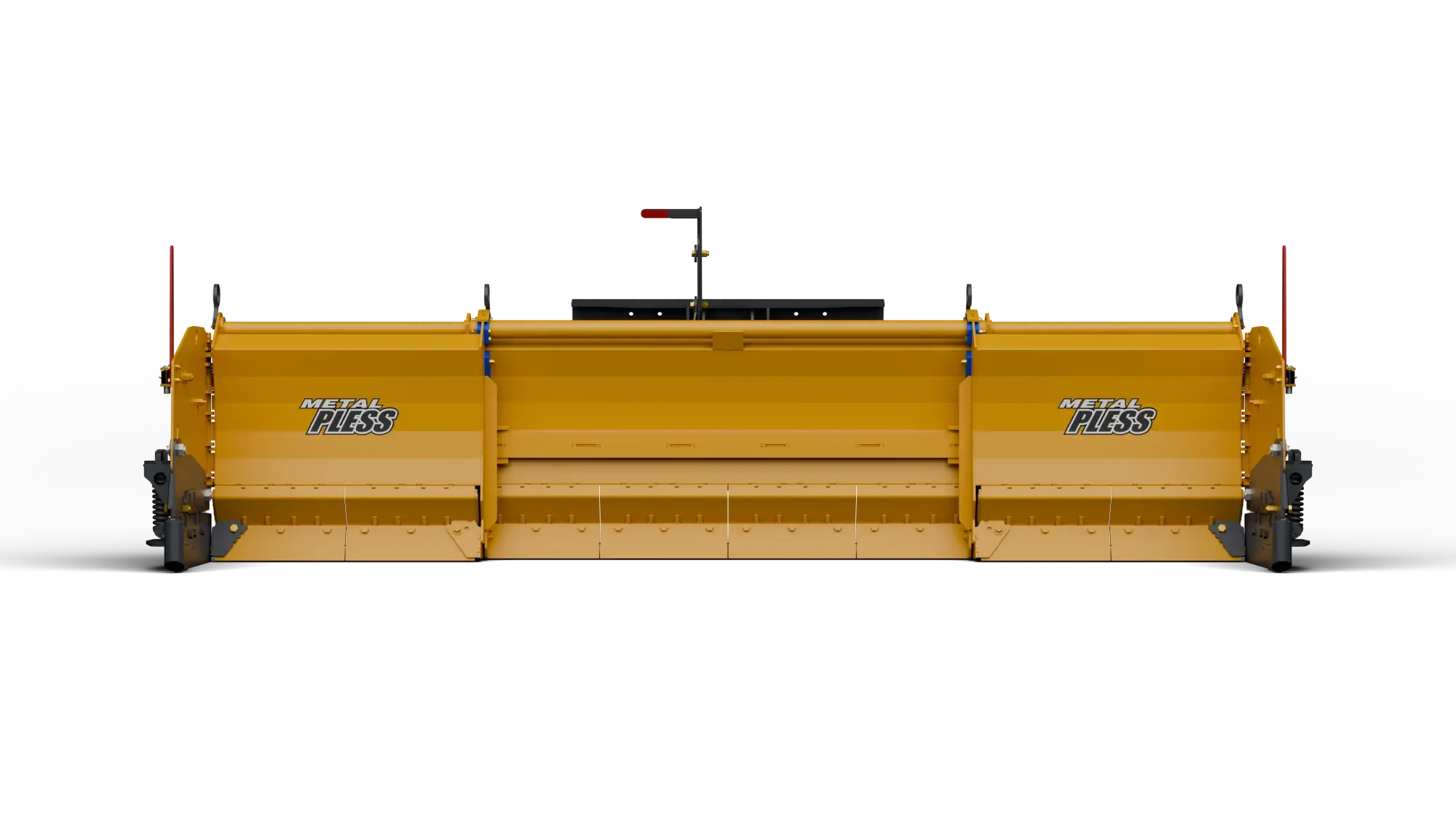

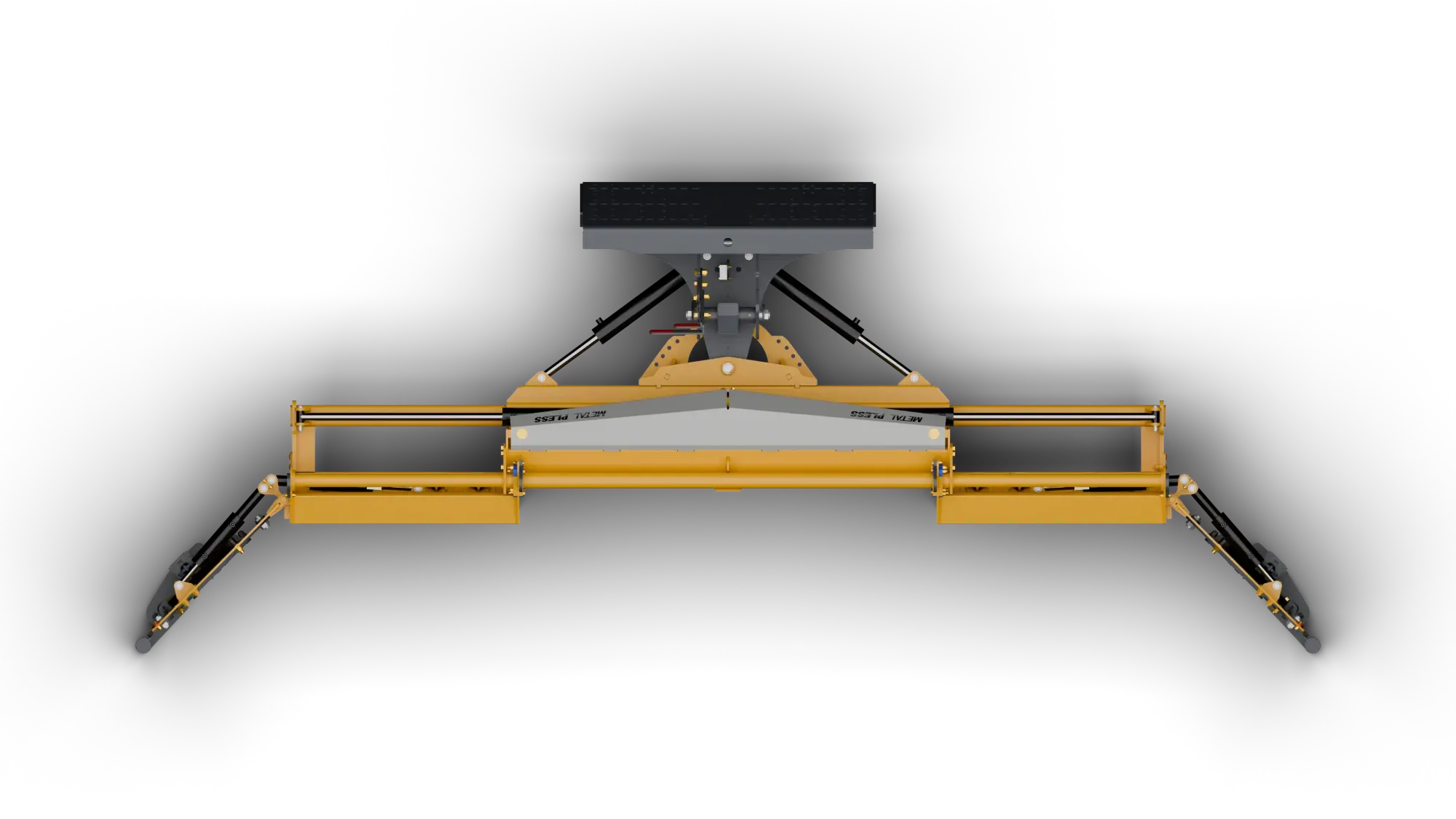

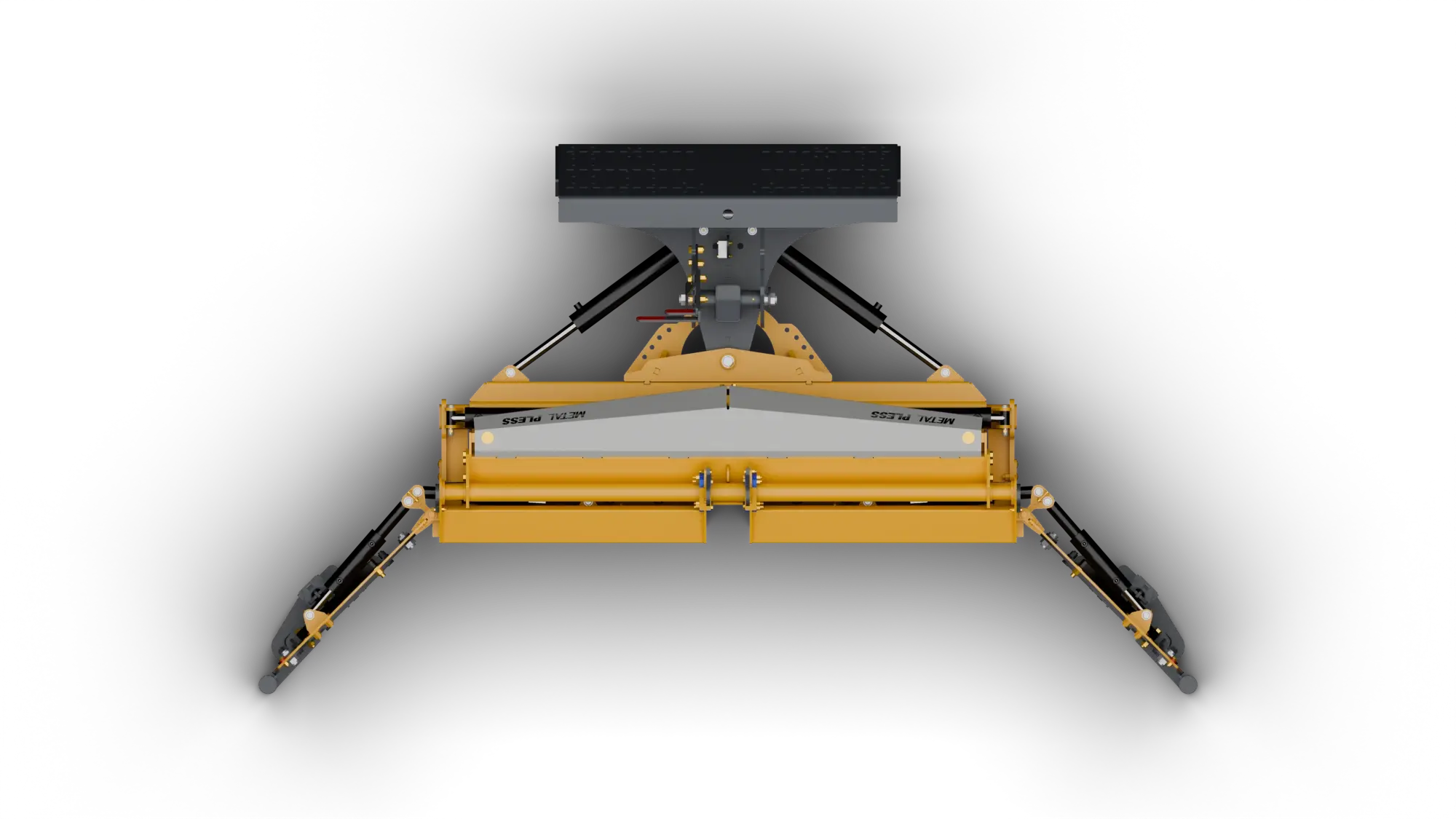

Model shown: EXHD 0836-19 with Heavy Duty Edge (HD)

Vehicles: Wheel loader
Industries: Snow Contractors Municipalities Airports
Compatible weights: 12,000-20,000 lb 20,000-30,000 lb
Sizes: EXHD 0836-19 EXHD 1036-21 EXHD 1048-26 EXHD 1048-28 EXHD 1248-31
Edges: HD LE
Colors

Get a quote now Find my size

Live Edge Technology

Independent floating sections follow the unevenness of the ground and trip back on their own. Full contact with the surface means a cleaner pass, fewer passes and less salt, and carbide inserts extend the wear life.

Lateral Float

Automatically follows the imperfections of the pavement. Our system incorporates an adjustable oscillating mechanism for better control. Increase plowing efficiency and no need to go over the same area multiple times.

Slip Hitch

Slip hitch design allows the plow to follow surface variations. Reduces operator fatigue and increases plowing efficiency. Cutting edges wear evenly and prolong plow life.

HD Soft Drive Trip Edge

Unique Soft Drive trip edge design allows the individual sections to trip backward without the blade being lifted upward, greatly reducing the impact.
LE Live Edge

A floating soft drive steel trip edge with carbide inserts for longer wear life, that contours the unevenness of the ground for a cleaner result.

ExtendMaxx-HD — Sizes & specifications
Model	Available Edges	Blade Dimensions			Application	Approx. Weight	Compare
Model	Available Edges	Box	Height	Extended	Application	Approx. Weight	Compare
EXHD 0836-19	HD - LE	8'	36"	19'	15,001 lb - 20,000 lb	4,450 lb (HD) · 4,710 lb (LE)
EXHD 1036-21	HD - LE	10'	36"	21'	18,001 lb - 25,000 lb	4,840 lb (HD) · 5,130 lb (LE)
EXHD 1048-26	HD - LE	10'	48"	26'	25,000 lb - 50,000 lb	6,995 lb
EXHD 1048-28	HD - LE	10'	48"	28'	25,000 lb - 50,000 lb	7,180 lb
EXHD 1248-31	HD - LE	12'	48"	31'	30,000 lb - 50,000 lb	7,400 lb

*Ask about our Tivar options
