WindrowMaxx

WindrowMaxx comes in 2 sizes, with moldboards from 6' to 12'. Built for wheel loaders and backhoes.

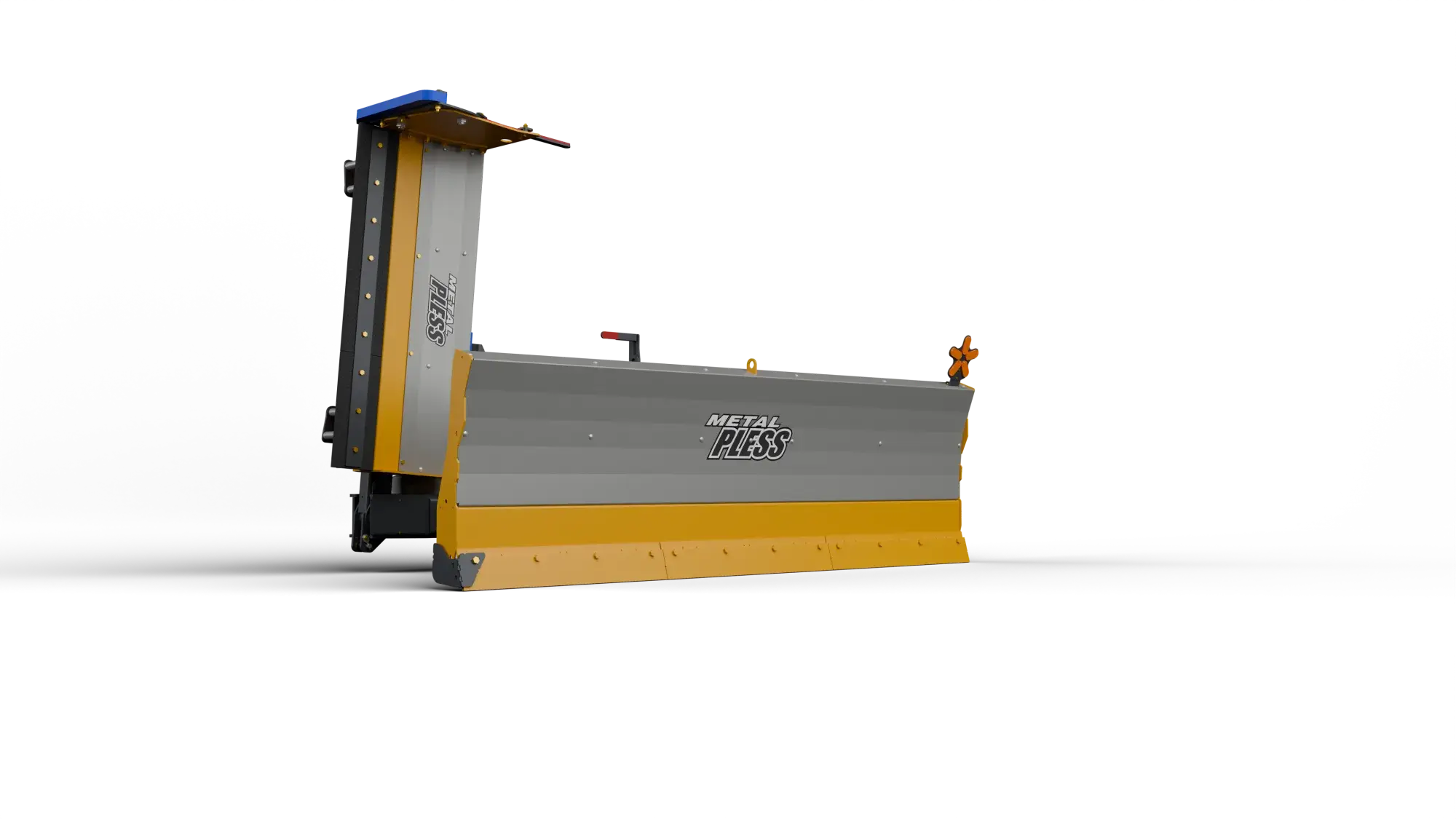

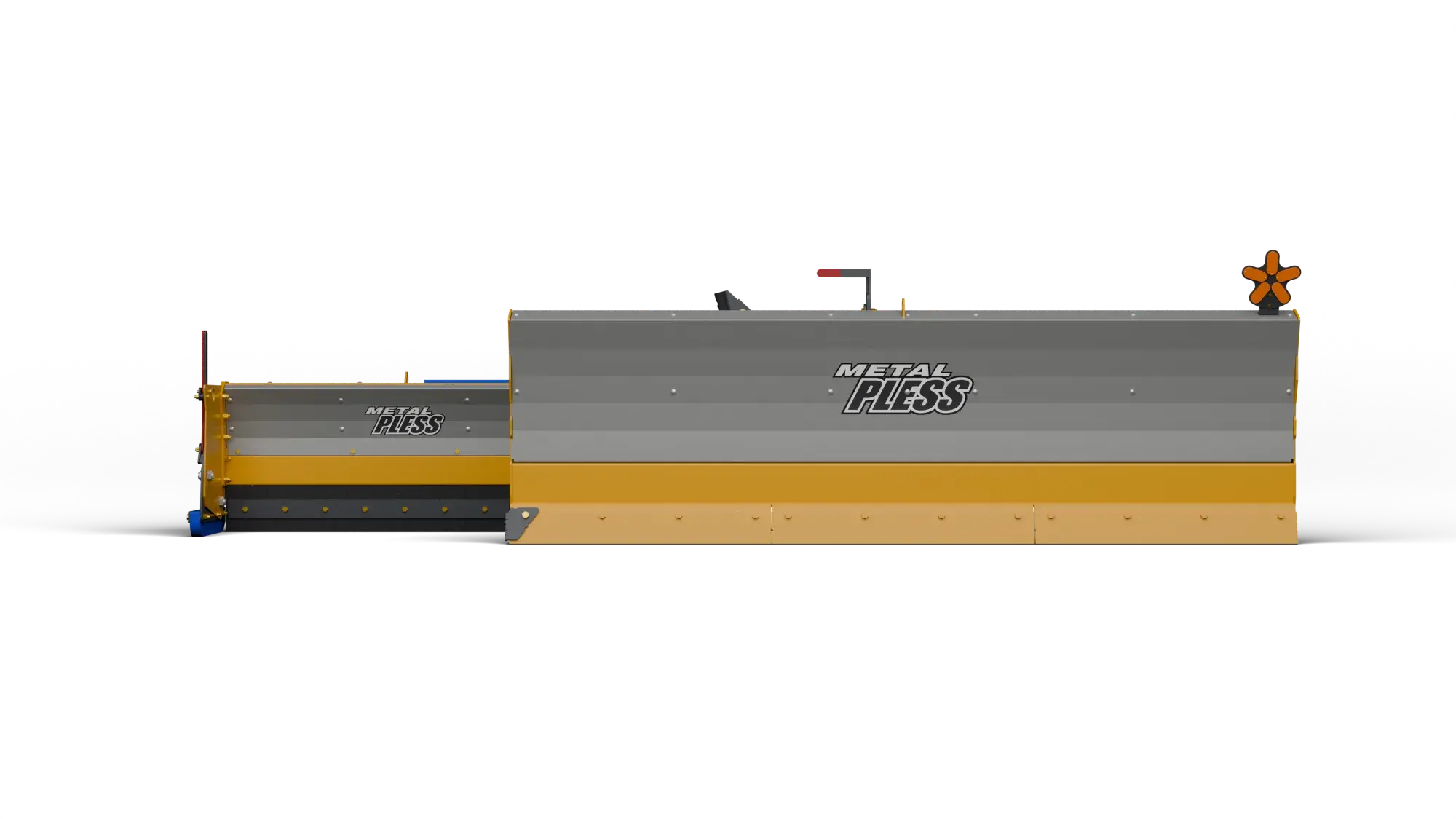

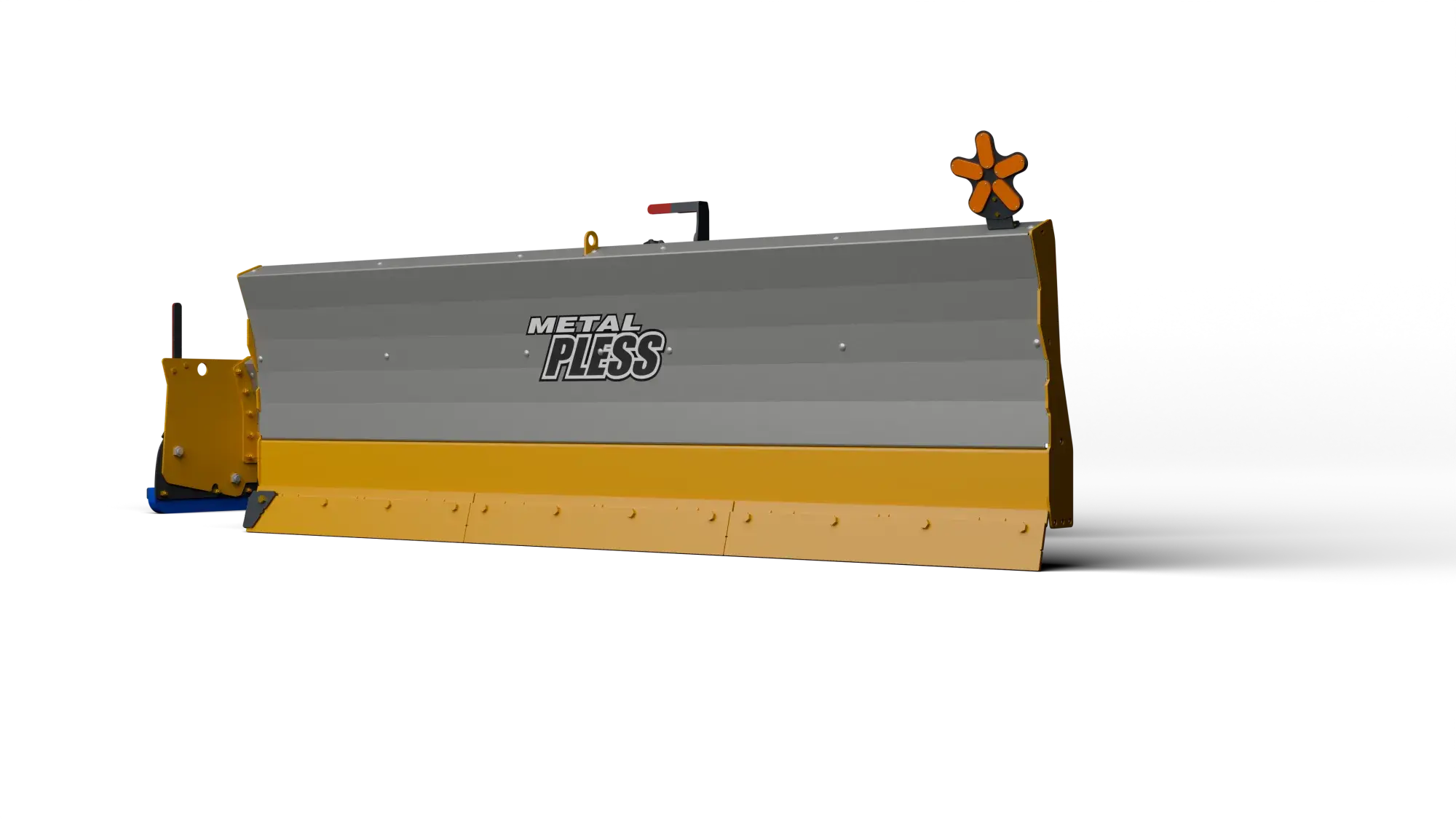

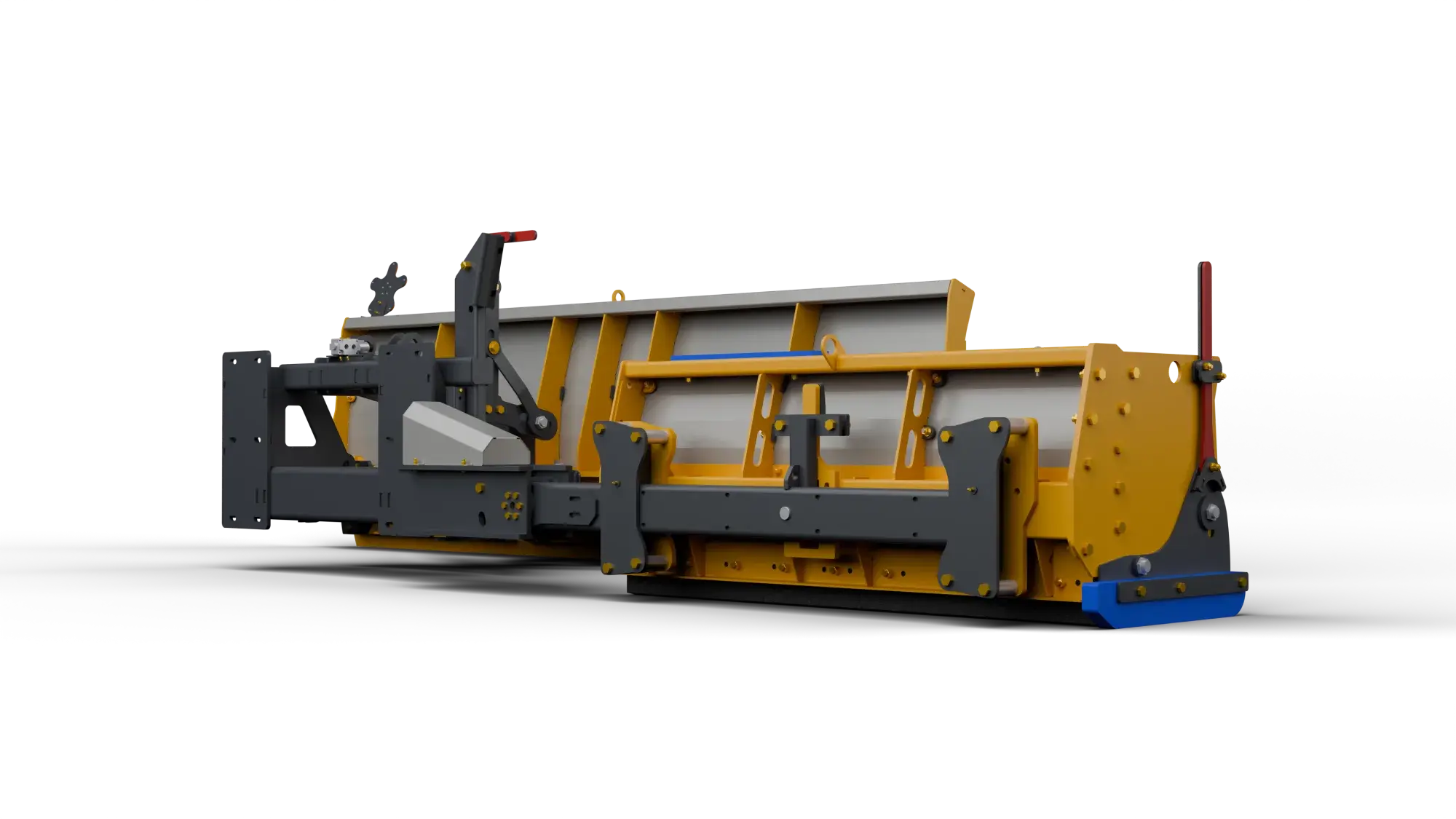

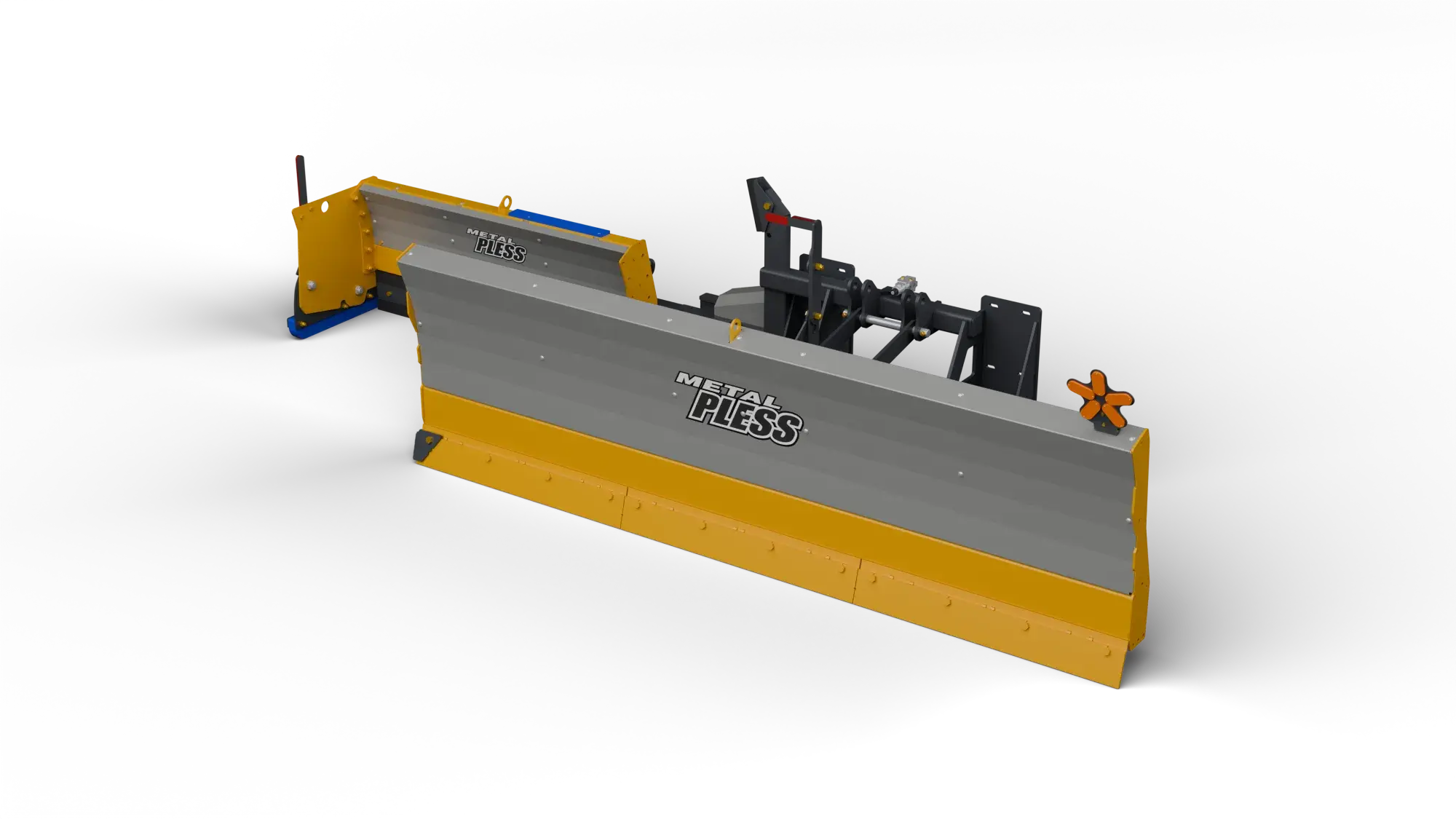

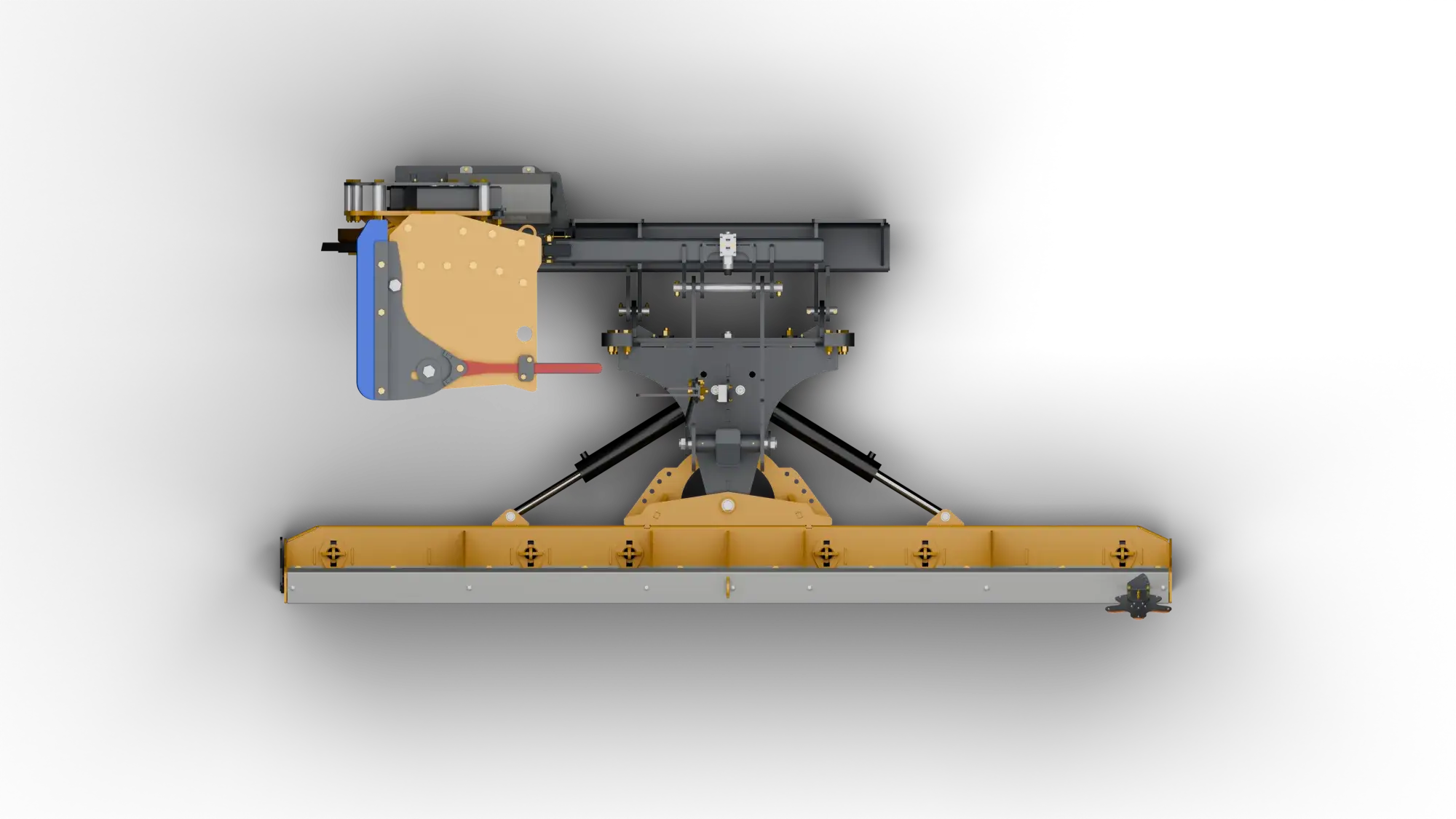

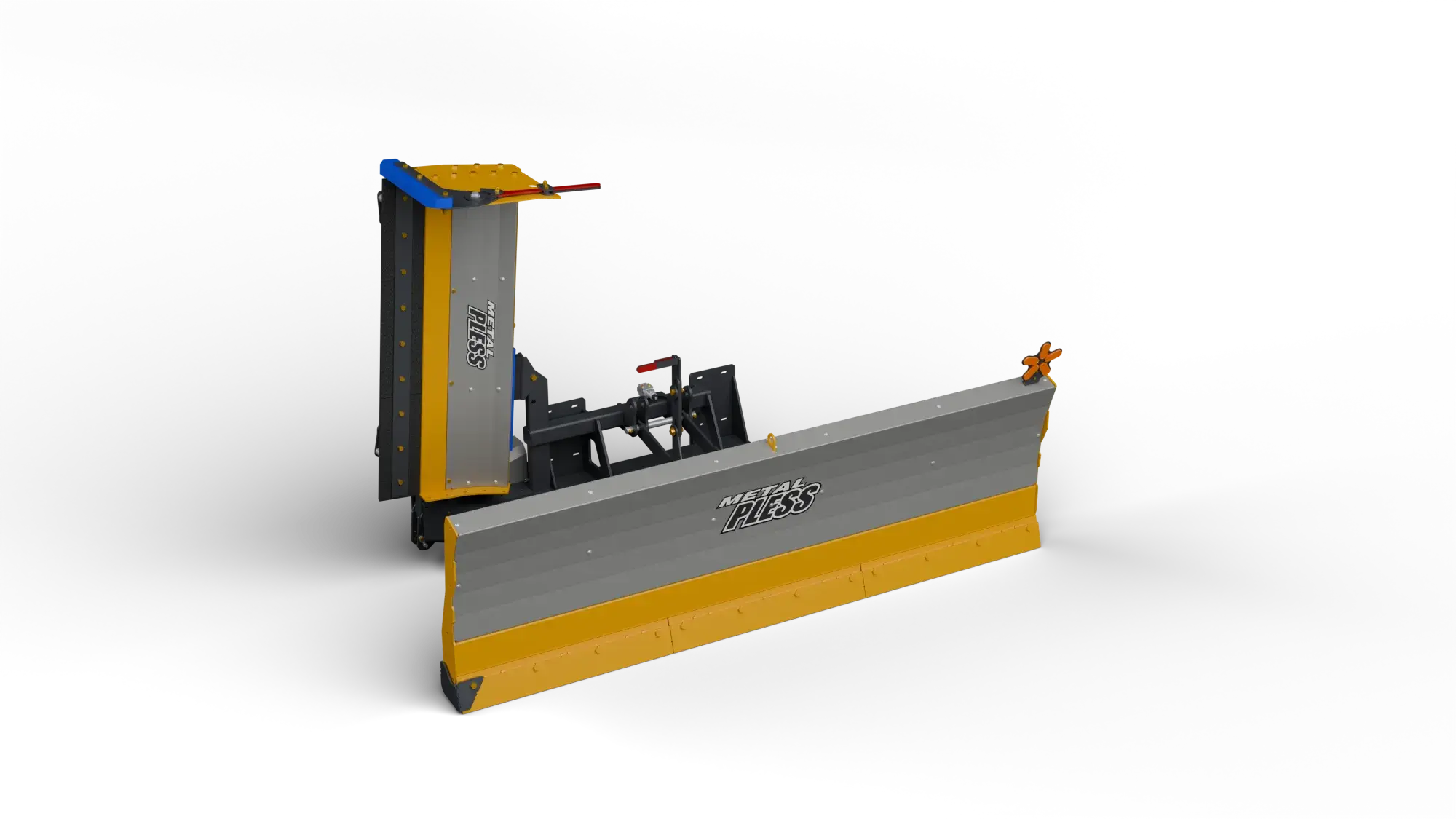

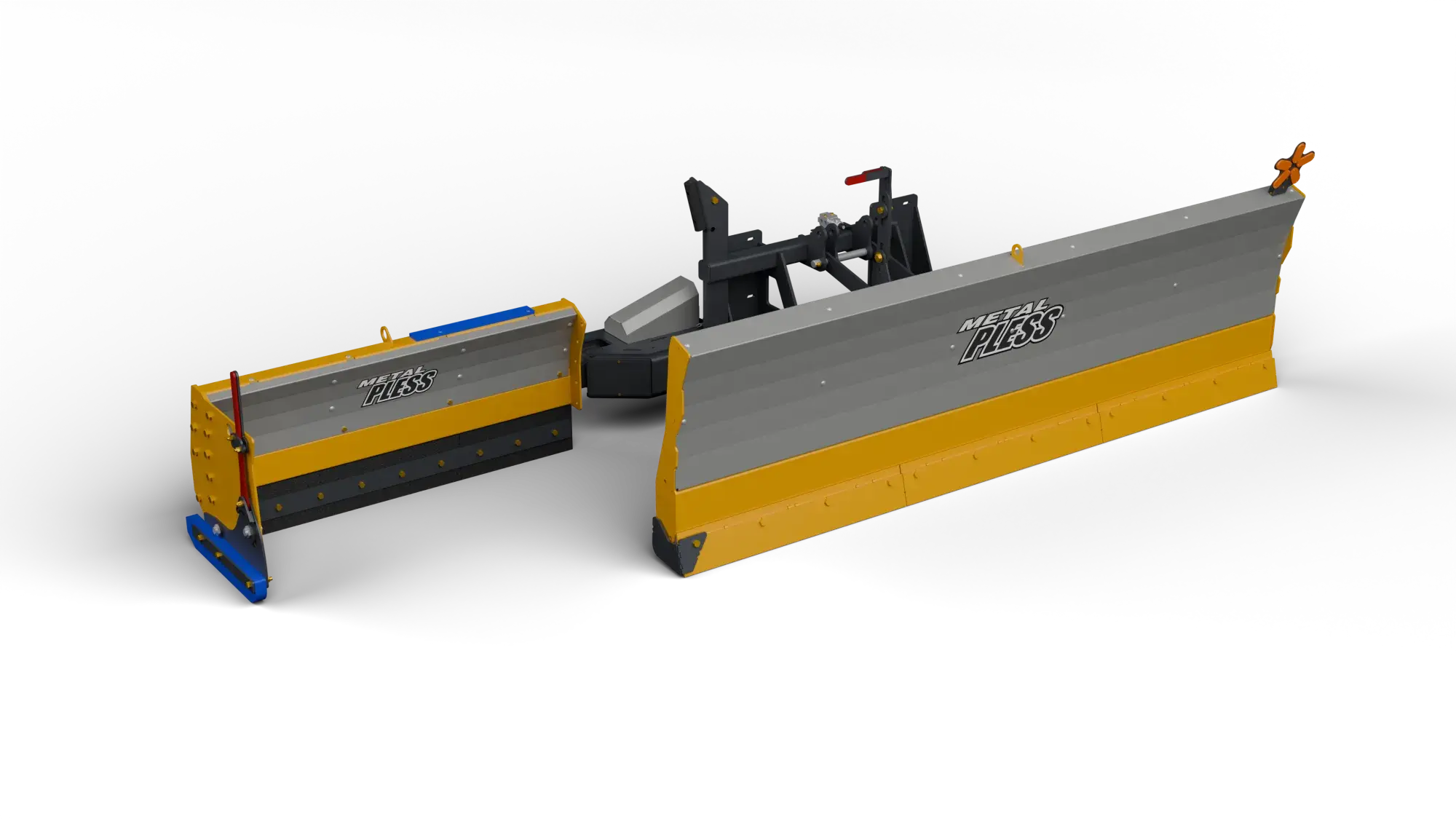

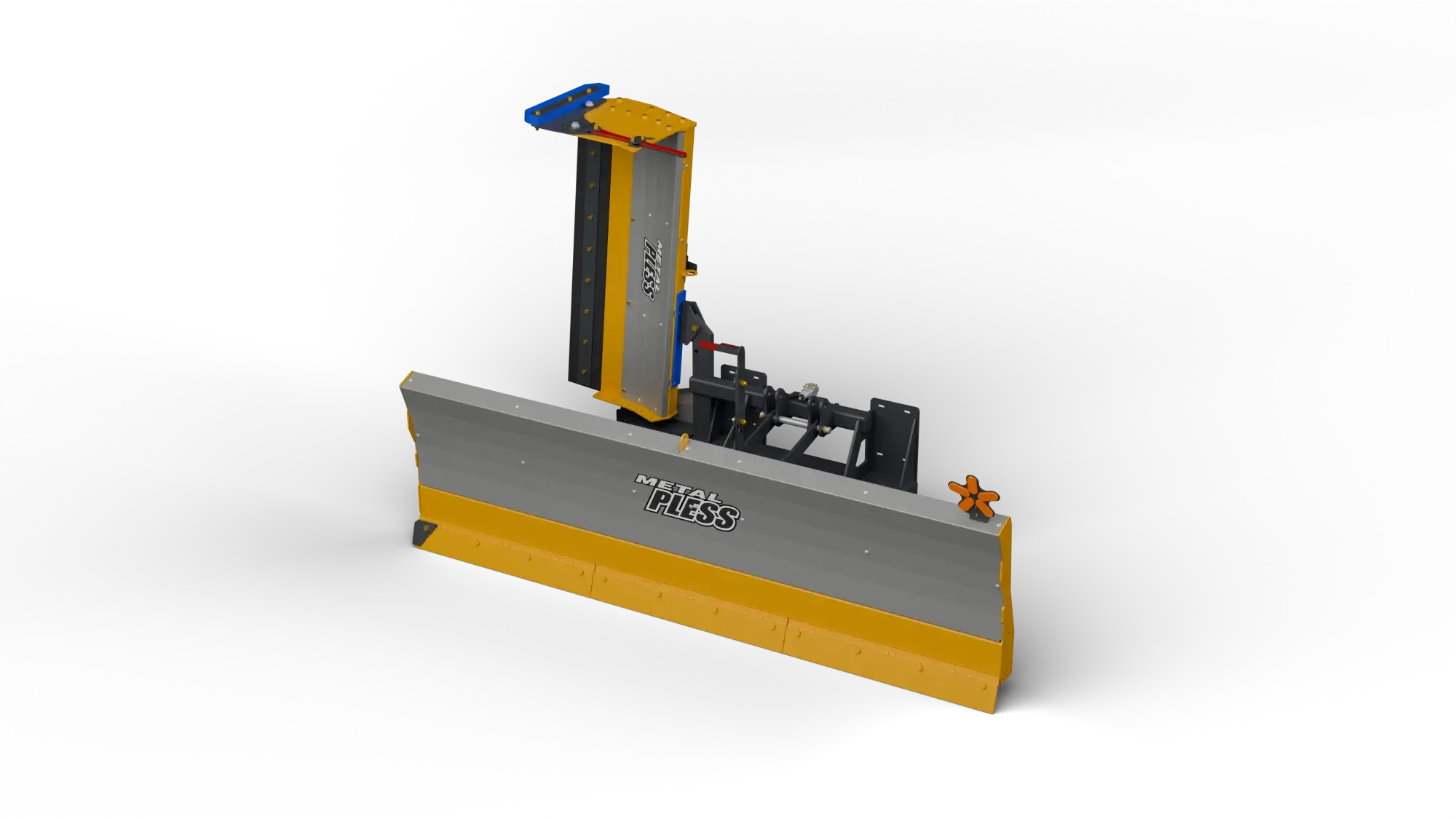

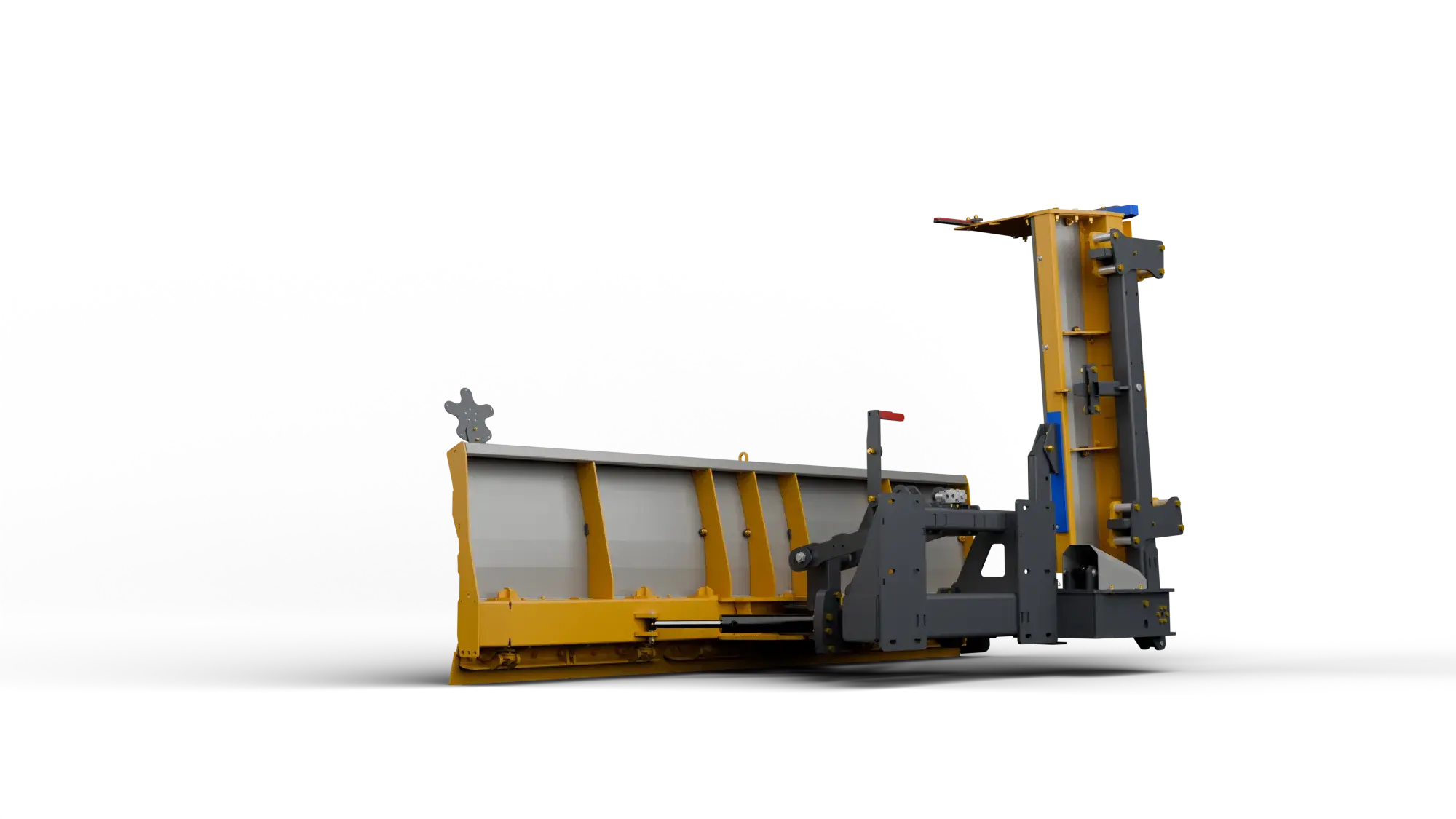

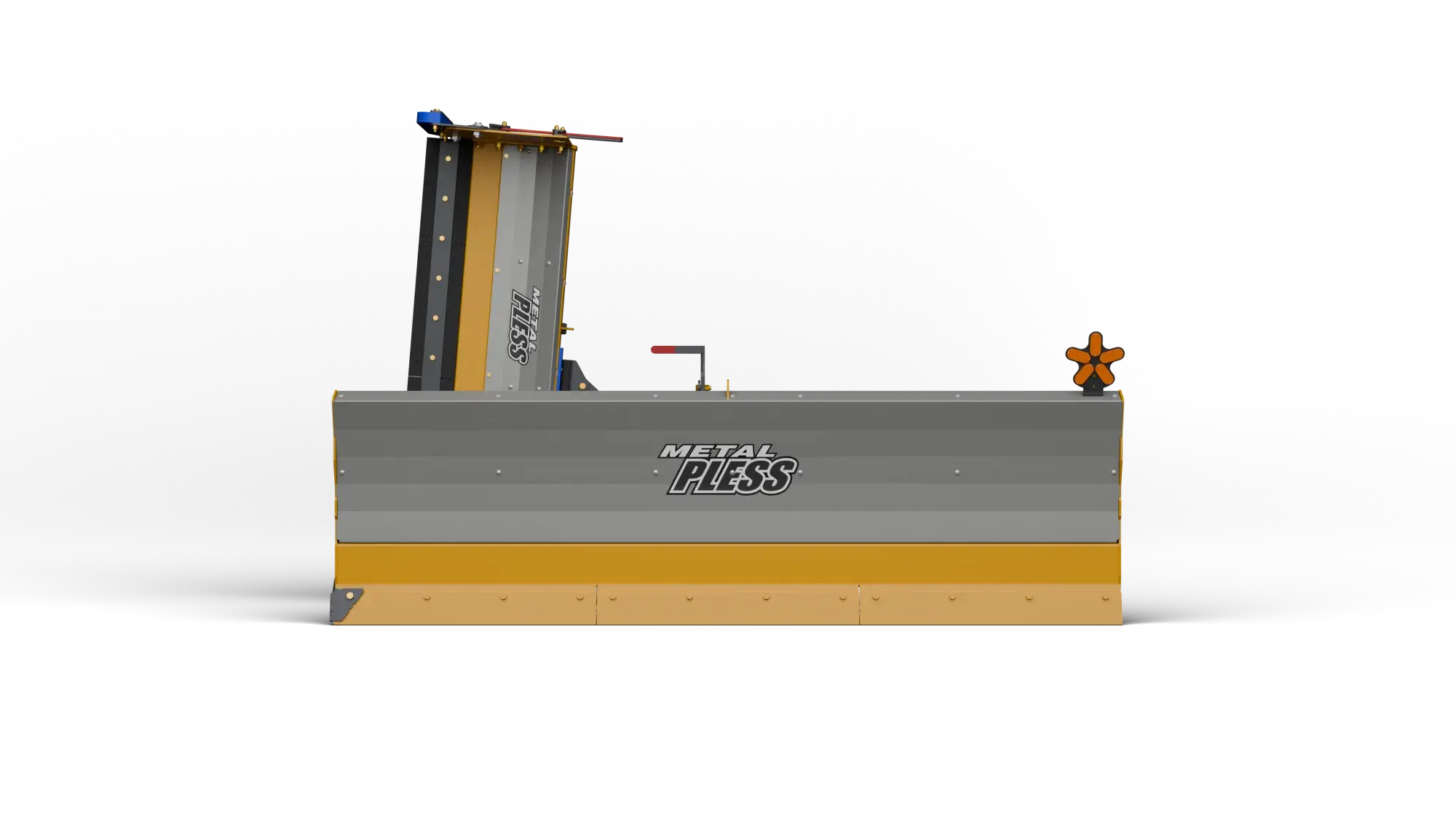

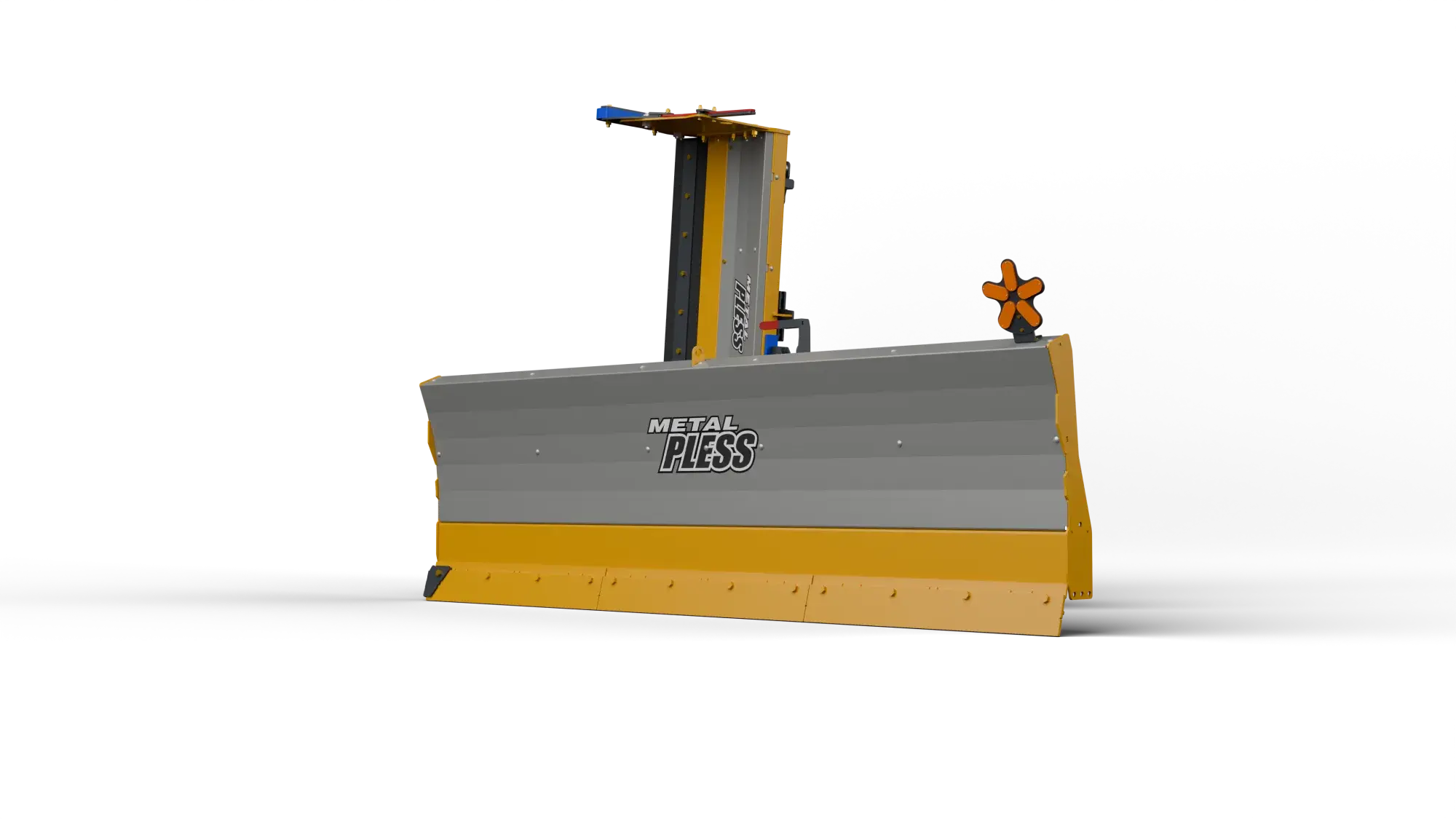

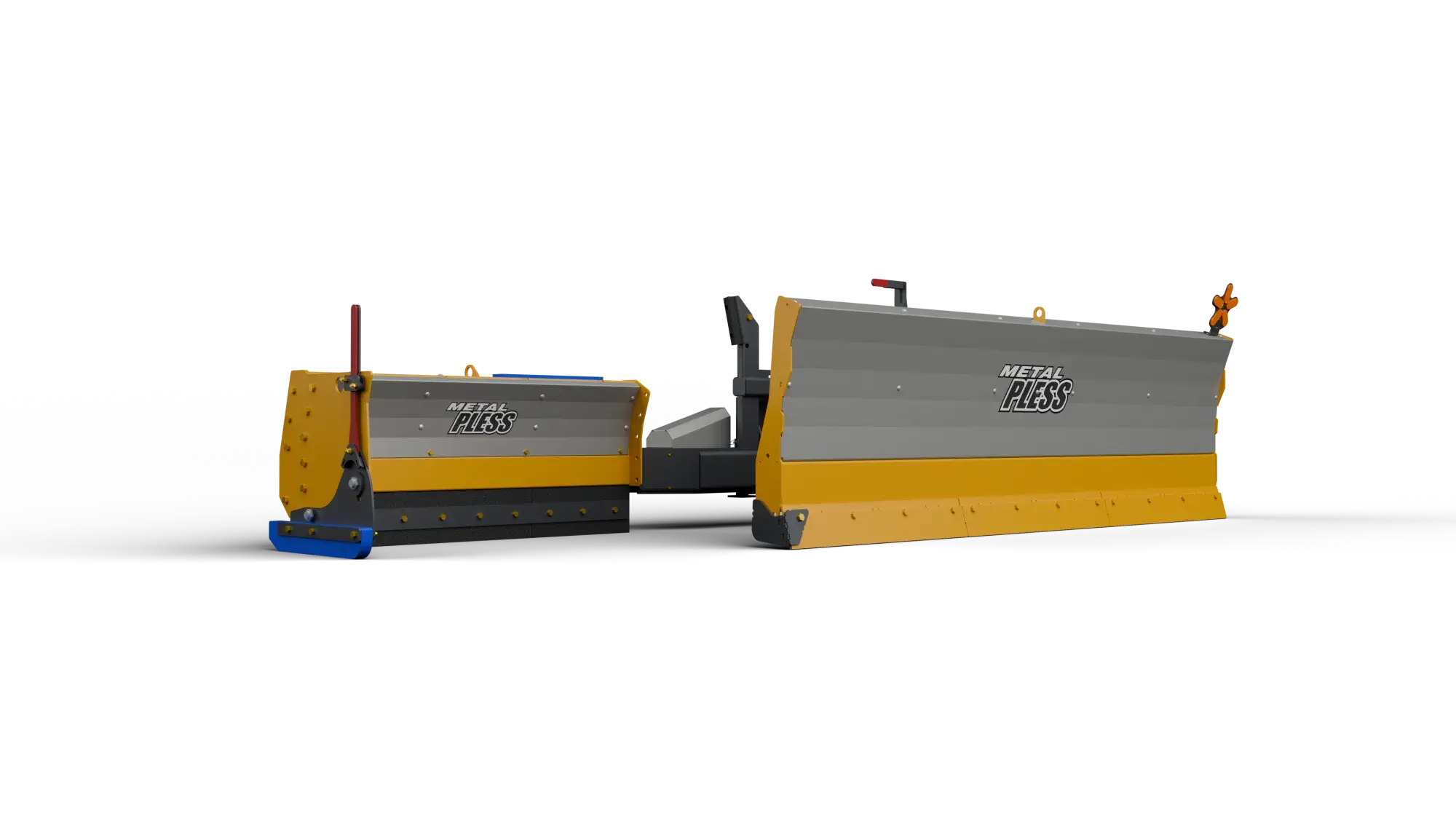

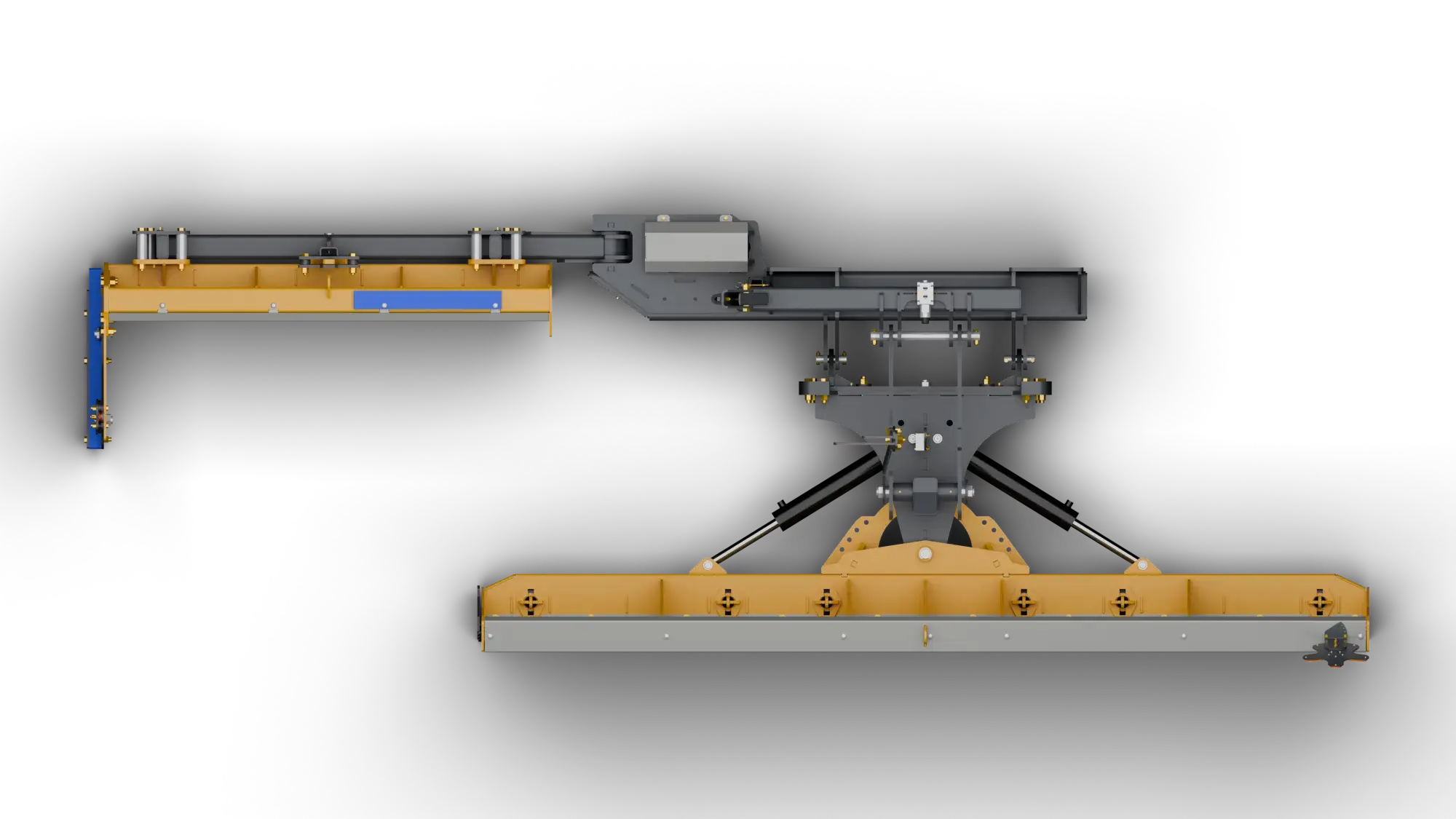

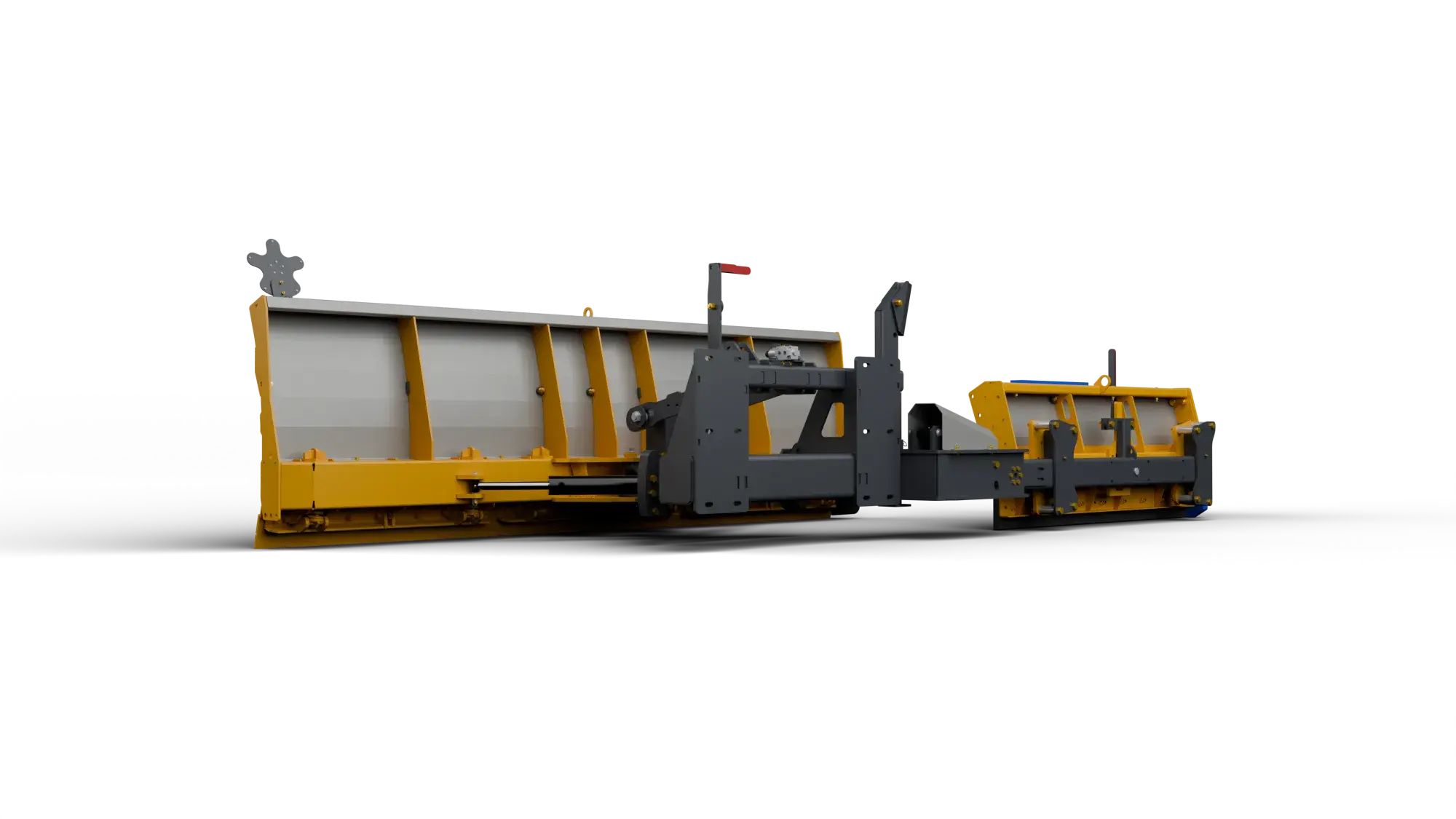

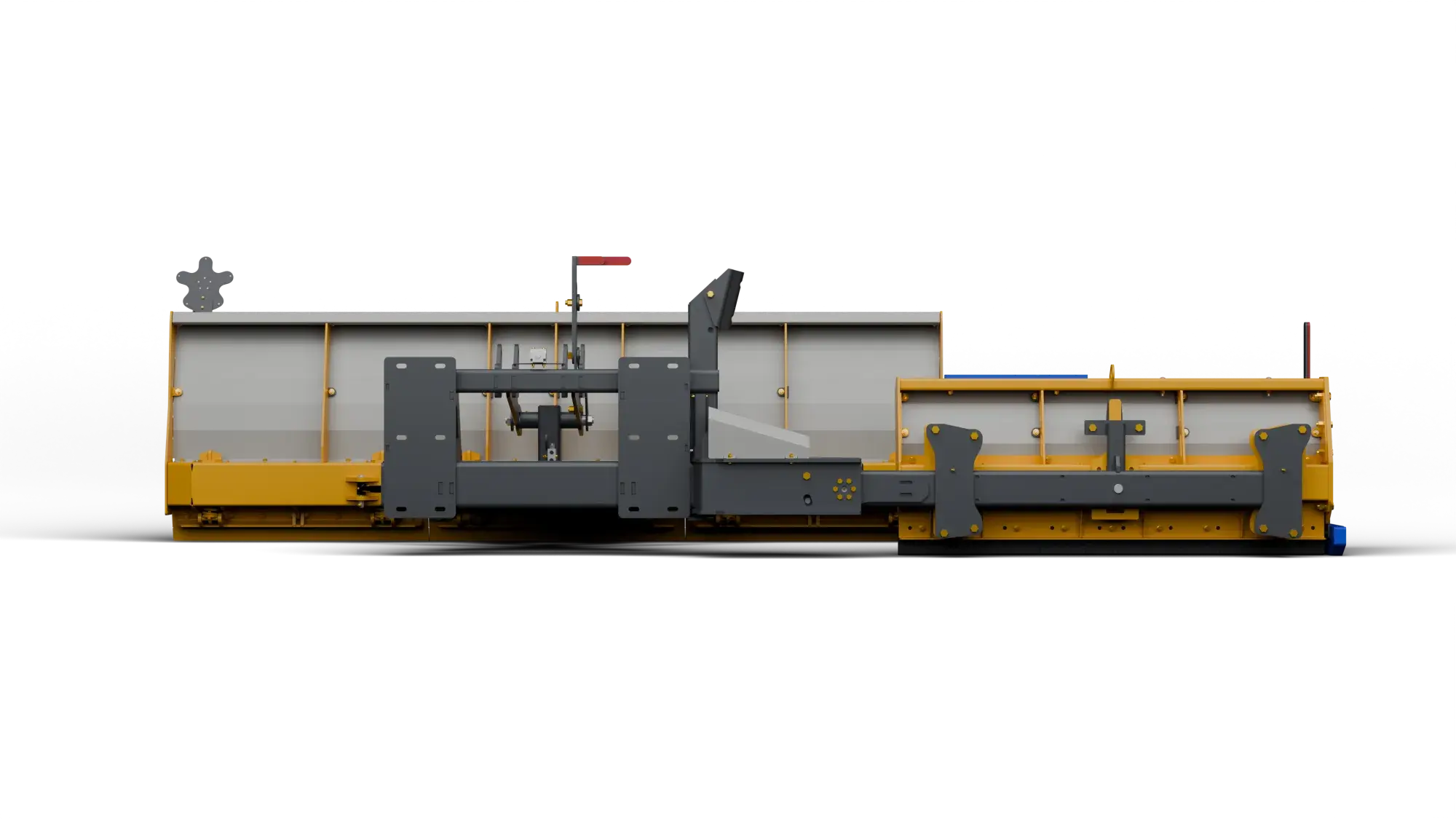

Model shown: WDM 0630-1242

Vehicles: Wheel loader Backhoe
Industries: Snow Contractors Municipalities
Compatible weights: 12,000-20,000 lb 20,000-30,000 lb
Sizes: WDM 0630 WDM 0630-1242
Edges: RB LE STD RB
Colors

Get a quote now Find my size

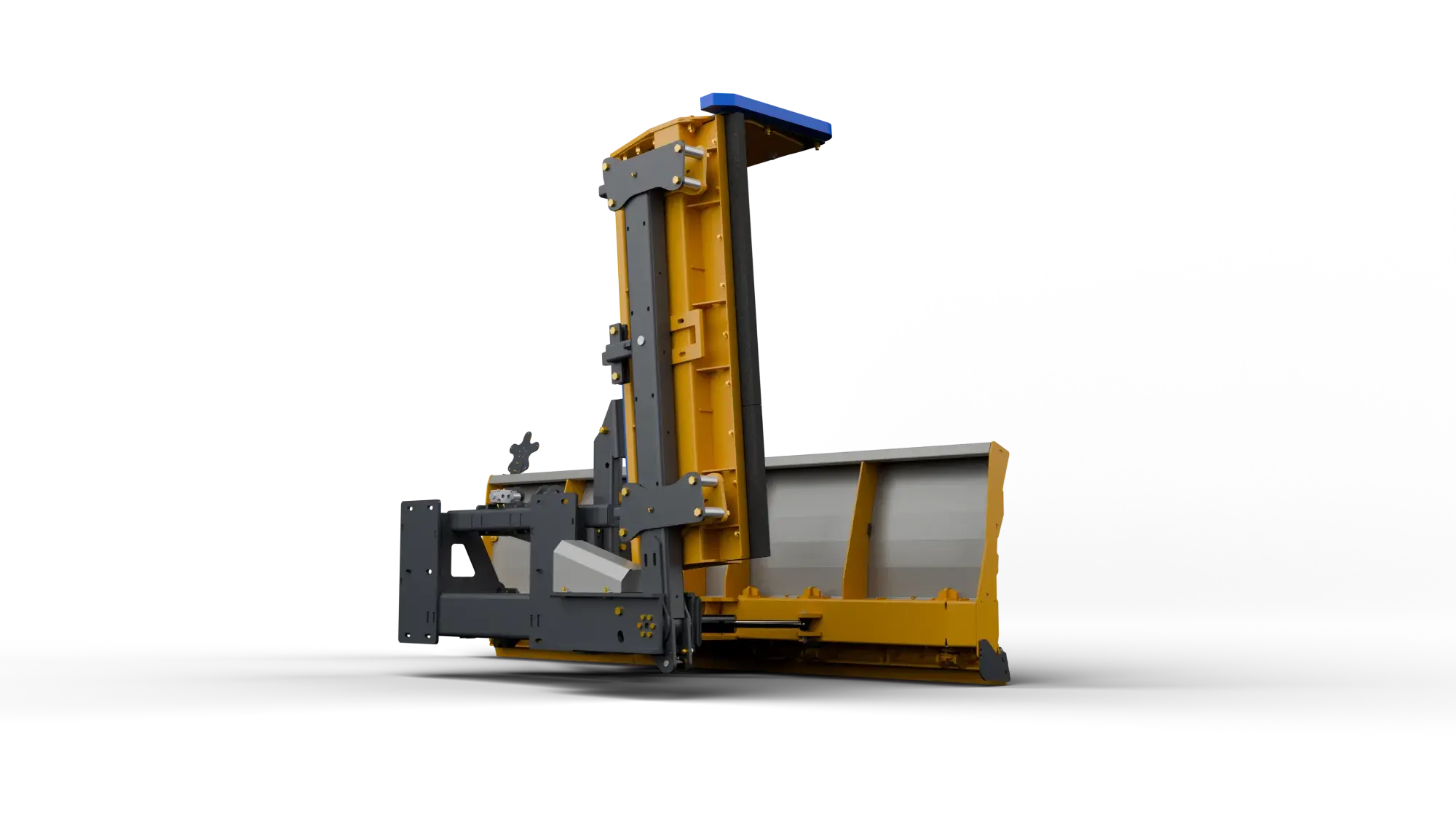

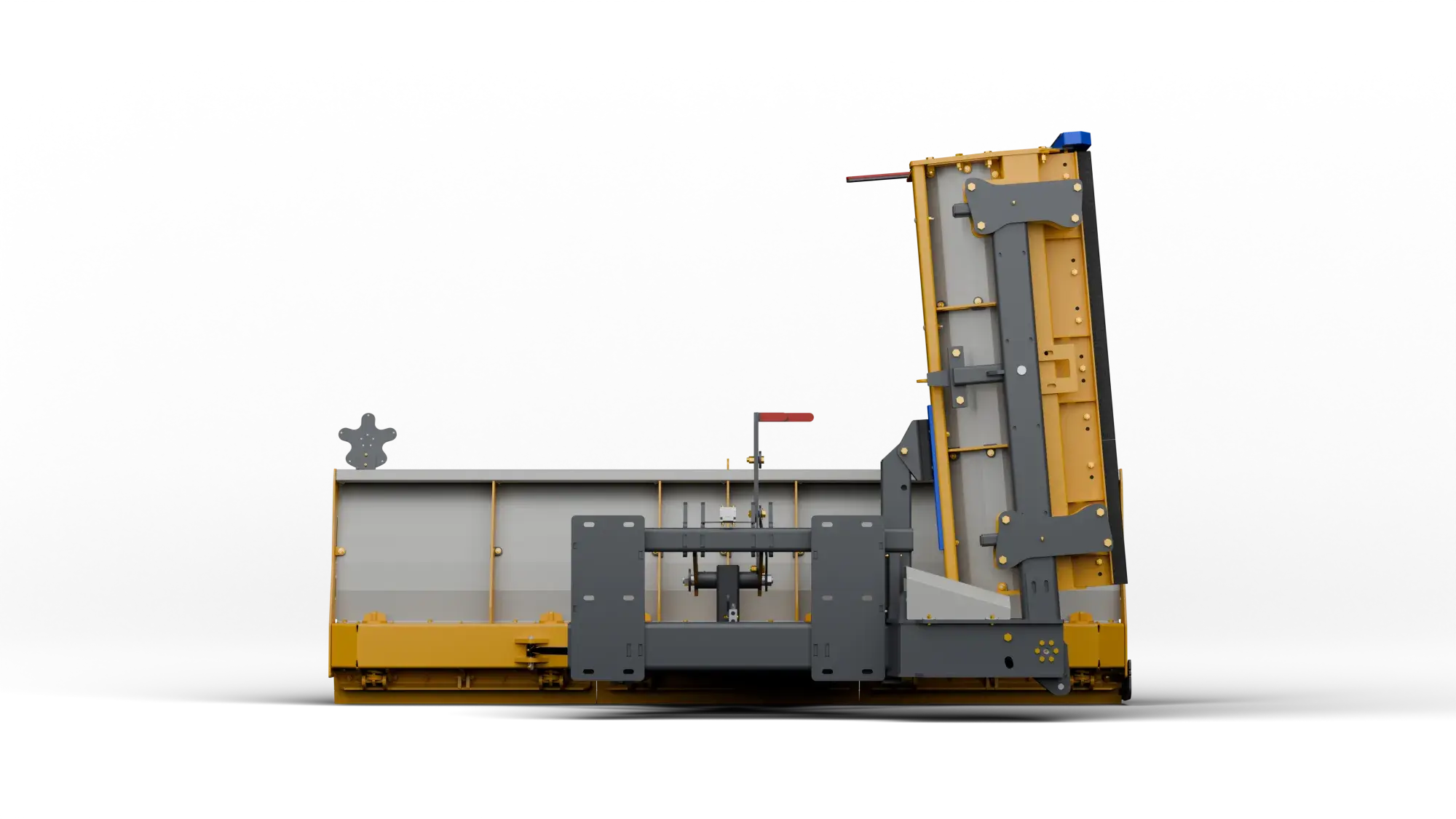

Hydraulic Wings 180

Our wings are constructed with CHT400 steel, making them the strongest in the industry. We use cylinders to move the wings, instead of actuators (hydraulic motors), offering superior holding strength. The leverage is increased by having two cylinders per wing. Additionally, the wings are equipped with a spring that can be adjusted to provide down pressure.

Trip Edge on the Wings

Unique Soft Drive Trip Edge design allows the individual sections to trip backward without the blade being lifted upward, greatly reducing the impact.

Live Edge Technology

Independent floating sections follow the unevenness of the ground and trip back on their own. Full contact with the surface means a cleaner pass, fewer passes and less salt, and carbide inserts extend the wear life.

Lateral Float

Automatically follows the imperfections of the pavement. Our system incorporates an adjustable oscillating mechanism for better control. Increase plowing efficiency and no need to go over the same area multiple times.

Slip Hitch

Slip hitch design allows the plow to follow surface variations. Reduces operator fatigue and increases plowing efficiency. Cutting edges wear evenly and prolong plow life.

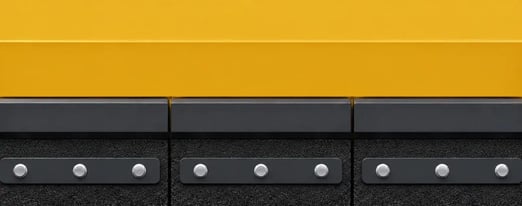

RB-LE Rubber Live Edge

The LIVE EDGE sections with a rubber cutting edge: they follow the surface while staying gentle on pavers, stamped concrete and other delicate surfaces.

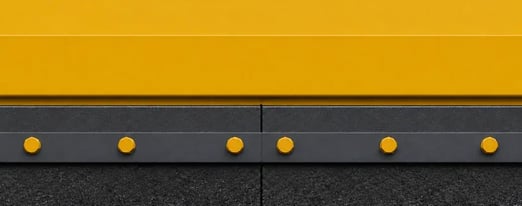

STD RB Standard Rubber

The standard trip edge fitted with a rubber cutting edge, gentle on delicate surfaces.

WindrowMaxx — Sizes & specifications
Model	Available Edges	Blade Dimensions		Application	Approx. Weight	Wing Size (each side)	Wing / Gate Type	Compare
Model	Available Edges	Box	Height	Application	Approx. Weight	Wing Size (each side)	Wing / Gate Type	Compare
WDM 0630	RB LE	6'	30"	14,001 lb - 18,000 lb	2,020 lb	—	—
WDM 0630-1242	STD RB	12'	42"	25,000 lb - 50,000 lb	3,600 lb	6'	Hydraulic wings

*Ask about our Tivar options
