SideMaxx

SideMaxx comes in 2 sizes, with a 5' moldboard. Built for wheel loaders, skid steers, tractors and sidewalk vehicles.

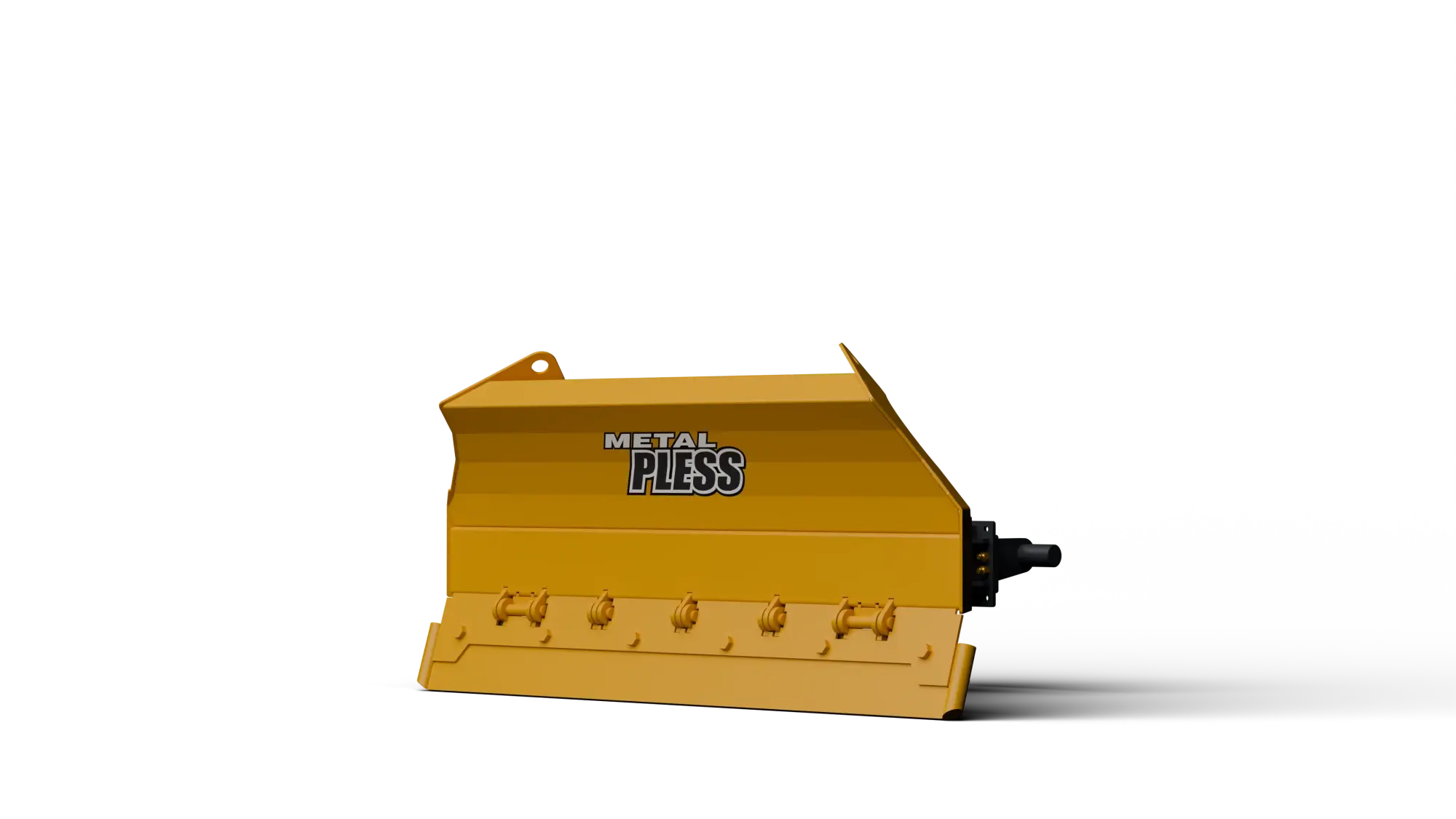

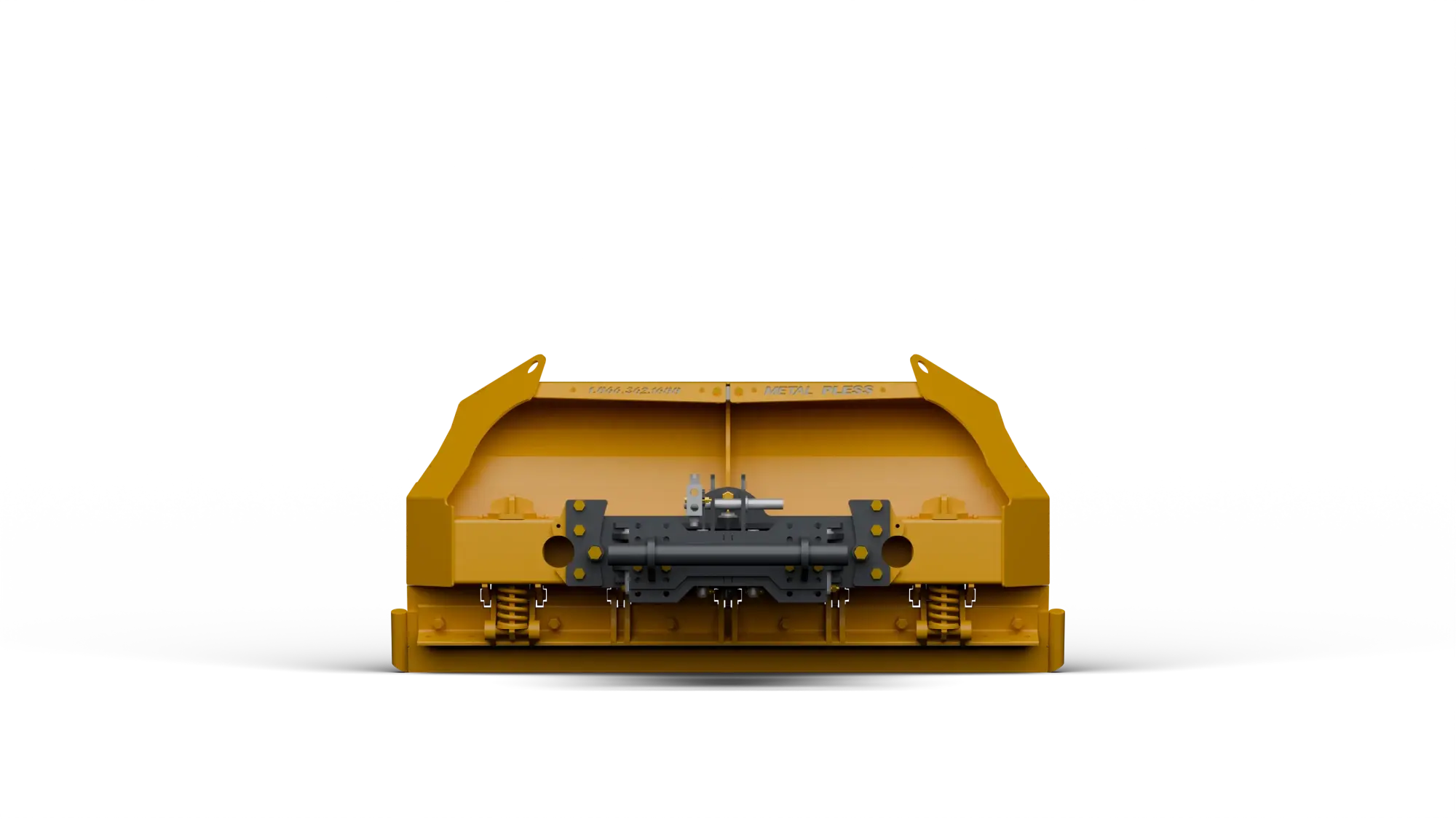

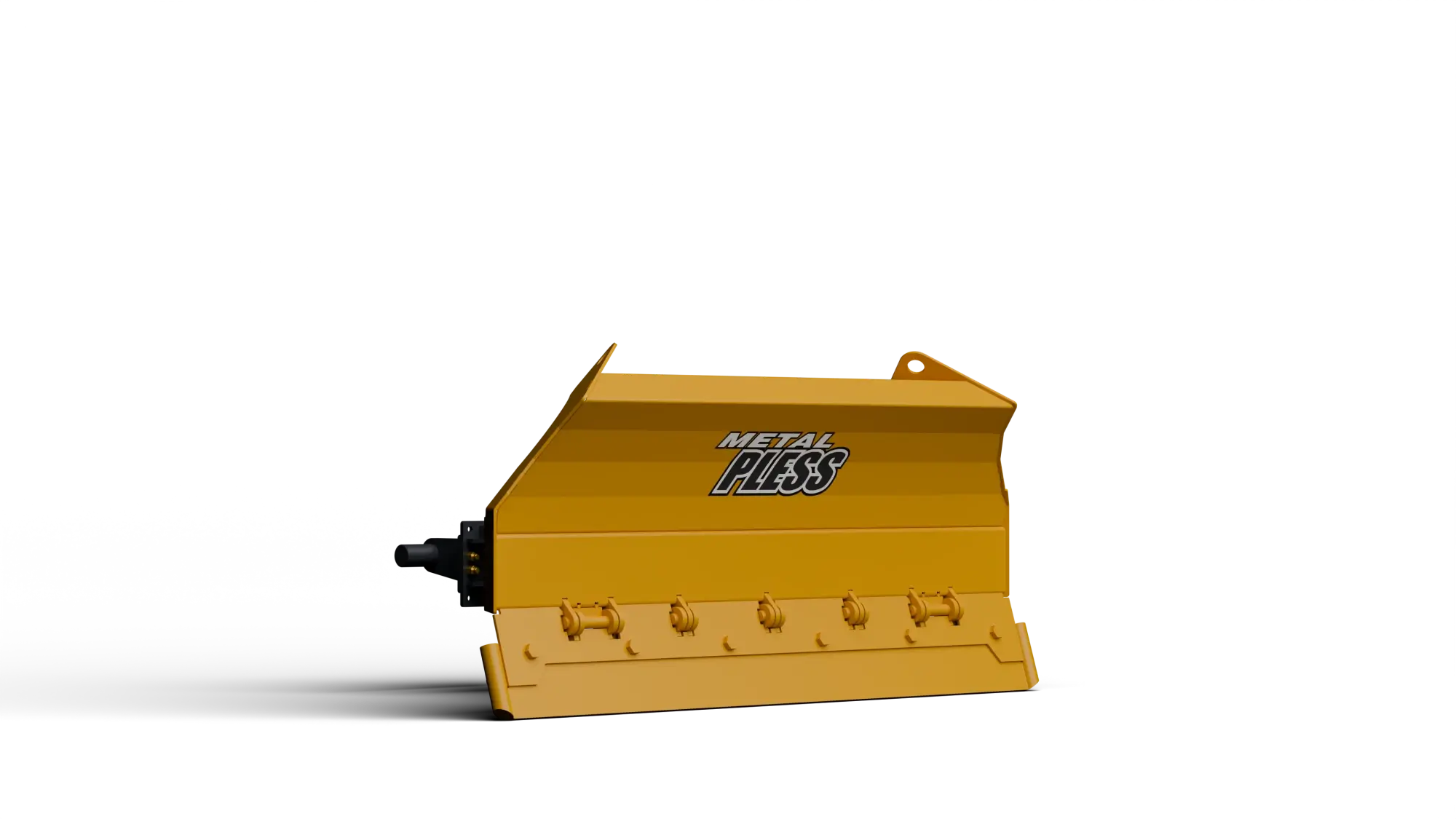

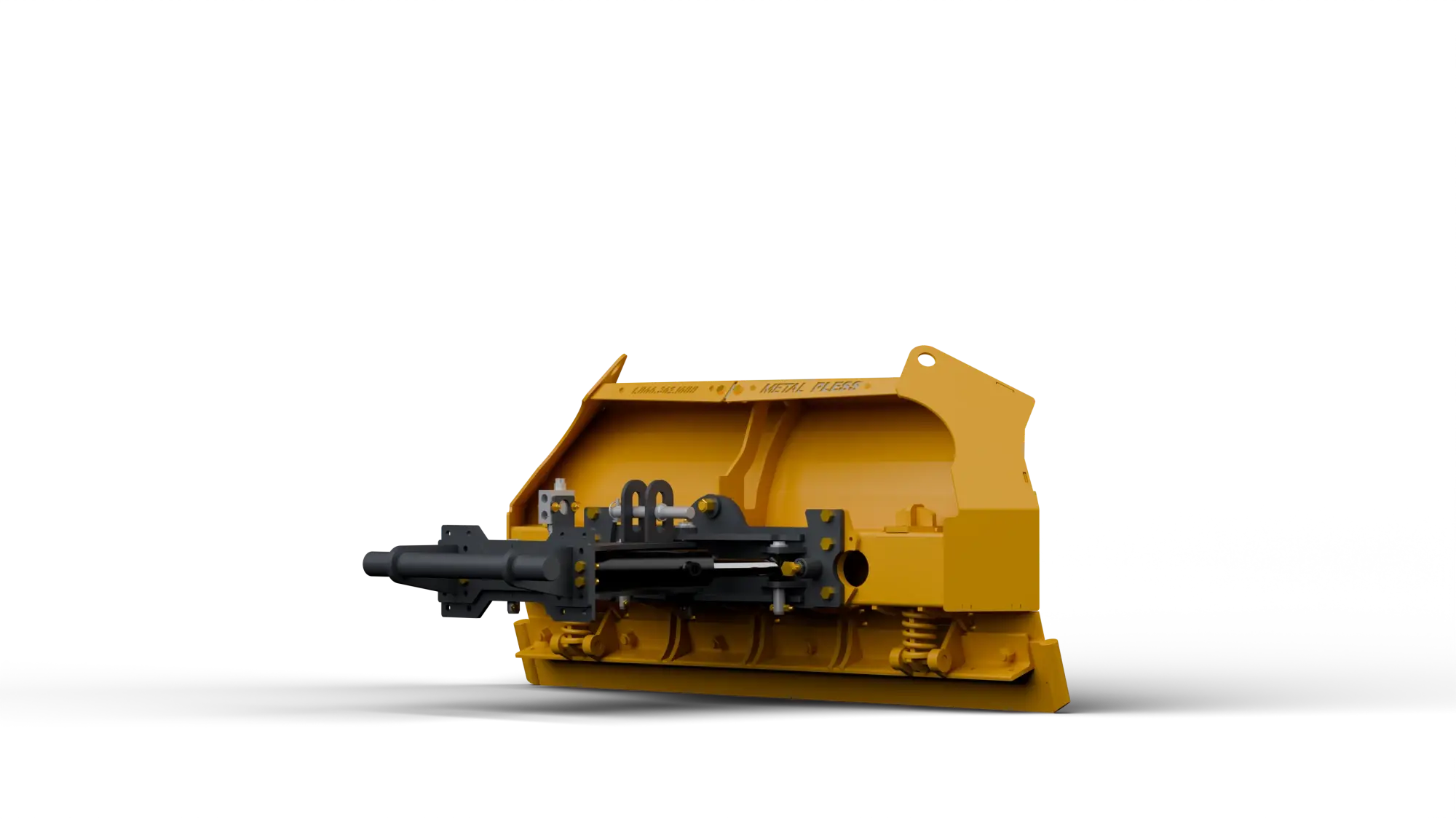

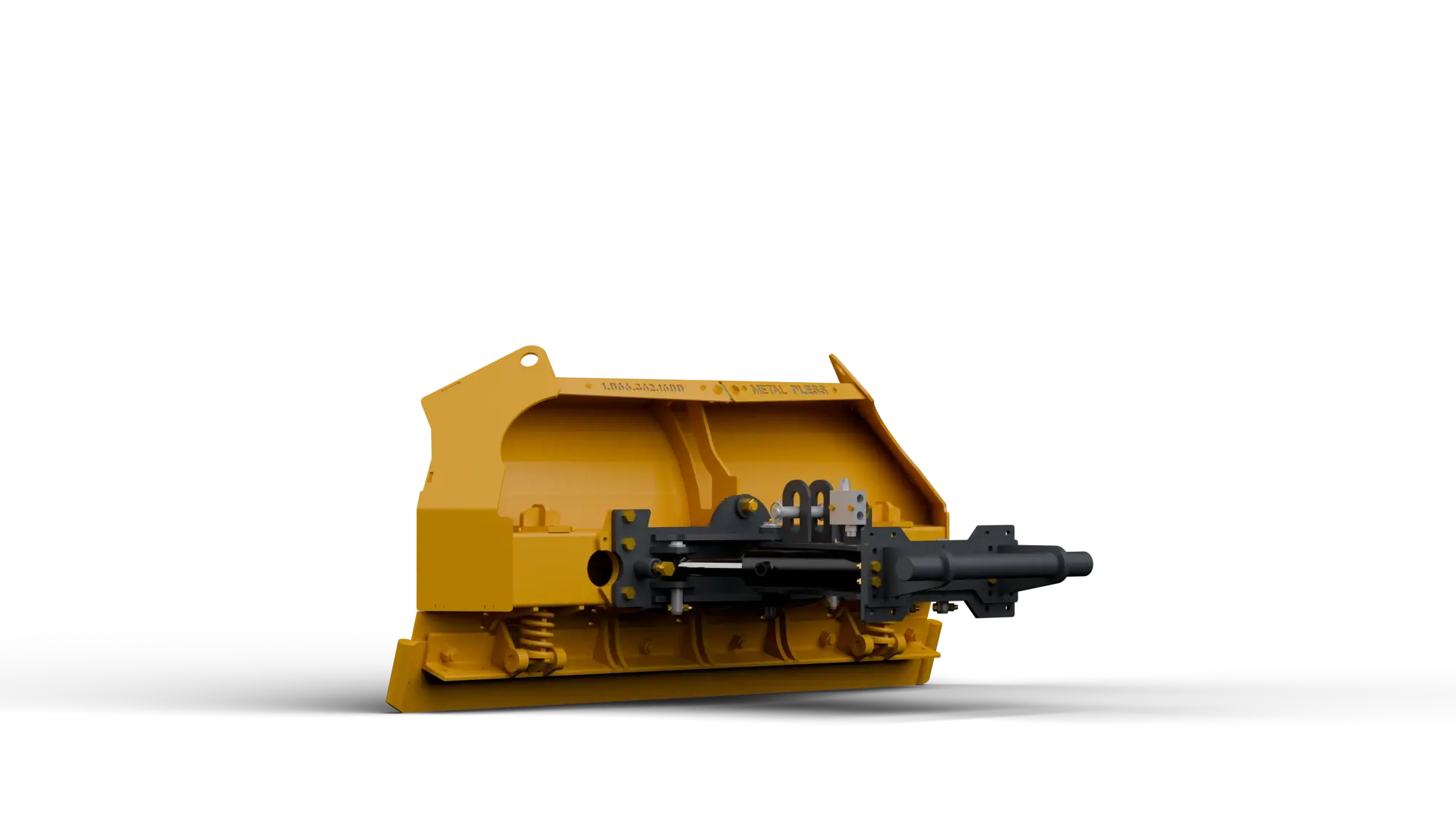

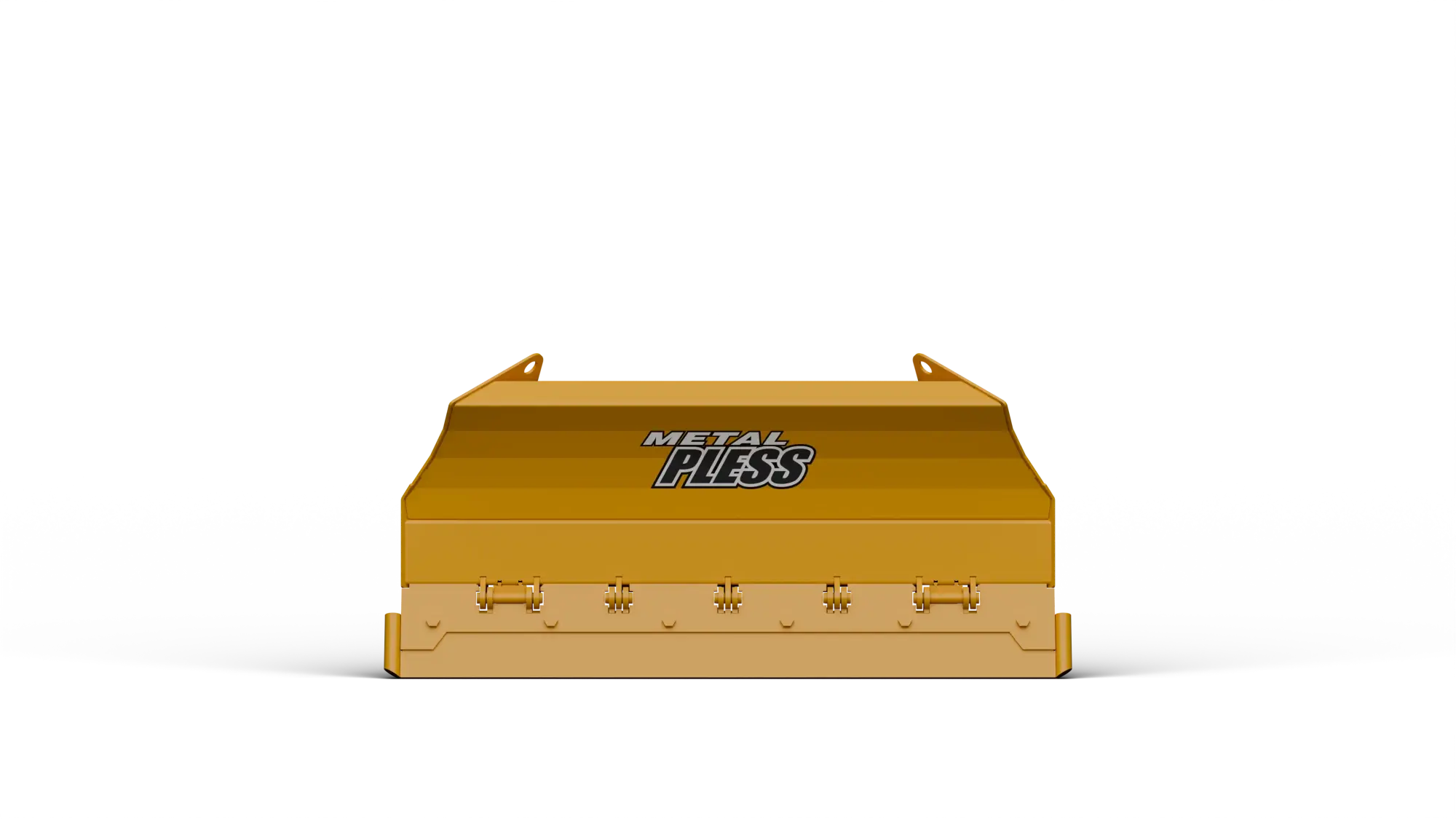

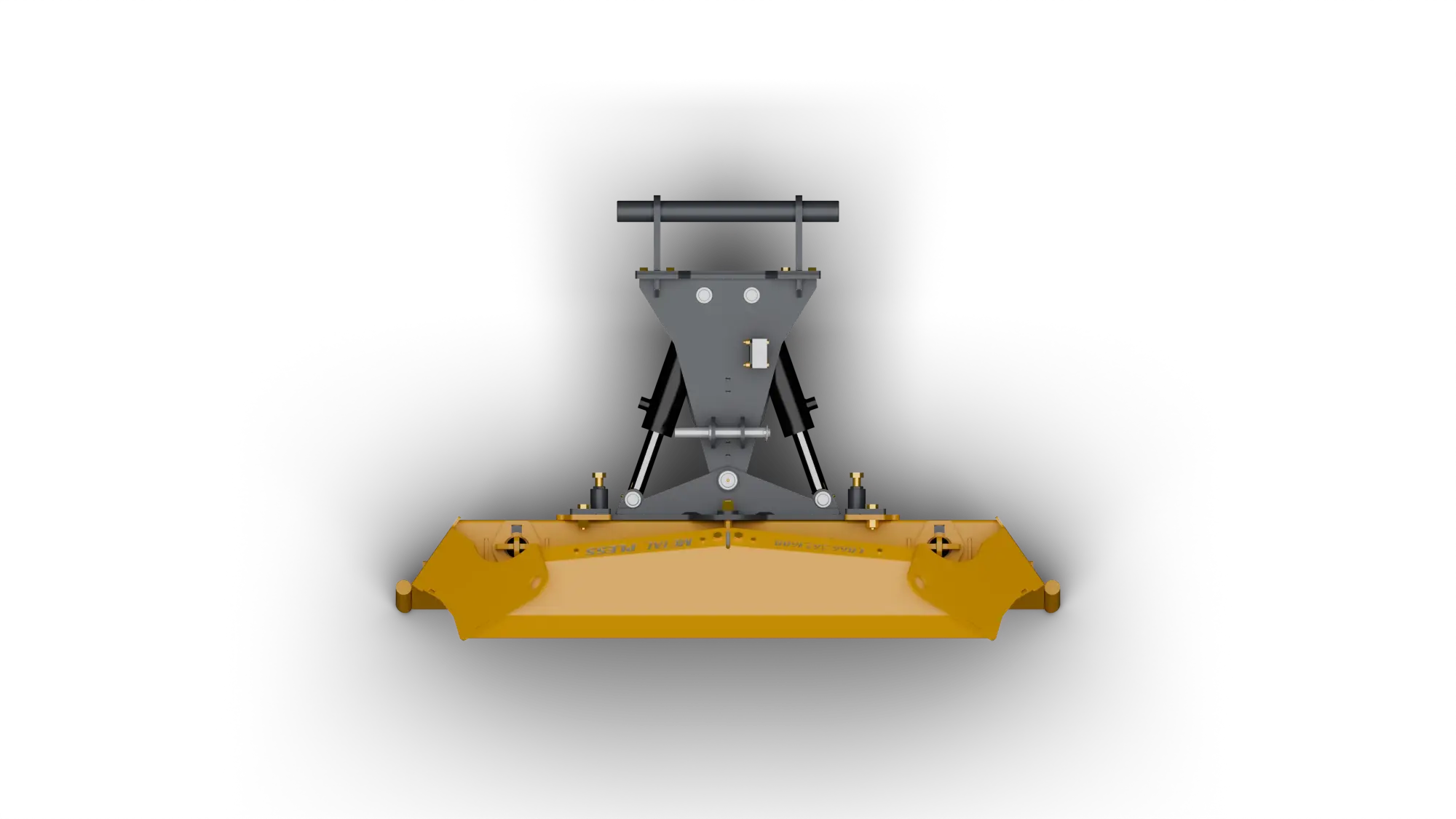

Model shown: SM 527/60 with Standard Edge (STD)

Vehicles: Wheel loader Skid steer Tractor Sidewalk vehicles
Industries: Snow Contractors Municipalities Airports
Compatible weights: Up to 12,000 lb
Sizes: SM 527/60 SM 530/60LE
Edges: STD LE
Colors

Get a quote now Find my size

Live Edge Technology

Independent floating sections follow the unevenness of the ground and trip back on their own. Full contact with the surface means a cleaner pass, fewer passes and less salt, and carbide inserts extend the wear life.

Lateral Float

Automatically follows the imperfections of the pavement. Our system incorporates an adjustable oscillating mechanism for better control. Increase plowing efficiency and no need to go over the same area multiple times.

Slip Hitch

Slip hitch design allows the plow to follow surface variations. Reduces operator fatigue and increases plowing efficiency. Cutting edges wear evenly and prolong plow life.

STD Standard

Standard trip edge allows the cutting edge to trip back.
LE Live Edge

A floating soft drive steel trip edge with carbide inserts for longer wear life, that contours the unevenness of the ground for a cleaner result.

SideMaxx — Sizes & specifications
Model	Available Edges	Blade Dimensions		Application	Wing / Gate Type	Approx. Weight	Compare
Model	Available Edges	Box	Height	Application	Wing / Gate Type	Approx. Weight	Compare
SM 527/60	STD - With 3 Point Hitch (Category 2) - STD - With Trackless Coupler - STD - With Skid Steer Attachment - STD - With Tractor Subframe	5'	27"	4,000 lb - 12,000 lb	No wings; optional hydraulic extension	550 lb (STD - With 3 Point Hitch (Category 2)) · 530 lb (STD - With Trackless Coupler) · 540 lb (STD - With Skid Steer Attachment) · 630 lb (STD - With Tractor Subframe)
SM 530/60LE	LE - With 3 Point Hitch (Category 2) - LE - With Trackless Coupler - LE - With Skid Steer Attachment - LE - With Tractor Subframe	5'	27"	4,000 lb - 12,000 lb	No wings; optional hydraulic extension	660 lb (LE - With 3 Point Hitch (Category 2)) · 625 lb (LE - With Trackless Coupler) · 905 lb (LE - With Skid Steer Attachment) · 1,060 lb (LE - With Tractor Subframe)

*Ask about our Tivar options
