R3Maxx

R3Maxx

R3Maxx comes in 5 sizes, with moldboards from 5.5' to 7.5'. Built for tractors.

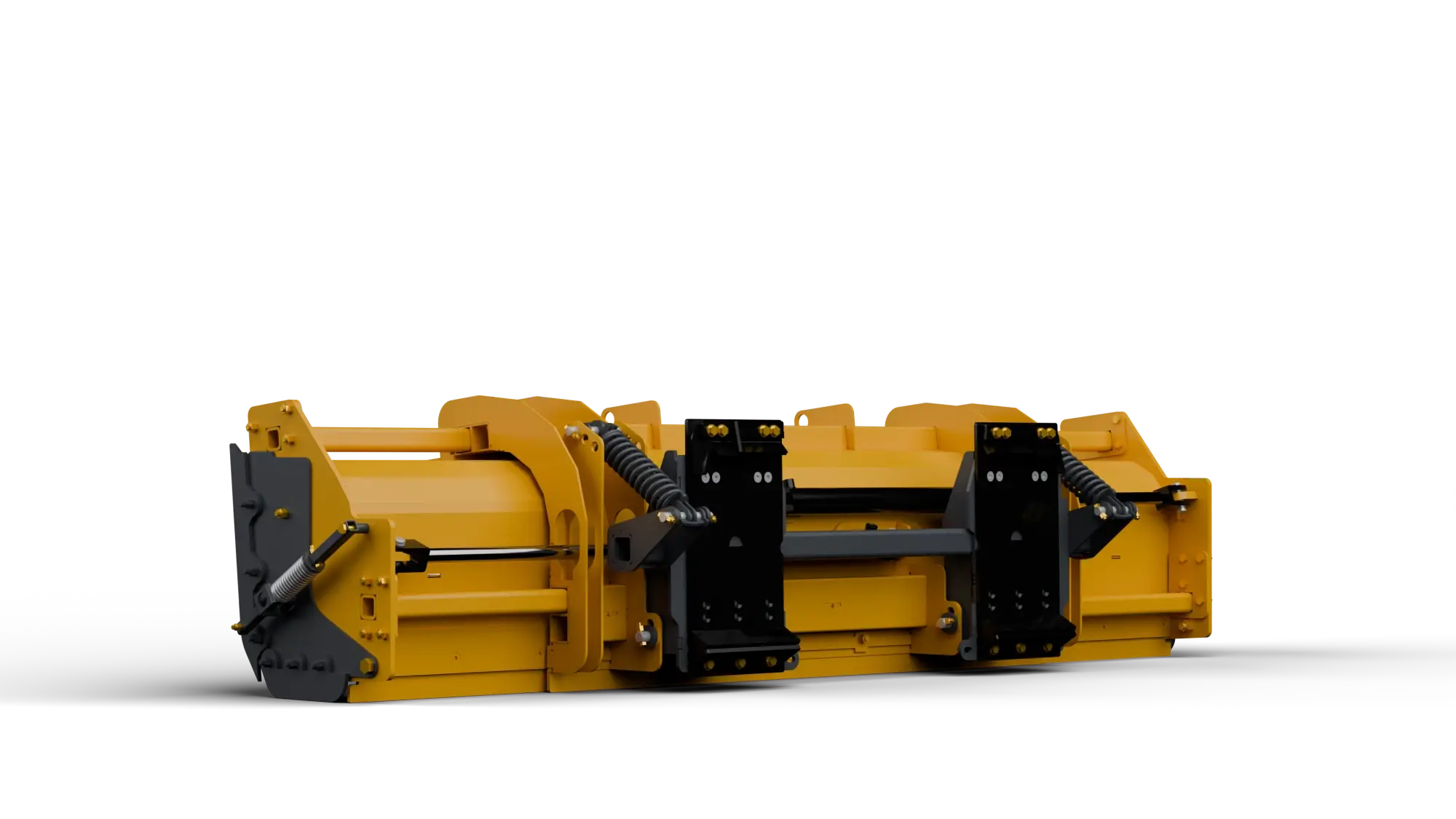

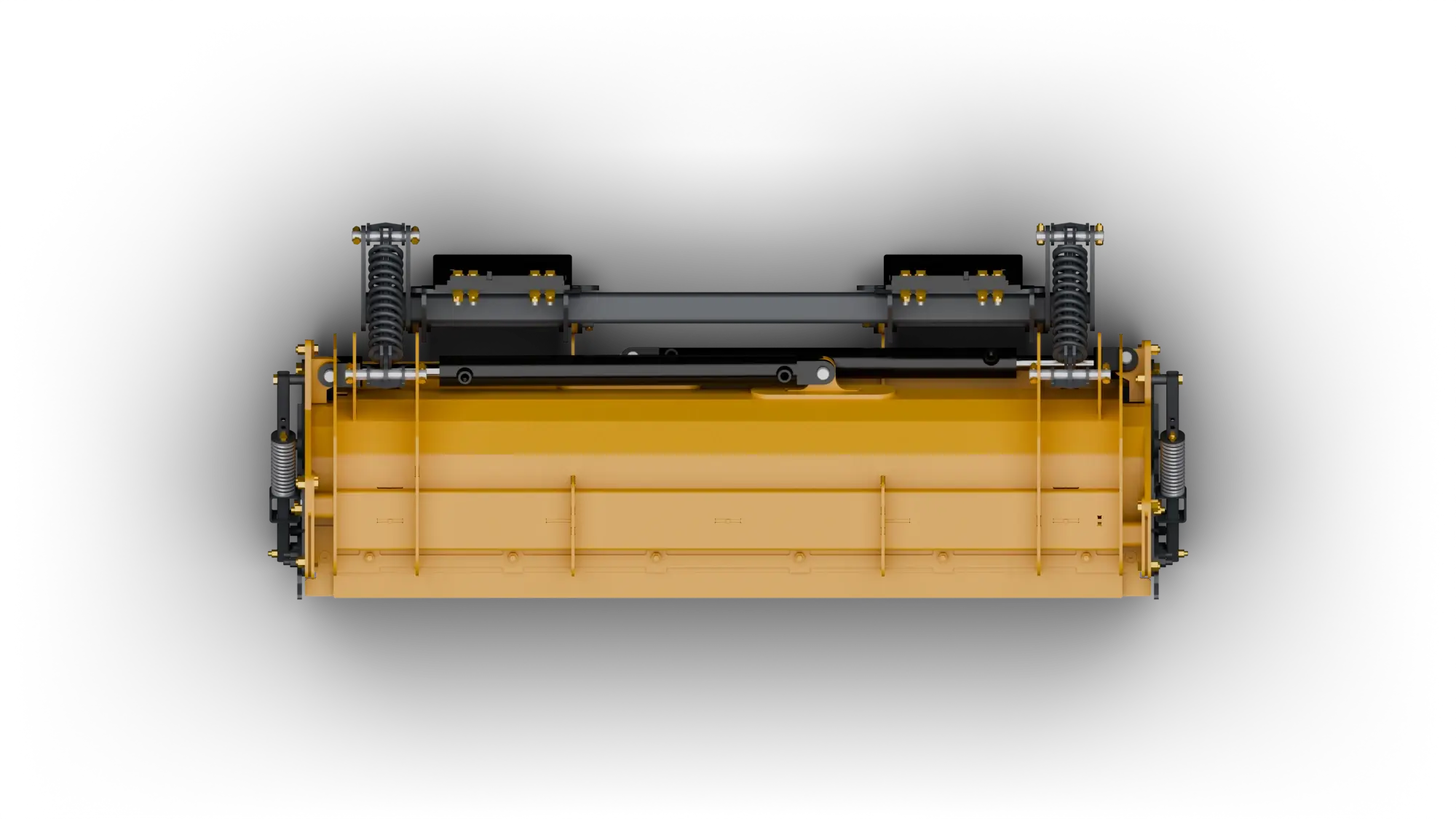

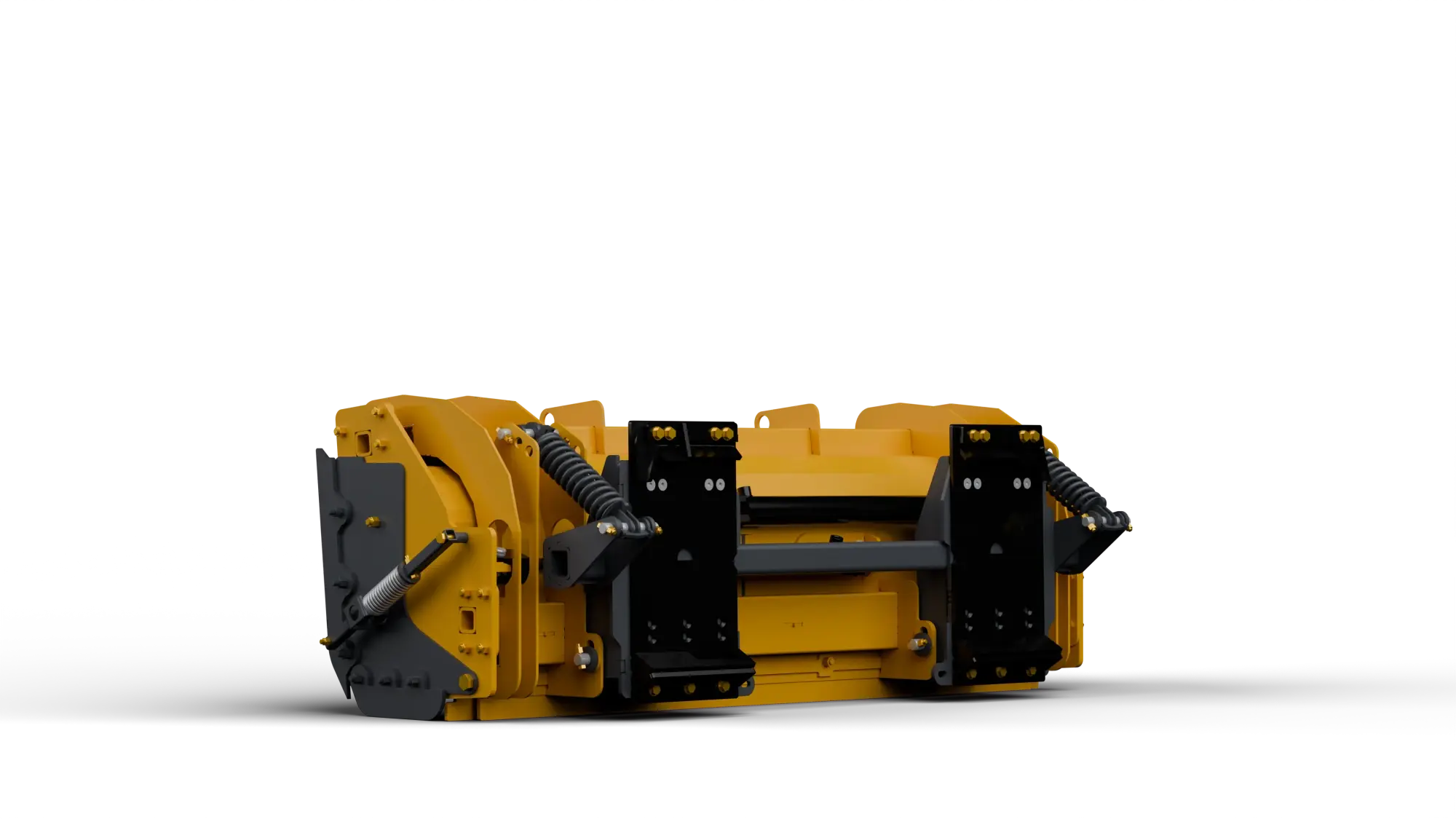

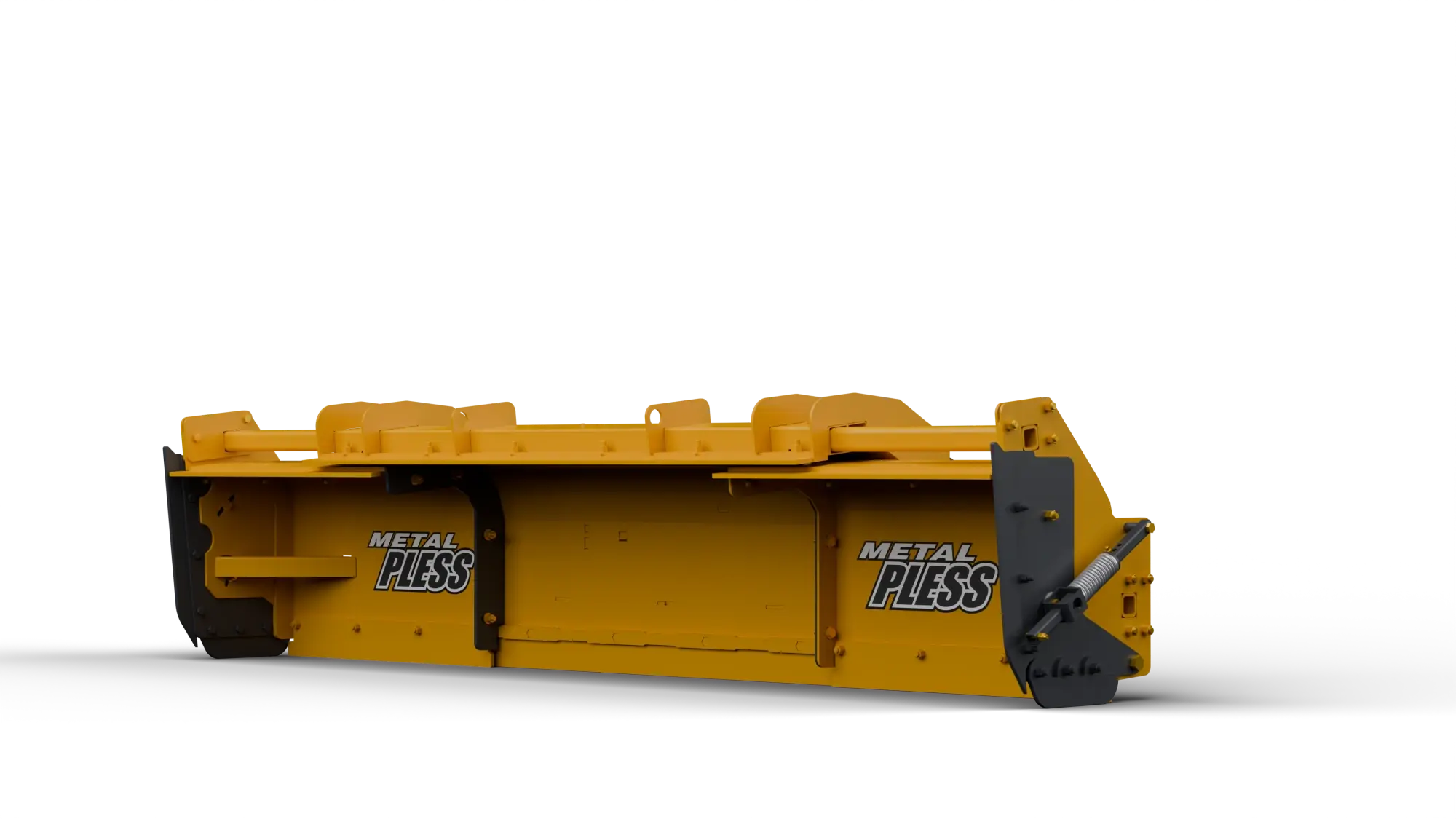

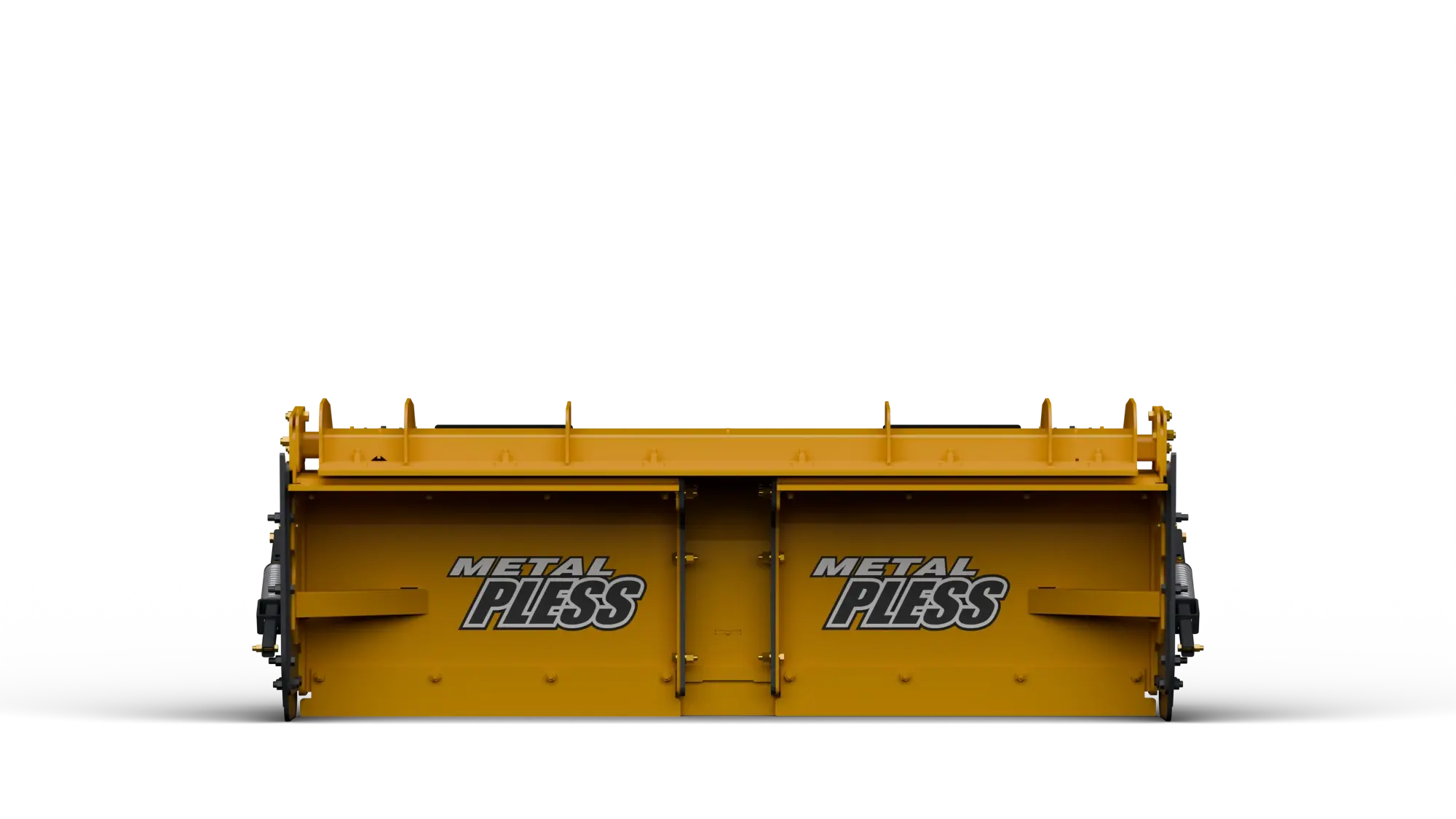

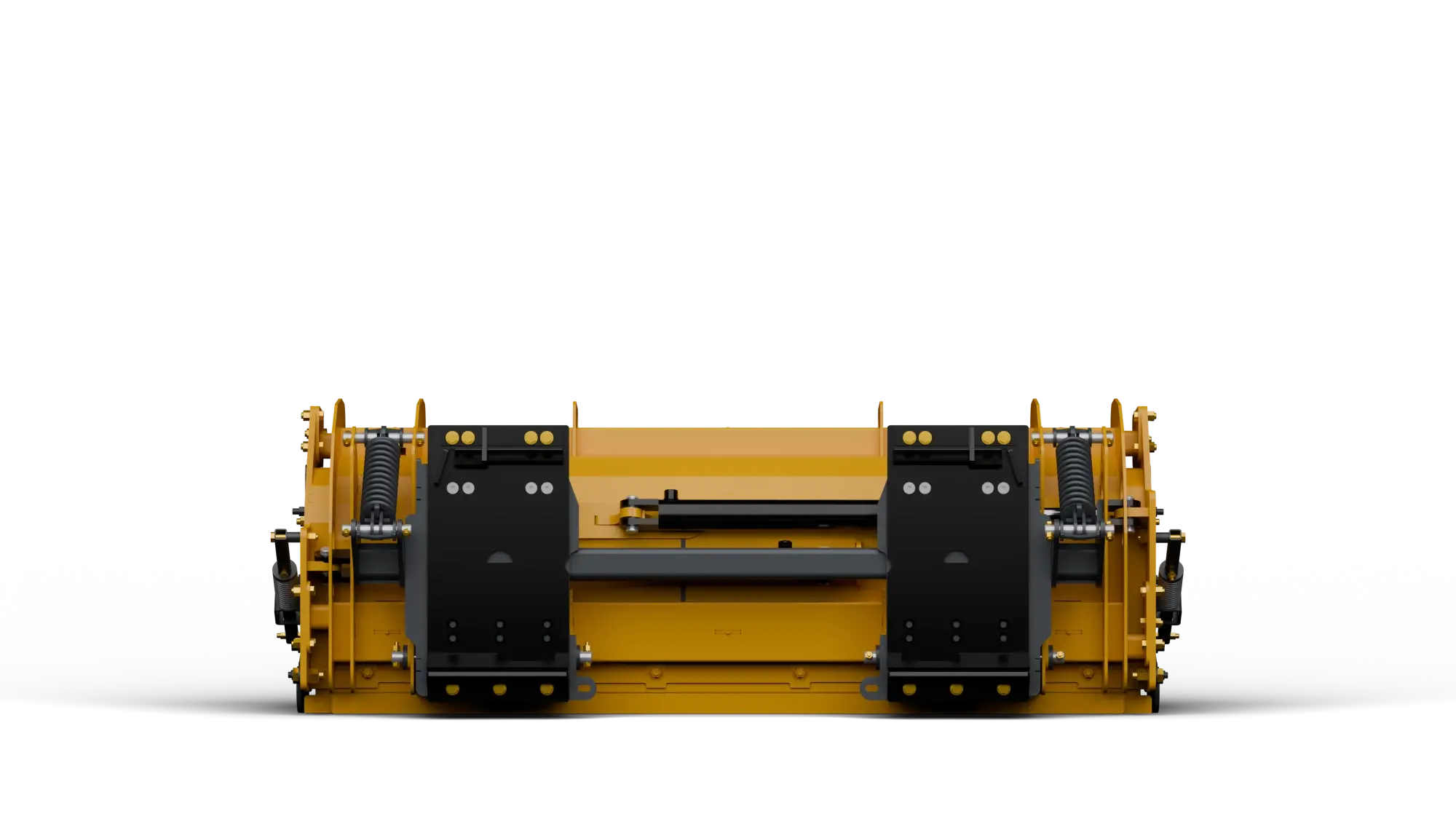

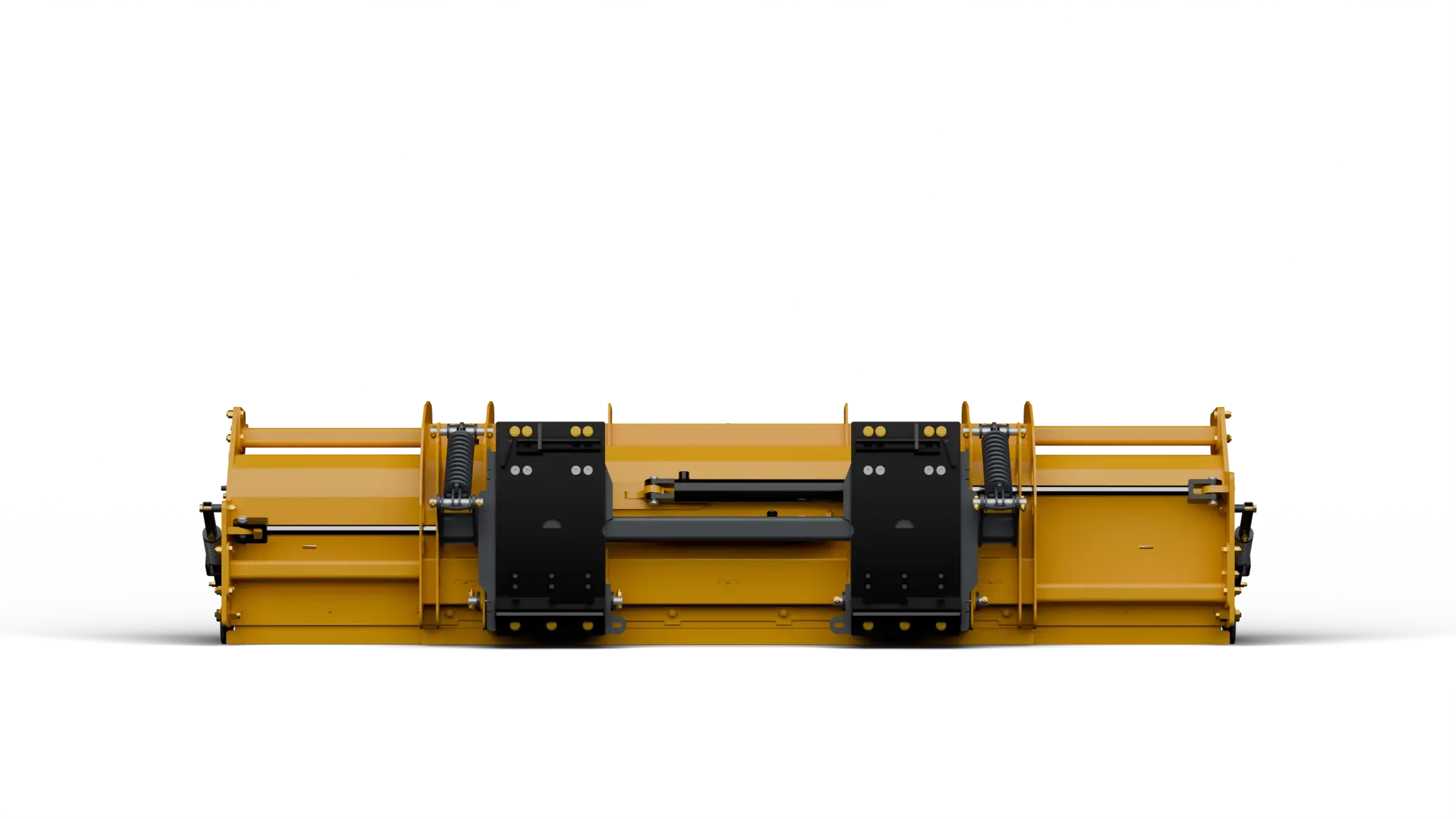

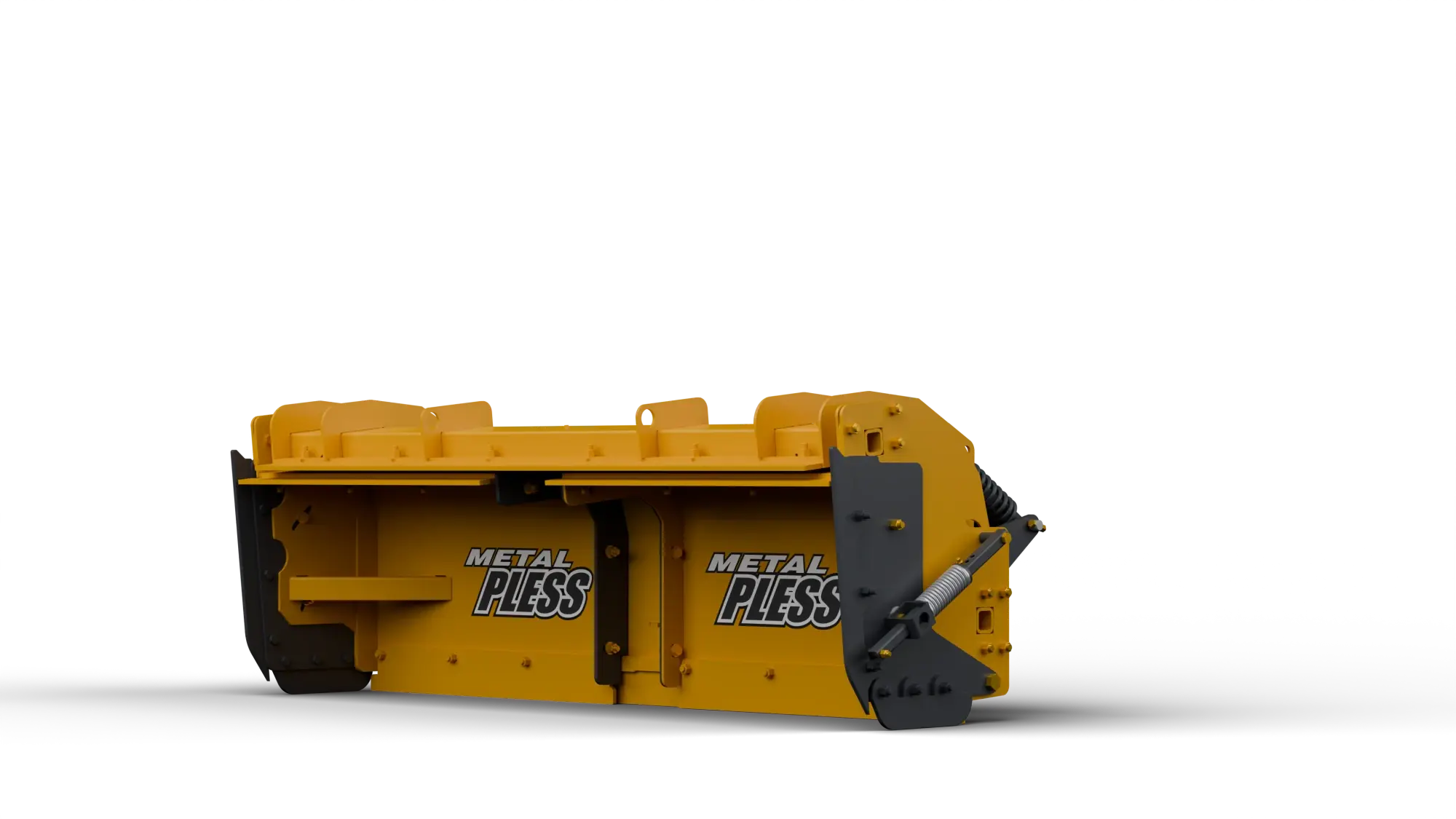

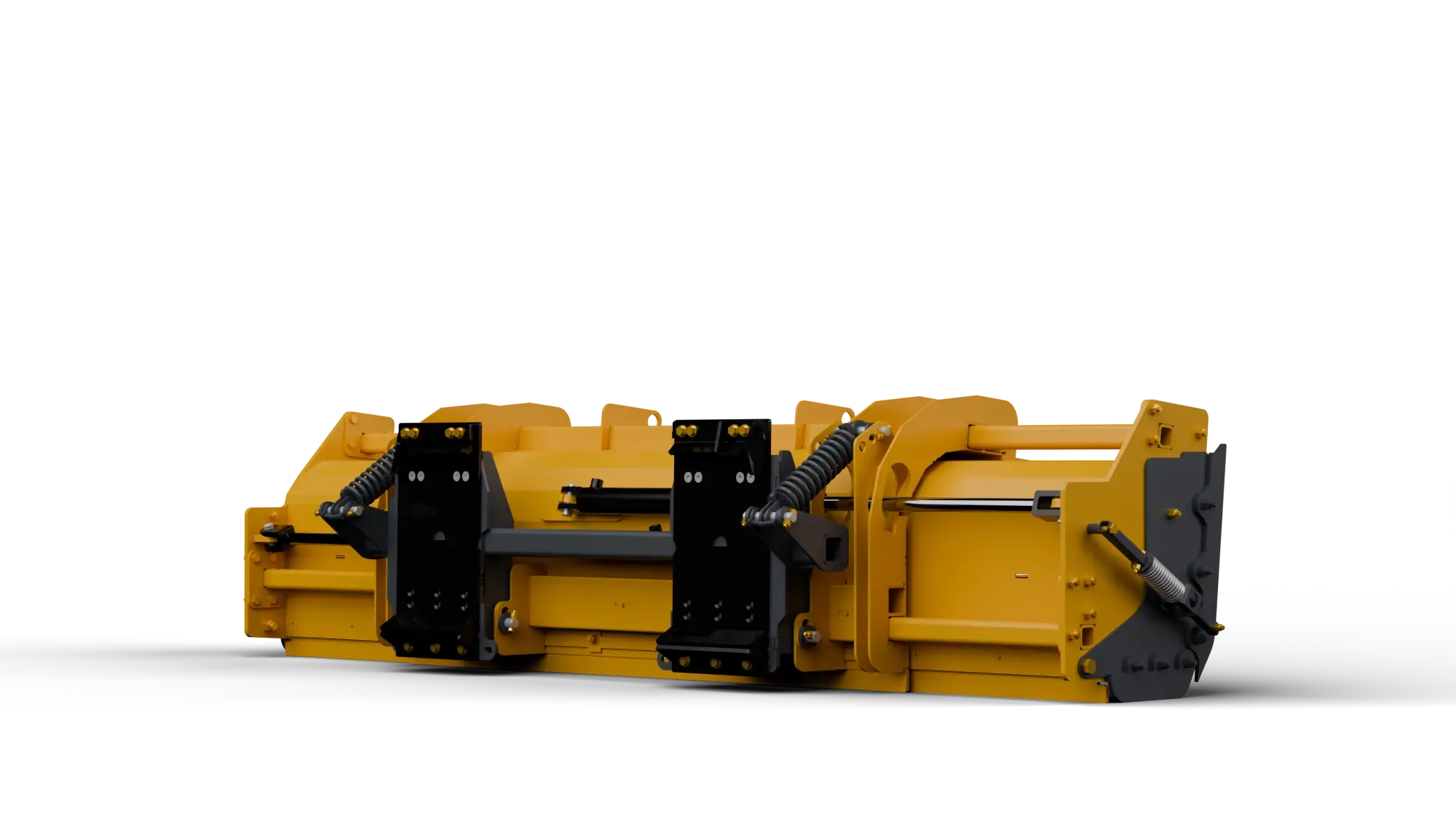

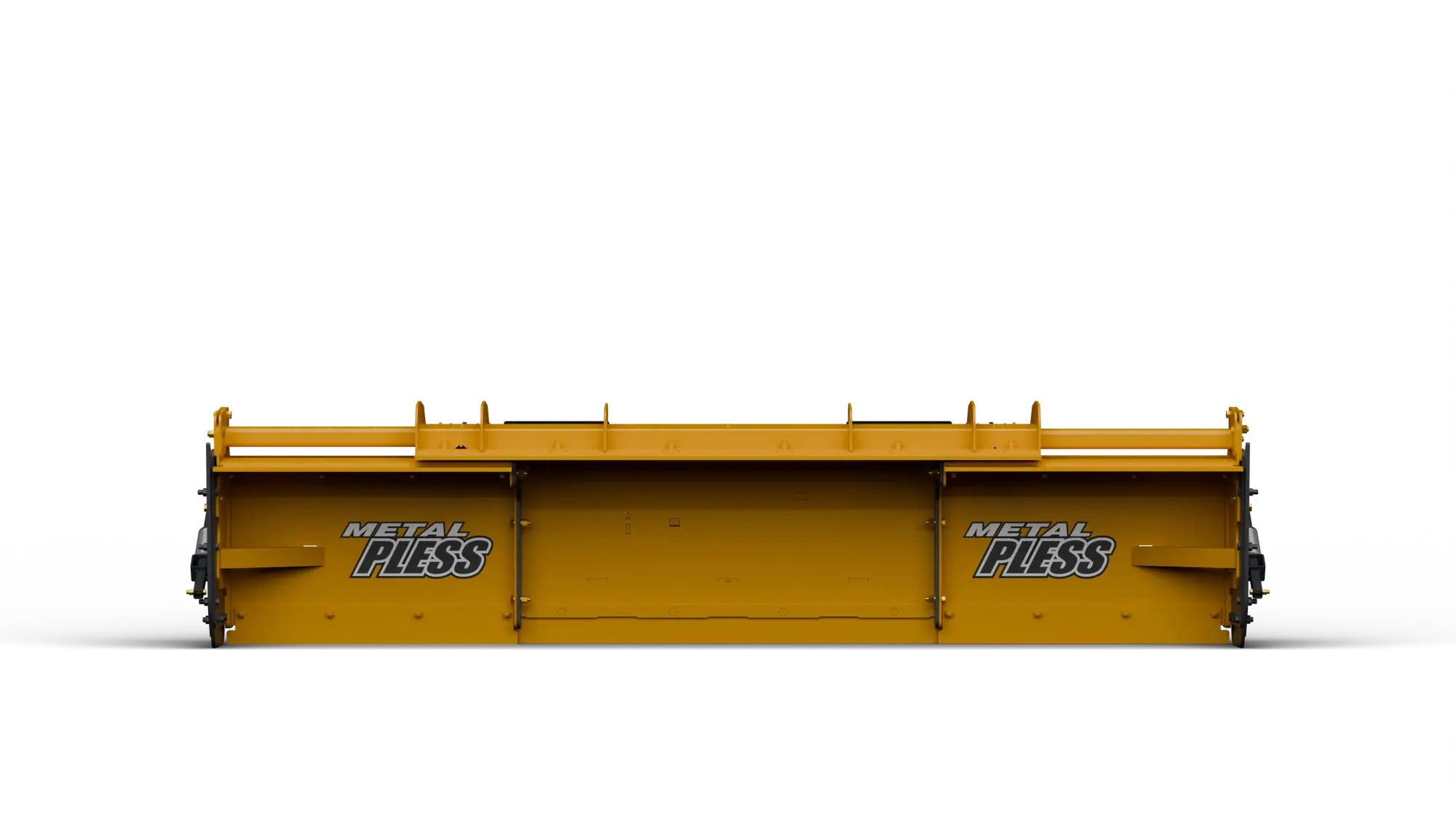

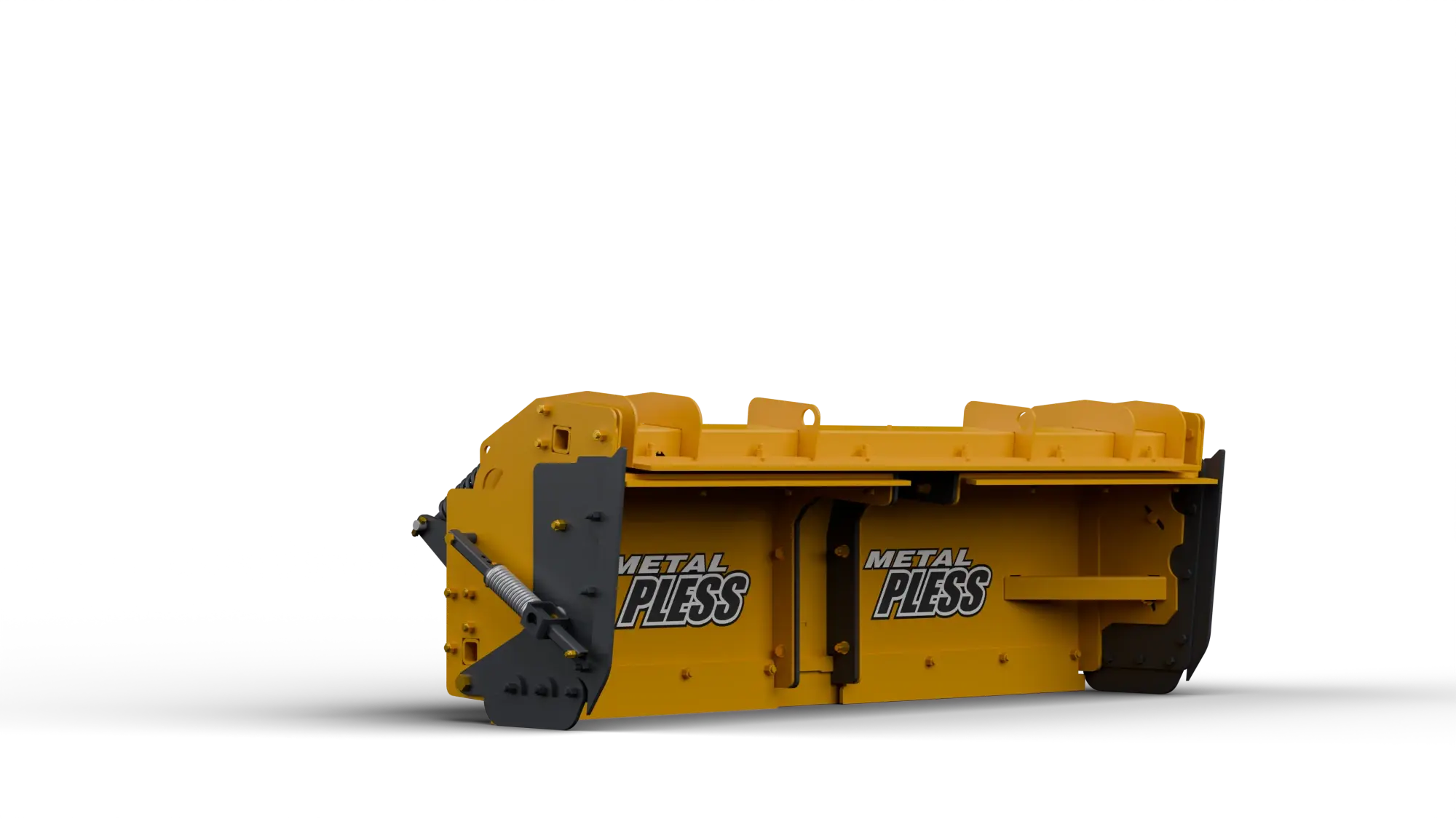

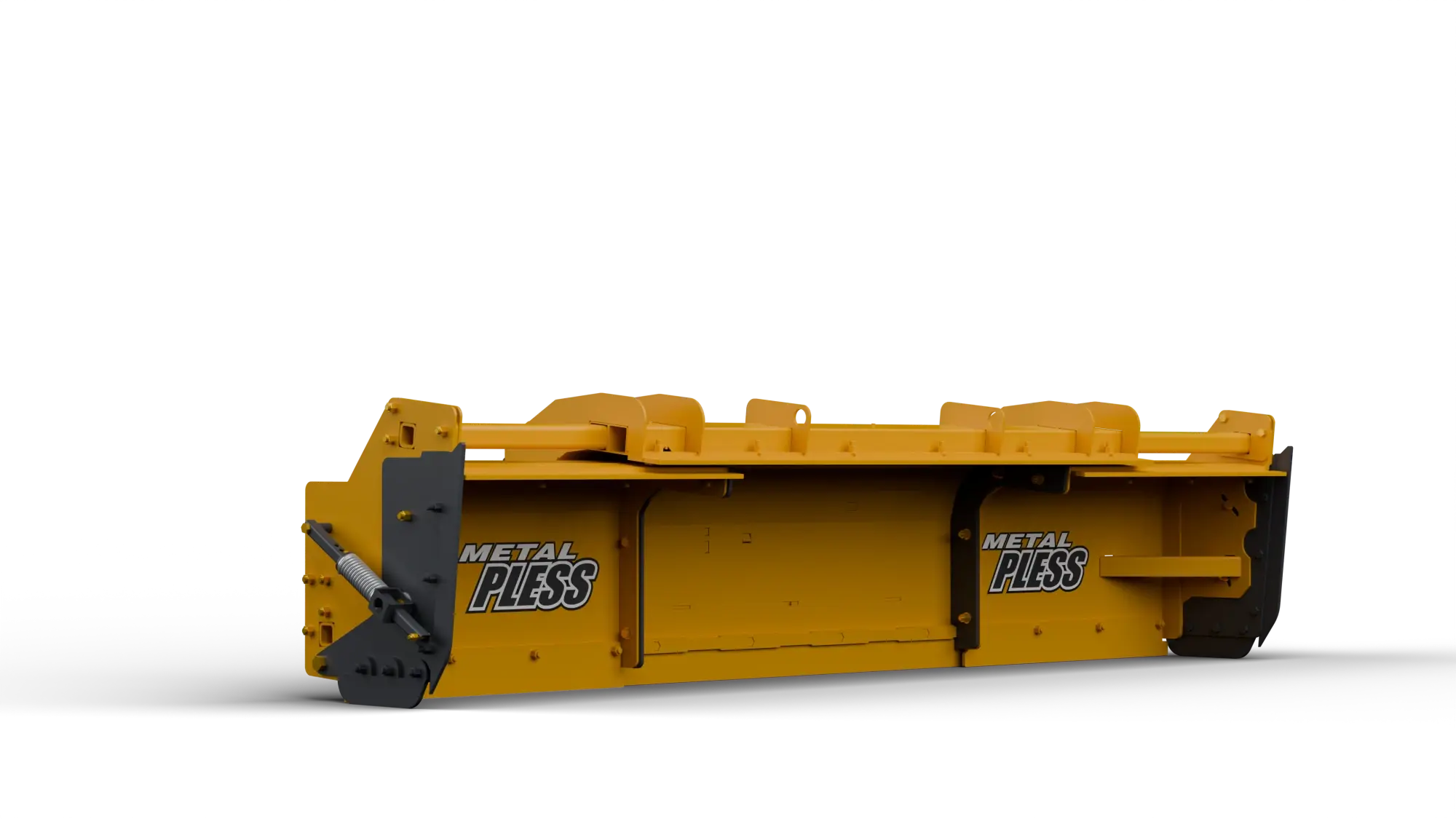

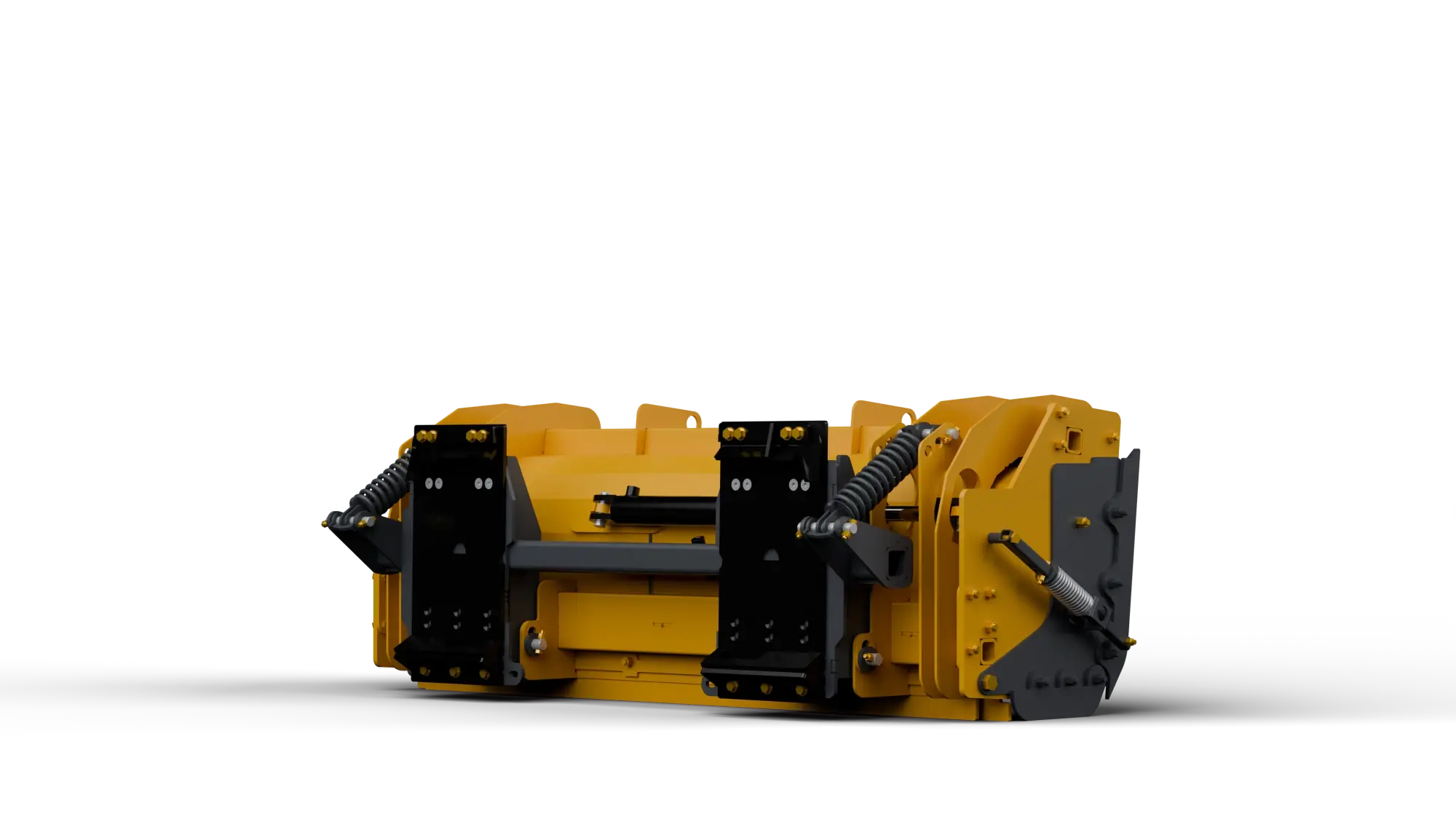

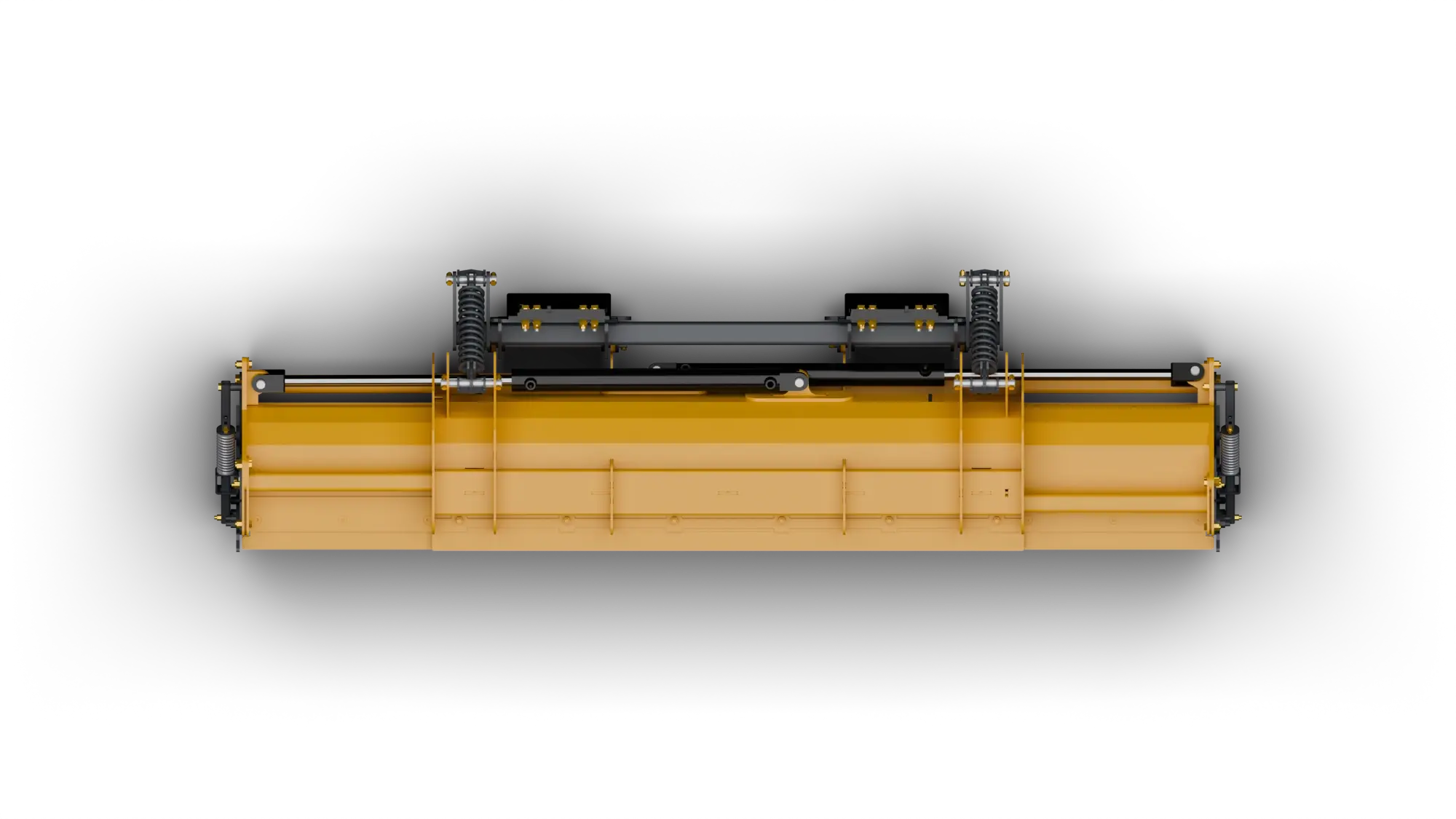

Model shown: R3M 5.5-9 with Standard Edge (STD)

Vehicles
Tractor
Industries
Snow Contractors
Sizes
R3M 5.5-9 R3M 6-10 R3M 6.5-11 R3M 7-12 R3M 7.5-13
Edges
STD
Colors
Get a quote now Find my size

Features

Hydraulic Wings 180

Our wings are constructed with CHT400 steel, making them the strongest in the industry. We use cylinders to move the wings, instead of actuators (hydraulic motors), offering superior holding strength. The leverage is increased by having two cylinders per wing. Additionally, the wings are equipped with a spring that can be adjusted to provide down pressure.

Trip Edge on the Wings

Unique Soft Drive Trip Edge design allows the individual sections to trip backward without the blade being lifted upward, greatly reducing the impact.

Lateral Float

Automatically follows the imperfections of the pavement. Our system incorporates an adjustable oscillating mechanism for better control. Increase plowing efficiency and no need to go over the same area multiple times.

Slip Hitch

Slip hitch design allows the plow to follow surface variations. Reduces operator fatigue and increases plowing efficiency. Cutting edges wear evenly and prolong plow life.

Available edges
  • STD – Standard

    STD Standard

    Standard trip edge allows the cutting edge to trip back.

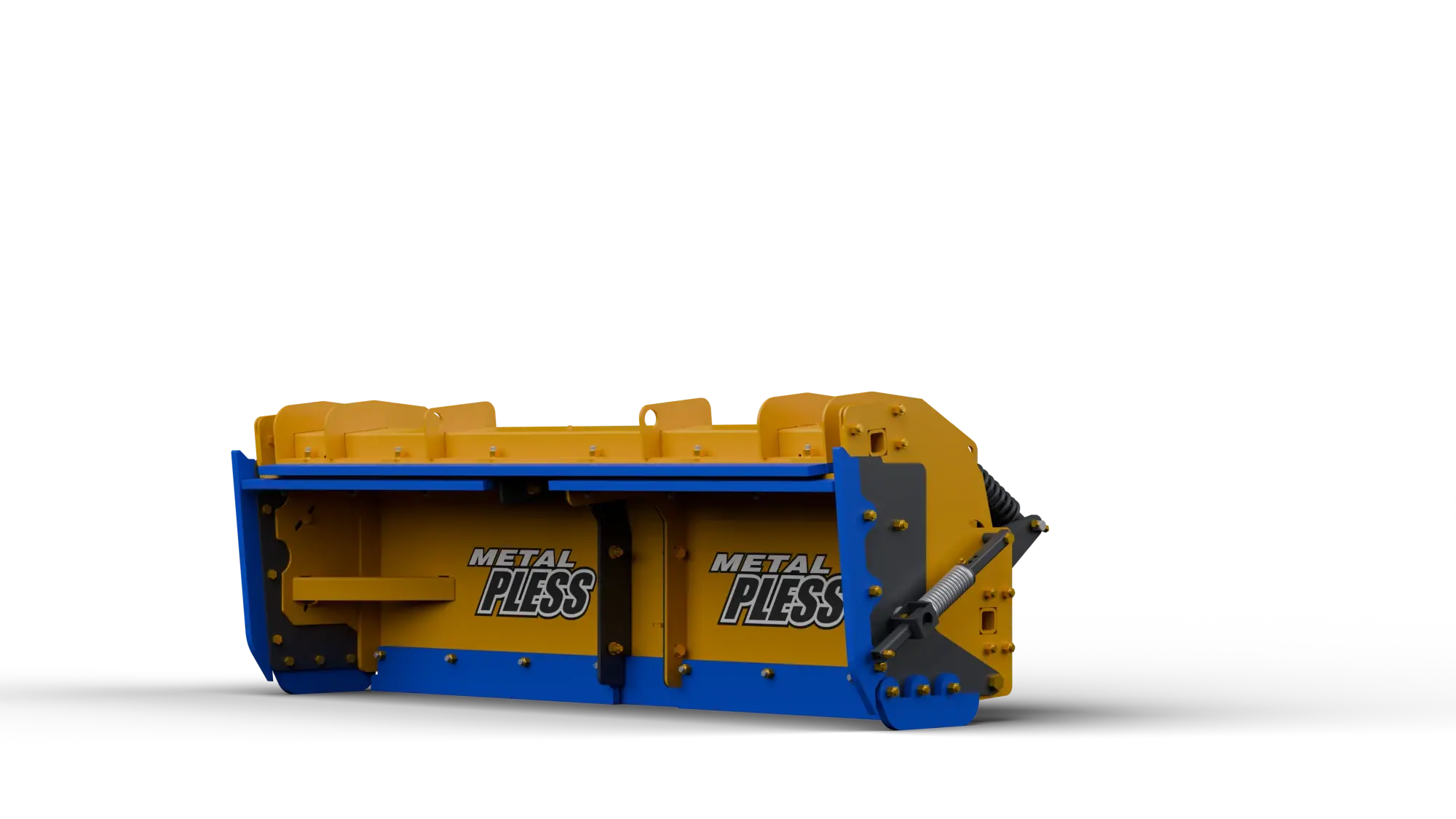

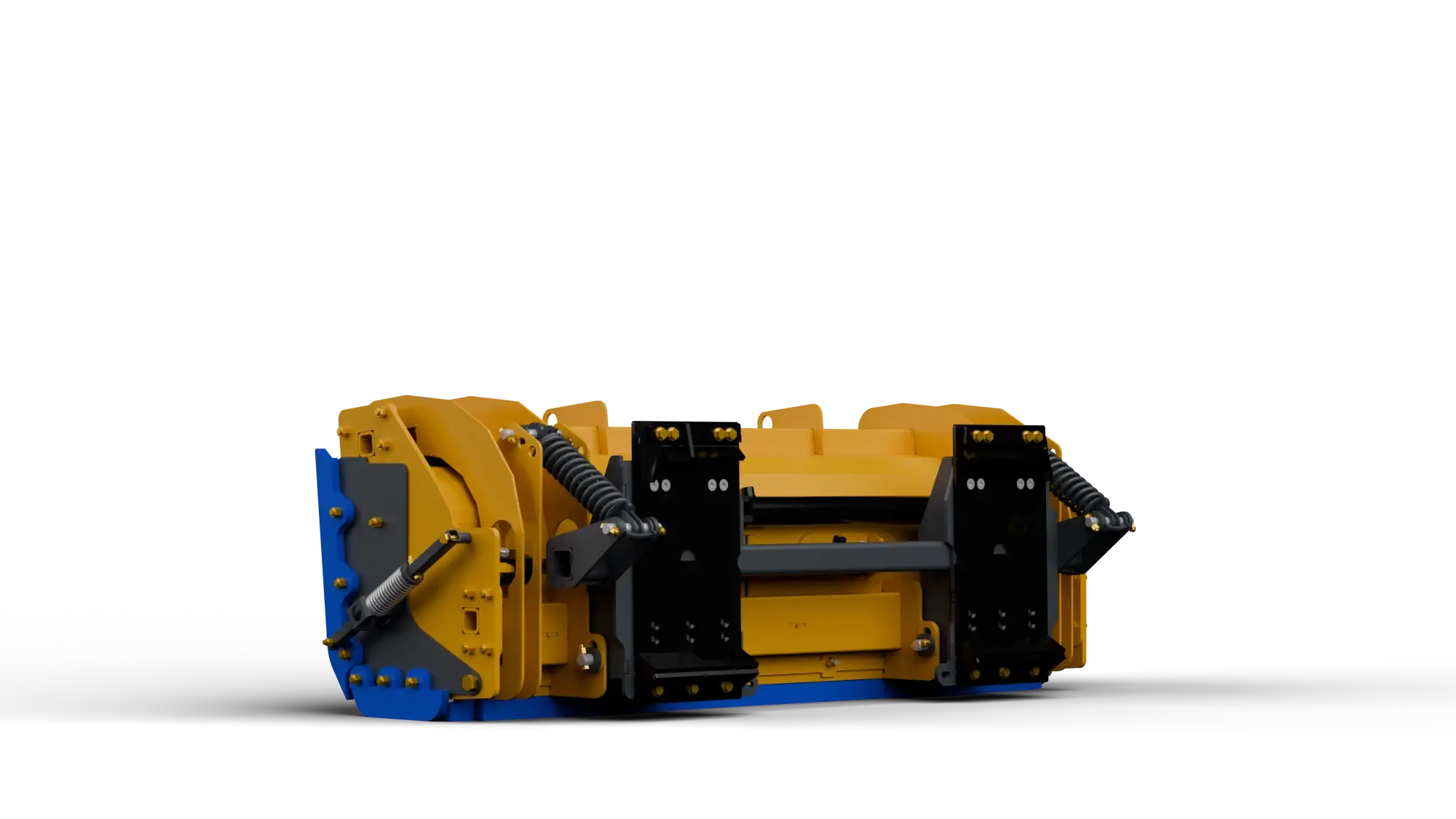

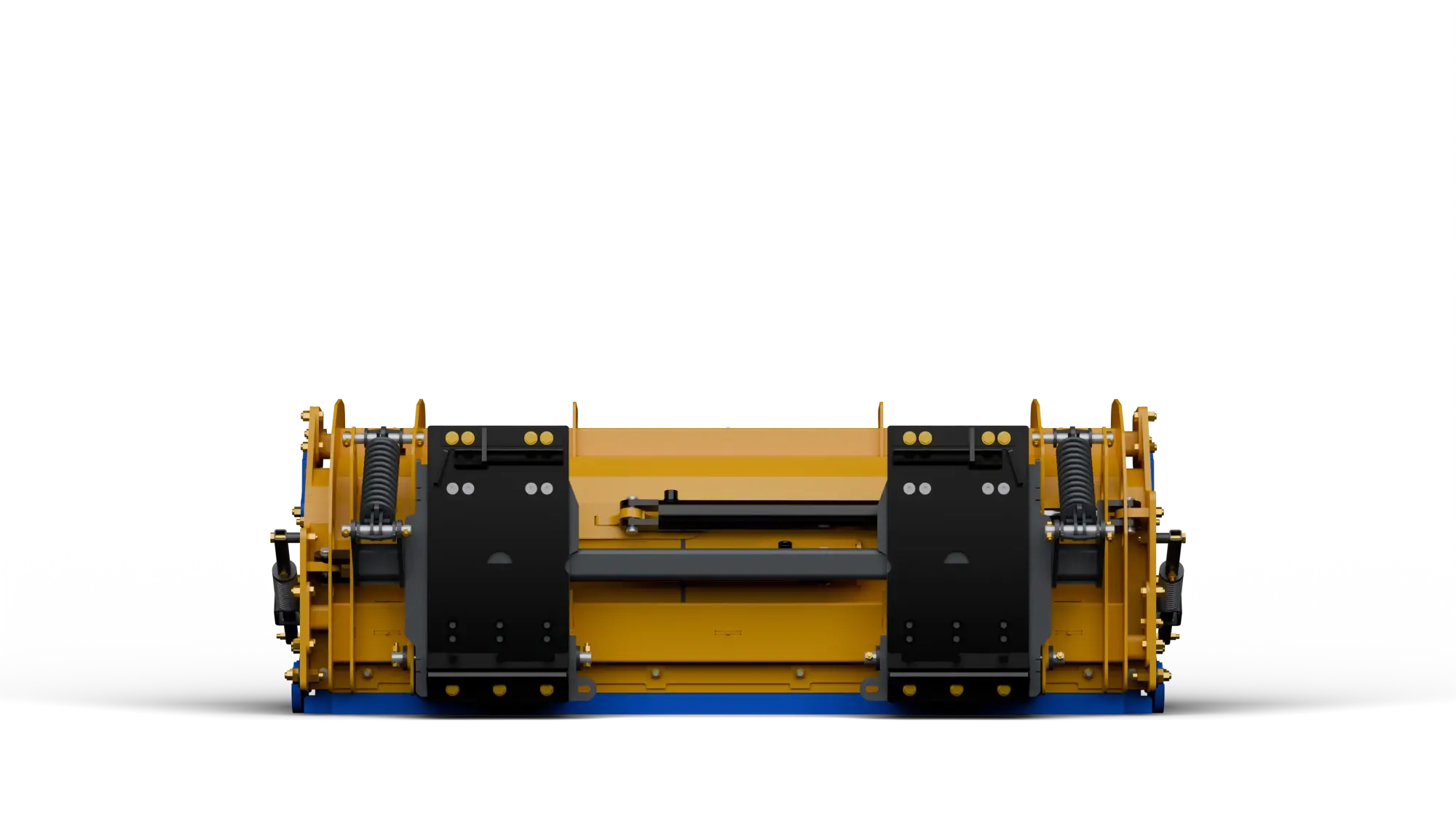

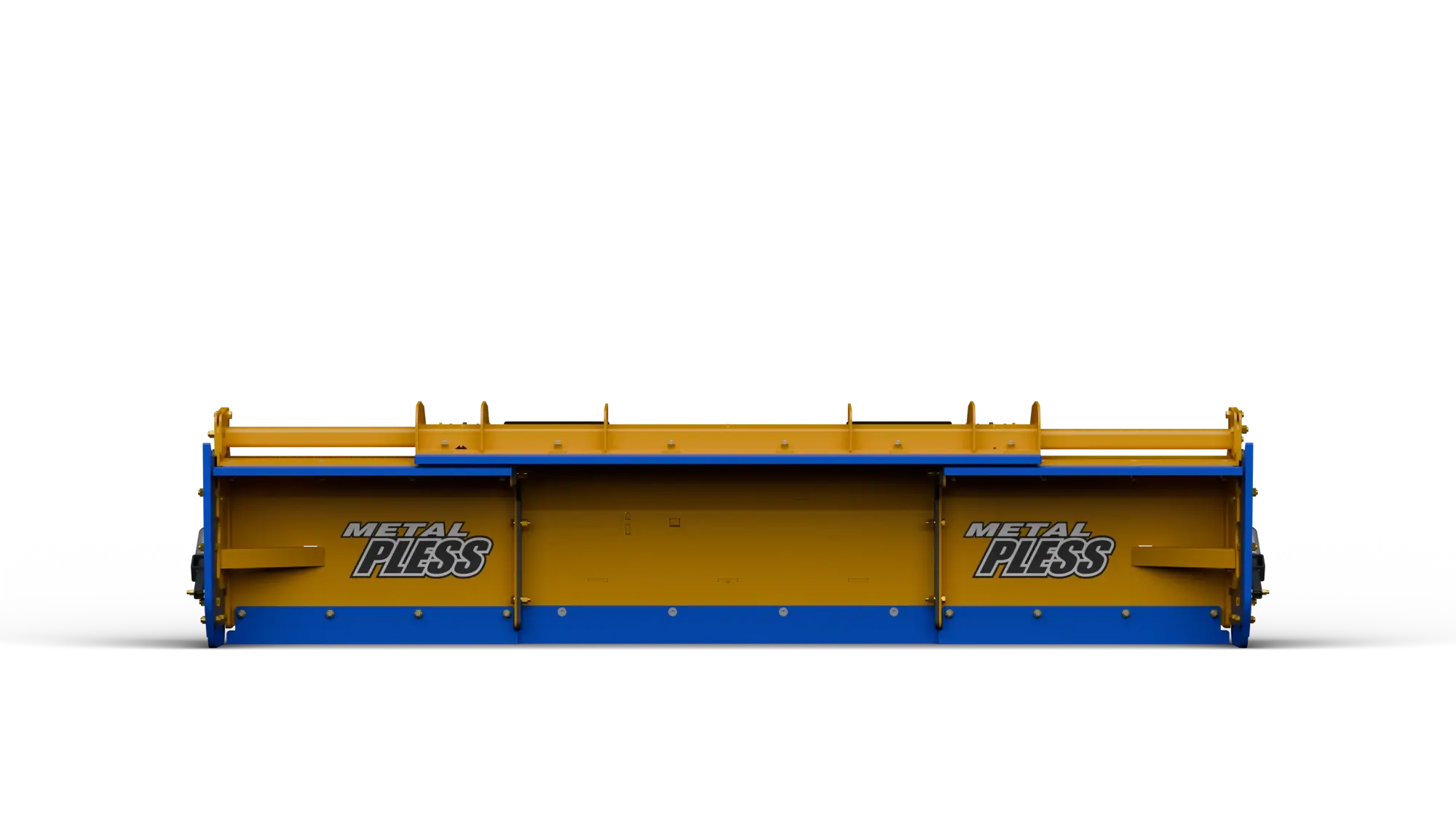

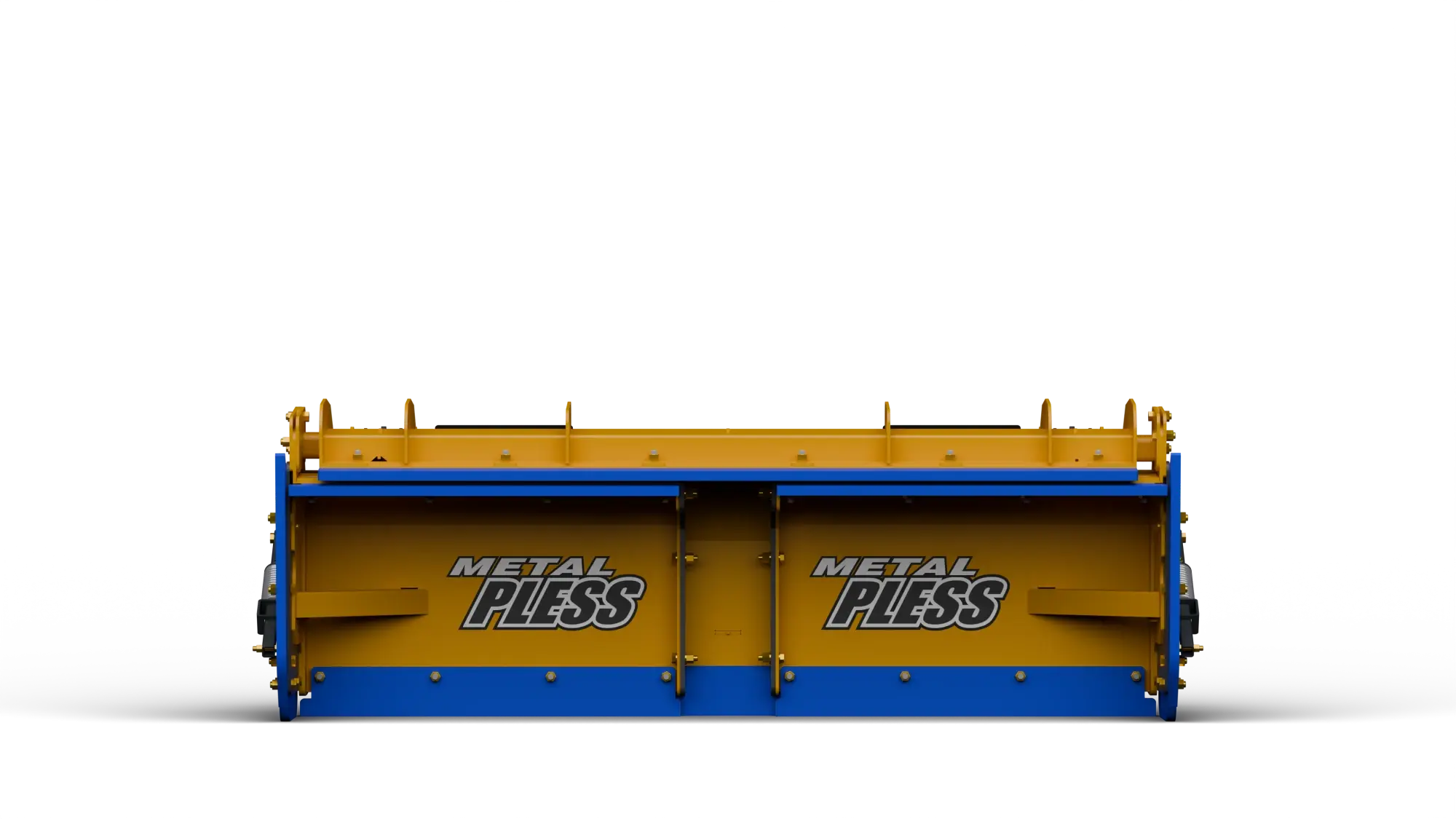

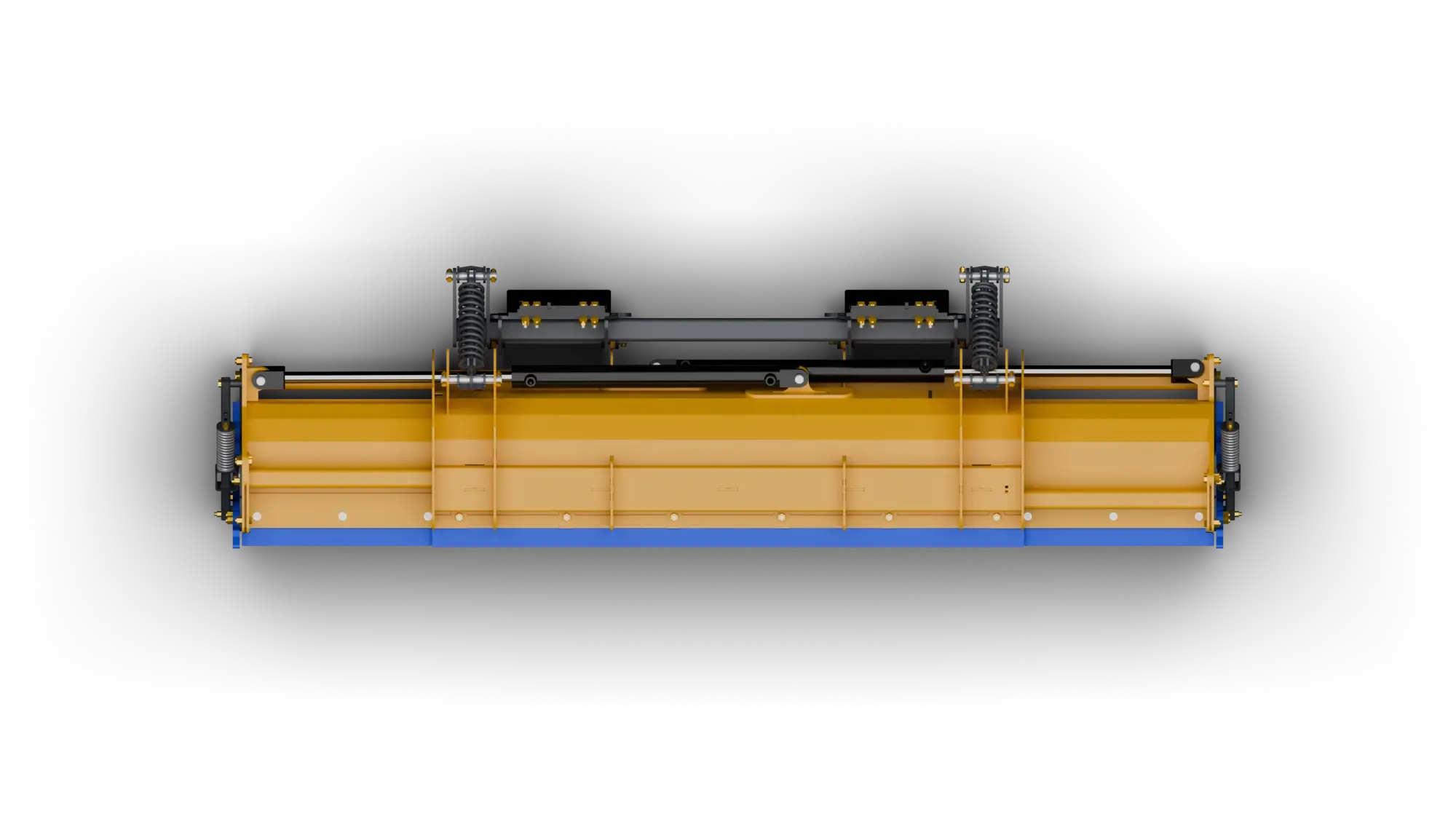

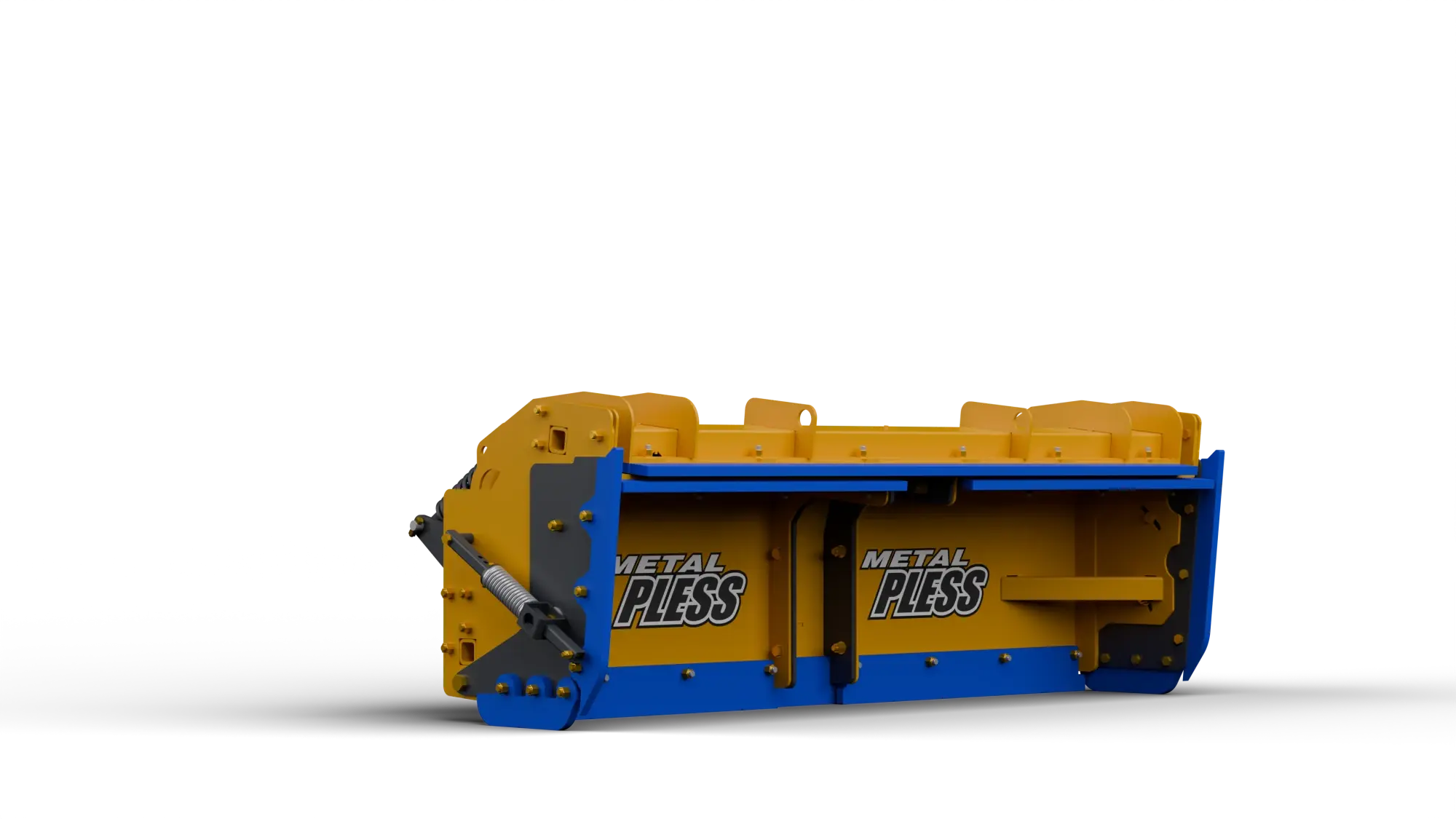

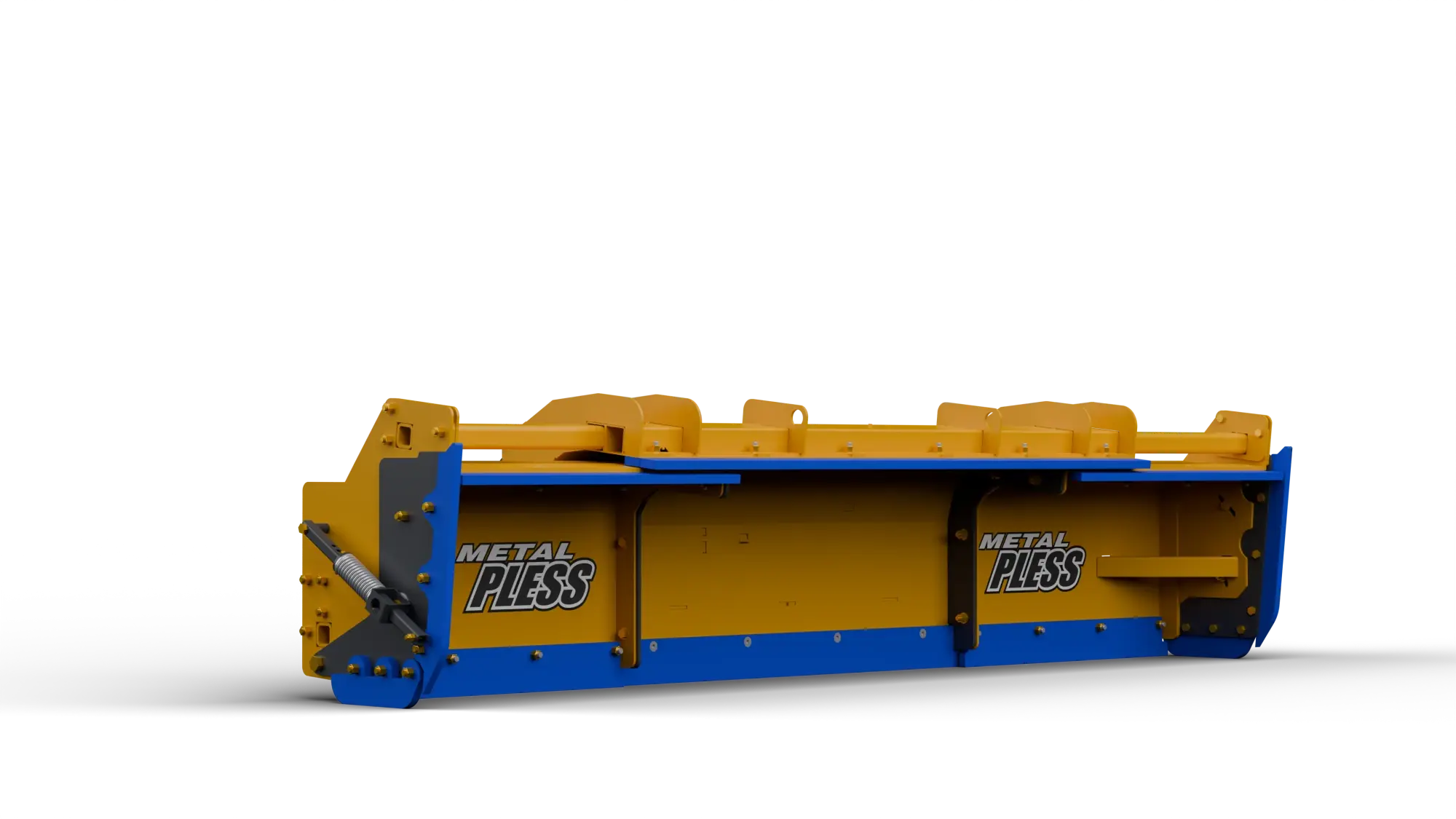

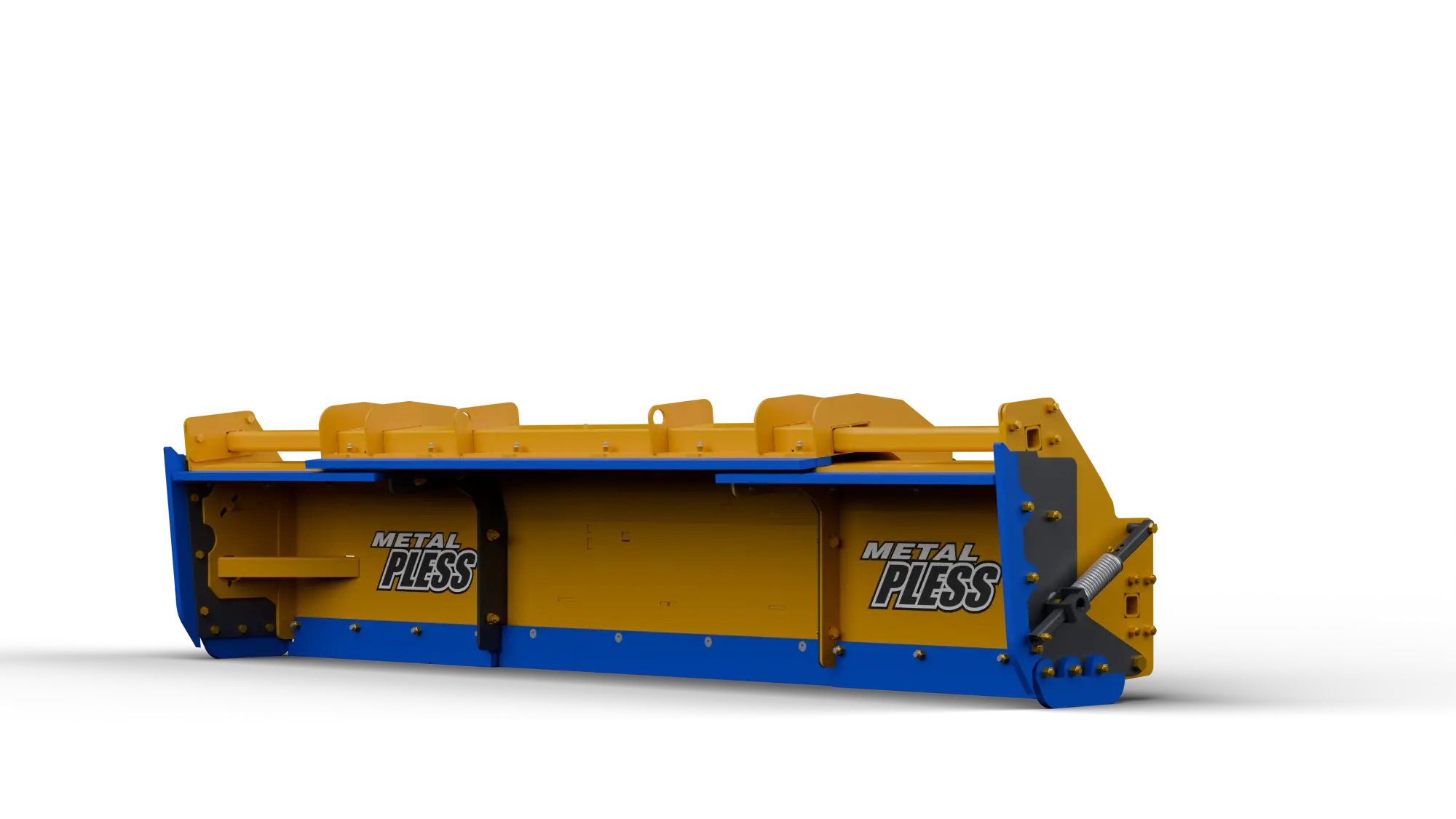

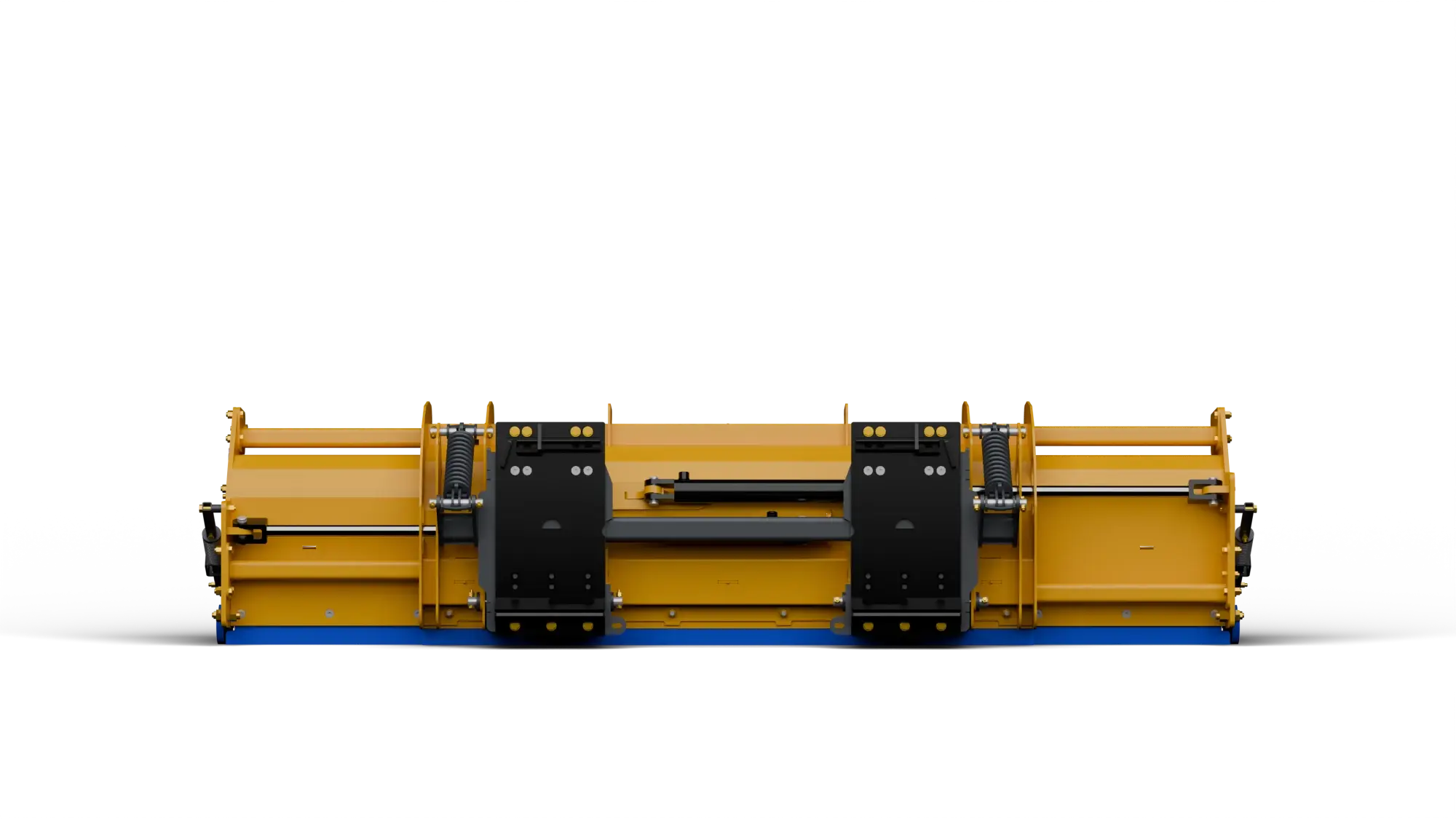

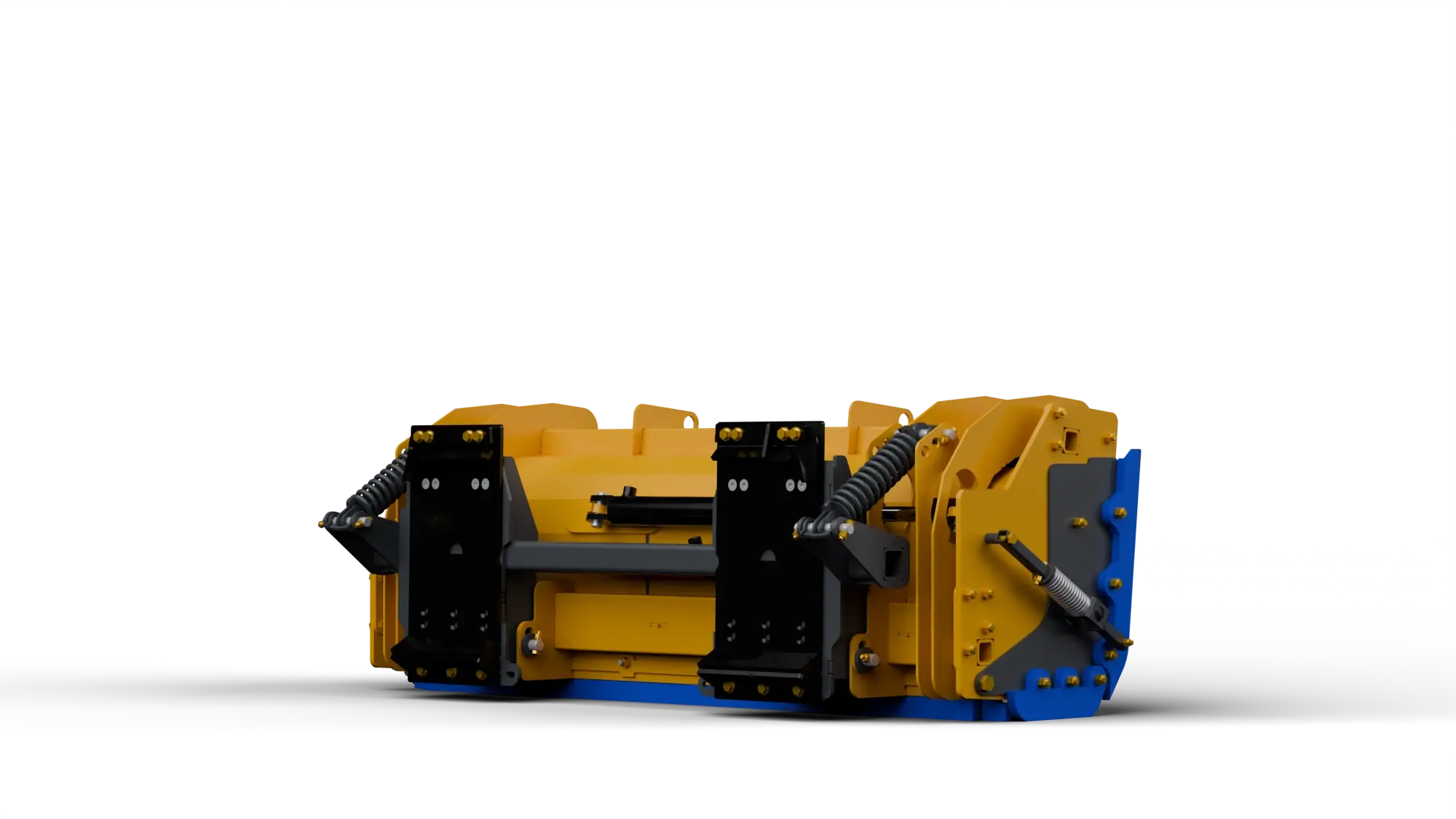

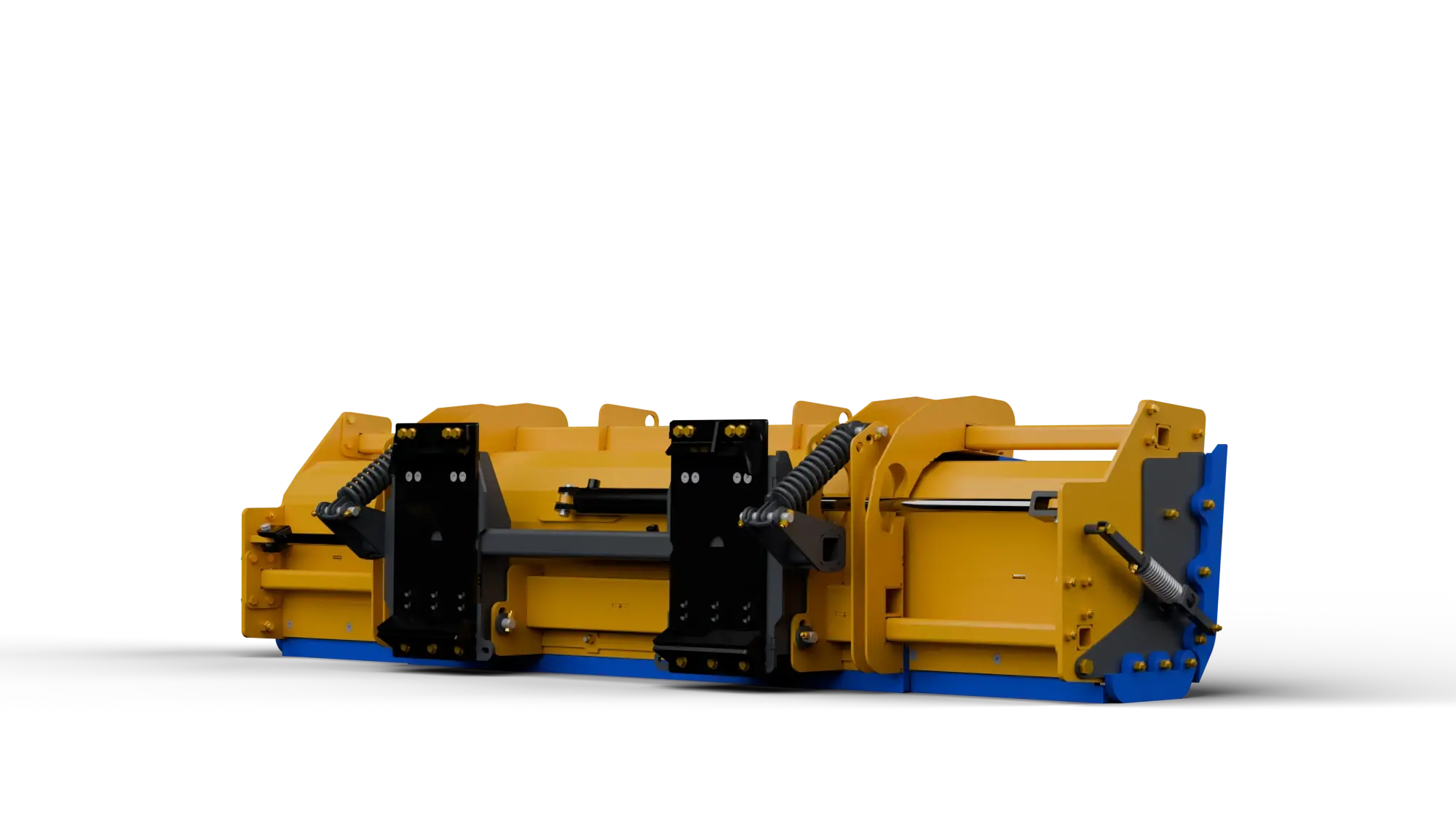

  • TIVAR (option) Tivar

    A UHMW polyethylene cutting edge: it slides easily, runs quiet and is gentle on delicate surfaces.

* Available as an option.

Compatibility
  • Tractor

Sizes & specifications
R3Maxx — Sizes & specifications
Model Available Edges Blade Dimensions Wing Size (each side) Side Gate Depth Application Wing / Gate Type Approx. Weight Compare
Box Height
R3M 5.5-9 STD 5.5' 20" 9' 16" 30-40 HP Hydraulic wings 800 lb
R3M 6-10 STD 6' 24" 10' 18" 40-70 HP Hydraulic wings 1,000 lb
R3M 6.5-11 STD 6.5' 24" 11' 18" 70-90 HP Hydraulic wings 1,200 lb
R3M 7-12 STD 7' 32" 12' 24" 80-120 HP Hydraulic wings 1,600 lb
R3M 7.5-13 STD 7.5' 32" 13' 24" 80-120 HP Hydraulic wings 2,015 lb

*Ask about our Tivar options
