ExtendMaxx-EX4

ExtendMaxx-EX4

ExtendMaxx-EX4 comes in 6 sizes, with moldboards from 6' to 10'. Built for tractors.

Model shown: EX4 06-10 with Standard Edge (STD)

Vehicles
Tractor
Industries
Snow Contractors Municipalities Airports
Sizes
EX4 06-10 EX4 07-12 EX4 08-13 EX4 08-14 EX4HD 08-14 EX4HD 10-16
Edges
STD HD LE
Colors
Get a quote now Find my size

Features

Live Edge Technology

Independent floating sections follow the unevenness of the ground and trip back on their own. Full contact with the surface means a cleaner pass, fewer passes and less salt, and carbide inserts extend the wear life.

Lateral Float

Automatically follows the imperfections of the pavement. Our system incorporates an adjustable oscillating mechanism for better control. Increase plowing efficiency and no need to go over the same area multiple times.

Slip Hitch

Slip hitch design allows the plow to follow surface variations. Reduces operator fatigue and increases plowing efficiency. Cutting edges wear evenly and prolong plow life.

Available edges
  • STD – Standard

    STD Standard

    Standard trip edge allows the cutting edge to trip back.

  • HD – Soft Drive Trip Edge

    HD Soft Drive Trip Edge

    Unique Soft Drive trip edge design allows the individual sections to trip backward without the blade being lifted upward, greatly reducing the impact.

  • LE – Live Edge

    LE Live Edge

    A floating soft drive steel trip edge with carbide inserts for longer wear life, that contours the unevenness of the ground for a cleaner result.

Compatibility
  • Tractor

Sizes & specifications
ExtendMaxx-EX4 — Sizes & specifications
Model Available Edges Blade Dimensions Application Approx. Weight Compare
Box Height Extended
EX4 06-10 STD 6' 24" 10' 40-70 HP 1,060 lb
EX4 07-12 STD 7' 30" 12' 70-80 HP 1,520 lb
EX4 08-13 STD 8' 36" 13' 80-100 HP 2,080 lb
EX4 08-14 STD 8' 42" 14' 100 HP and up 2,390 lb
EX4HD 08-14 HD - LE 8' 36" 14' 80-100 HP 2,390 lb (HD) · 2,900 lb (LE)
EX4HD 10-16 HD - LE 10' 36" 16' 80-120 HP 3,400 lb (HD) · 3,410 lb (LE)

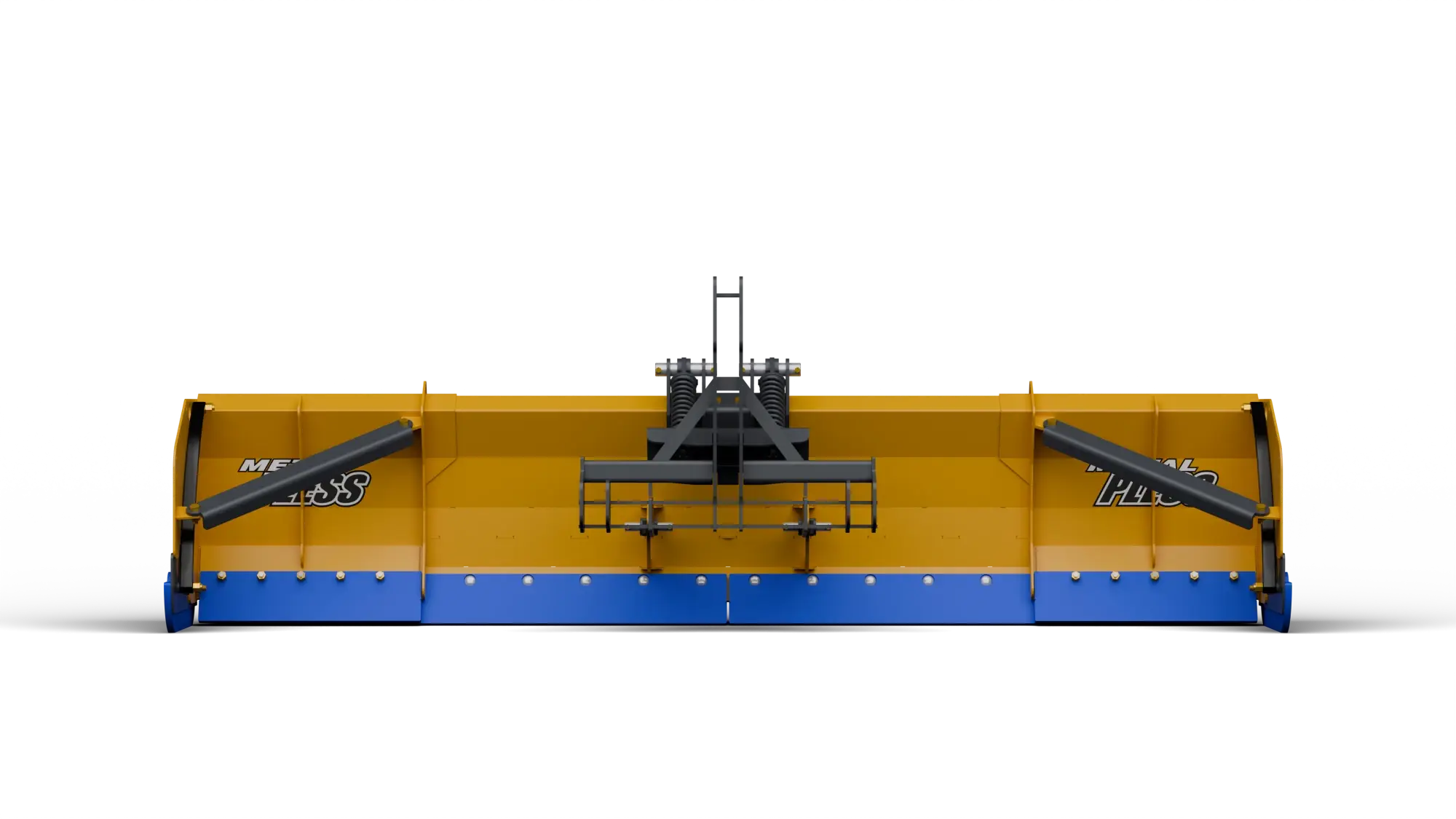

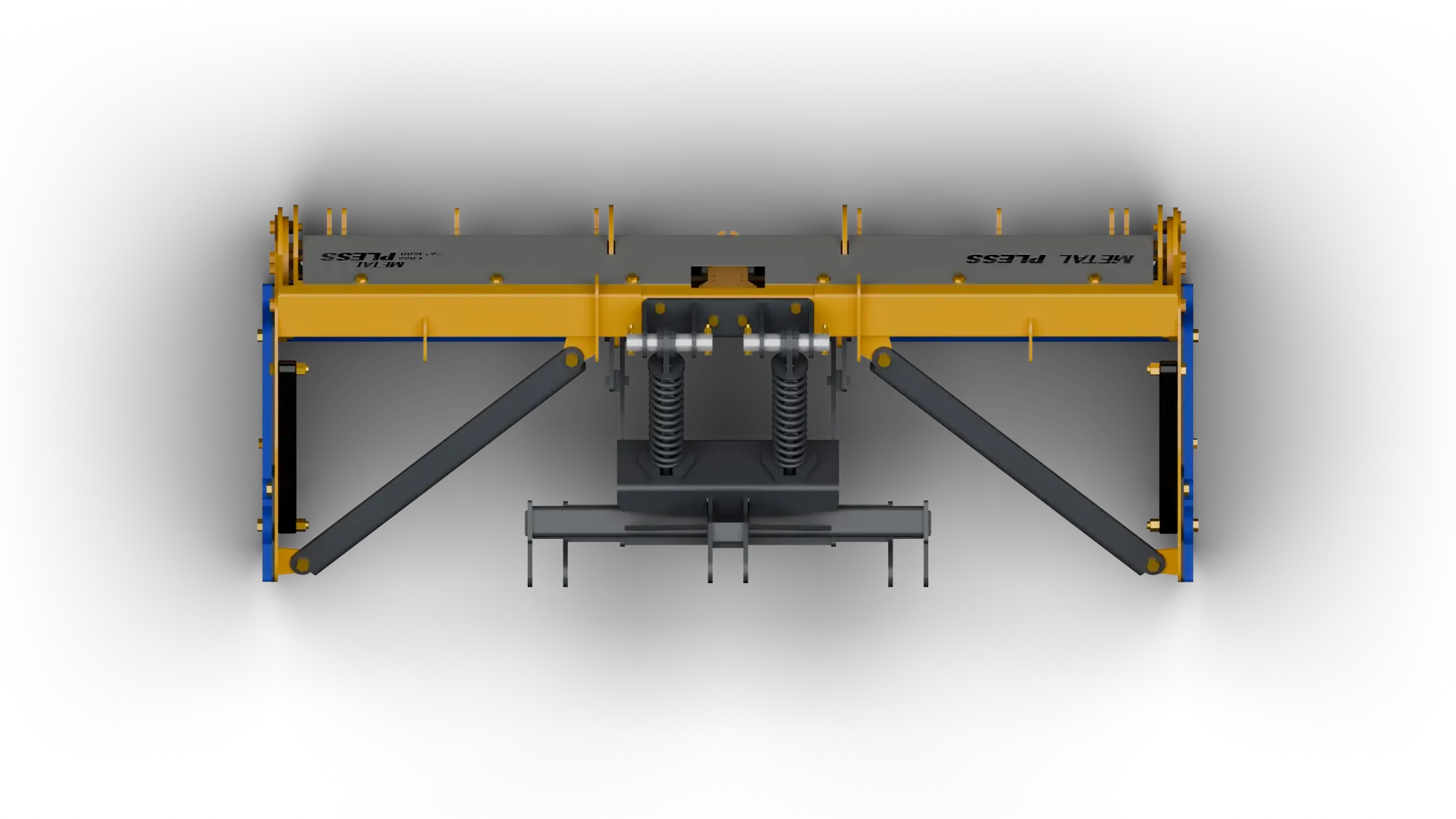

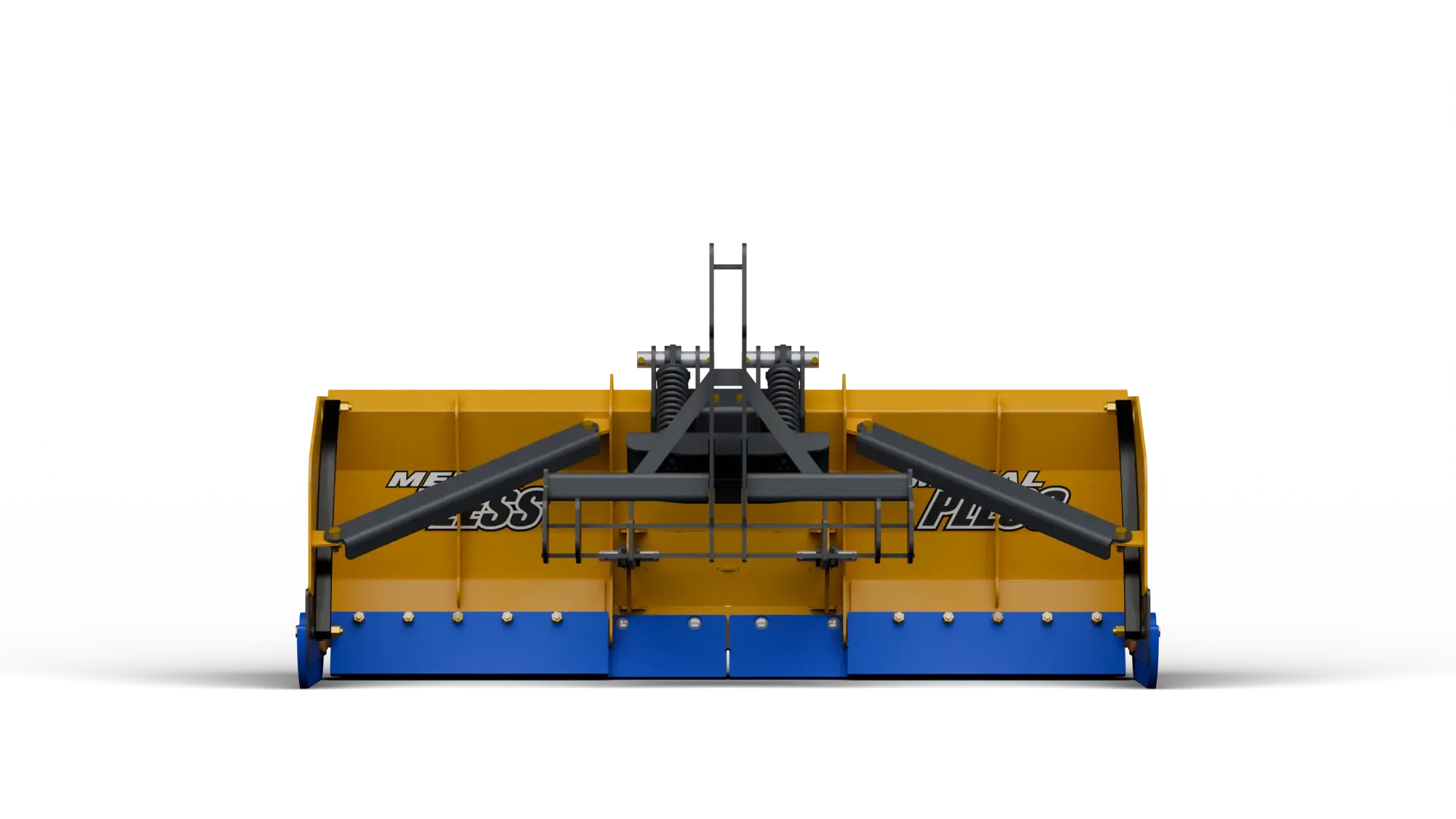

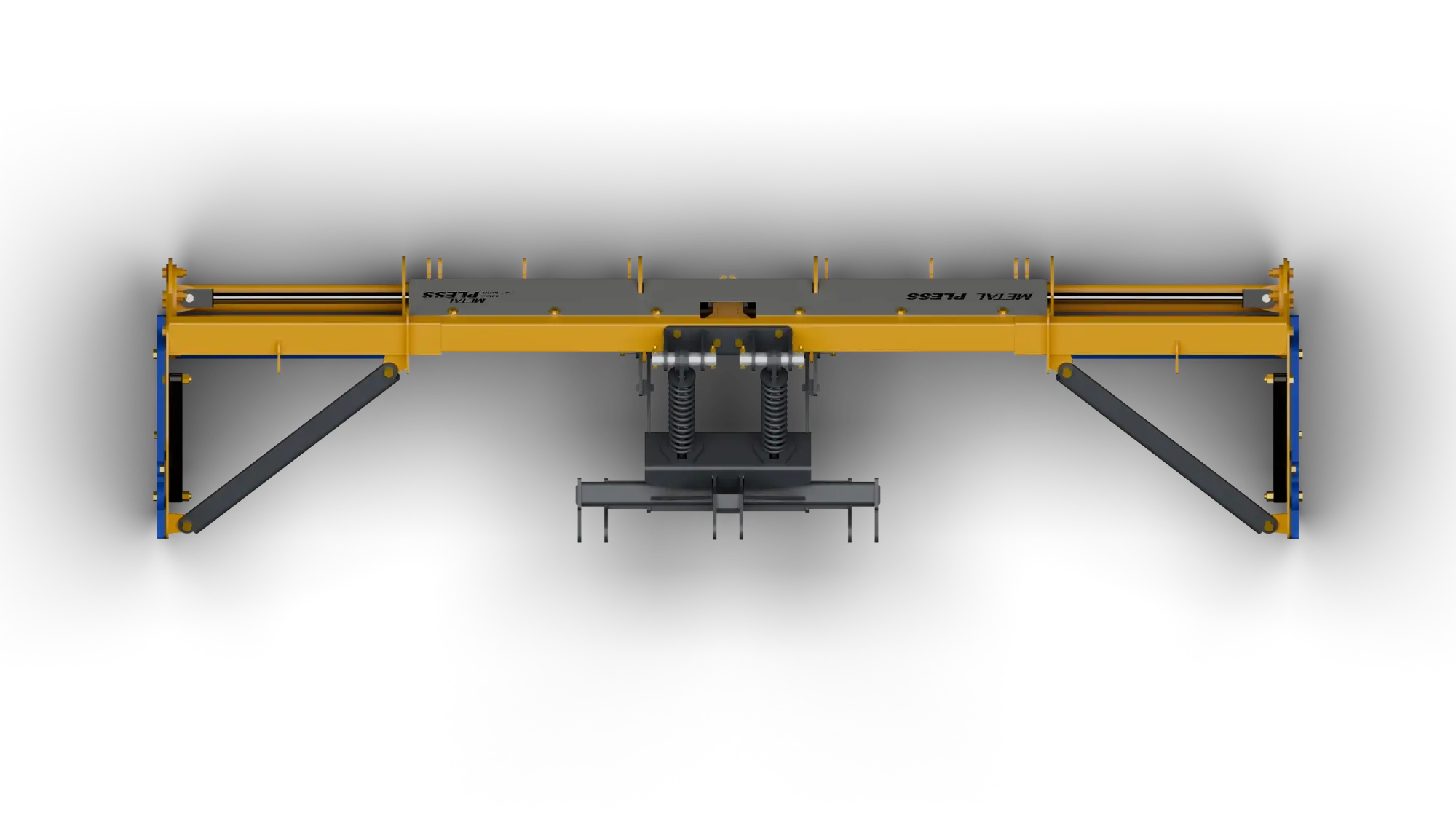

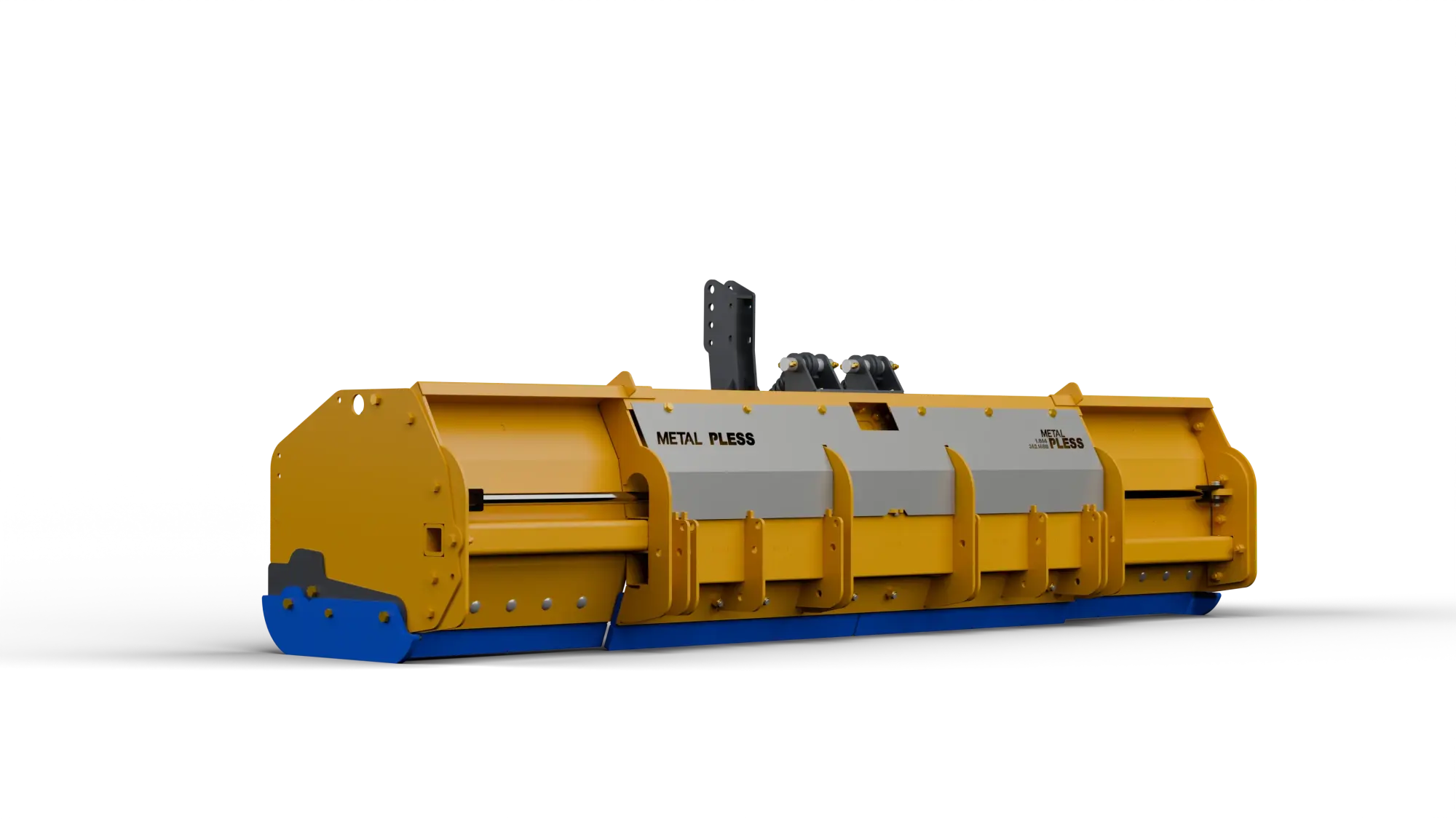

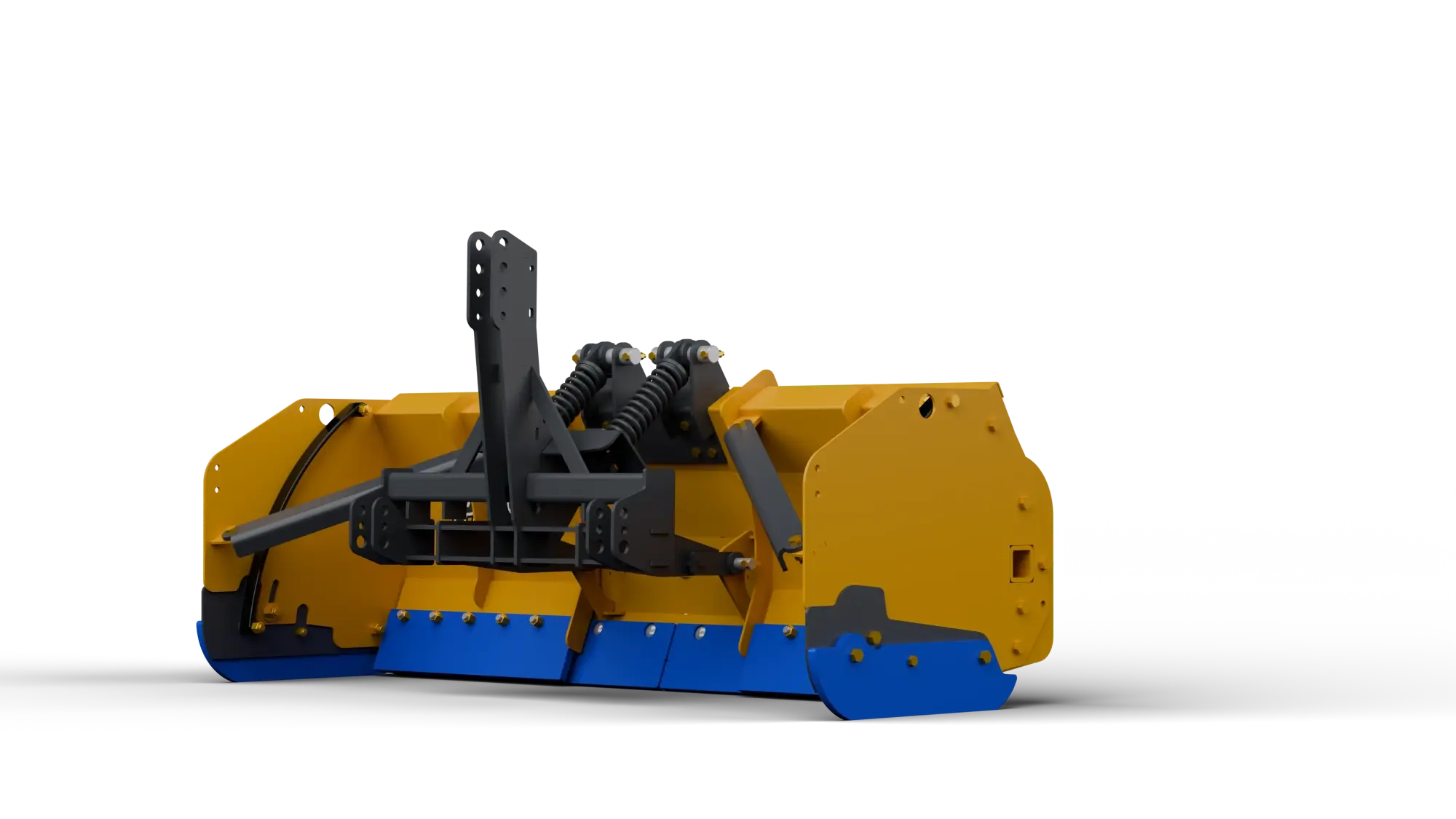

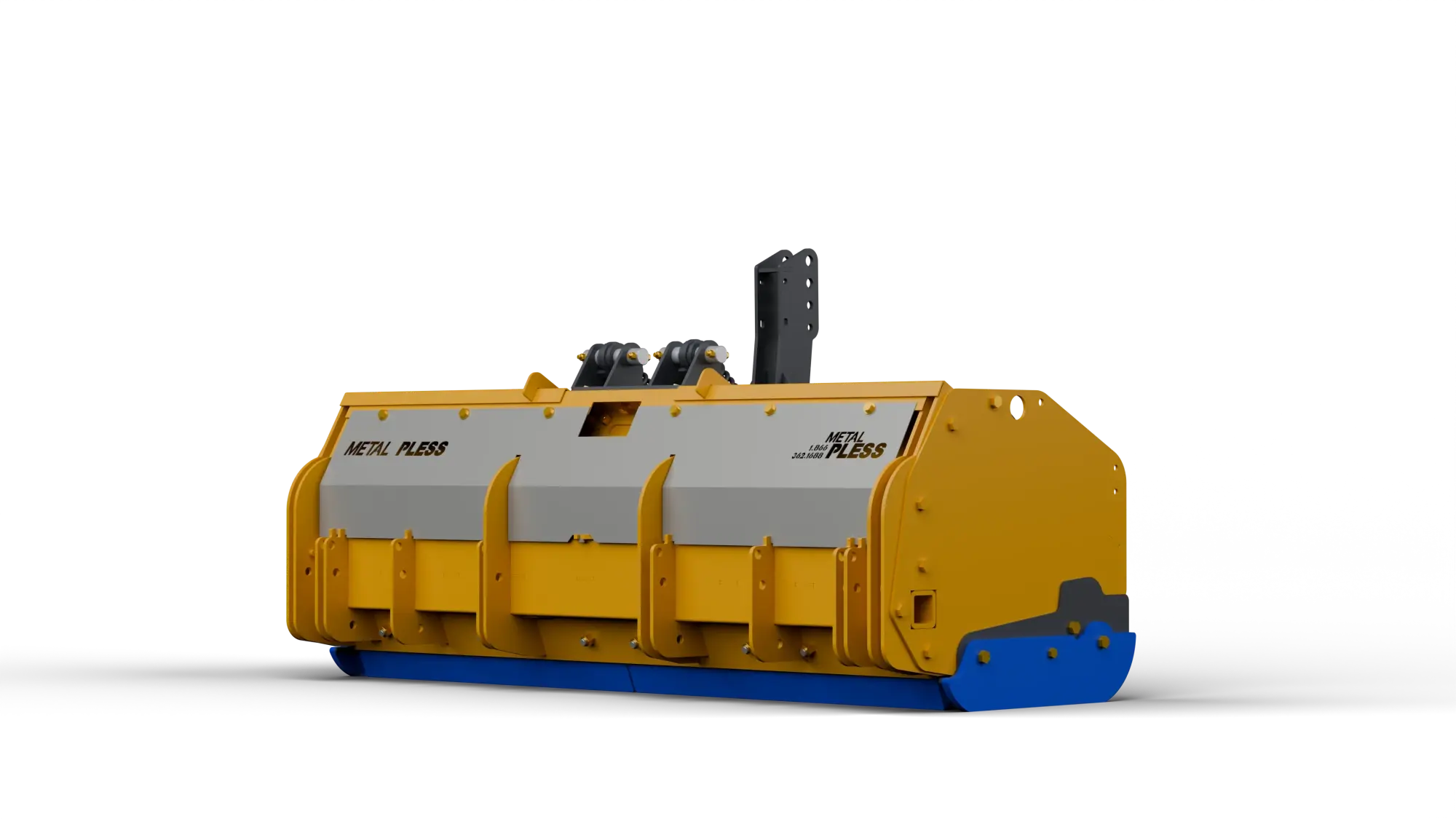

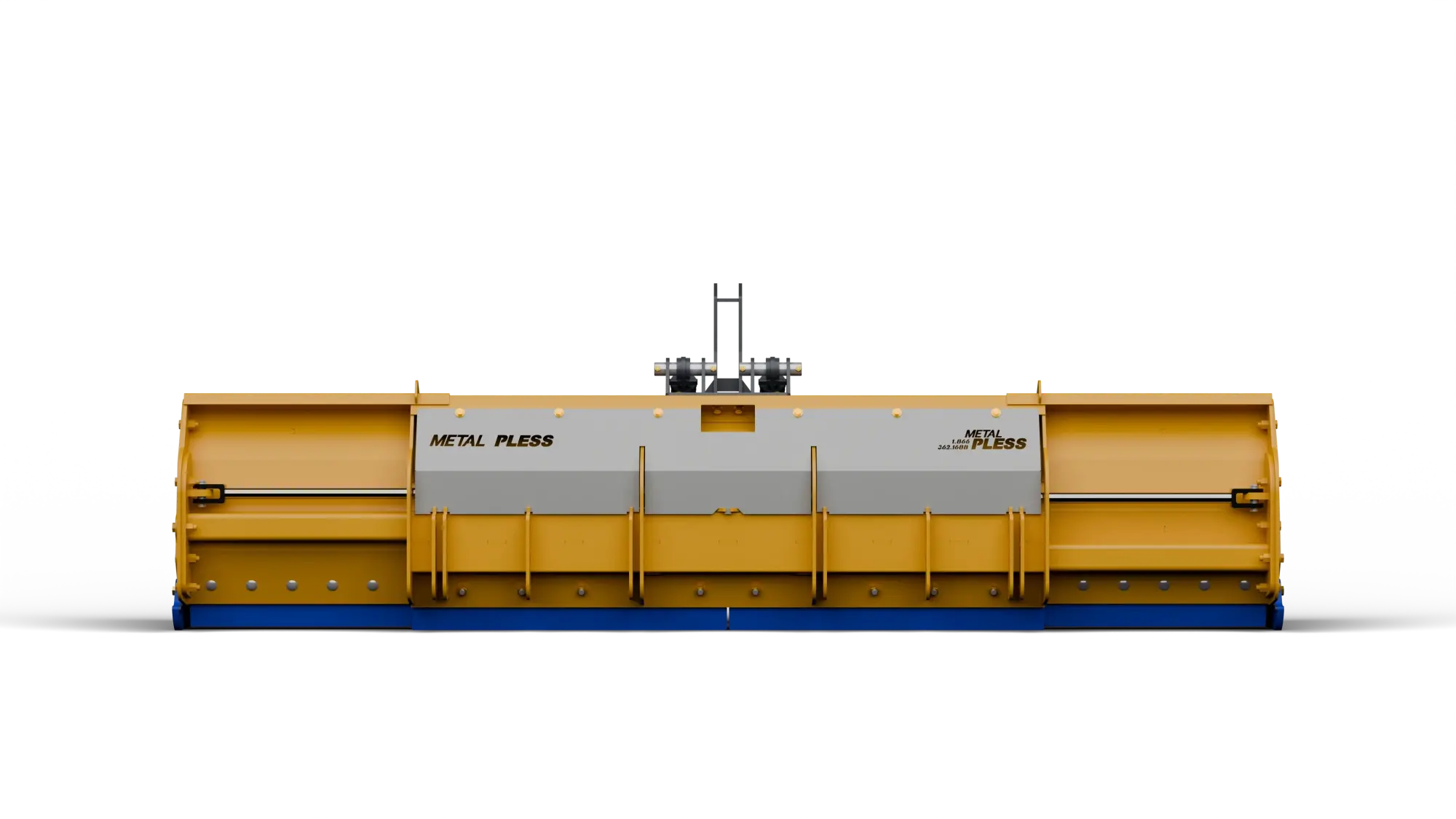

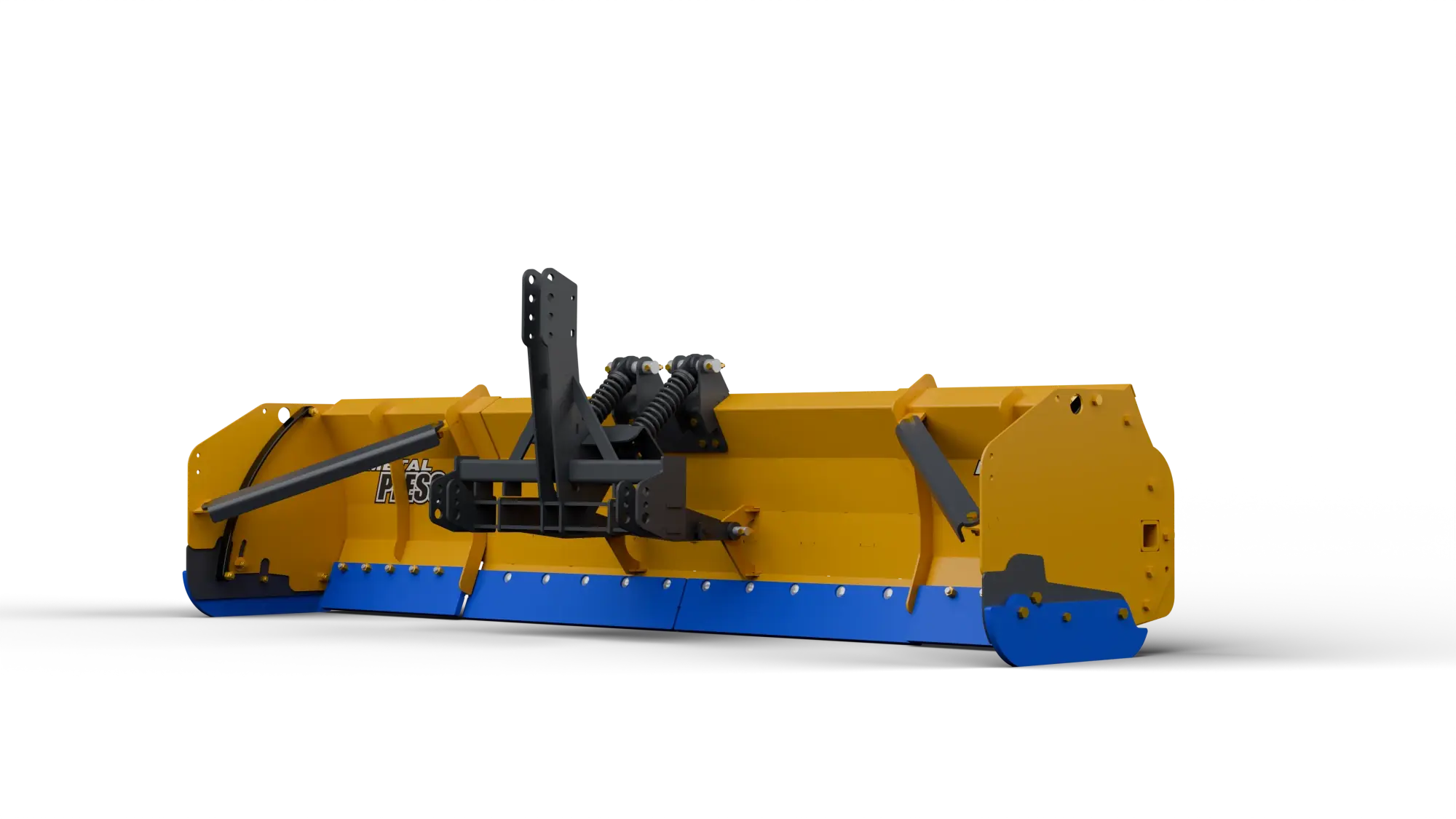

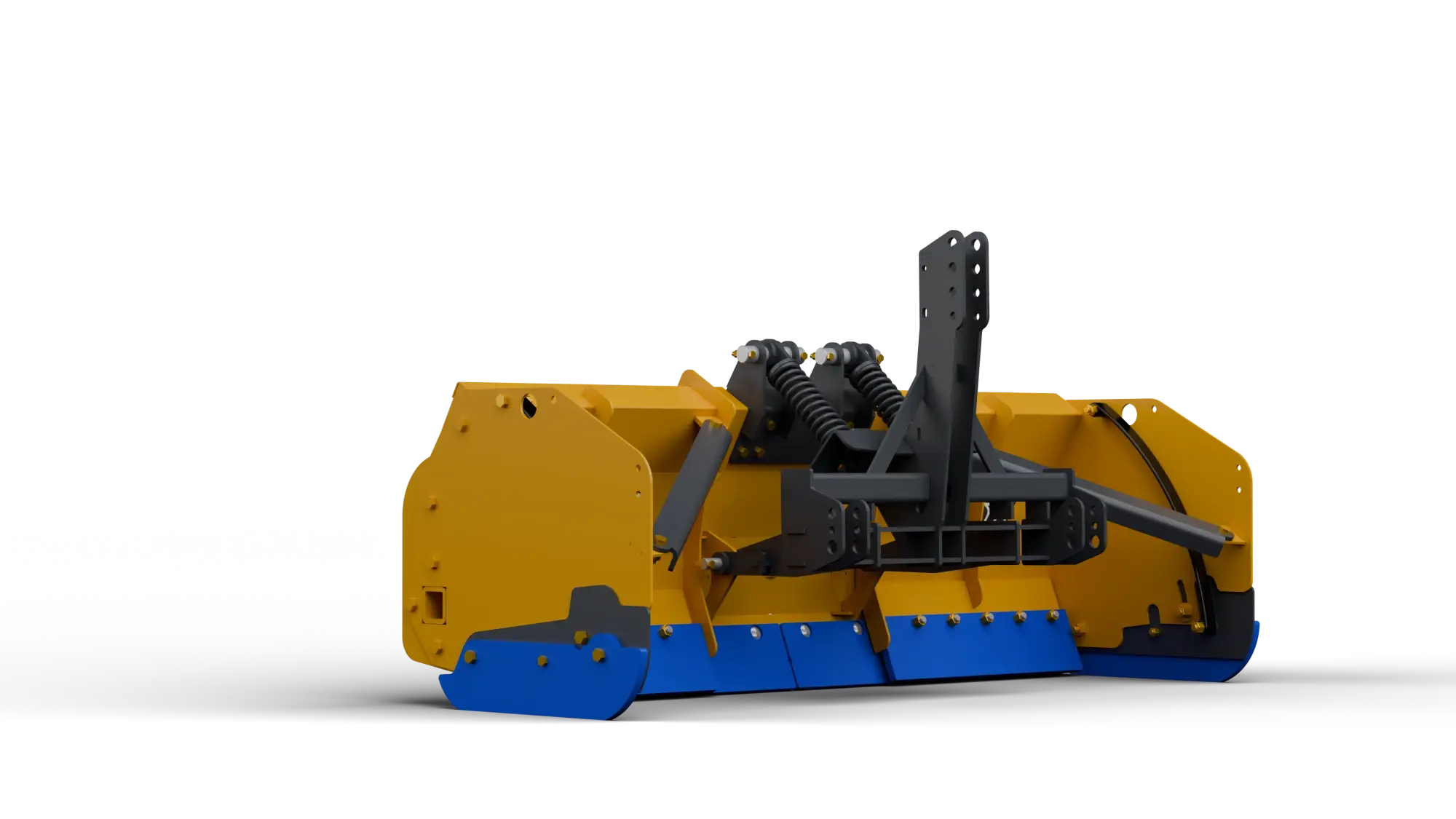

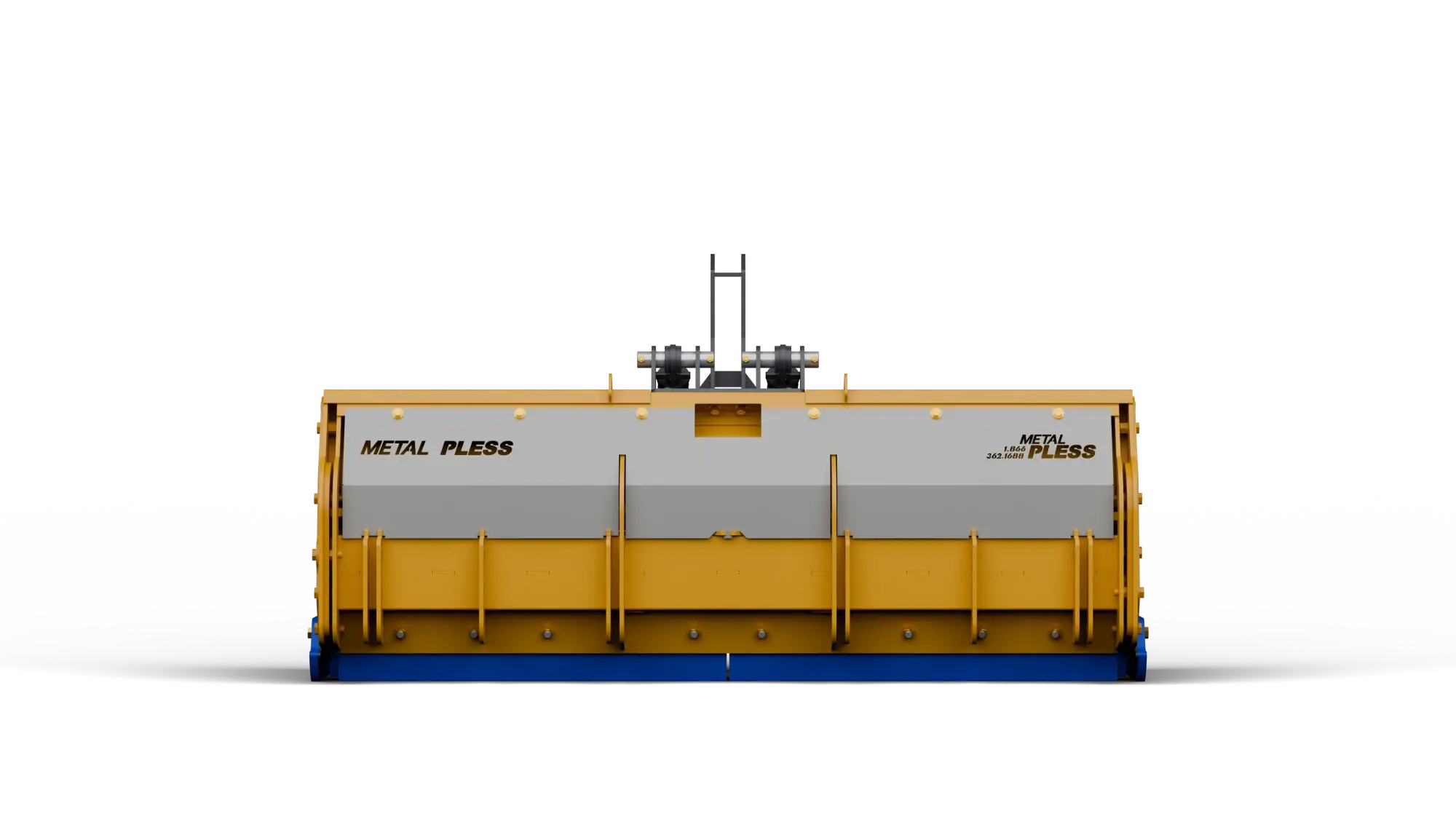

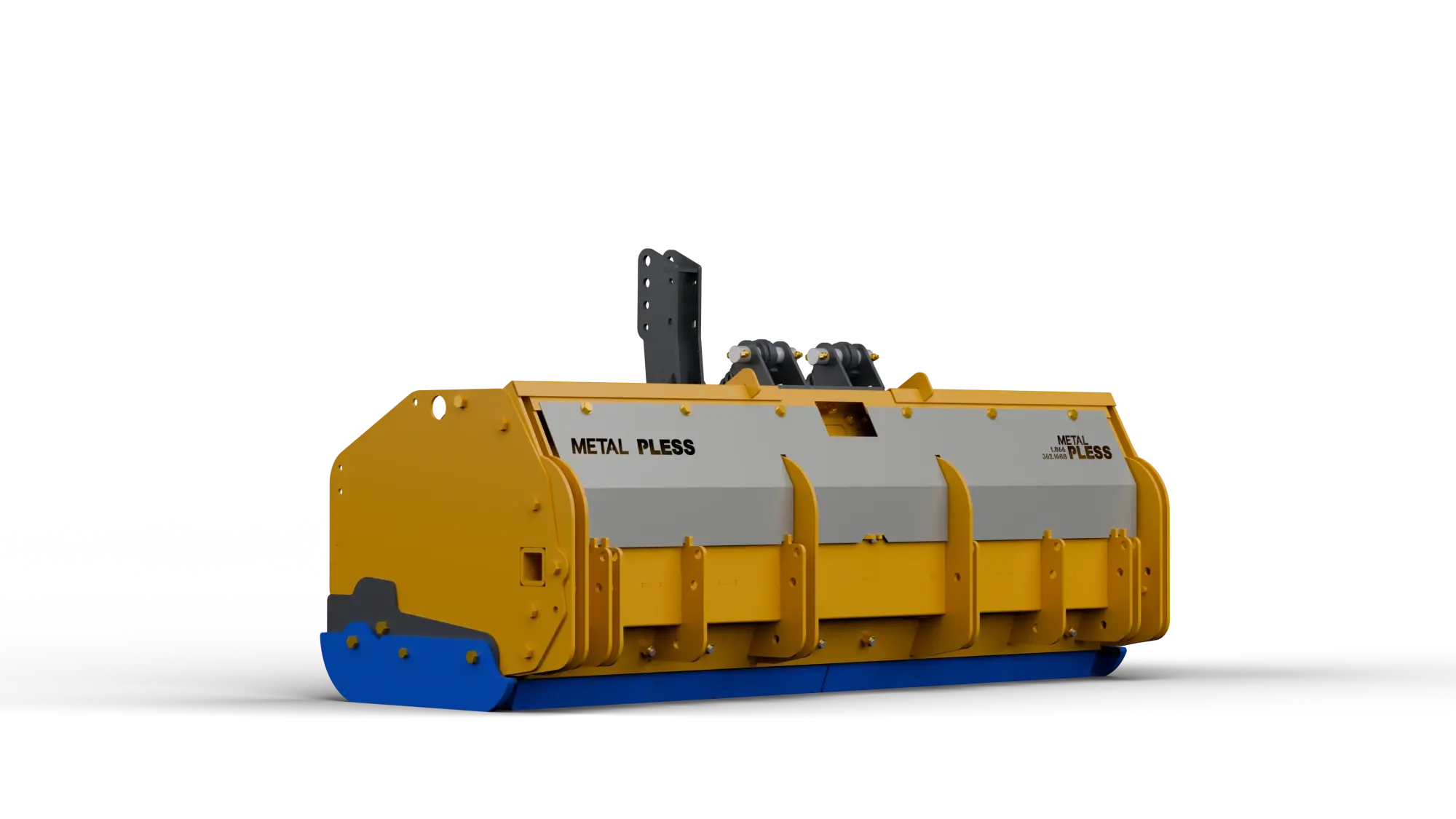

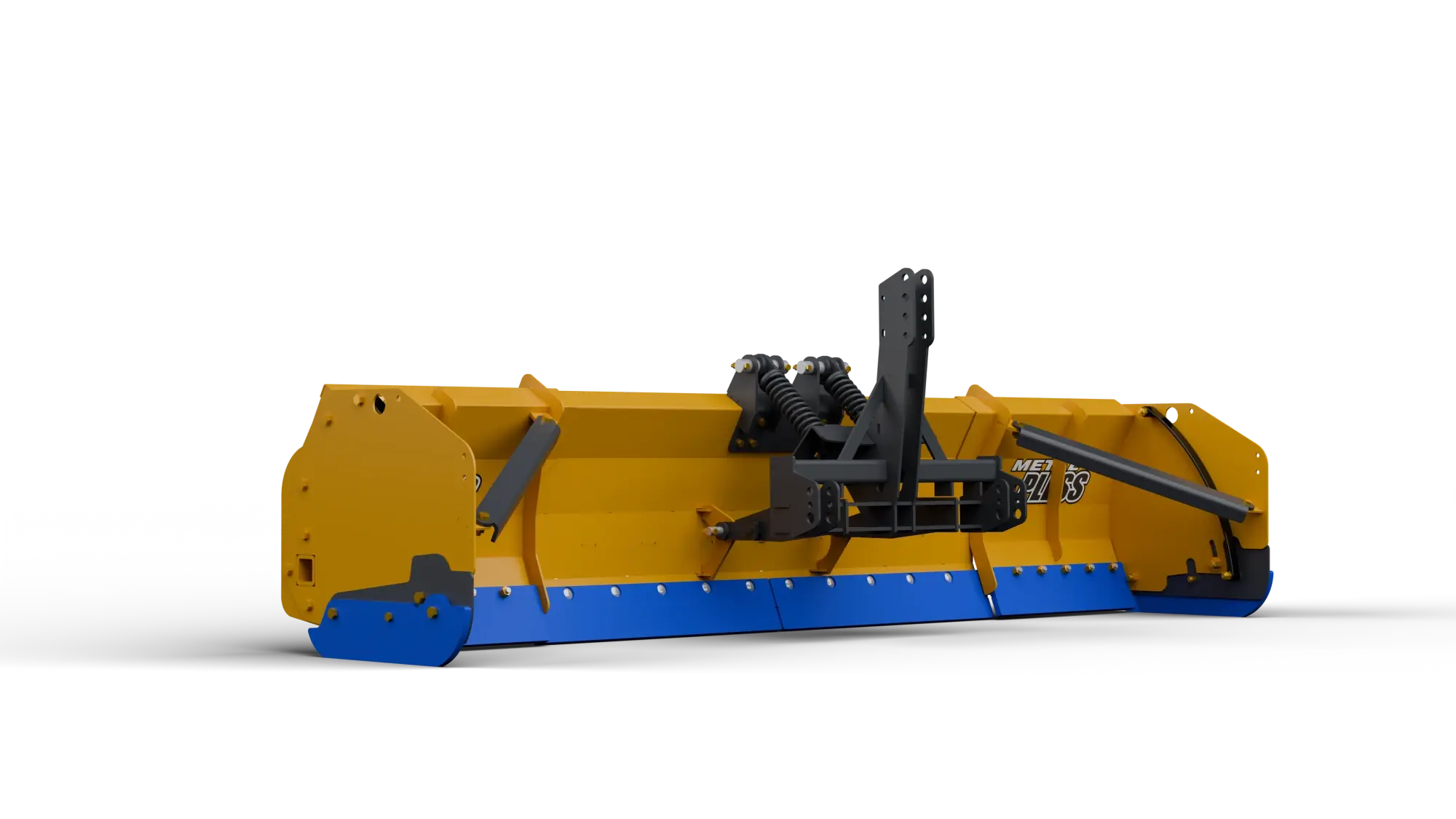

*Ask about our Tivar options
