CityMaxx

CityMaxx comes in 4 sizes, with moldboards from 10' to 12'. Built for tractors.

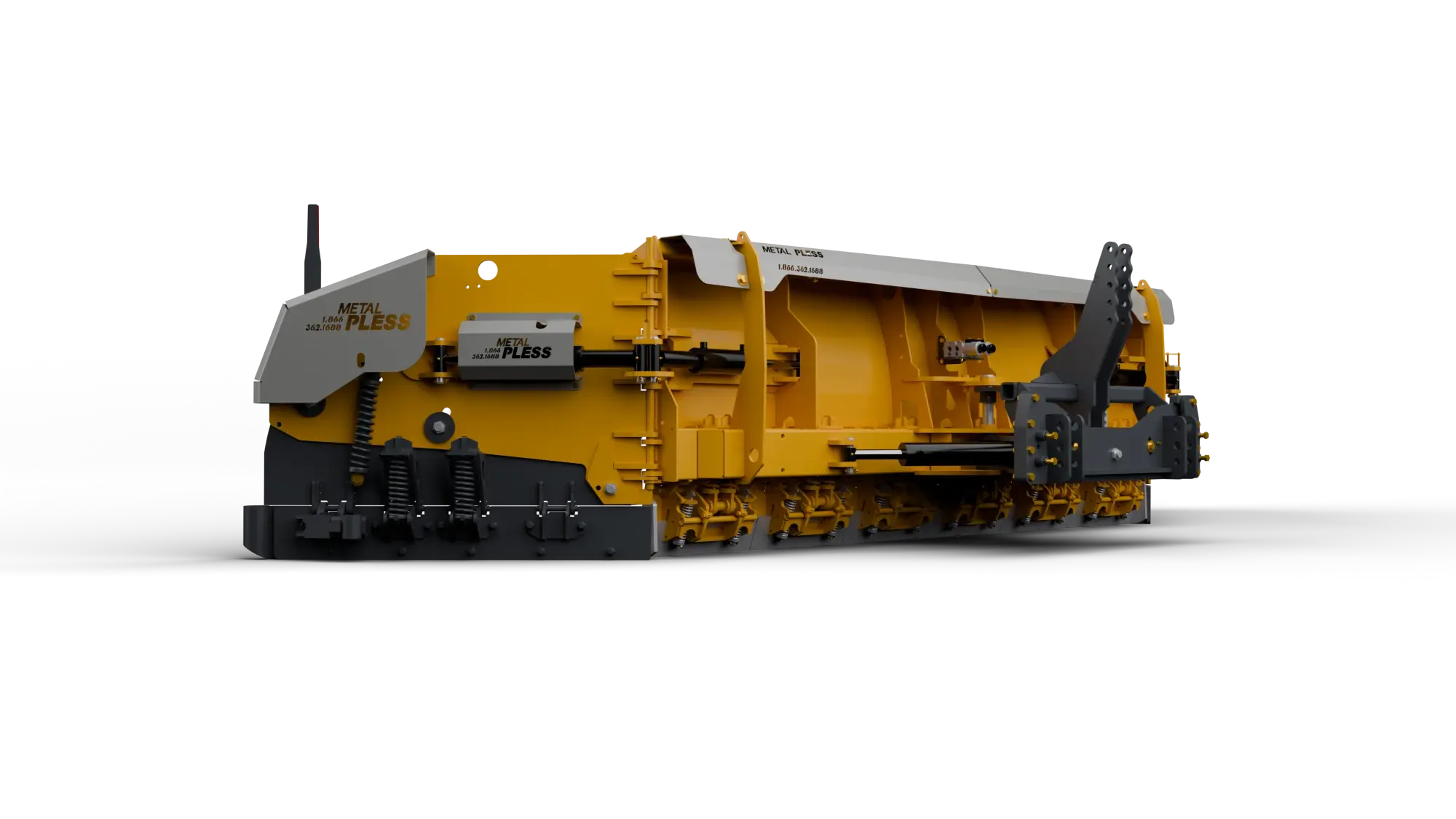

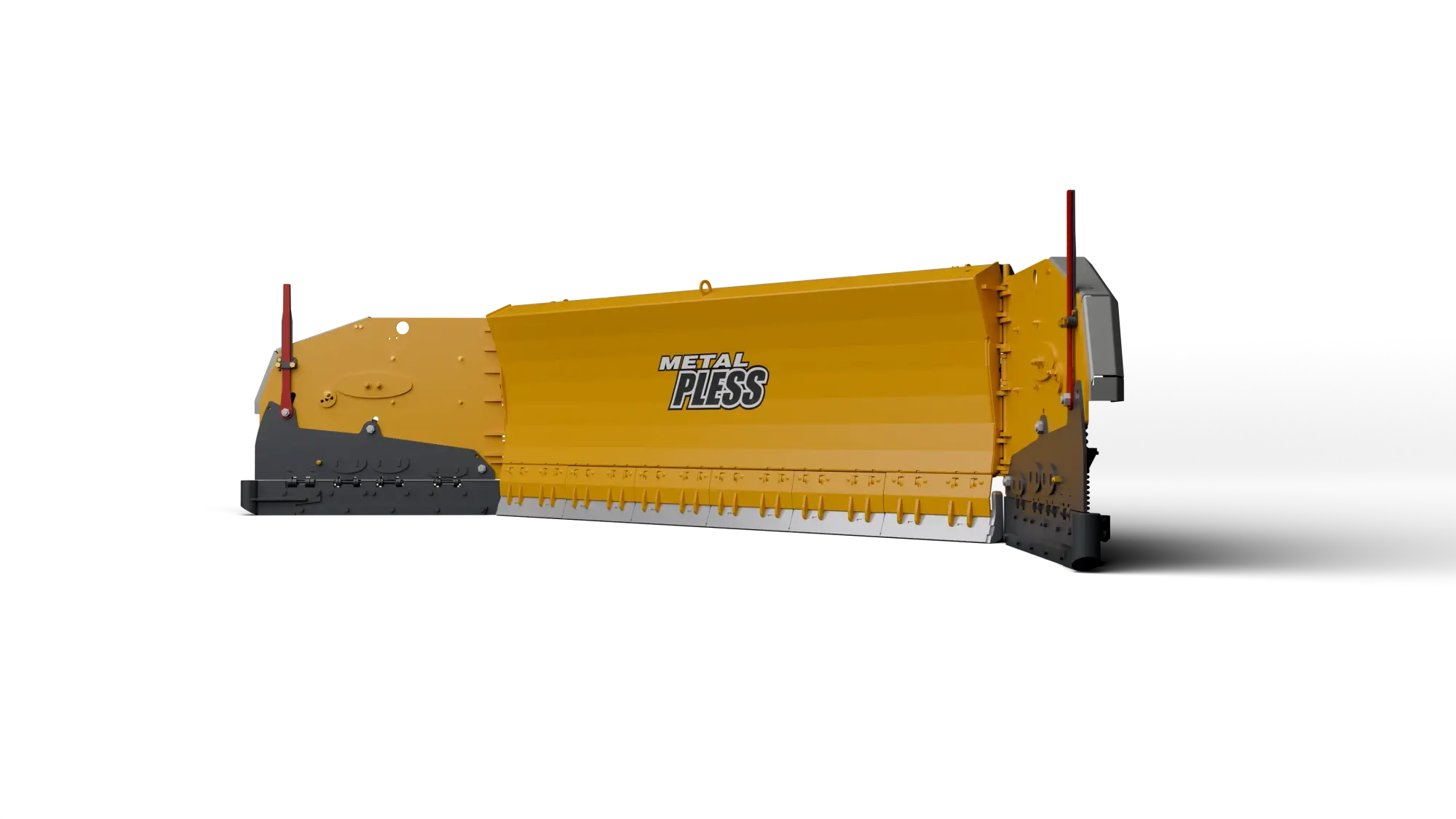

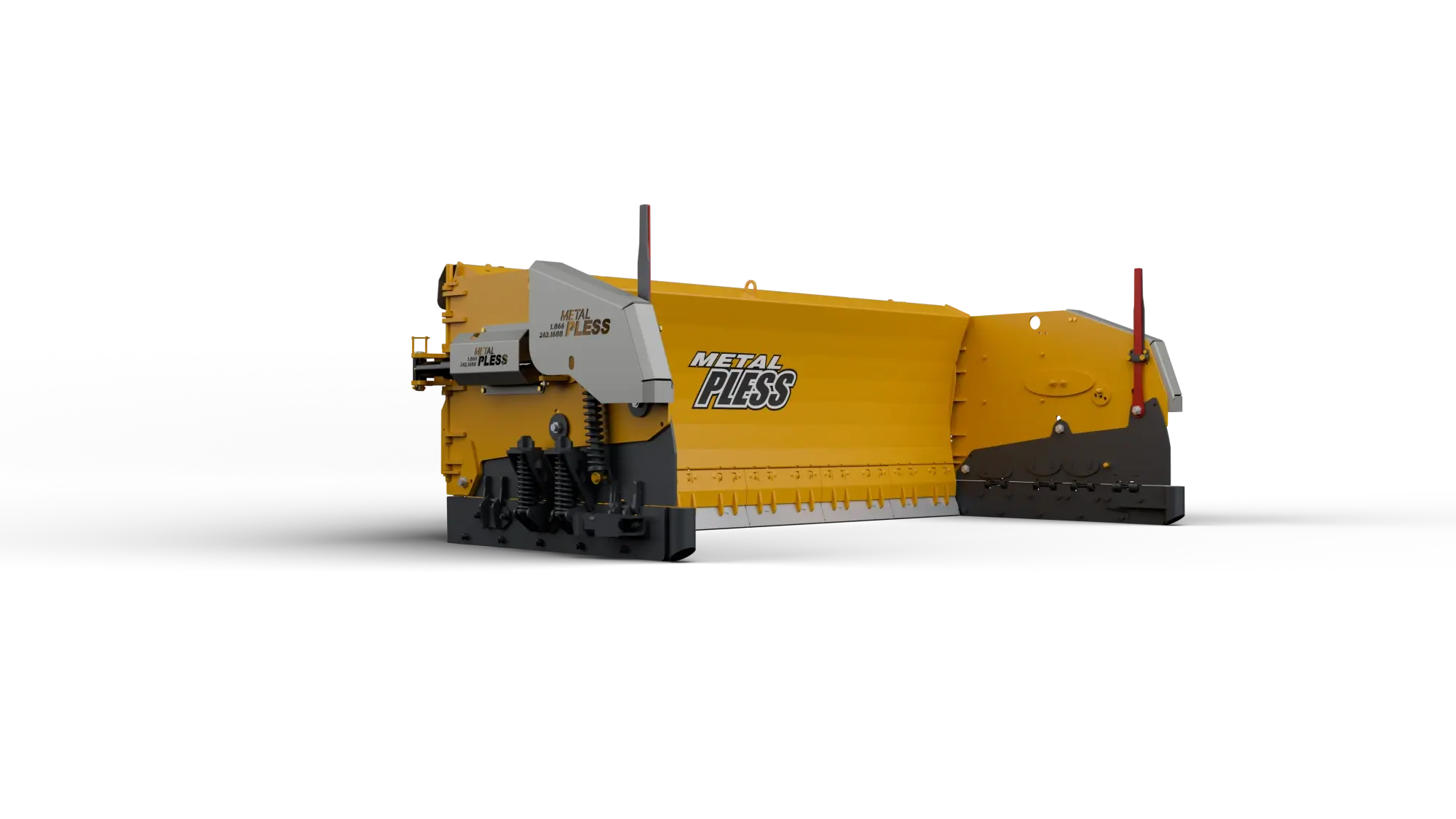

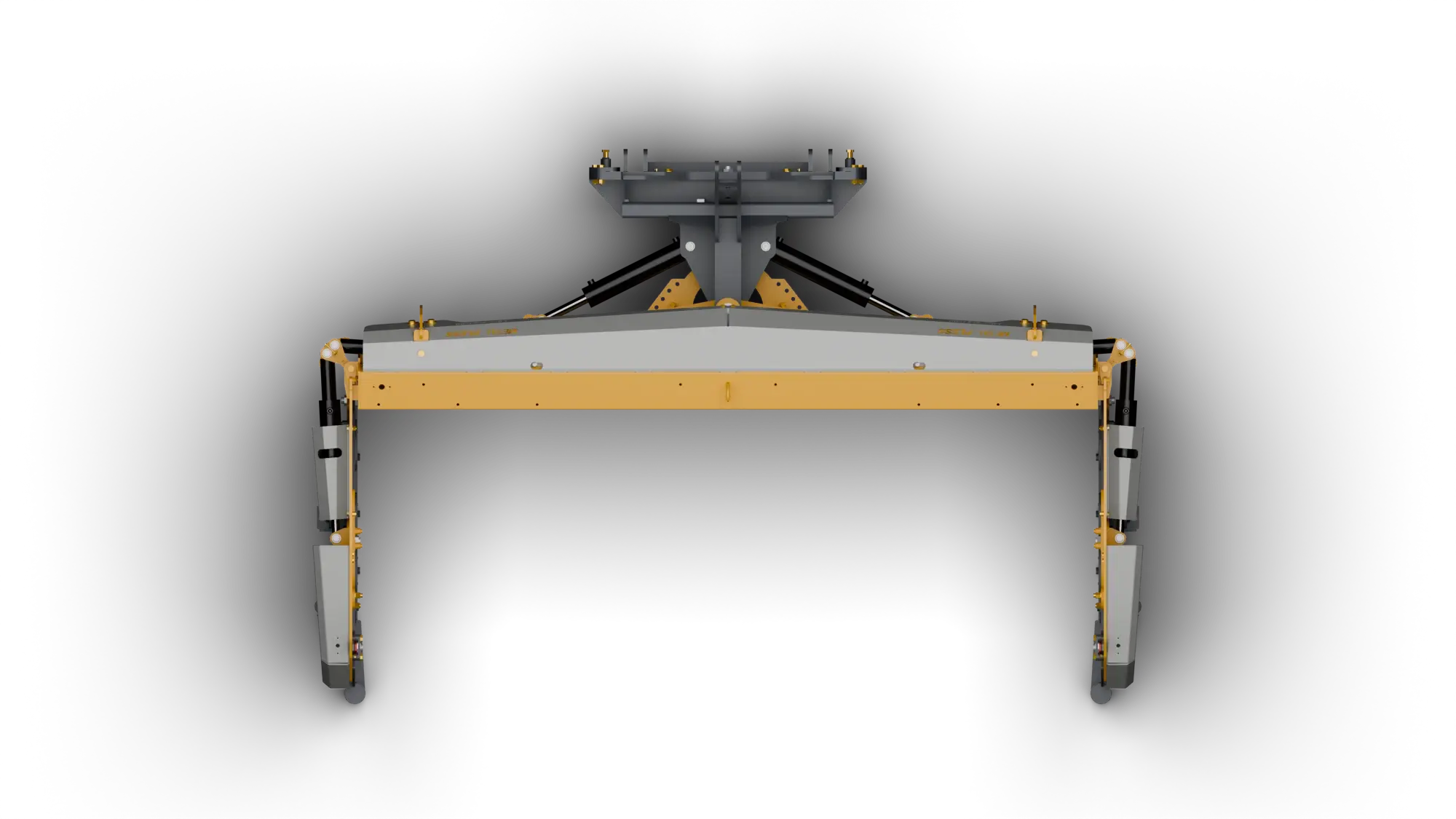

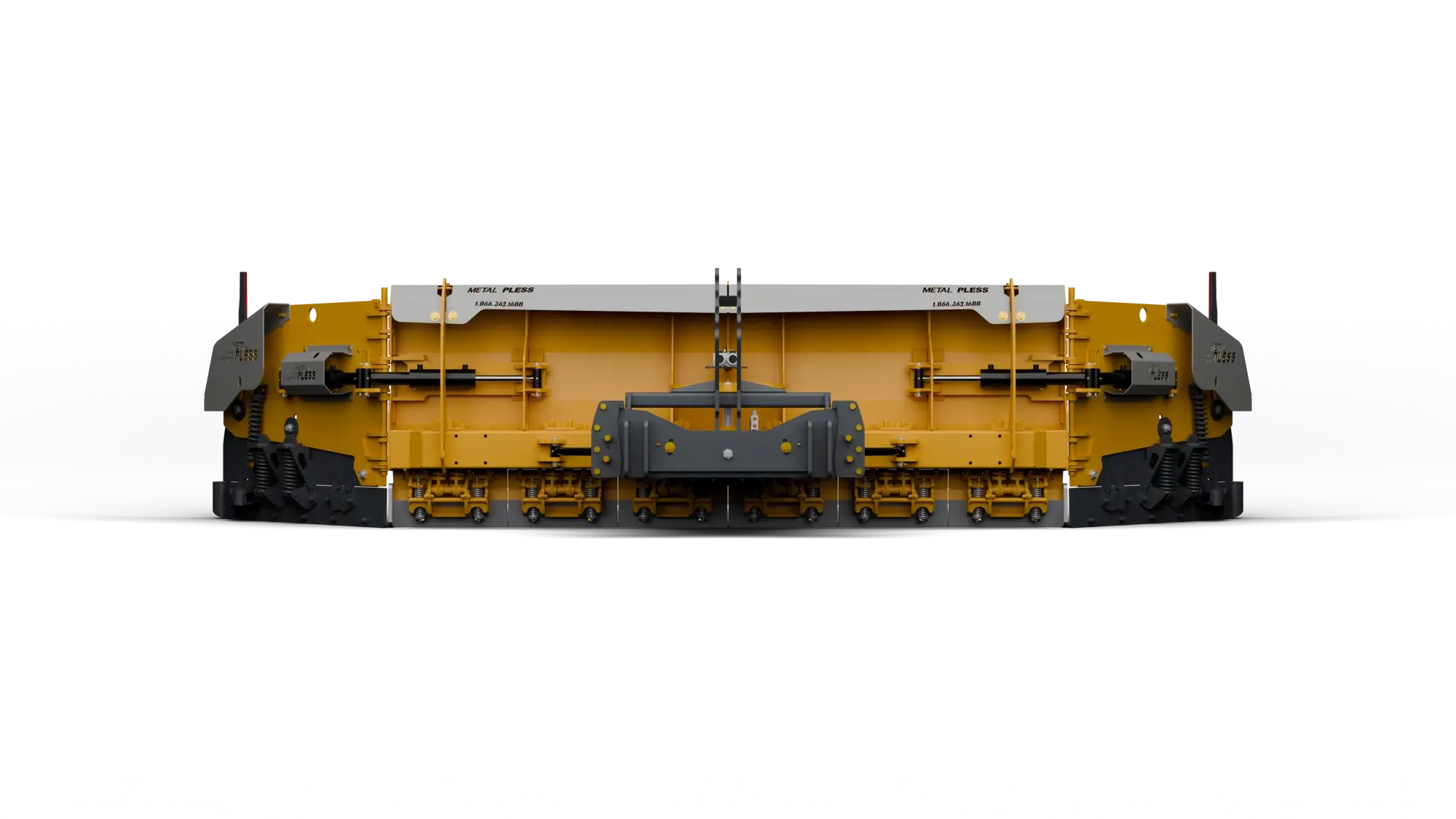

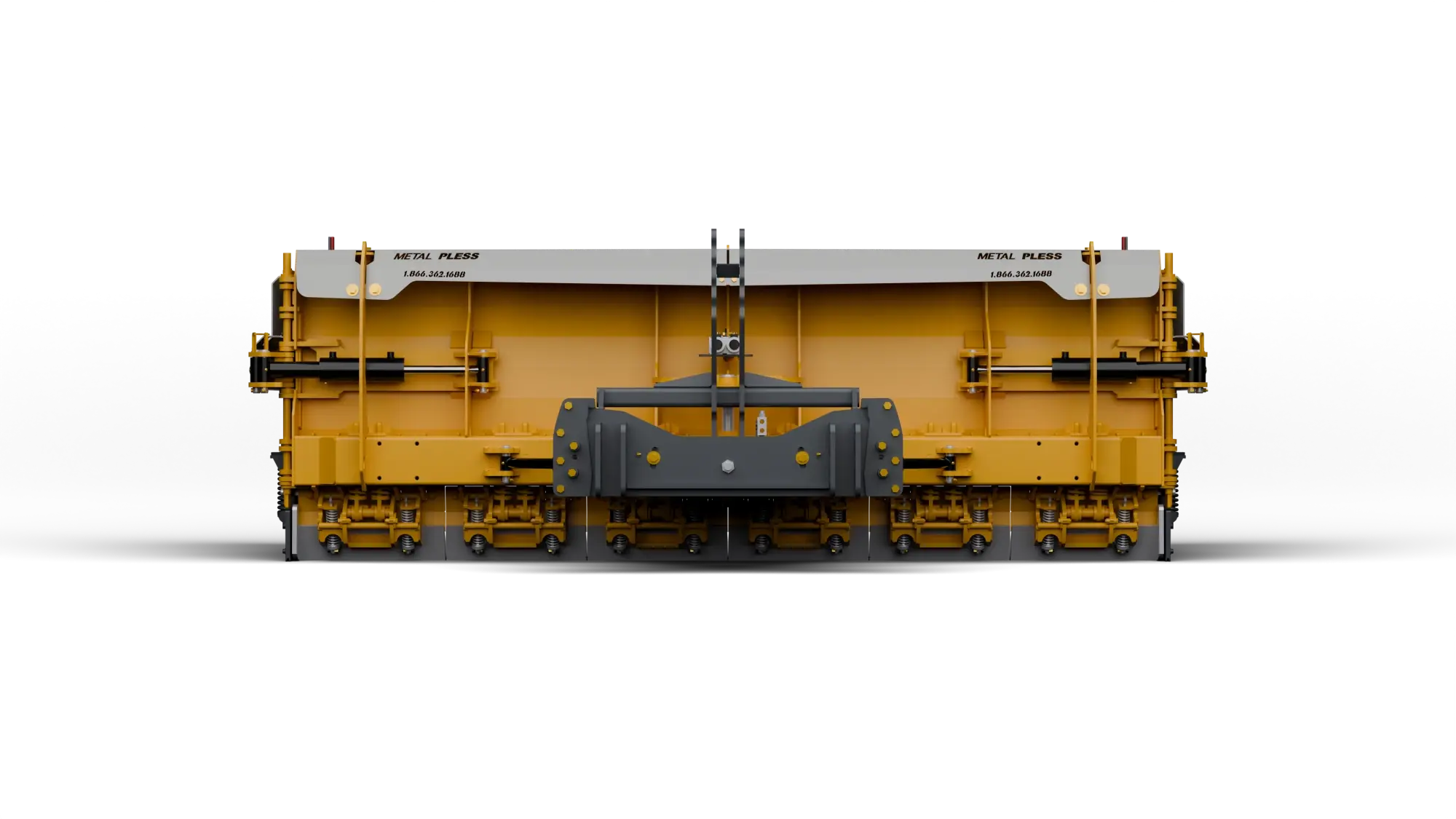

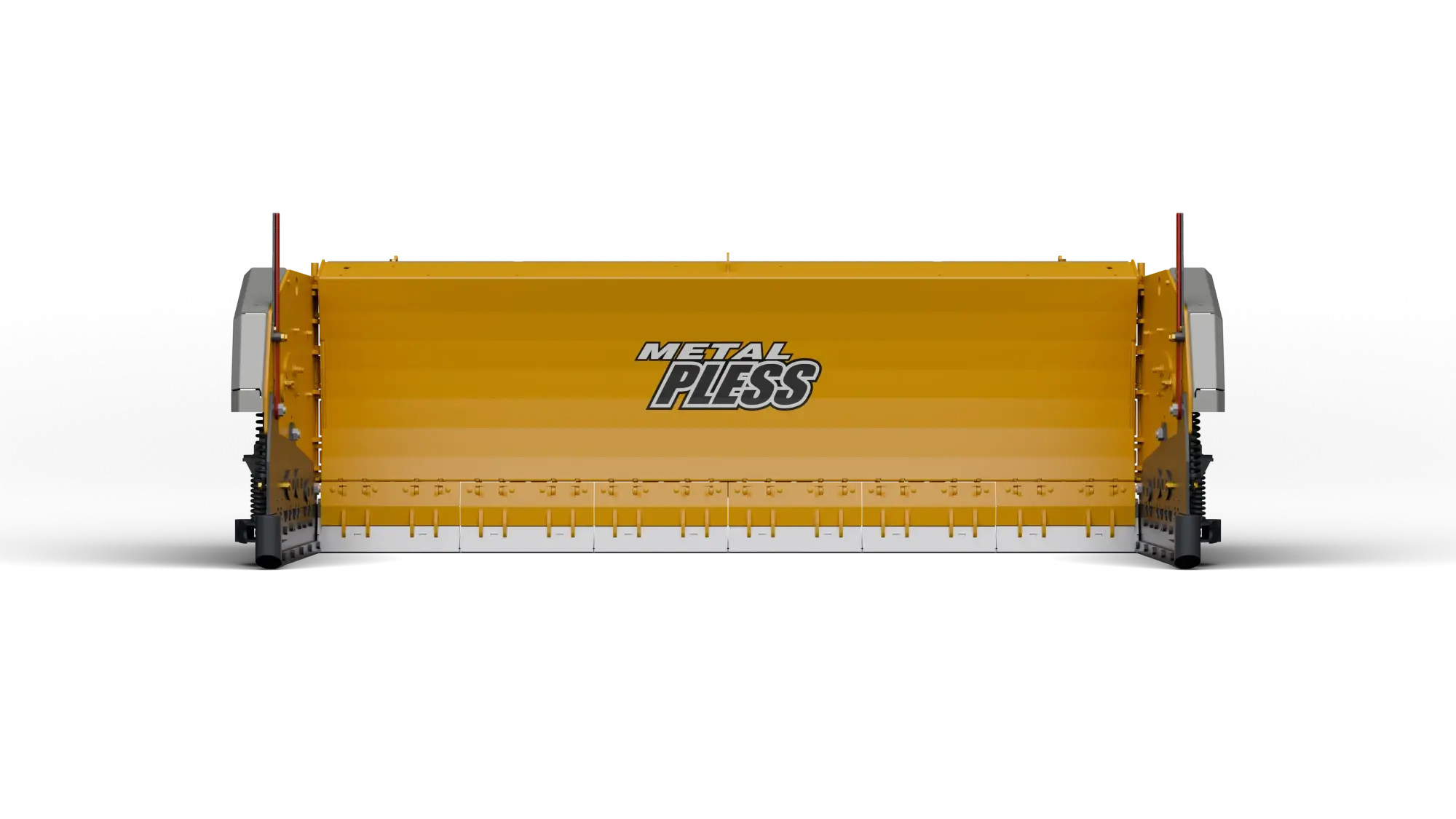

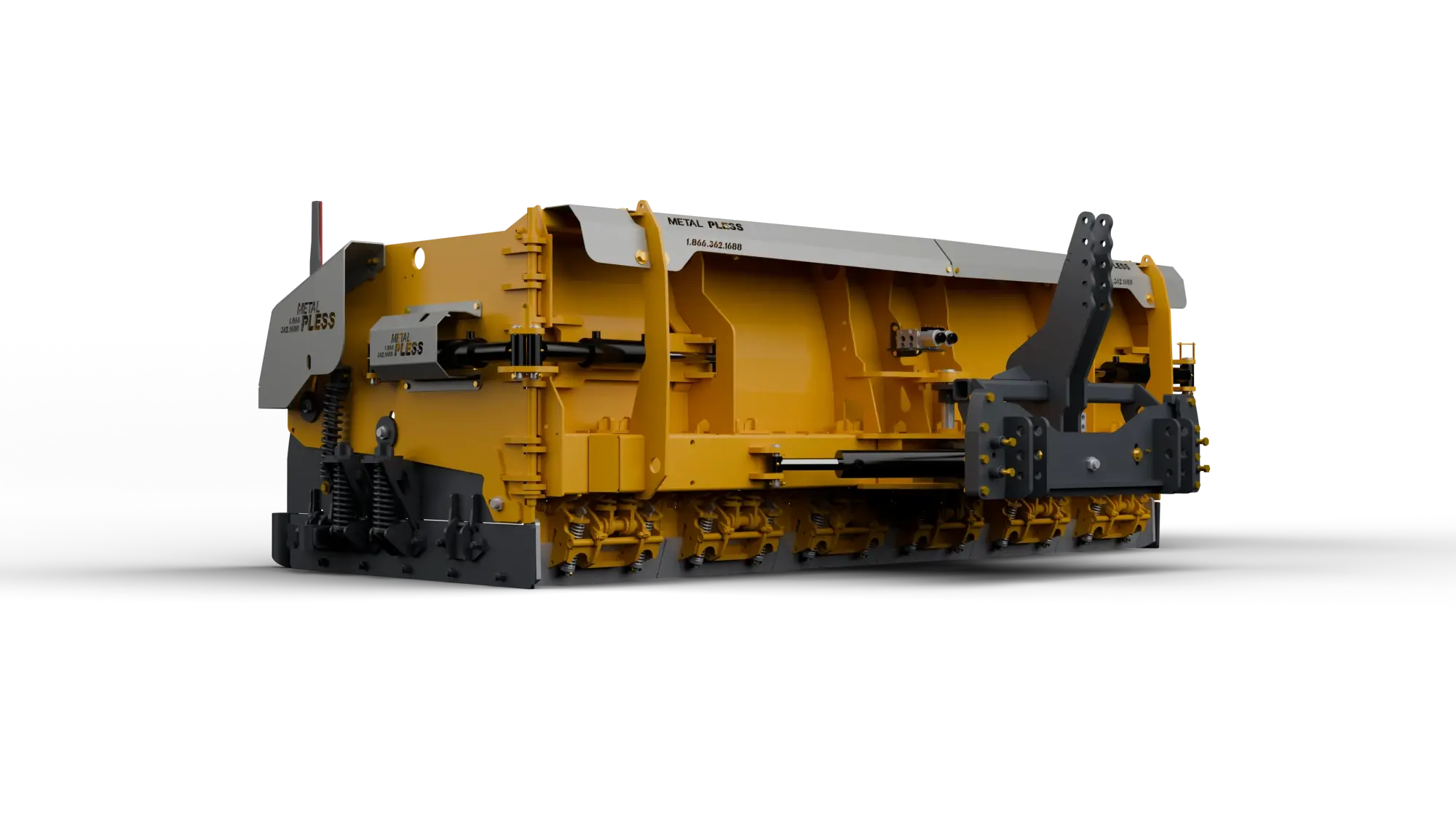

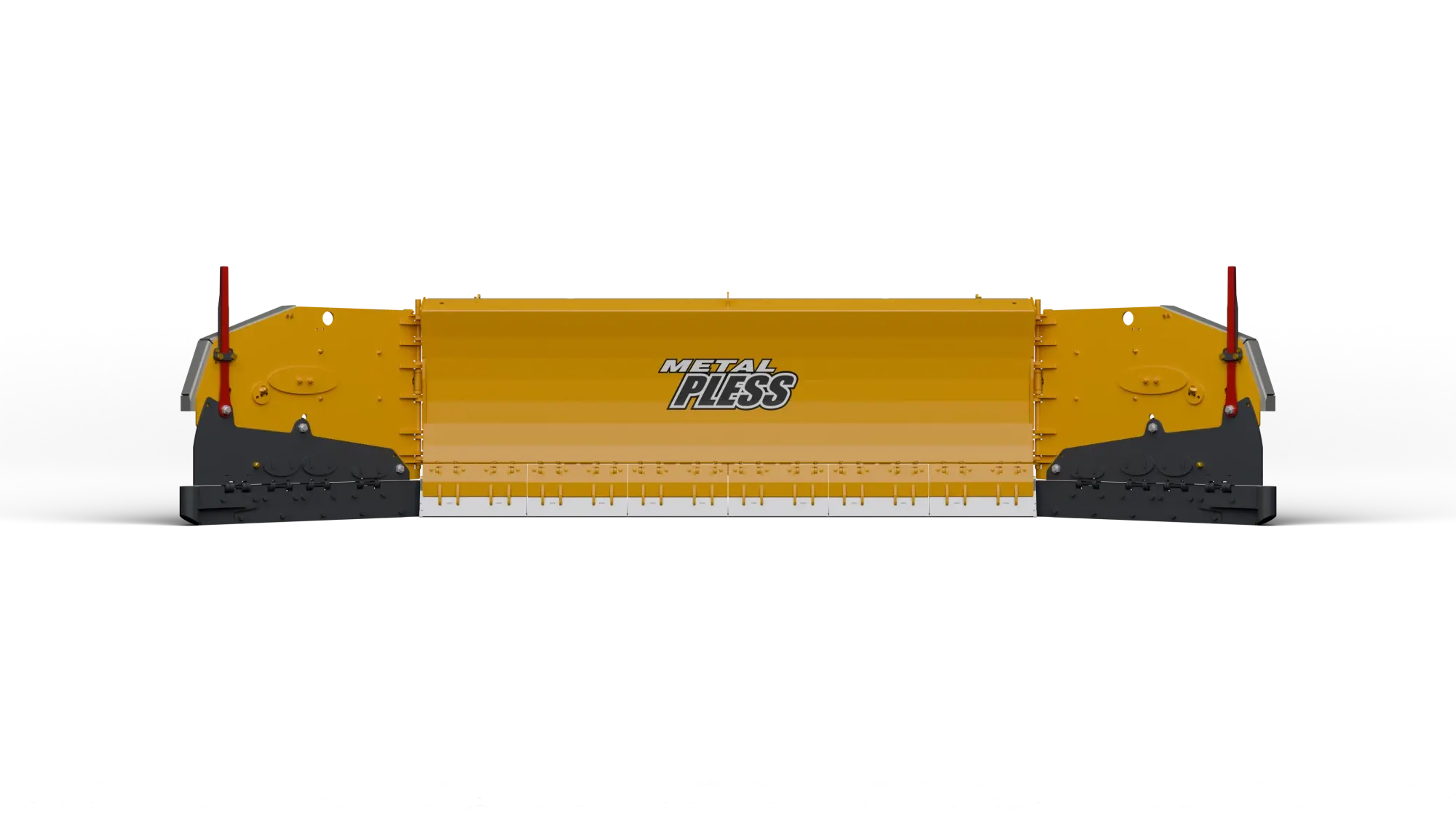

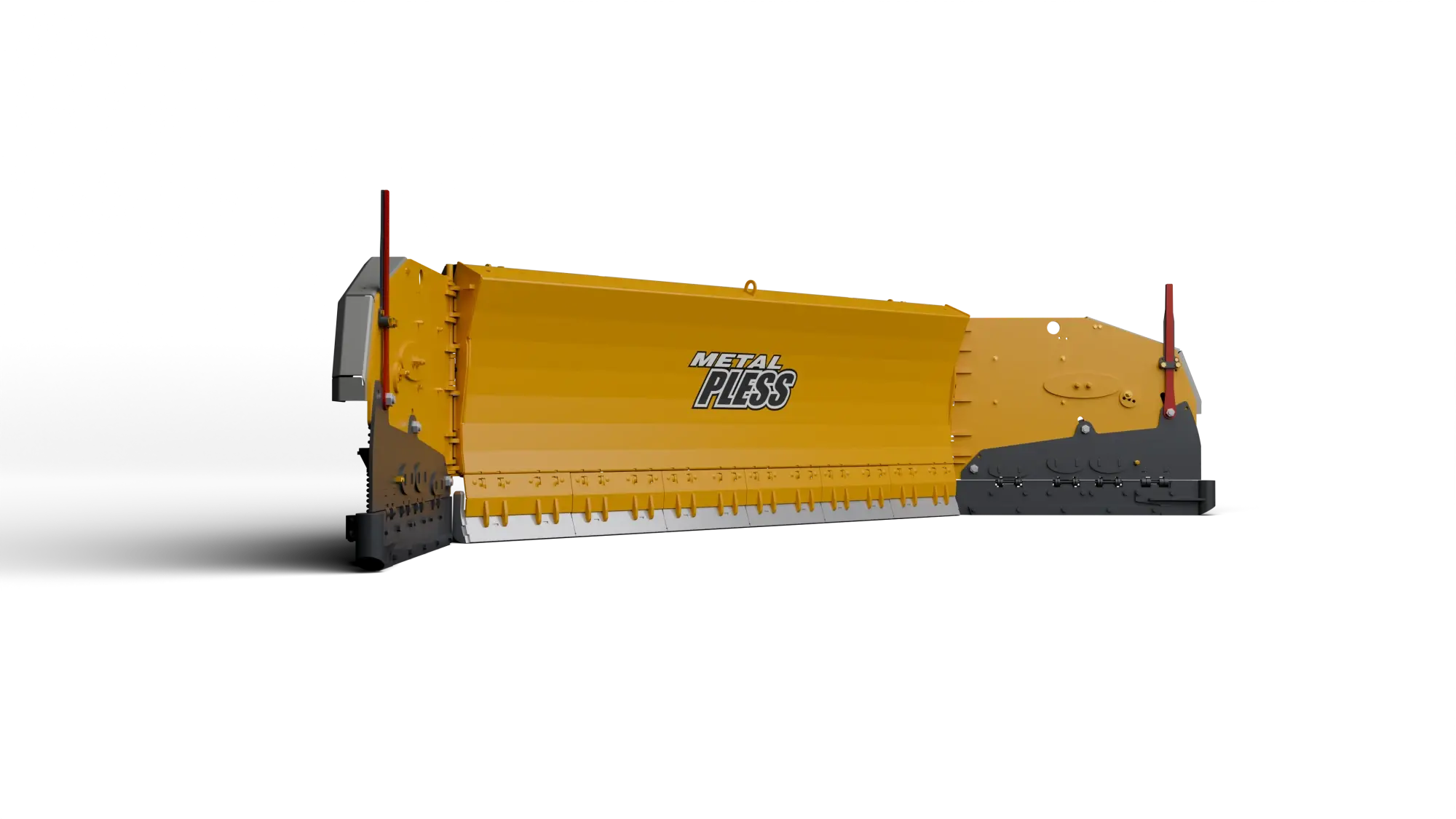

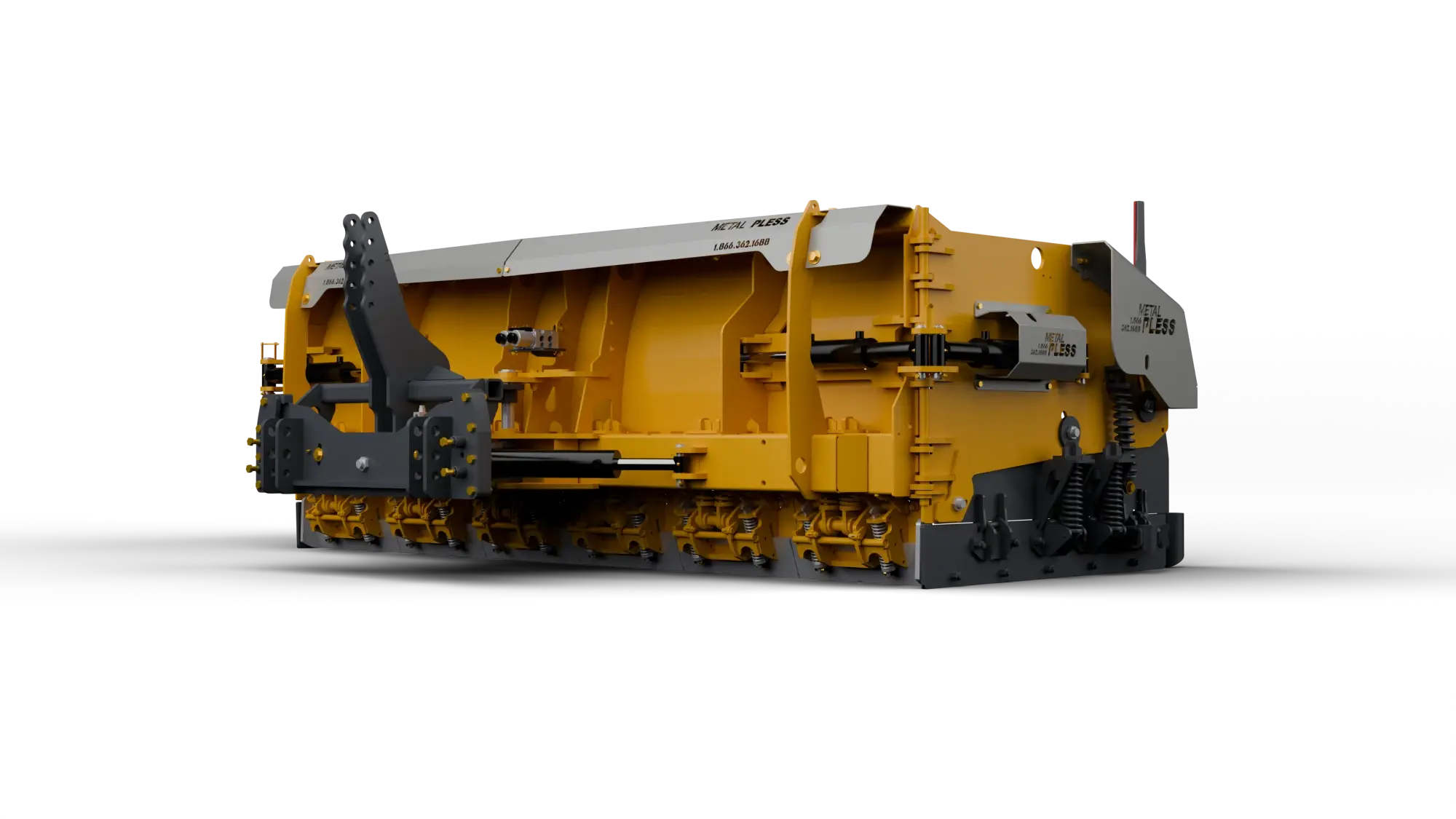

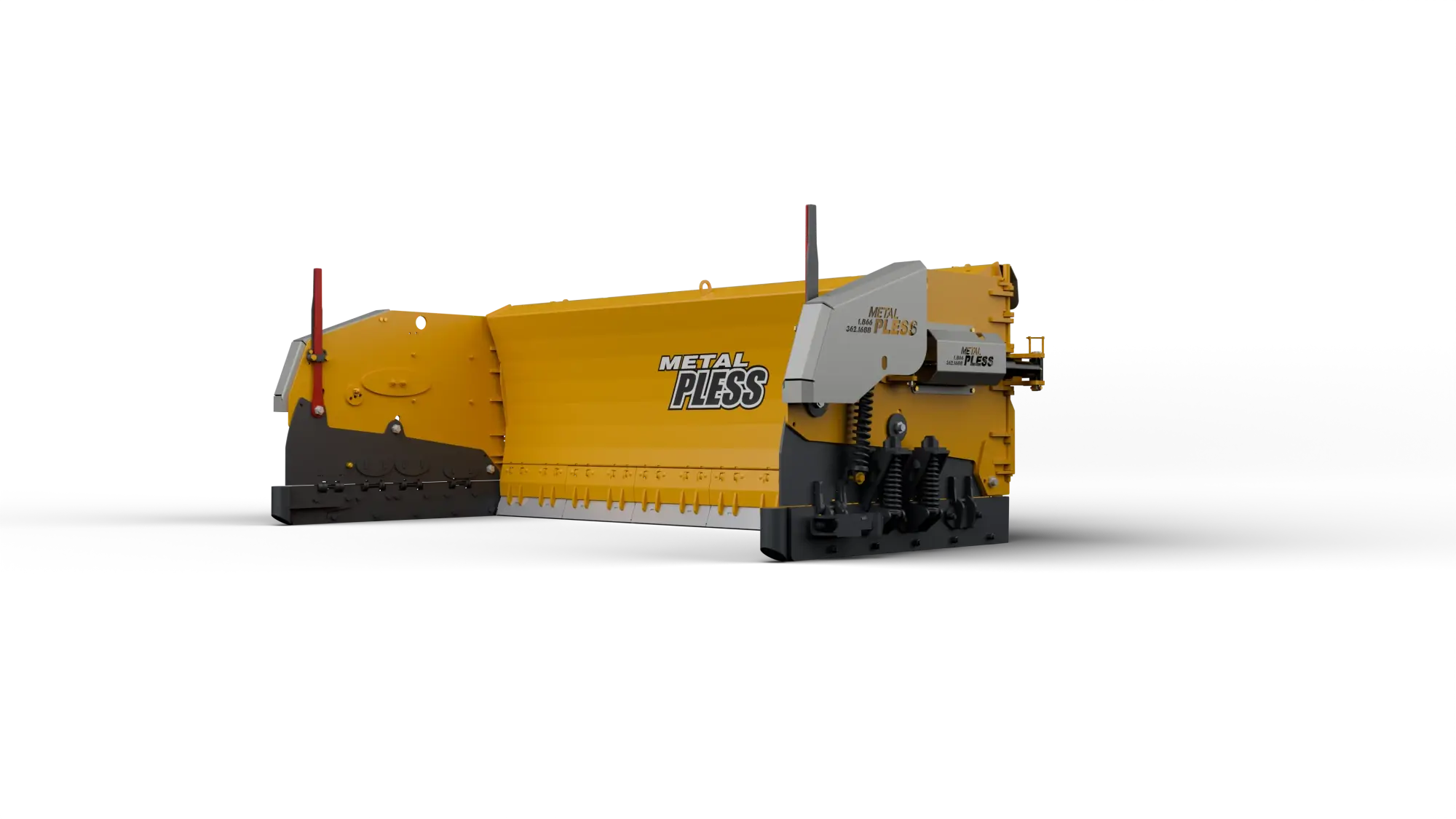

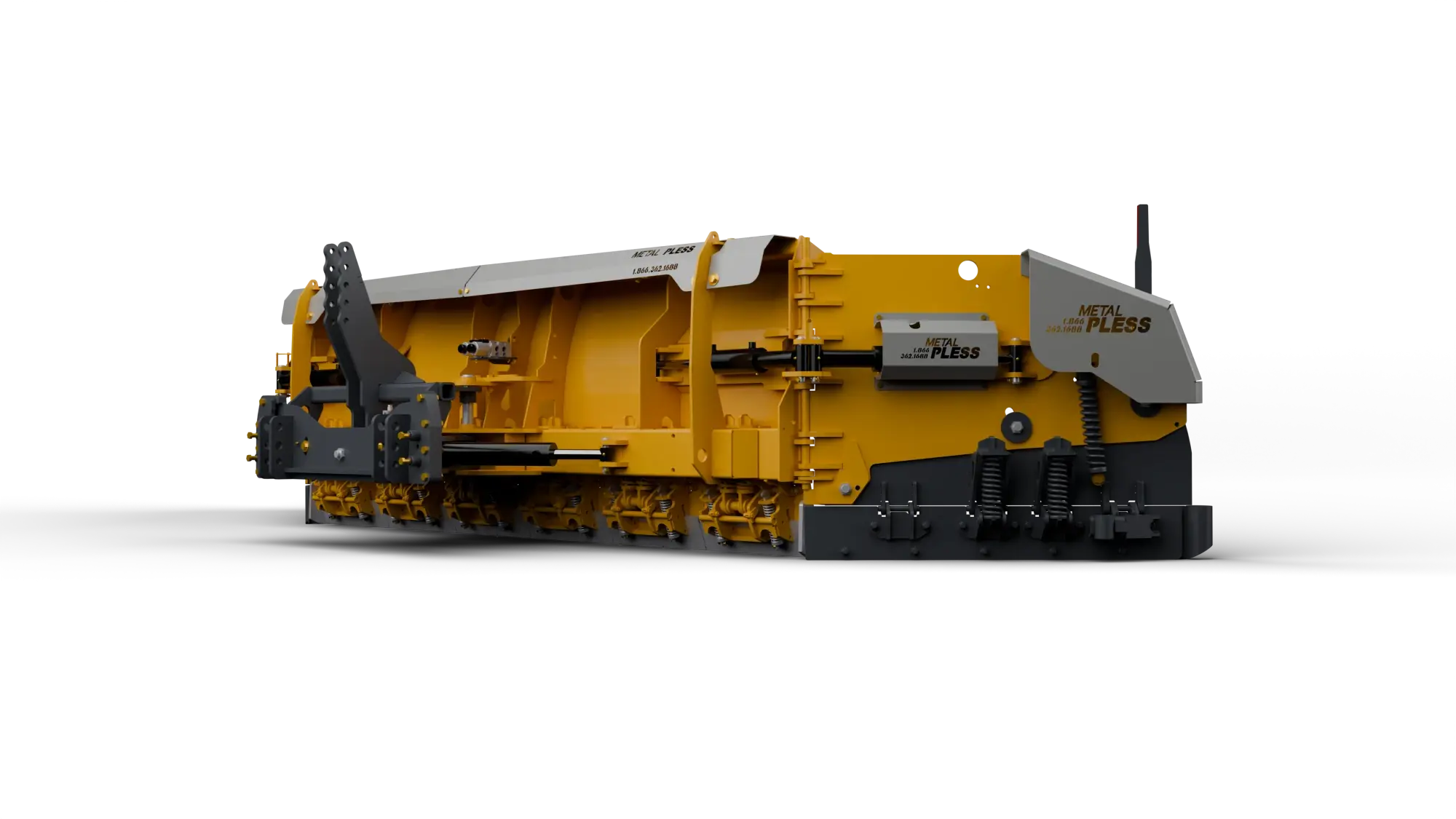

Model shown: CT 1248-22 with Live Edge (LE)

Vehicles: Tractor
Industries: Snow Contractors Municipalities Airports
Sizes: CT 1048-18 CT 1048-20 CT 1248-20 CT 1248-22
Edges: HD LE
Colors

Get a quote now Find my size

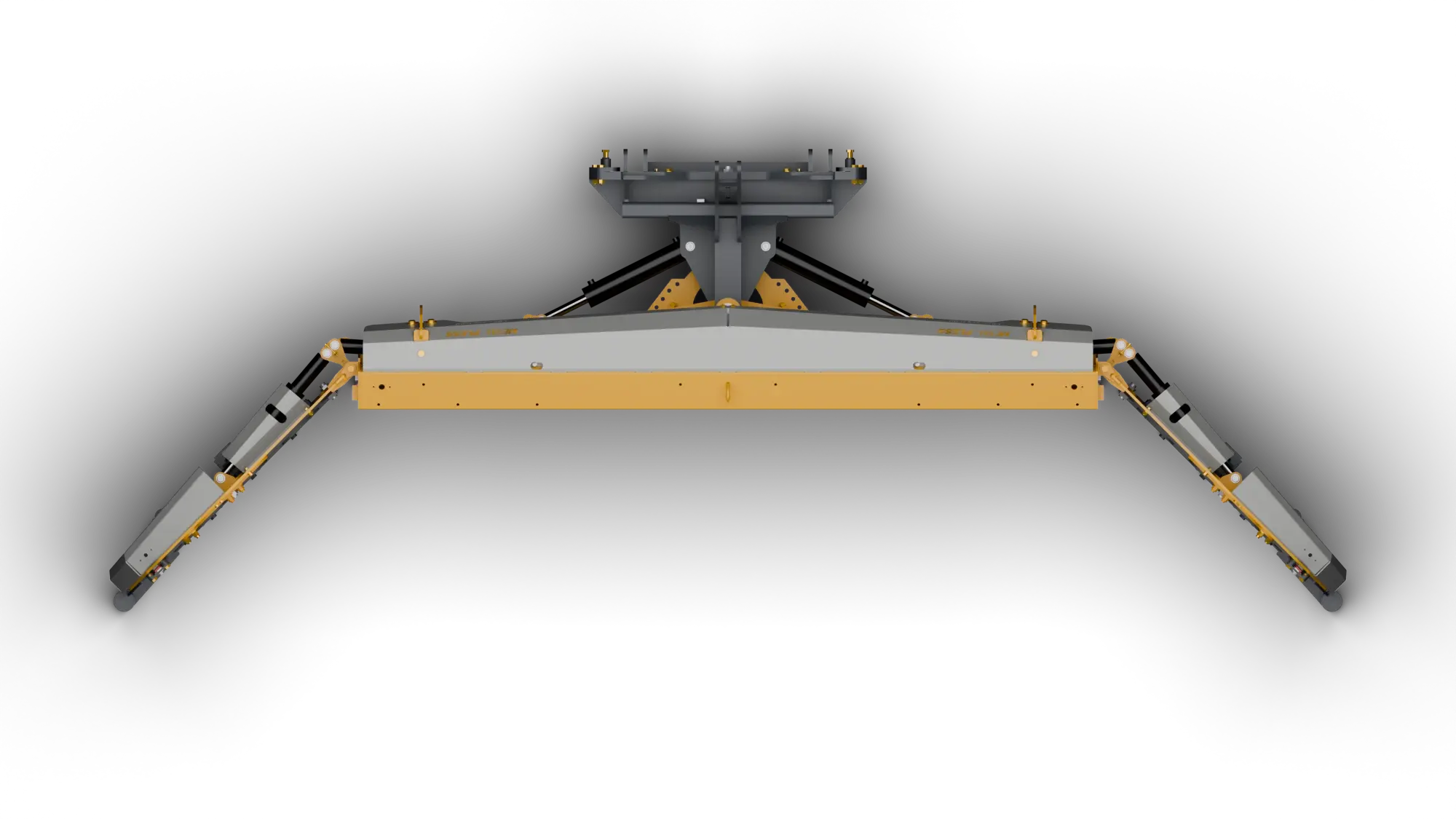

Hydraulic Wings 180

Our wings are constructed with CHT400 steel, making them the strongest in the industry. We use cylinders to move the wings, instead of actuators (hydraulic motors), offering superior holding strength. The leverage is increased by having two cylinders per wing. Additionally, the wings are equipped with a spring that can be adjusted to provide down pressure.

Trip Edge on the Wings

Unique Soft Drive Trip Edge design allows the individual sections to trip backward without the blade being lifted upward, greatly reducing the impact.

Live Edge Technology

Independent floating sections follow the unevenness of the ground and trip back on their own. Full contact with the surface means a cleaner pass, fewer passes and less salt, and carbide inserts extend the wear life.

Lateral Float

Automatically follows the imperfections of the pavement. Our system incorporates an adjustable oscillating mechanism for better control. Increase plowing efficiency and no need to go over the same area multiple times.

Slip Hitch

Slip hitch design allows the plow to follow surface variations. Reduces operator fatigue and increases plowing efficiency. Cutting edges wear evenly and prolong plow life.

HD Soft Drive Trip Edge

Unique Soft Drive trip edge design allows the individual sections to trip backward without the blade being lifted upward, greatly reducing the impact.
LE Live Edge

A floating soft drive steel trip edge with carbide inserts for longer wear life, that contours the unevenness of the ground for a cleaner result.

CityMaxx — Sizes & specifications
Model	Available Edges	Blade Dimensions			Wing Size (each side)	Application	Wing / Gate Type	Approx. Weight	Compare
Model	Available Edges	Box	Height	Extended	Wing Size (each side)	Application	Wing / Gate Type	Approx. Weight	Compare
CT 1048-18	HD - LE	10'	48"	18'	4'	250 HP and up	Hydraulic wings	4,490 lb (HD) · 4,565 lb (LE)
CT 1048-20	HD - LE	10'	48"	20'	5'	250 HP and up	Hydraulic wings	4,750 lb (HD) · 4,825 lb (LE)
CT 1248-20	HD - LE	12'	48"	20'	4'	250 HP and up	Hydraulic wings	4,740 lb (HD) · 4,770 lb (LE)
CT 1248-22	HD - LE	12'	48"	22'	5'	250 HP and up	Hydraulic wings	5,170 lb (HD) · 5,220 lb (LE)

*Ask about our Tivar options
