TruckMaxx

TruckMaxx comes in 10 sizes, with moldboards from 10' to 14'. Built for trucks.

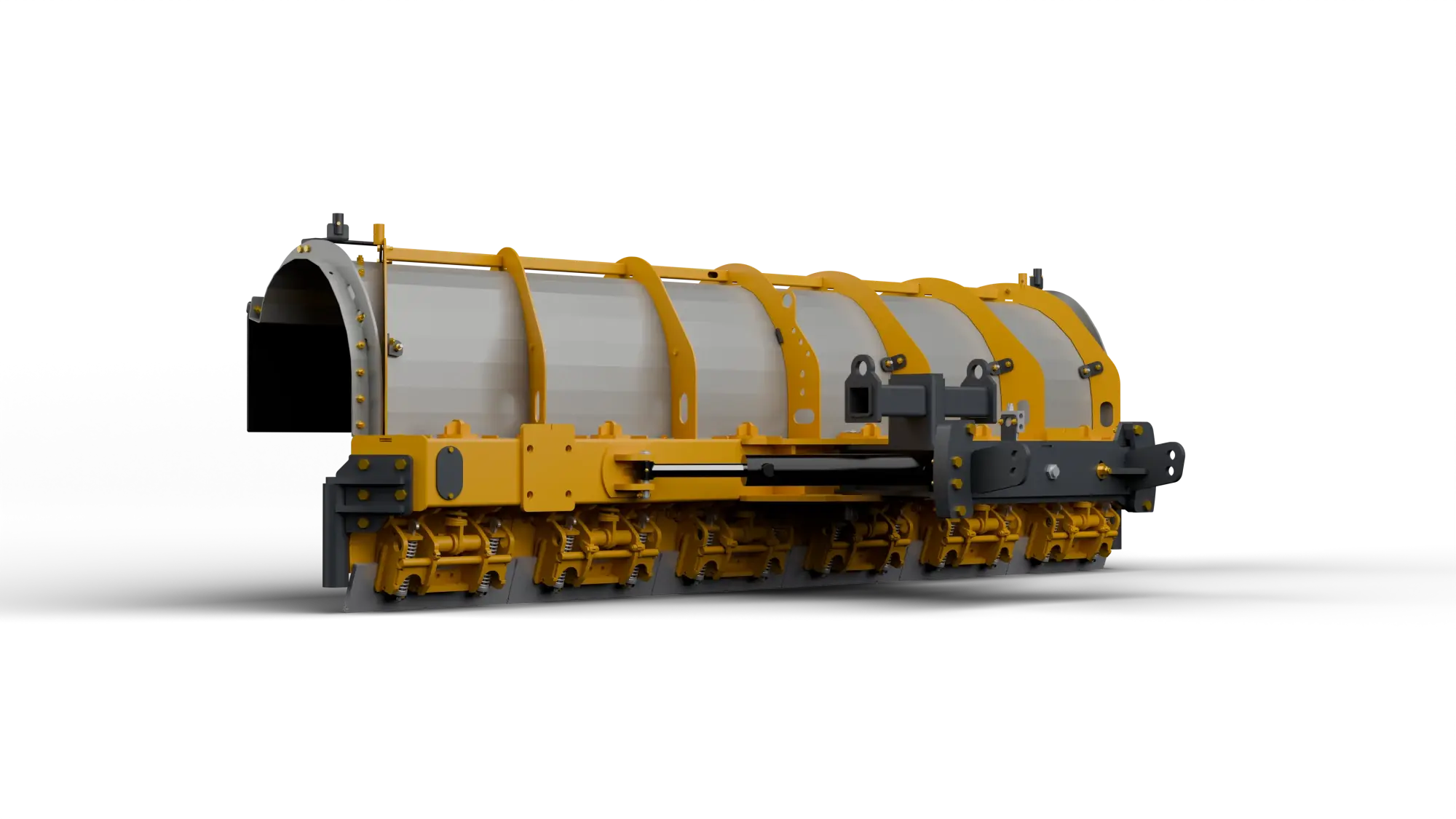

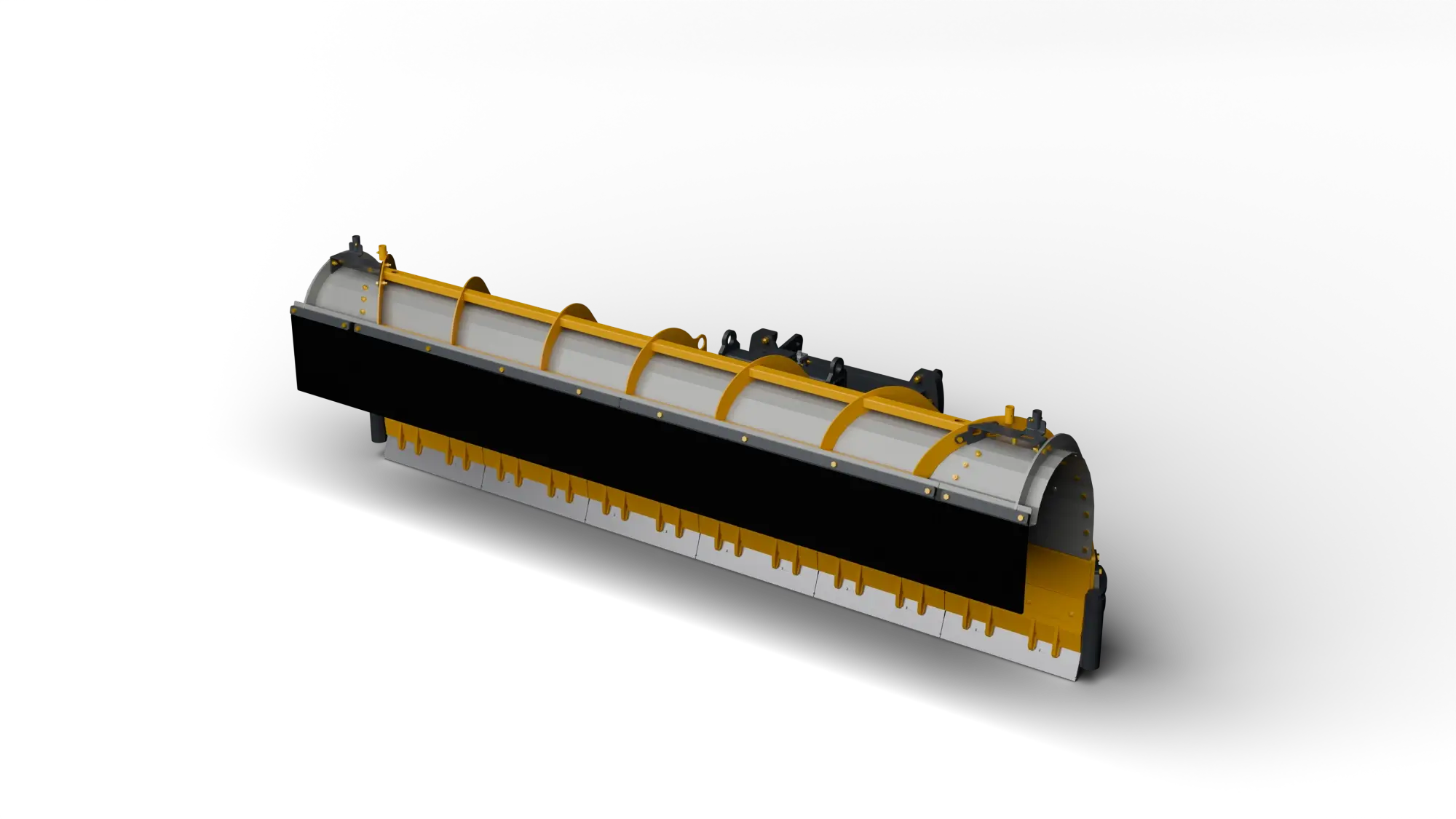

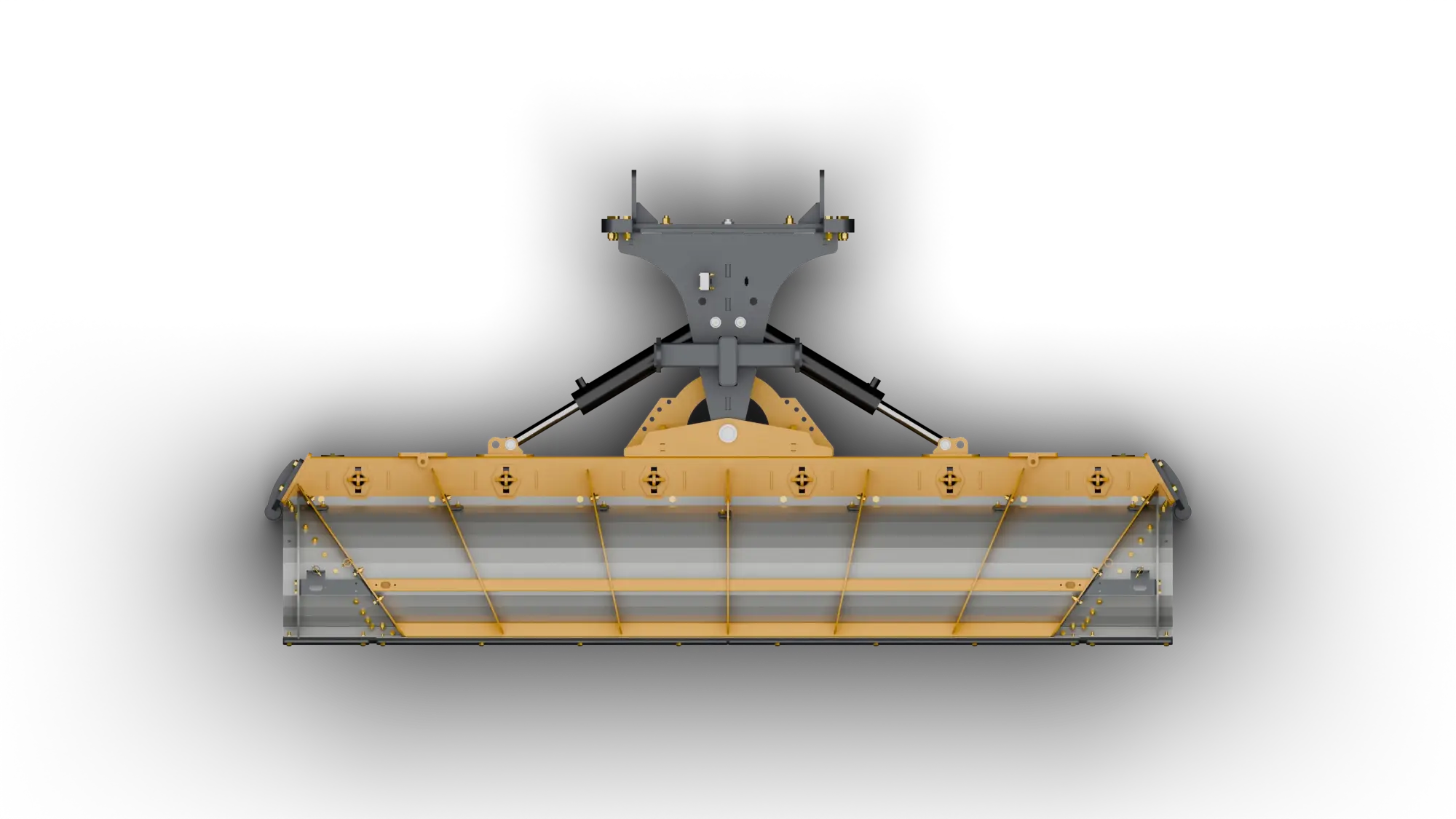

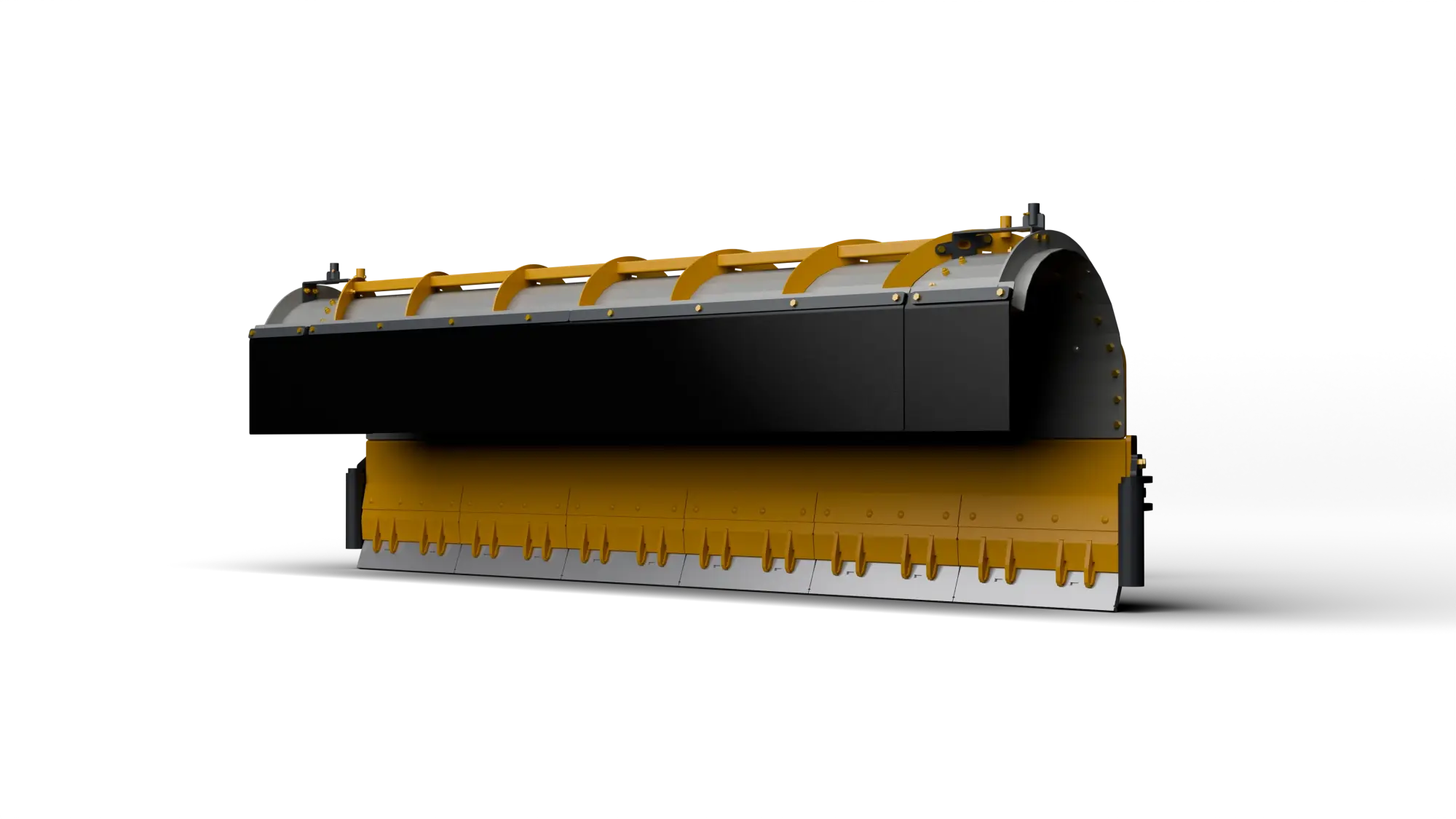

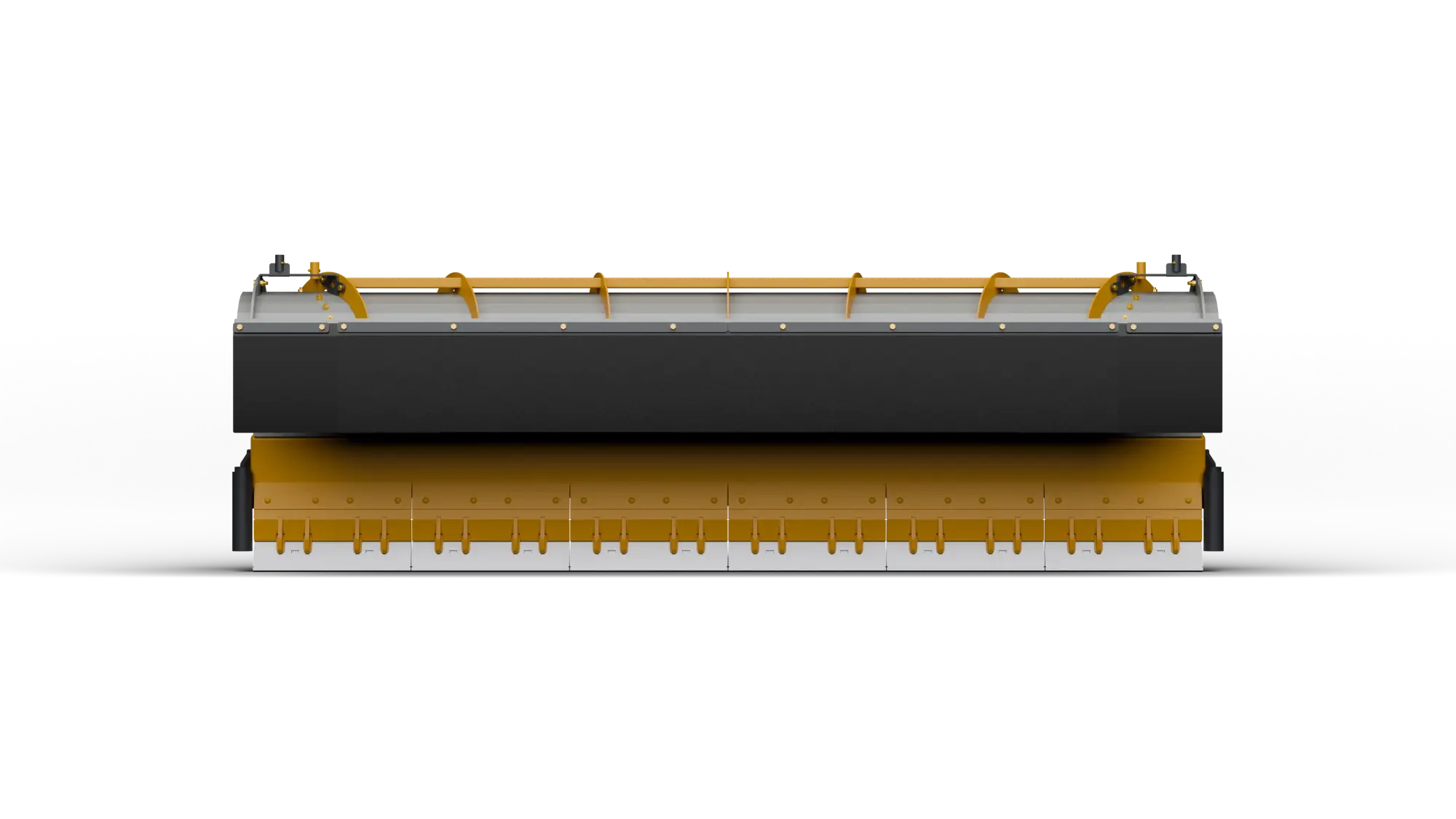

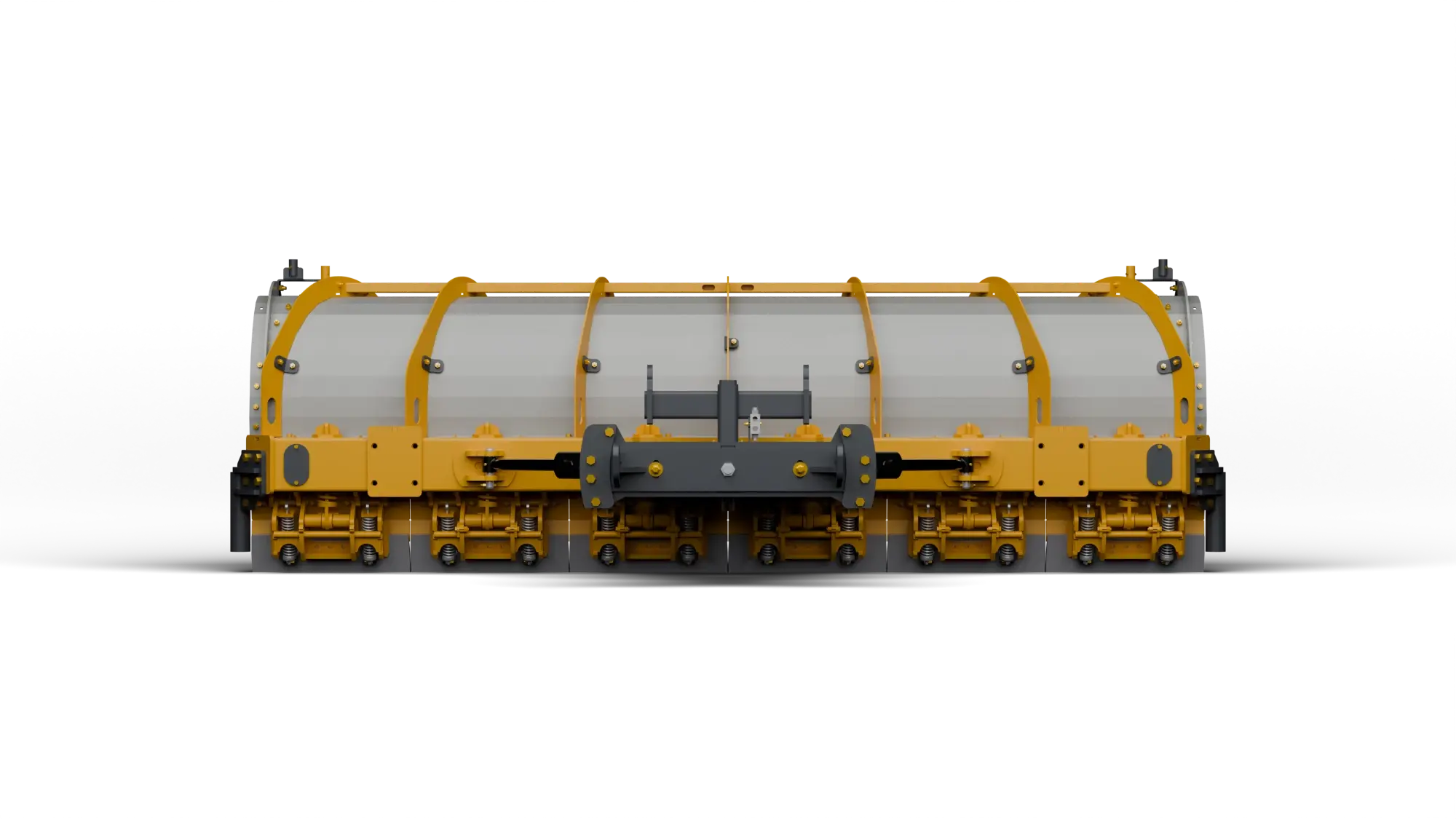

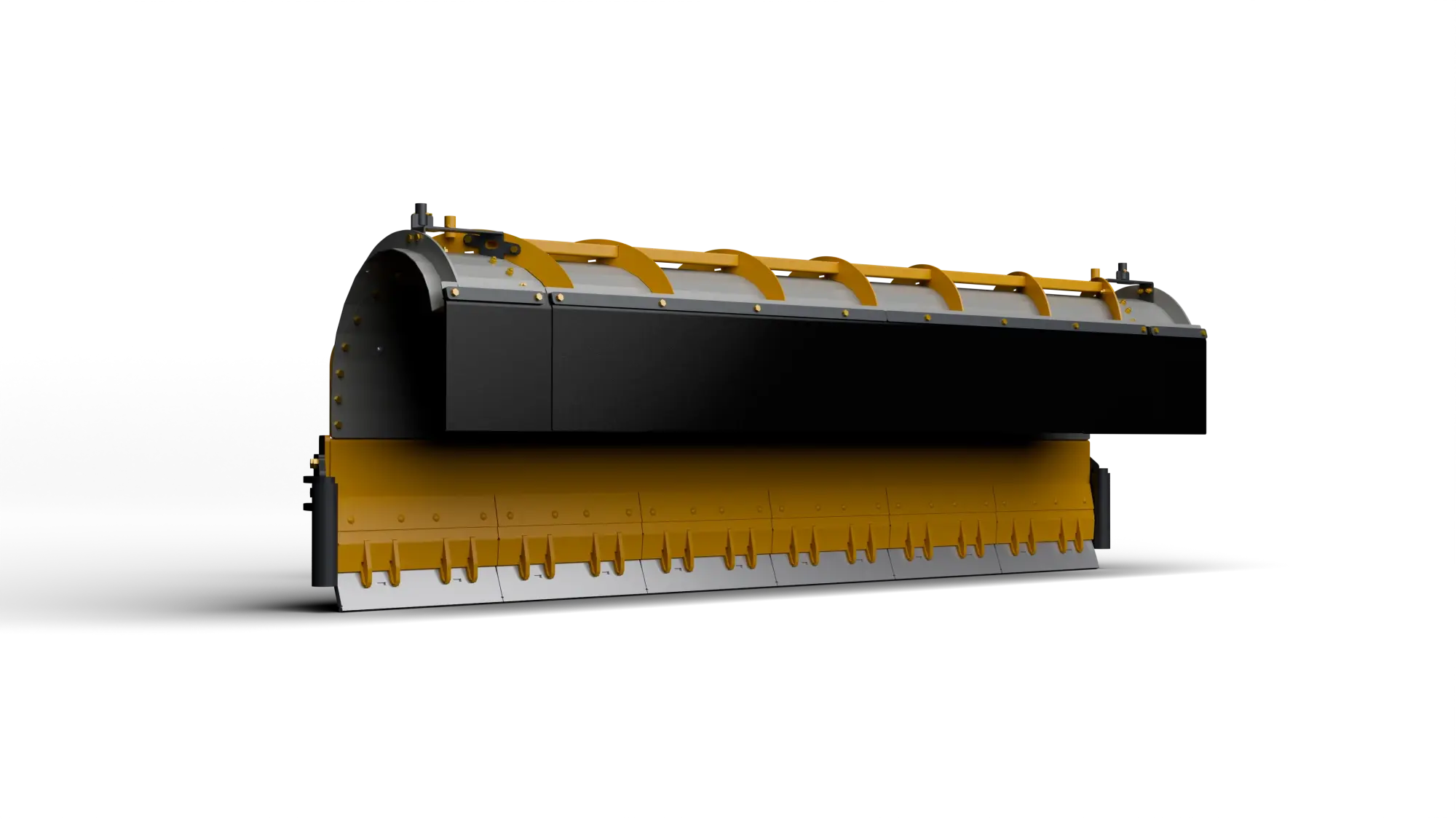

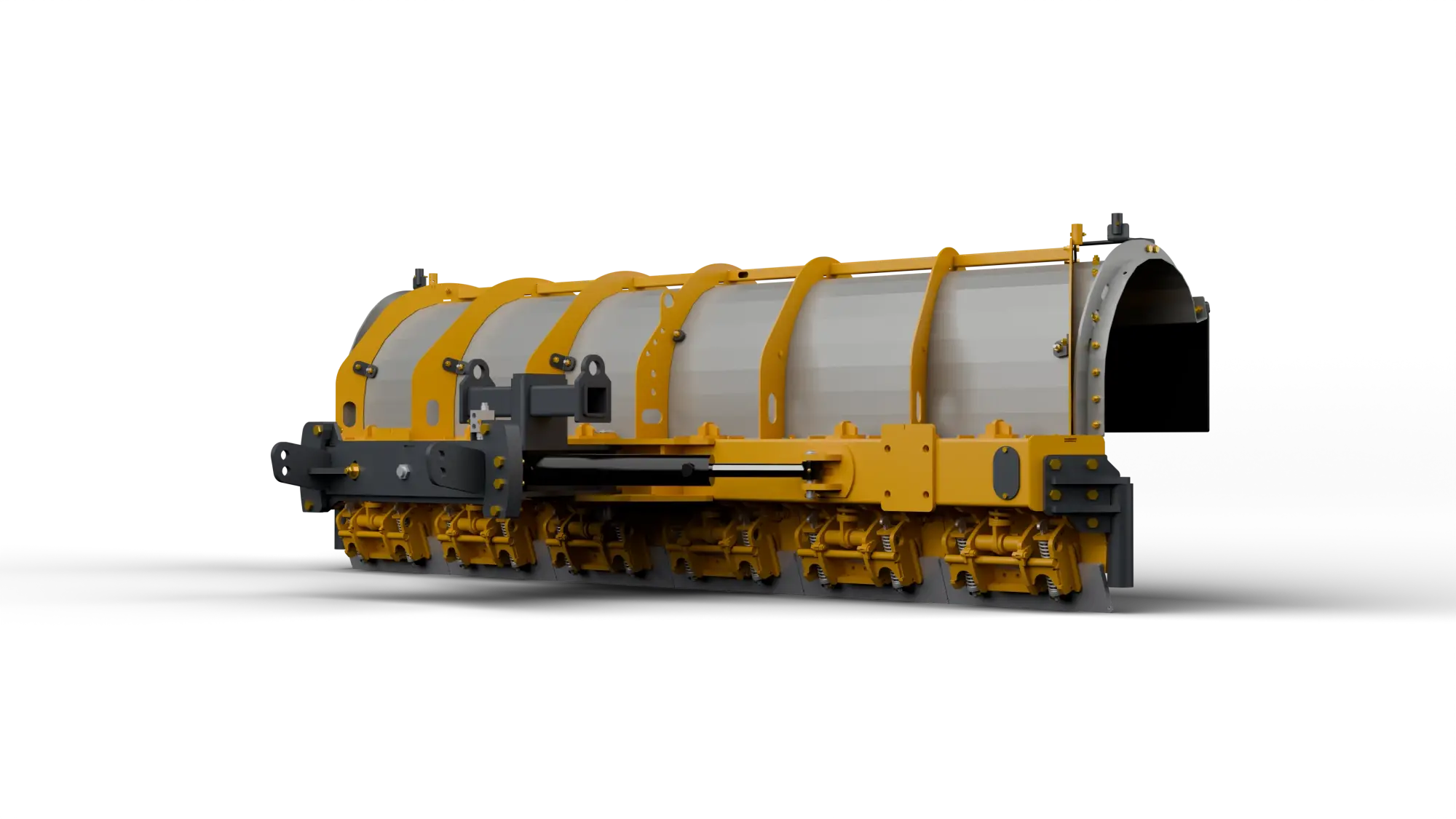

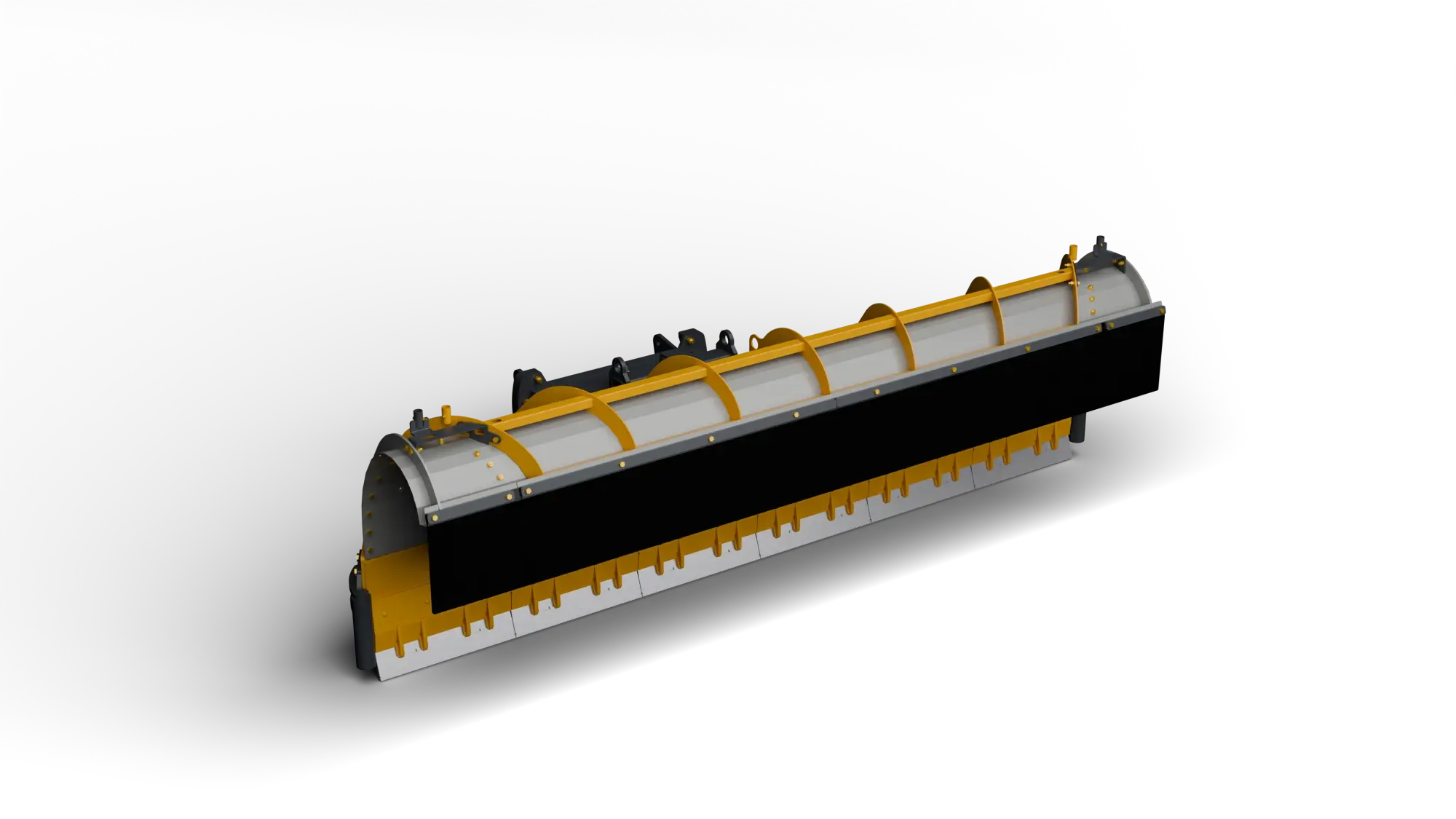

Model shown: TRK 12LE with Live Edge (LE)

Vehicles: Truck
Industries: Snow Contractors Municipalities
Sizes: TRK 10 TRK 10LE TRK 11LE TRK 12LE TRK 14LE TRKSWLT 08 TRKSWLT 10 TRKSW 10 TRKSW 12 TRKSW 14
Edges: HD LE STD LECCT
Colors

Get a quote now Find my size

Live Edge Technology

Independent floating sections follow the unevenness of the ground and trip back on their own. Full contact with the surface means a cleaner pass, fewer passes and less salt, and carbide inserts extend the wear life.

Lateral Float

Automatically follows the imperfections of the pavement. Our system incorporates an adjustable oscillating mechanism for better control. Increase plowing efficiency and no need to go over the same area multiple times.

Slip Hitch

Slip hitch design allows the plow to follow surface variations. Reduces operator fatigue and increases plowing efficiency. Cutting edges wear evenly and prolong plow life.

HD Soft Drive Trip Edge

Unique Soft Drive trip edge design allows the individual sections to trip backward without the blade being lifted upward, greatly reducing the impact.
LE Live Edge

A floating soft drive steel trip edge with carbide inserts for longer wear life, that contours the unevenness of the ground for a cleaner result.
STD Standard

Standard trip edge allows the cutting edge to trip back.

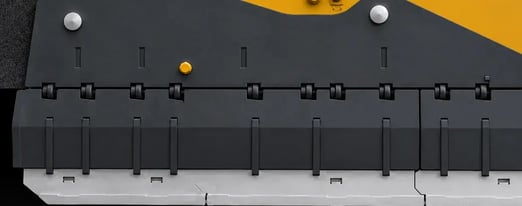

LECCT Inter-acting Live Edge

Inter-acting LIVE EDGE for hydraulic side wings. The serpentine-like movement allows the cutting edge to follow the surface being cleaned without risk of damaging the cutting edges or the area it is riding on.

TruckMaxx — Sizes & specifications
Model	Available Edges	Blade Dimensions		Application	Wing / Gate Type	Approx. Weight	Compare
Model	Available Edges	Box	Height	Application	Wing / Gate Type	Approx. Weight	Compare
TRK 10	HD	10'	30"	6 wheel truck	main blade	1,290 lb
TRK 10LE	LE	10'	36" (LE) · 42" (LE)	6 wheel truck · 10 wheel truck	main blade	1,300 lb (LE) · 2,100 lb (LE)
TRK 11LE	LE	11'	42"	10 wheel truck · 12 wheel truck	main blade	2,467 lb
TRK 12LE	LE	12'	42"	10 wheel truck · 12 wheel truck	main blade	2,720 lb
TRK 14LE	LE	14'	42"	10 wheel truck · 12 wheel truck	main blade	2,986 lb
TRKSWLT 08	STD	10'	36"	10 wheel truck · 12 wheel truck	Truck side wing	1,060 lb
TRKSWLT 10	STD	10'	36"	10 wheel truck · 12 wheel truck	Truck side wing	1,290 lb
TRKSW 10	STD - LECCT	12'	36"	10 wheel truck · 12 wheel truck	Truck side wing	1,290 lb
TRKSW 12	STD - LECCT	12' (STD) · 14' (LECCT)	36"	10 wheel truck · 12 wheel truck	Truck side wing	1,490 lb
TRKSW 14	STD - LECCT	14'	36"	10 wheel truck · 12 wheel truck	Truck side wing	1,650 lb

*Ask about our Tivar options
